LIONTRON F4 RK3399 CPU 2GB RAM 16GB eMMC Smart Face Recognition Access Control Board

LIONTRON F4 RK3399 CPU 2GB RAM 16GB eMMC Smart Face Recognition Access Control Board

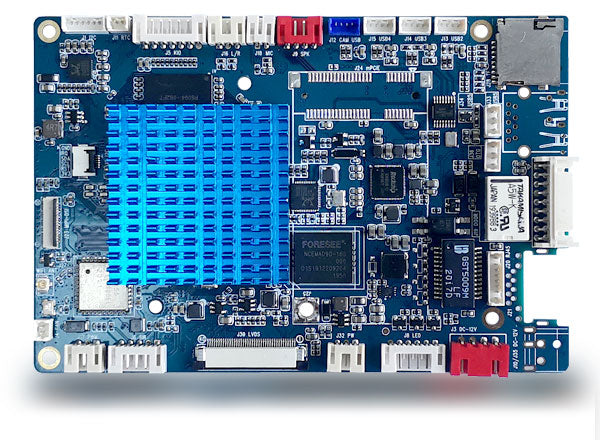

The F4 board is powered by Rockchip RK3399, a low-power, high-performance processor that integrates dual-core Cortex-A72 1.8GHz and quad-core Cortex-A53 1.4GHz. The ARM Mali-T860 GPU supports OpenGL ES1.1/2.0/3.0/3.1, OpenVG1.1, OpenCL, and DX11, enabling a perfectly smooth hardware decoding of 4k and 1080p resolution videos. With a variety of on-board display interfaces, multiple I/O and expansion options, as well as a rich set of development kits, this board can be quickly applied to the security and access control sector.

• Rockchip RK3399 ARM hexa-core CPU
  ●  LVDS and MIPI for 4K UHD decoding support
  ●  Wi-Fi 802.11 b/g/n and Bluetooth 4.0
  ●  1 x USB 2.0 OTG port, 5 x internal USB 2.0 ports
  ●  DC (wide voltage 9V-15V)
• 128GB ROM + 4GB RAM
  ●  RS-232, RS-485, Wiegand, relay interface
  ●  10/100Mbps Ethernet port
  ●  Fill light and indicator interfaces
  ●  Dimensions: 120mm x 80mm
