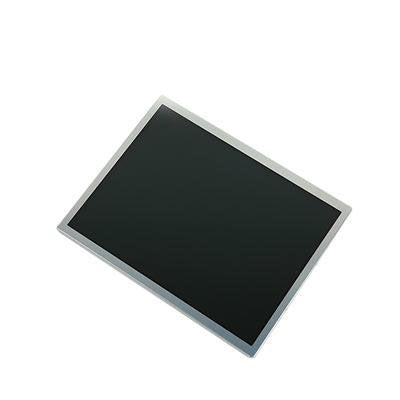

- Module No:TCG104XGLPAPNN-AN40 - TA
- Brand:Kyocera
- Size:10.4 inch
- Resolution:1024*768
- Brightness:1300 cd/m²
- Viewing angle:85/85/85/85
- Interface:20 pins LVDS (1 ch, 6/8-bit)
- CR:700 : 1
- Operating Temp.: -30 ~80 °C
- Parameters
Manufacturer | KYOCERA |
Model Name | TCG104XGLPAPNN-AN40 |
Screen Size | 10.4 |
Pixel Number | 1024(RGB)×768 [XGA] |
Active Area(mm) | 210.4×157.8 mm (H×V) |
Outline(mm) | 230×180.2×10,5mm(H×V×D) |
Bezel Area(mm) | 215.4×161.8mm(H×V) |
Treatment | Anti-glare, Hard coating (3H) |
Luminance | 1300 cd/m² (Typ.) |
Contrast Ratio | 700 : 1 (Typ.) (TM) |
Viewing Angle | 85/85/85/85(CR≥10) Left / Right / Up / Down |
Response | 18/12 (Typ.)(Tr/Td) ms |
Work Mode | AWV, often black display, transmissive |
Color Depth | 262K/16.7M , 51% NTSC |
Backlight | WLED, 70KK,Including LED Driver |
Net Weight | 480g (Typ.) |
operating frequency | 60Hz |
Touchscreen | Touchless |
Signal Type/interface Type | 20 pins LVDS (1 ch, 6/8-bit) ,terminal |
Voltage Supply | 3.3V (Typ.) |
Temperature | Storage Temp.: -30 ~80 °C Operating Temp.: -30 ~ 80 °C |
Package | As request |
KYOCERA 10.4 inch LCD screen TCG104XGLPAPNN-AN40, with 1300 luminance and -30-80°C operating temp.
TCG104XGLPAPNN-AN40 has standard 1024*768 resolution.
This screen has 70000 hours lifetime of backlight.
TCG104XGLPAPNN-AN40 is often used in outdoor devices
