LIONTRON F4 RK3399 CPU 2GB RAM 16GB eMMC Smart Face Recognition Access Control Board
The F4 board is powered by Rockchip RK3399, a low-power, high-performance processor that integrates dual-core Cortex-A72 1.8GHz and quad-core Cortex-A53 1.4GHz. The ARM Mali-T860 GPU supports OpenGL ES1.1/2.0/3.0/3.1, OpenVG1.1, OpenCL, and DX11, enabling a perfectly smooth hardware decoding of 4k and 1080p resolution videos. With a variety of on-board display interfaces, multiple I/O and expansion options, as well as a rich set of development kits, this board can be quickly applied to the security and access control sector.
- Rockchip RK3399 ARM hexa-core CPU
● LVDS and MIPI for 4K UHD decoding support
● Wi-Fi 802.11 b/g/n and Bluetooth 4.0
● 1 x USB 2.0 OTG port, 5 x internal USB 2.0 ports
● DC (wide voltage 9V-15V) - 128GB ROM + 4GB RAM
● RS-232, RS-485, Wiegand, relay interface
● 10/100Mbps Ethernet port
● Fill light and indicator interfaces
● Dimensions: 120mm x 80mm

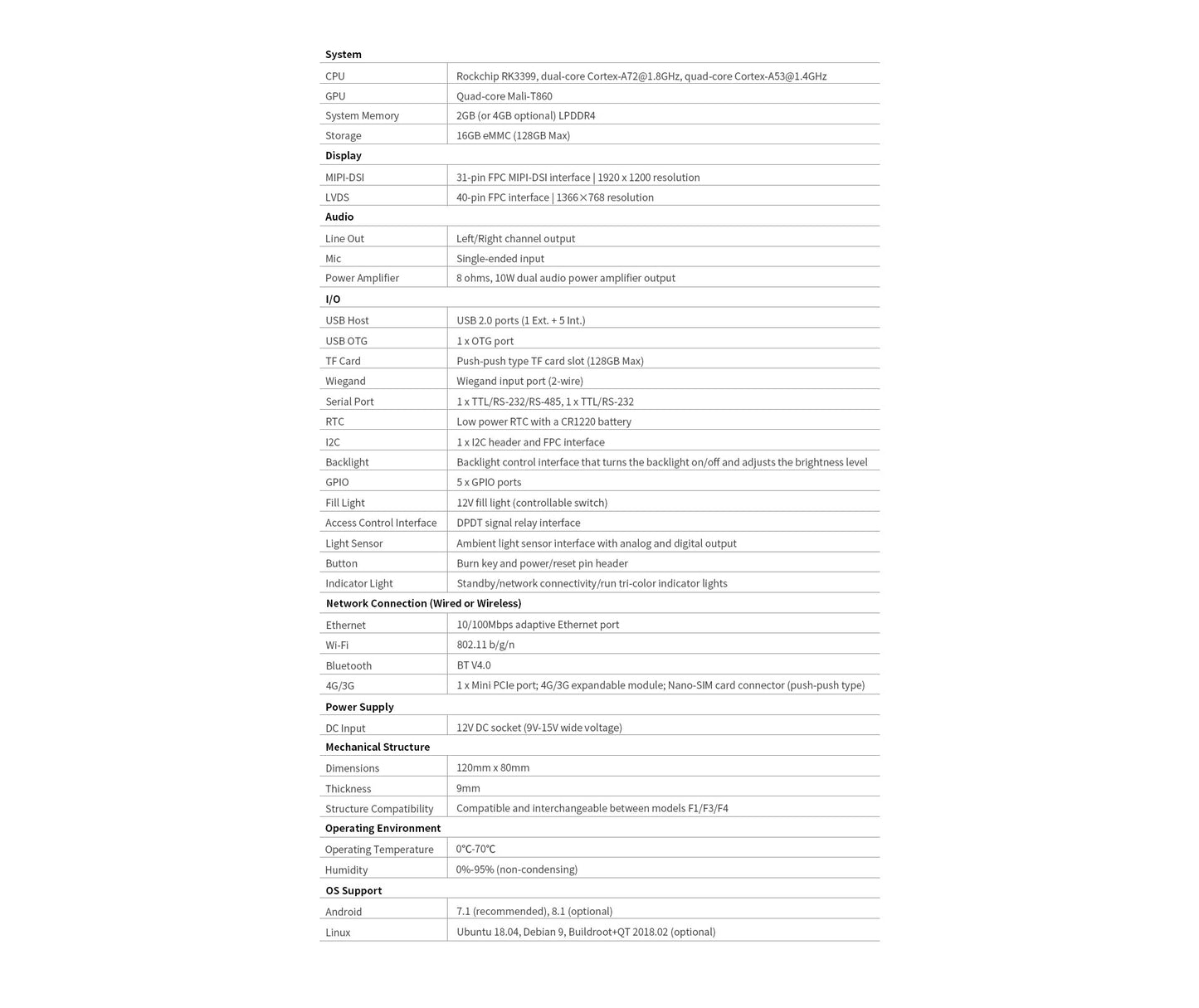

Specifications
