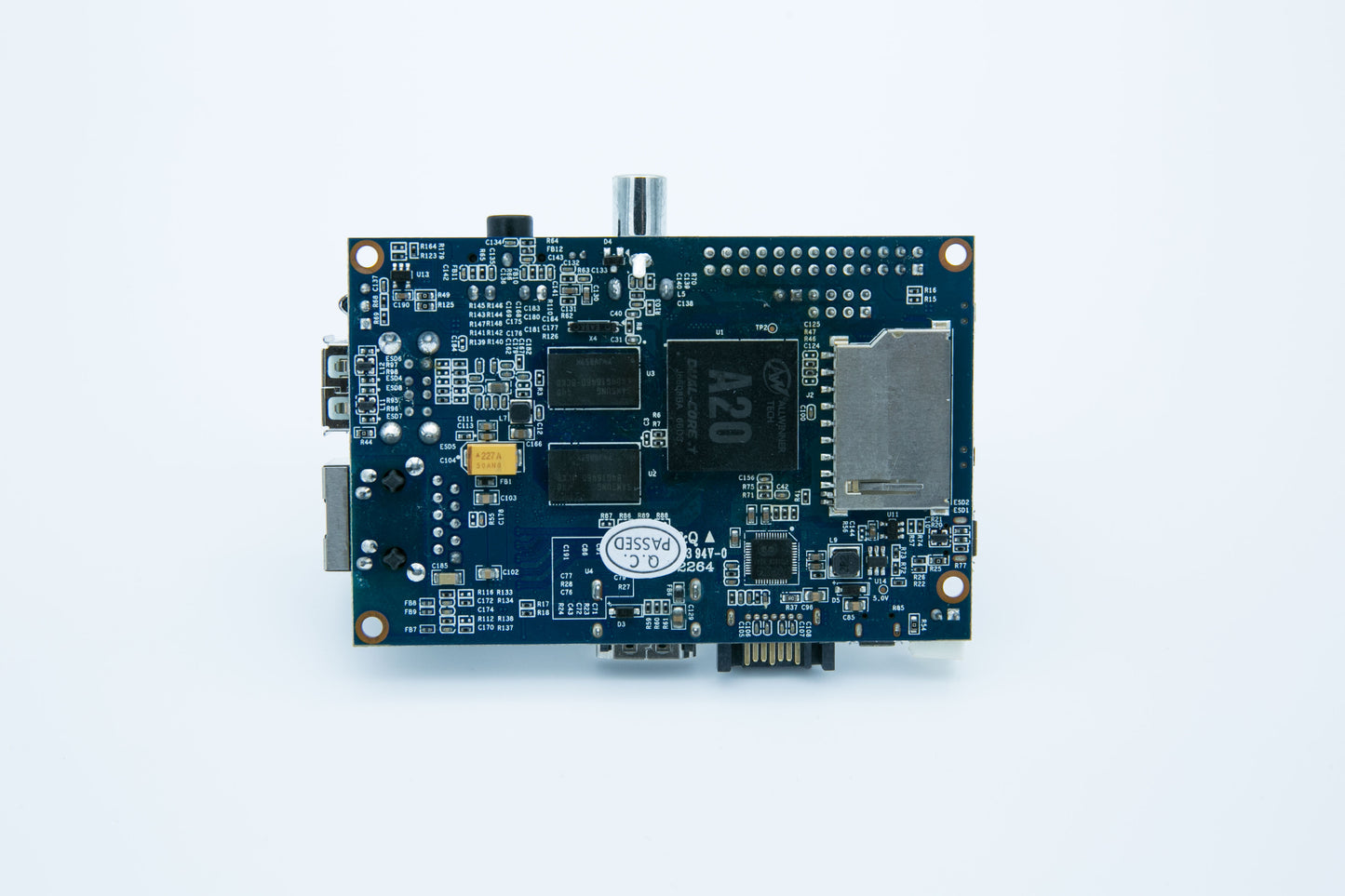

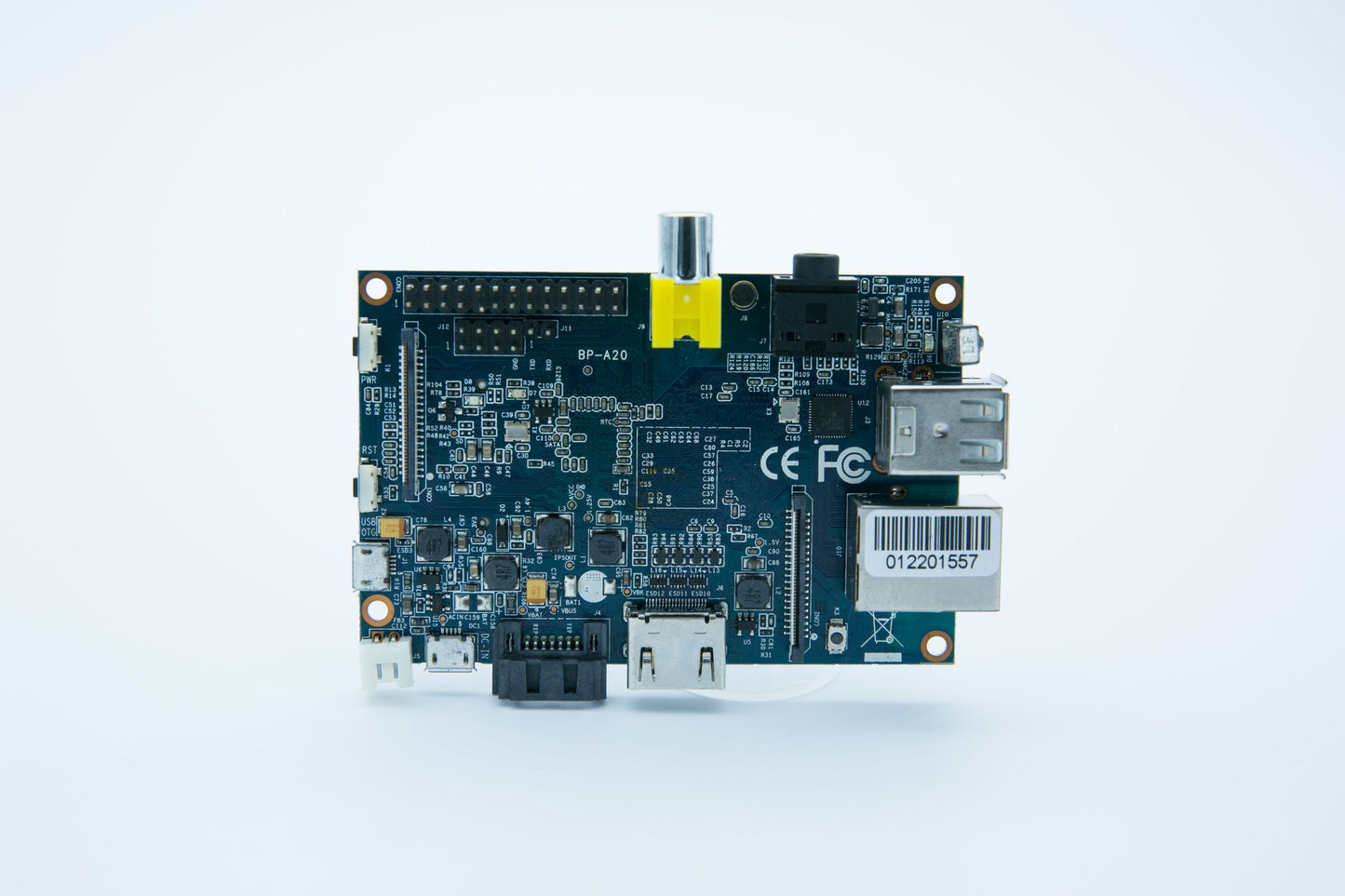

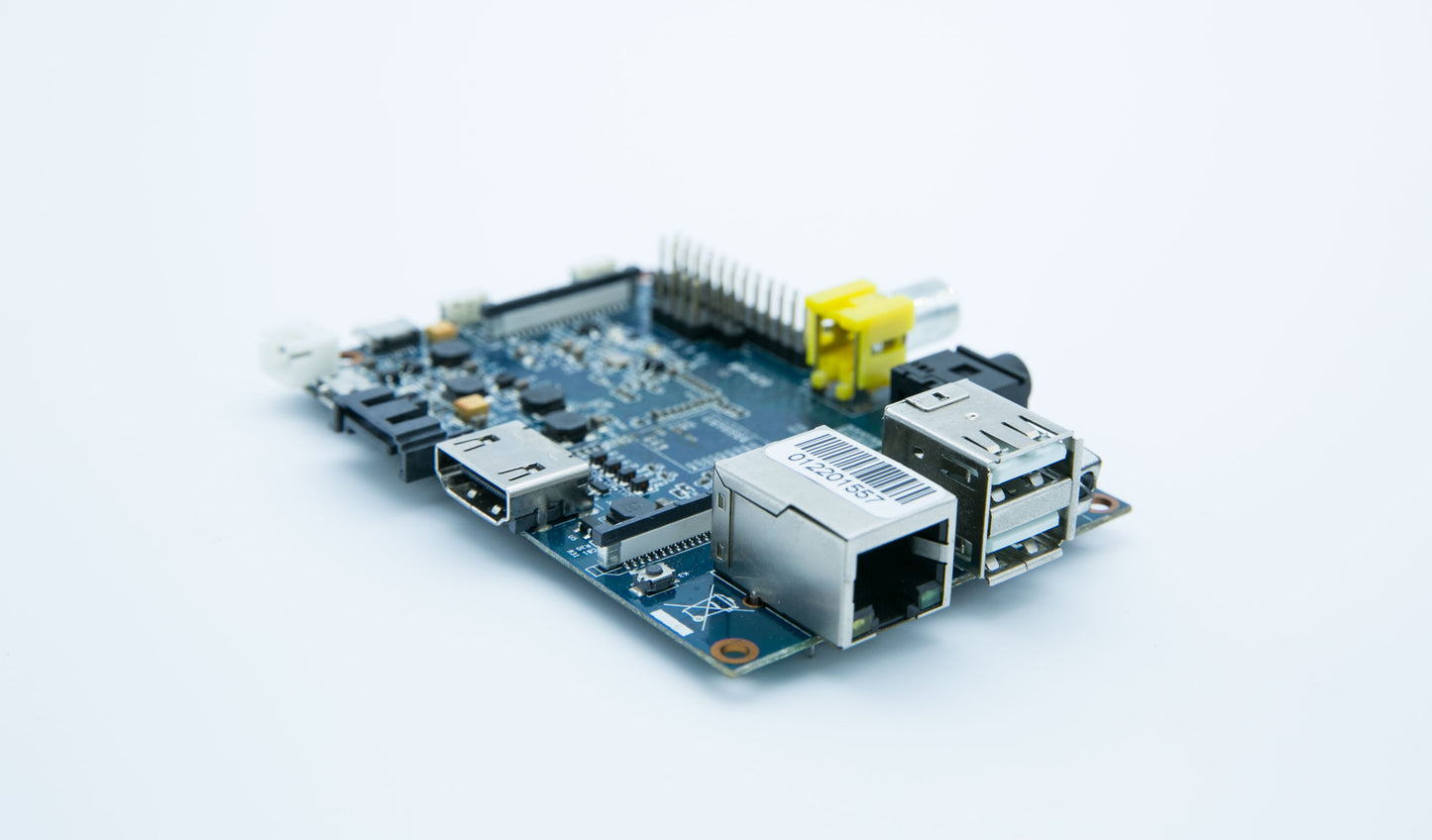

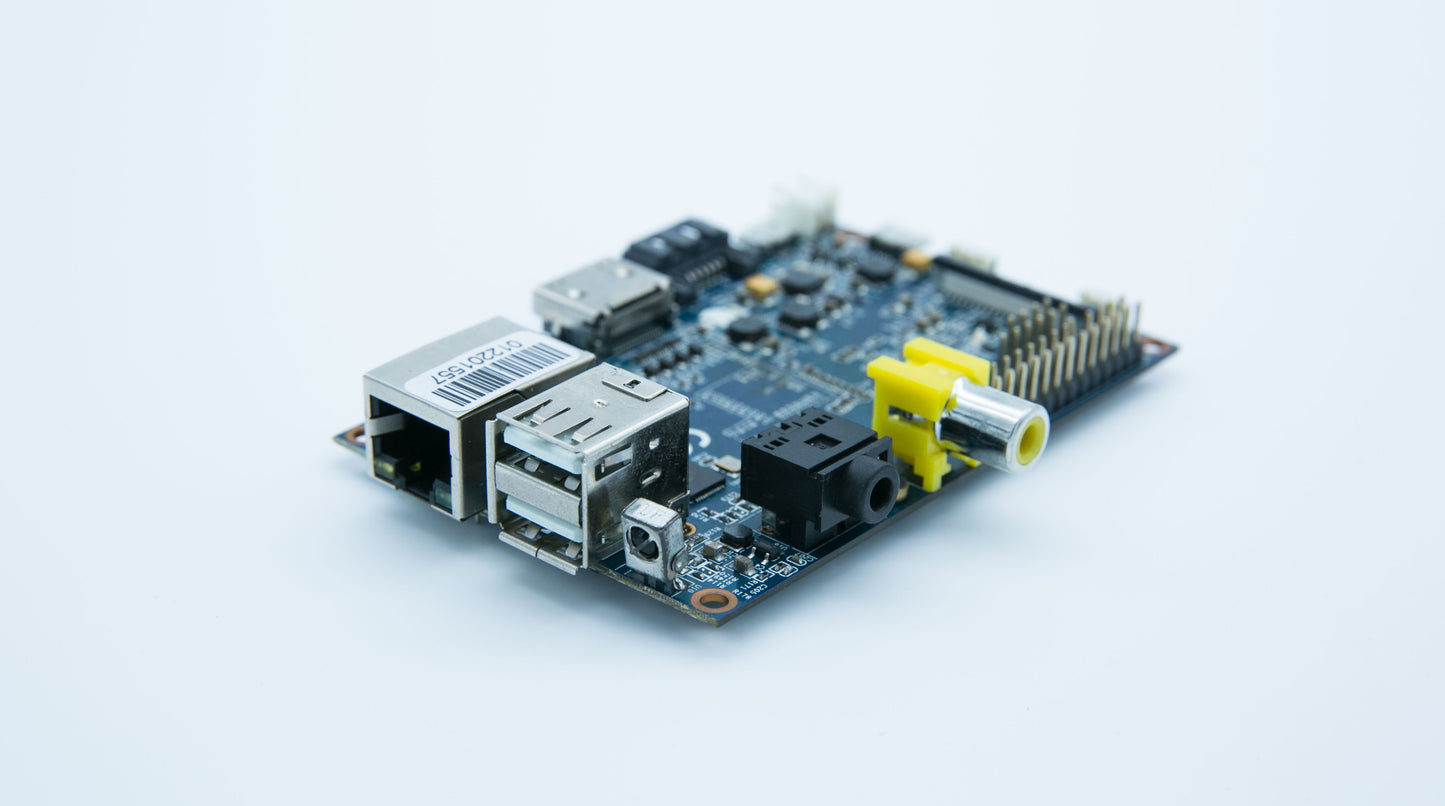

BananaPi BPI-M1 Board

Normal fiyat $26.00
Normal fiyat İndirimli fiyat $26.00
İndirim Tükendi
Kargo, ödeme sayfasında hesaplanır.
Delivery Guarantee

Delivery Guarantee

Technical Support

Technical Support

Banana Pi BPI-M1 Dual Core 32Bit 1GB DDR3

  • Allwinner A20 Dual-core 1.0GHz CPU(option:allwinner A40i)
  • Mali-400 MP2 with Open GL ES 2.0/1.1.
  • 1 GB DDR3 memory.
  • 1x SATA interface.
  • 1x Gigabit LAN
  • 1x USB otg and 2x USB 2.0
  • 1X MIC
  • AV vide out
  • HDMI out
  • IR
  • CSI camera interface
  • DSI display interface
  • 26 PIN gpio
  • The Banana Pi BPI-M1 is a business card-sized and low-power single-board computer featuring a high performance AllWinner A20 dual-core SoC at 1 GHz, 1 GB of DDR3 SDRAM, Gigabit Ethernet, SATA, USB, and HDMI connections. It can run a variety of operating systems including Android, Lubuntu, Ubuntu, Debian, and Raspbian.

  • The Banana Pi BPI-M1

  • It is the first open source hardware launched by the banana pie team, and also a classic product with the largest cumulative sales of banana pie.There are still a lot of business clients that apply to various projects.A20 chip

    Banana Pi is an open platform device, it is for anyone who wants to play and build with developer technology instead of simply using consumer technology. Backed by our community, starting a project and building servers is fun and rewarding.

    Hardware interface:

Hardware spec:

Banana Pi BPI-M1 Hardware spec
CPU A20 ARM Cortex -A7 Dual-Core (option:allwinner A40i)
GPU ARM Mali 400 MP2; Complies with OpenGL ES 2.0/1.1
Memory 1GB DDR3
Network 10/100/1000 Ethernet
Video Input A CSI input connector allows for the connection of a designed camera module
Video Outputs HDMI, CVBS, LVDS/RGB
Audio Outputs 3.5mm jack and HDMI
Power Source 5 volts DC via Micro USB or GPIO
USB 2.0 ports 2 (direct from Allwinner A20 chip)
LED Power Key & 8P8C
Storage SATA 2.0,


For more information about BananaPi BPI-M1 Board, please concact us.
