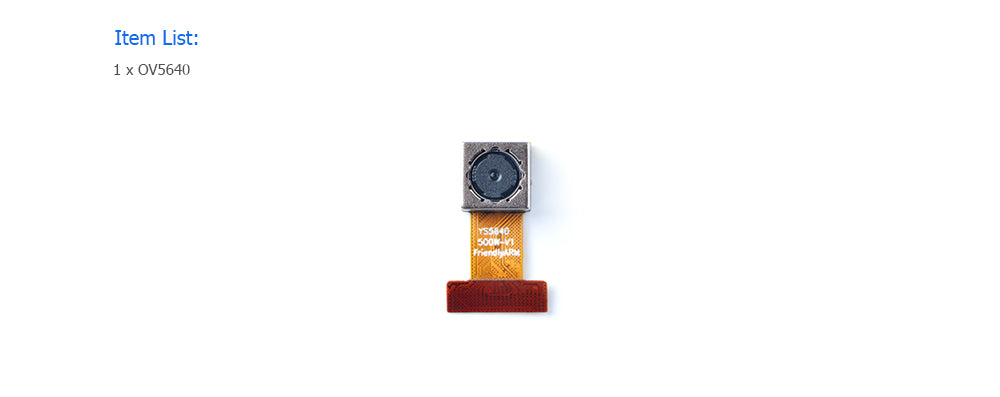

5MP Camera Module for NanoPi Duo2

Normal fiyat $7.90
Normal fiyat İndirimli fiyat $7.90
İndirim Tükendi
Kargo, ödeme sayfasında hesaplanır.
Delivery Guarantee

Delivery Guarantee

Technical Support

Technical Support

5MP Camera Module

The OV5640 camera uses a Omni Vision' s 1/4 QSXGA CMOS OV5640 chipset. It supports up to 5M-pixel (2592 x 1944) image sizes and 720P@30fps video recording. It supports various auto functions like AFC, AWB, AEC and etc.
The OV5640 camera' s focal length is 2.7mm. Its F number is 2.8. Its view angle is 66 ° It is powered by 3V. It can be connected to the NanoPi Duo2 via a customized 24pin FPC cable for NanoPi Duo2. These features make it popular in various applications such as surveillance systems, smart vehicles, drones and etc.


OV5640 Features

Array Size

2592 x 1944

Power Supply

3V (only this module)

Power Requirements

Active: TBD Standby: TBD

Temperature Range

Operating: -30°to 70° Stable Image: Octo 50°

Output Format

8-/10 bit RGB RAW output

Lens Size


Input Clods Frequency

6-27 Mhz

Max Image Transfer Rate

·  QSXGA(2596 x 1944):15fps

·  1080p:30fps

·    1280 x 960: 45fps

·  720p: 60fps

·  VGA(640 x 480): 90fps

·  QVGA(320 x 240): 120fps

Supported Output Formats


·  RGB565/555/444

·    CCIR656,

·  YUV422/420

·  YCbCr422

·  and compression




Rolling shutter / frame exposure

Maximum Exposure

1964 x tROW

Pixel Size

1.4 pm x 1.4 pm

Dark Current


Well Capacity


Fixed Pattern Noise


Image Area

3673.6 pm x 2738.4 pm

Package Dimension

5985 pm x 5835 pm


Note 1: the following data is quoted from the OV5640's datasheet.

Note 2: due to limited performance of the PCB boards we presented in the following cases the module's performance data listed above may not be met in real applications. The following features and performance data may only apply to FriendlyElec develop. boa.. The OV5640 module may have other features we did. cover here.
