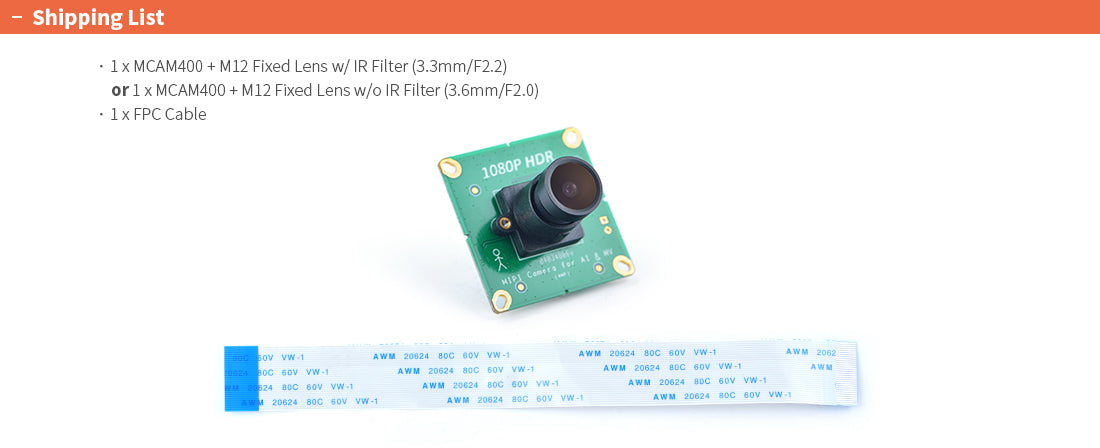

1080P HDR MIPI Camera - MCAM400

Normal fiyat $12.90
Normal fiyat İndirimli fiyat $12.90
İndirim Tükendi
Kargo, ödeme sayfasında hesaplanır.
Delivery Guarantee

Delivery Guarantee

Technical Support

Technical Support

The MCAM400 module uses an Omni Vision's 4MP CMOS OV4689 image sensor and an M12 Lens. It has a four-lane MIPI output interface and supports up to 2688 x 1520 photographing and 1920x1080@l20fps video recording. It has a built-in IR Cut-Off filter motor driver. The module's size is 38 x 38 mm.

Sensor size 1/3"
Active pixels 2688H x 1520V
Pixel size 2.0 um x 2.0 um
Output format 10-bit RAW RGB
Max S/N ratio 38.3dB
Sensitivity 1900mv/lux-sec
Temperature range operating: -30℃ to +85℃ junction temperature
stable image: 0℃ to +60℃ junction temperature

Fixed Lens w/ IR Filter(Standard)
Focal Length (EFL) 3.3mm
Fno 2.2
MAX FOV D/H/V 135℃/110℃/80℃
Equivalent focal length 26.4mm
FBL and BFL 4.28mm, 4.38mm
TTL 21.5mm
TV Distortion < -15%
Optical Structure 4G+IR CUT
Wavelength 400nm-650nm
Thread Size M12x0.5
Barrel Material Aluminium Alloy
Fixed Lens w/o IR Filter(Optional)
Focal Length (EFL) 3.6mm
Fno 2.0
Equivalent focal length 28.8mm
MAX FOV D/H/V 132℃/102℃/76℃
Equivalent focal length 28.8mm
FBL and BFL 7.67mm, 5mm
TTL 21.5mm
TV Distortion < -35%
Optical Structure 5x6G
Thread Size M12x0.5
Barrel Material Aluminium Alloy


OS Support Android 8.1 + TensorFlow Lite, Camera app
FriendlyCore 18.04 (64-bit) + Gstreamer 1.0
FriendlyDesktop 18.04 (64-bit) + Gstreamer 1.0
Lubuntu 16.04 (32-bit) + Gstreamer 1.0
Kernel version Linux-4.4-LTS
U-boot-2014.10


Board Support NanoPC-T4
NanoPi M4
NanoPi NEO4


Weight 10.3g
Dimension 38*38mm
