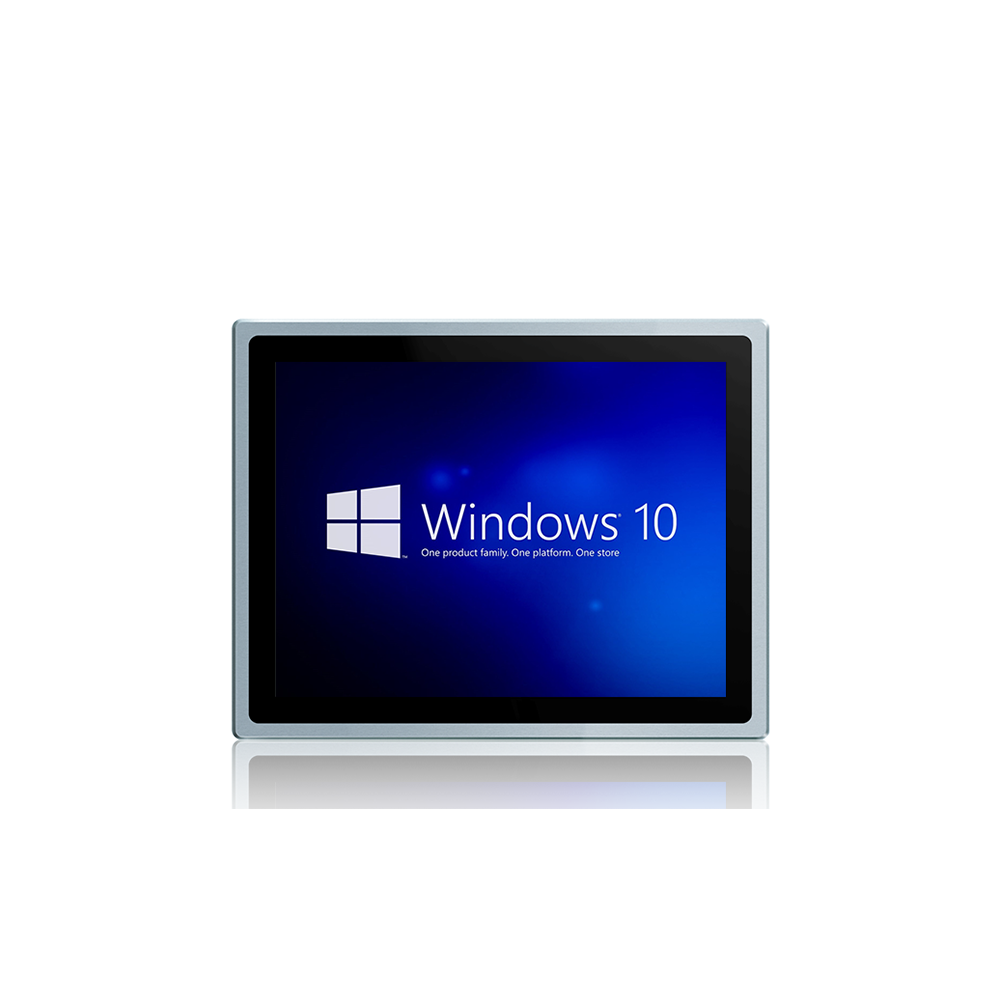

Zhichun Z Series 10,4 inch All-In-One Industrial Flat Panel PC - Capacitive Touch -J1900 CPU + 4GB RAM + 64GB SSD For WINDOWS
Model:ZZS-W104PPC
Zhichun Z Series 10,4 inch All-In-One Industrial Flat Panel PC - Capacitive Touch -J1900 CPU + 4GB RAM + 64GB SSD has the main specification below:
Specification:
Host Configuration Parameter |
Mainboard Type |
Industrial Mainboard |
CPU |
Intel® Celeron® J1900, Quad-core, 2GHz, TDP 10W |
|
RAM |
4GB (Support DDR3L-1333 MHz, 1 * SO-DIMM Slot,Up to 8GB) |
|
SSD |
64GB |
|
USB |
1*USB3.0,3*USB2.0(add two extra USB2.0 optional) |
|
HDMI |
1 * HDMI |
|
COM Port |
2 * COM (RS232/422/485 auto-flow) |
|
VGA |
1 *VGA |
|
LAN |
1* Realtek PCI-E NIC RTL8111F (10/100/1000Mbps) |
|
AUDIO |
Realtek ALC662 5.1 Channel HDA Codec , Support MIC/Line-out Ports |
|
Power |
12V DC_IN Power Input Connector |
|
WIFI |
Optional |
|
OS |
Windows/Linux,Preinstalled Win10 64bit |
|
Touch Screen |
Type |
PCAP Touch |
Respond Time |
≤5ms |
|
Luminousness |
85±5% |
|
Surface Hardness |
6H |
|
Click Lifetime |
50 millions times |
|
Anti Static Pressure |
5kg/cm2 |
|
Communication Interface |
USB interface |
|
Display Screen |
Type |
10,4 inches |
Interface |
LVDS |
|
Backlight |
LED |
|
Backlight MTBF |
50000h |
|
Resolution |
1920*1080 |
|
Brightness |
300cd |
|
Dynamic Contrast |
1000:1 |
|
Viewing Angle |
R/L:65(Typ.), U/D:65(Typ) |
|
Environmental Parameters |
Operating Temperature |
-10-+60 |
Storage Temperature |
-20-+70 |
|
Relative Humidity |
20%-90% |
|
General Parameters |
Outline Dimension |
577mm×353mm×51mm(L*W*H) |
Display Dimension |
523mm×295mm(L*W) |
|
Shell Material |
Front panel aluminum die casting + aluminum alloy back cover |
|
Installation Type |
Wall-Mounted,Desktop |
Accessories: Optional Accessories:
Product Name |
Specification |
|
Product Name |
Specification |
Wall-Mounted Plate |
1 PCS |
|
Power Cable |
3M /5M |
Adapter |
12V/5A |
|
Desktop Stand |
Desktop installation optional |
Power Cable |
1.5M |
|
|
|
Touch Pen |
1 PCS |
|
|
|
Manual/Warranty Card |
Each 1 PCS |
|
|
|
For more information about Zhichun Z Series 10,4 inch All-In-One Industrial Flat Panel PC - Capacitive Touch -J1900 CPU + 4GB RAM + 64GB SSD, please contact us
