- Module No：TCG043WQLBAANN-GN00
- Size：4.3 inch
- Brightness：450 cd/m²
- Viewing angle：70/70/60/65
- Interface：Parallel RGB (1 ch, 8-bit) , 40 pins , FPC
- CR：350 : 1
- Operating Temp.: -20 ~70 °C
|Screen Size||4.3 inch|
|Pixel Number||480(RGB)×272, WQVGA|
|Active Area(mm)||95.04×53.856mm (H×V)|
|Outline(mm）||105.5×67.2 ×6.2mm (H×V)|
|Bezel Area(mm)||98.7 ×57.5 mm(H×V)|
|Luminance||450 cd/m² (Typ.)|
|Contrast Ratio||350 : 1 (Typ.) (TM)|
|Viewing Angle||70/70/60/65(CR≥5) Left / Right / Up / Down|
|Response||25 (Typ.)(Tr/Td) ms|
|Work Mode||TN, Normally white, Transmissive|
|Color Depth||16.2M , 46%|
|Backlight||70K hours,NO Driver|
|Net Weight||75g (Typ.)|
|Signal Type/interface Type||Parallel RGB (1 ch, 8-bit) , 40 pins , FPC|
|Voltage Supply||3.3V (Typ.)|
|Temperature||Storage Temp.: -20 ~70 °C
Operating Temp.: -30 ~ 80 °C

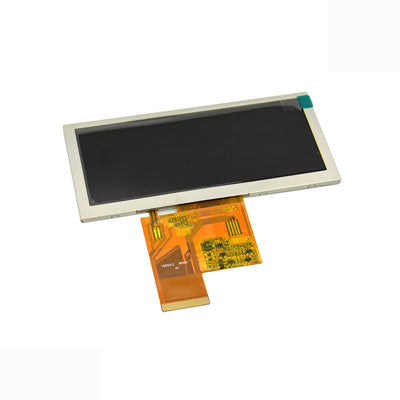

Kyocera 4.3 inch LCD screen TCG043WQLBAANN-GN00, with 450 luminance
TCG043WQLBAANN-GN00 has standard 480*272 resolution.
70000 hours lifetime.
