Sipeed Maix M1 AI+lOT Module

In order to allow the Al module to be used in more situations, the Sipeed team also launched a version of the Maix M1 module without WiFi function. If users do not need to use the wireless networking function, they can choose Sipeed Maix M1W module. The AI ​​functions of the Sipeed Maix M1 module and the Sipeed Maix M1W module are the same, and the usage methods are basically the same. The main difference is that the Sipeed Maix M1W module has more WiFi functions than the Sipeed Maix M1 module.



1. Sipeed Maix M1 and Sipeed Maix M1W

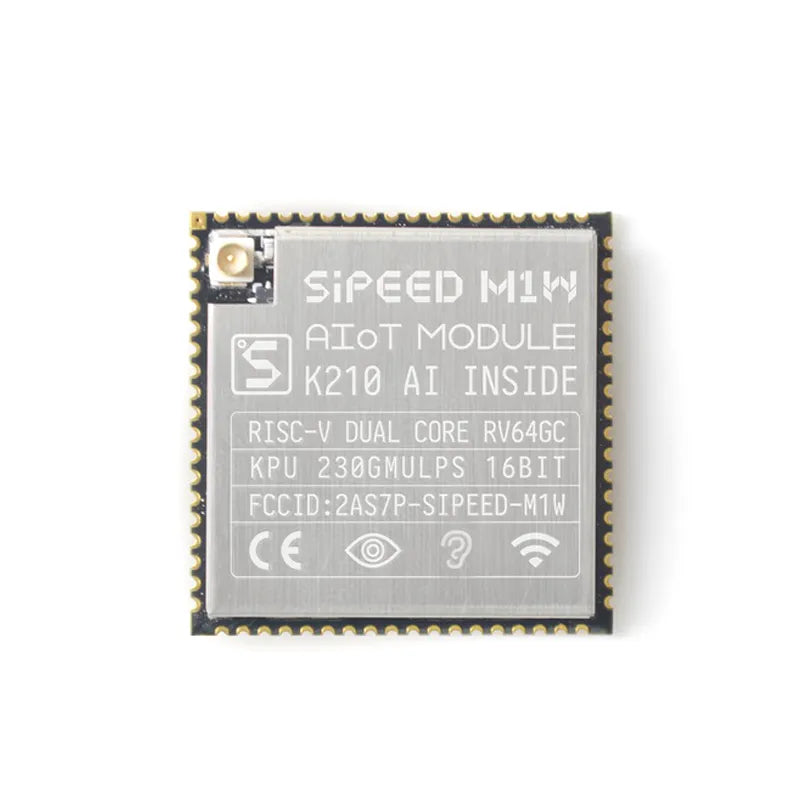

The M1/M1W module is an AIOT module designed based on Canaan Kanzhi Technology's edge intelligent computing chip K210 (RISC-V architecture). The main control chip has a built-in 64-bit dual-core high-performance and low-power processor. Each core has a floating-point operation unit (FPU), a convolutional artificial neural network hardware accelerator (KPU) and a fast Fourier transform accelerator (FFT). Equipped with field programmable IO array (FPIOA), it supports a variety of mainstream AI programming frameworks. The M1W module has a built-in ESP8285 WiFi chip with standard 802.11 b/g/n protocol, allowing the module to easily connect to the Internet.

M1/M1W


2.Application

Smart homes, robot cleaners, smart speakers, electronic door locks, home monitoring, etc.;
medical industry applications, such as auxiliary diagnosis, medical image recognition;
smart industrial applications, such as industrial machinery, smart sorting, electrical equipment monitoring, etc.;
educational robots, Intelligent interactive platform, education efficiency inspection and other educational applications;
agricultural applications, such as agricultural monitoring, pest and disease monitoring, automatic control, etc.



3. M1/M1W Parameter

The M1/M1W Al module system is mainly composed of four parts: power supply (3 Channel DC-DC), Flash chip (16M) circuit, K210 chip and WiFi chip. As the core unit, K210 is very powerful. The chip has a built-in 64-bit dual-core processor and 8M of on-chip SRAM. The module has outstanding performance in AI machine vision and hearing performance. The total computing power of the chip can reach 1TOPS. The chip has a variety of built-in hardware acceleration units (KPU, FPU, FFT, etc.), which can easily implement machine vision/hearing algorithms in various application scenarios. It can also perform pre-processing of voice direction scanning and voice data output. The M1W module is embedded with wireless WiFi function, which can easily realize network control.



K210 chip basic parameters
Kernel RISC-V Dual Core 64bit, with FPU
Main frequency 400MHz (can be overclocked to 600MHz)
SRAM Built-in 8M Byte
Image Identification QVGA@60fps/VGA@30fps
Speech Recognition Microphone array (8mics)
neural network model
  • Support YOLOv3
  • Mobile netv2
  • TinyYOLOv2
deep learning framework Supports mainstream frameworks such as TensorFlow\Keras\Darknet\Caffe
Peripheral FPIOA、 UART、 GPIO、 SPI、 I2C、I2S、 TIMER
video processing
  • Neural Network Processor (KPU)
  • FPU meets IEEE754-2008 standard
  • Audio Processor (APU)
  • Fast Fourier Transform Accelerator (FFT)
Module software
operating system FreeRtos and Standrad development ki
programming language MicroPython
machine vision Support convolutional neural networks
machine hearing High performance audio processor (APU)
development environment Serial terminal, MaixPy IDE
Module hardware
size 25.4*25.4*3.3mm
pin 72 PIN full pinout
Supply voltage 5.0V @ 300mA (supply current needs to be greater than 300mA)
Operating temperature -30°C ~85°C
Wi-Fi function parameters
master control ESP8285
wireless standards 802.11 b/g/n
Frequency Range 2400Mhz - 2483.5Mhz
antenna Standard IPEX interface antenna
Wi-Fi model Support Station / SoftAP /SoftAP+Station

For more information about Sipeed Maix M1 AI+lOT Module, please contact us
