Sipeed

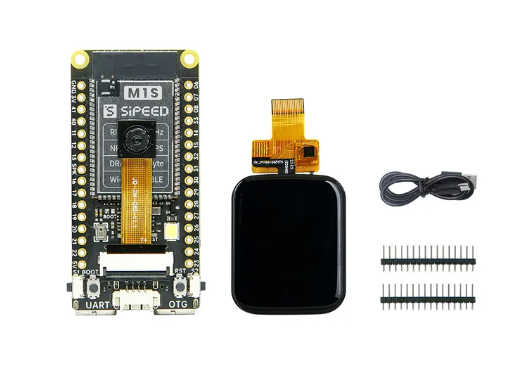

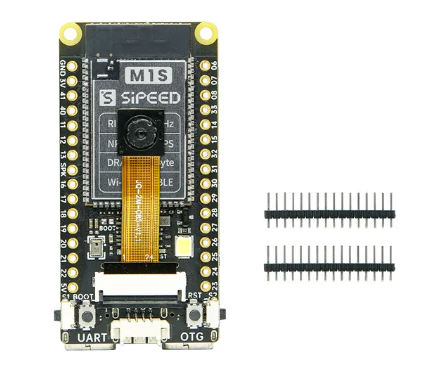

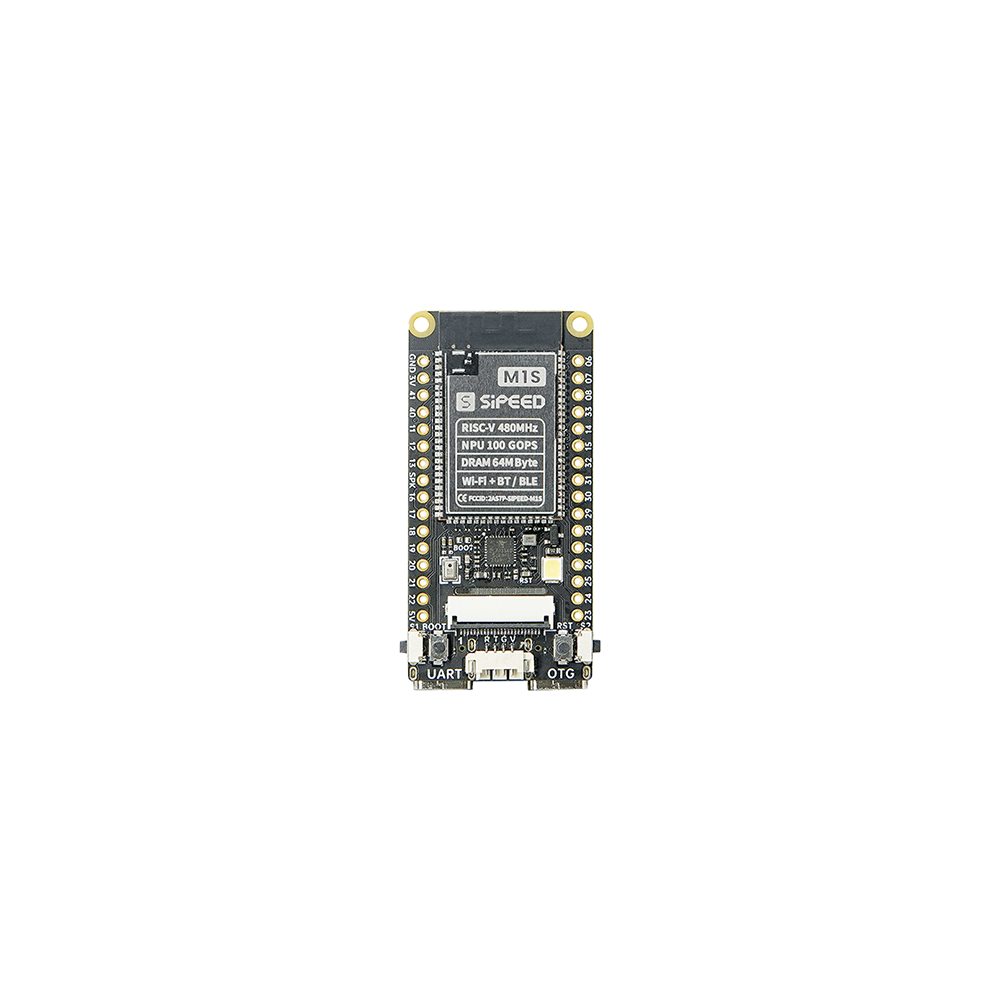

Sipeed M1S Board and Dock

In stock: 1500 available.

$6.90
$6.90
Sale Sold out
Shipping calculated at checkout.
Delivery Guarantee

Delivery Guarantee

 Technical Support

Technical Support

Sipeed M1s Dock AI+IoT BL808 tinyML RISC-V Linux Artificial Intelligent Development Board



1. Summary

Sipeed Maix 1 M1S Board with Dock is a development board designed based on Sipeed M1s module，routes interface like MIPI CSI、SPI LCD and FPC connector, to get rid of worries about connecting cable. Designed with the most minimal design, for customers to evaluate the module, or hobbyists to play directly, etc.




2. Video

Video of M1s Dock and M0Sense：M1s Dock is before 3:15，and time after 3:15 is M0Sense.

3. Features

  • MainChip BL808 RISC-V 480Mhz + NPU BLAI-100
  • Onboard USB to UART debugger
  • Onboard screen interface (Optional 1.69-inch 240x280 capacitor touch screen)
  • Onboard MIPI camera interface (Optional 2M solution camera)
  • Support 2.4G WIFI / BT / BLE
  • Onboard 1 analog microphone、1 LED、1 TF card slot
  • Route USB-OTG to USB Type-C port

3.2. Chip Cores

Three cores in chip: M0，D0，LP。

M0 D0 LP
T-HEAD E907@320MHz T-HEAD C906@480MHz T-HEAD E902@160MHz



3.3. Function Block

m1s_dock_function_block_top m1s_dock_function_block_top

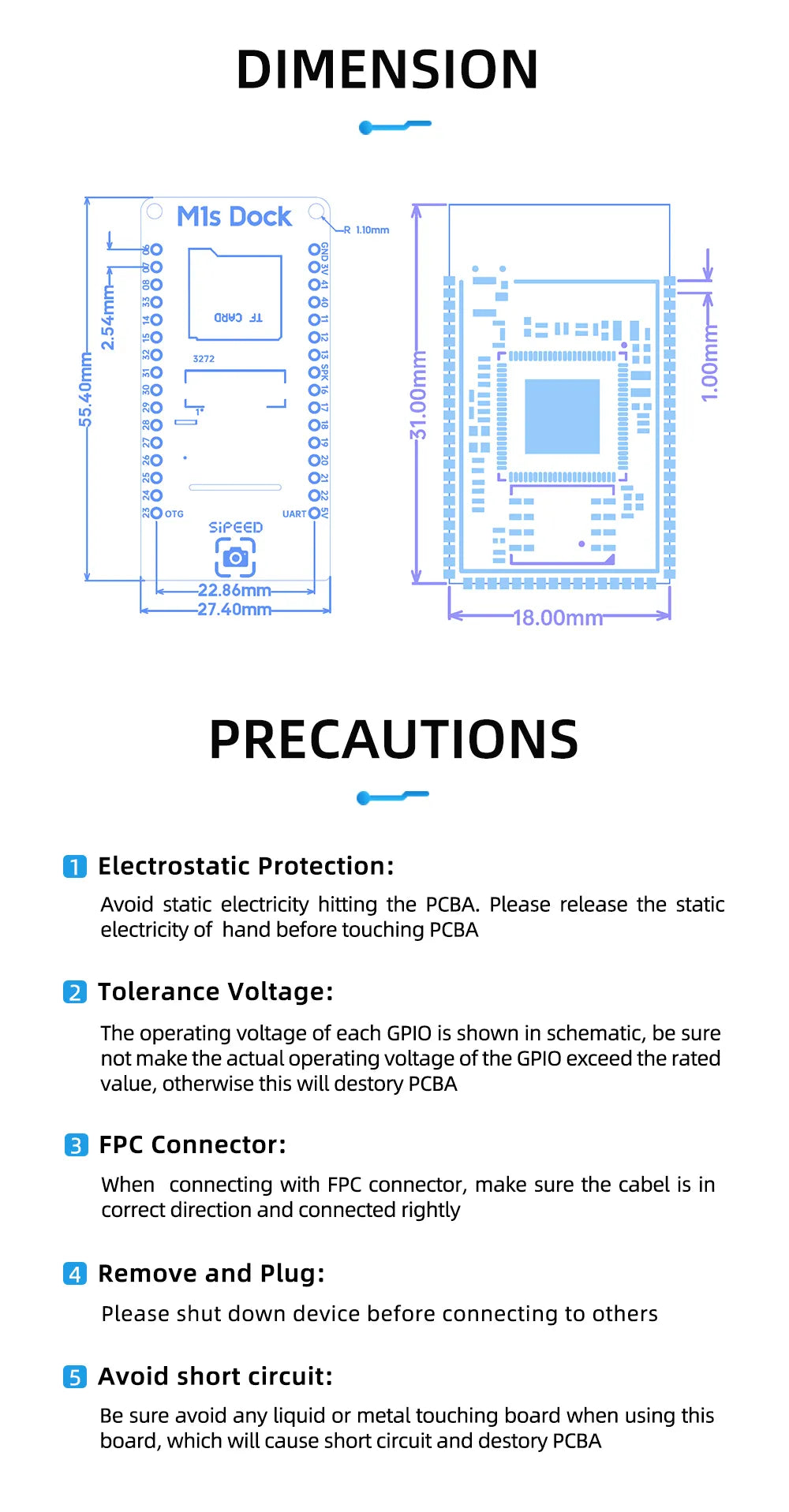

3.4. Dimenssion

m1s_dock_size

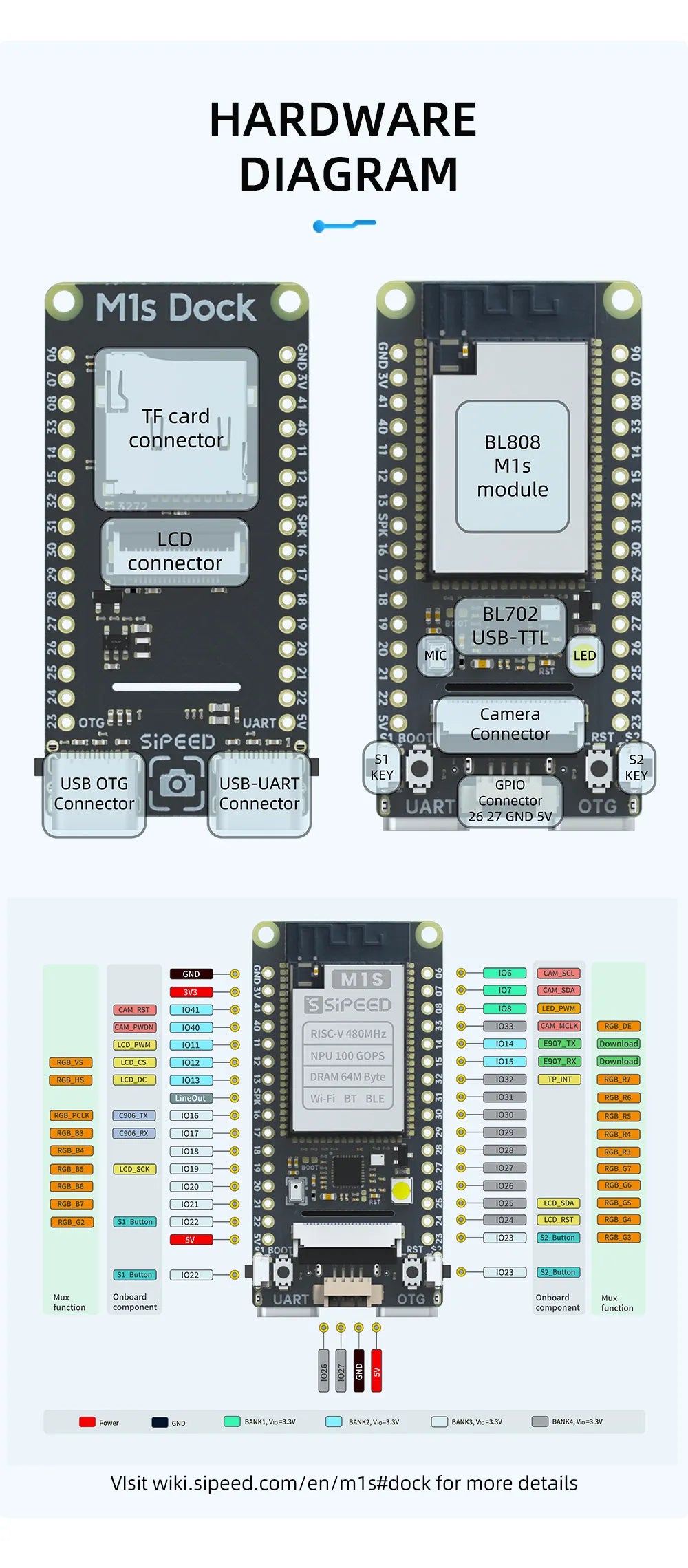

3.5. Pinmap

m1s_doc_pin_map

For more information about Sipeed Maix I M1S Board, please contact us
