Sipeed

Sipeed Licheepi Zero V3S Linux Starter Core Board

Regular price $14.30 USD
Regular price Sale price $14.30 USD
Sale Sold out

Sipeed Licheepi Zero V3S Linux Starter Core Board

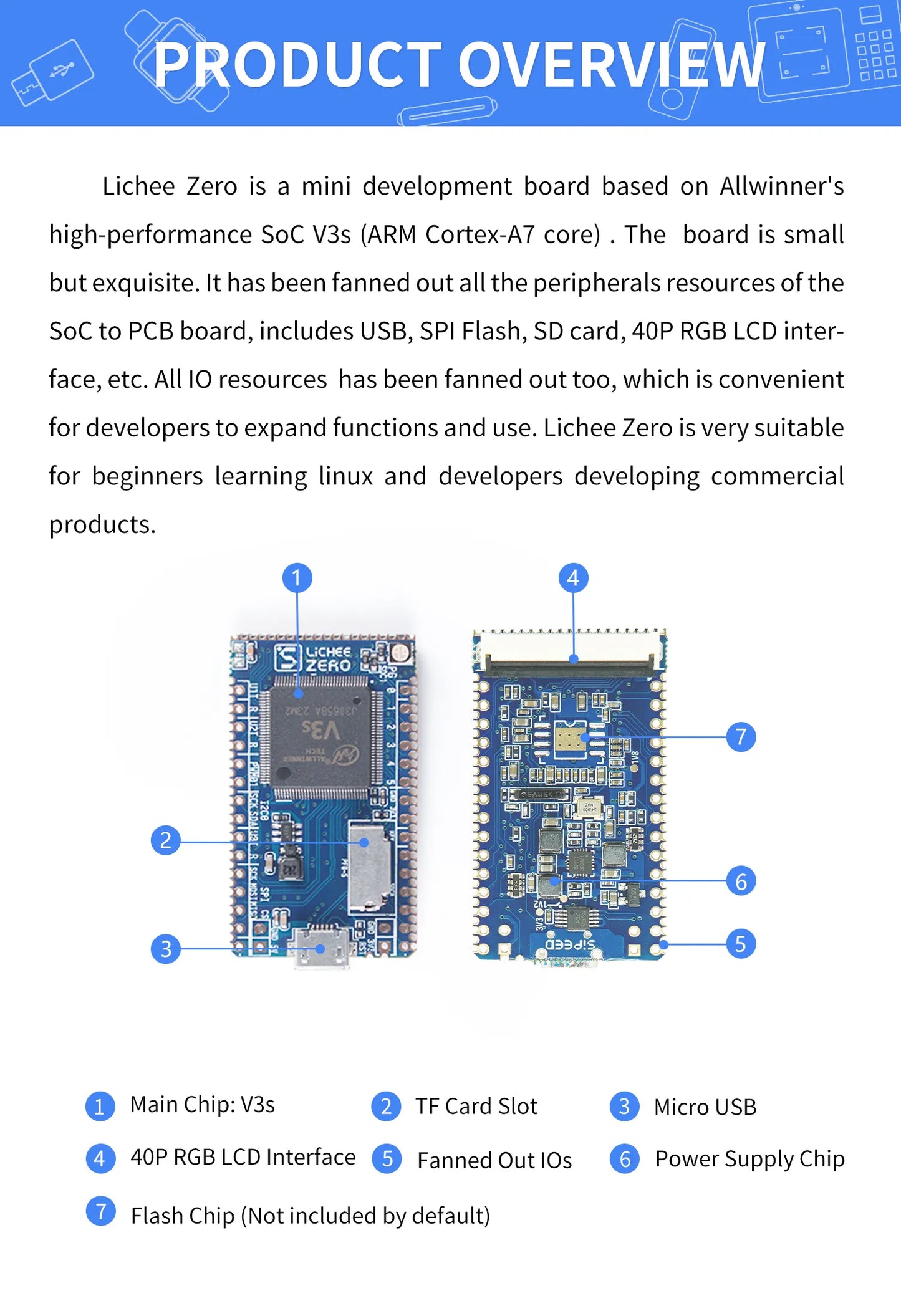

  1. 1. Overview of Lichee Pi Zero

    Introducing the Sipeed Licheepi Zero Core Board – Pioneering Innovation at Its Heart!

    Lichee Zero is a mini development board designed based on Allwinner's V3s (ARM Cortex-A7 core) high-performance CPL chip. The design of the development board is small and exquisite. It draws out all the resources of the chip. It has on-board USB, Flash, TF card, 4OP LCD interface, etc., and draws out all IO resources, which is convenient for developers to expand and use. It is suitable for beginners to learn Linux or commercial products. development.

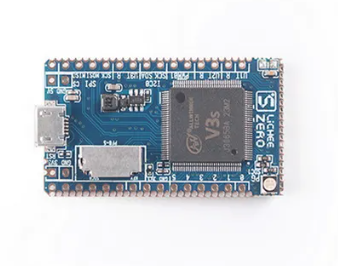

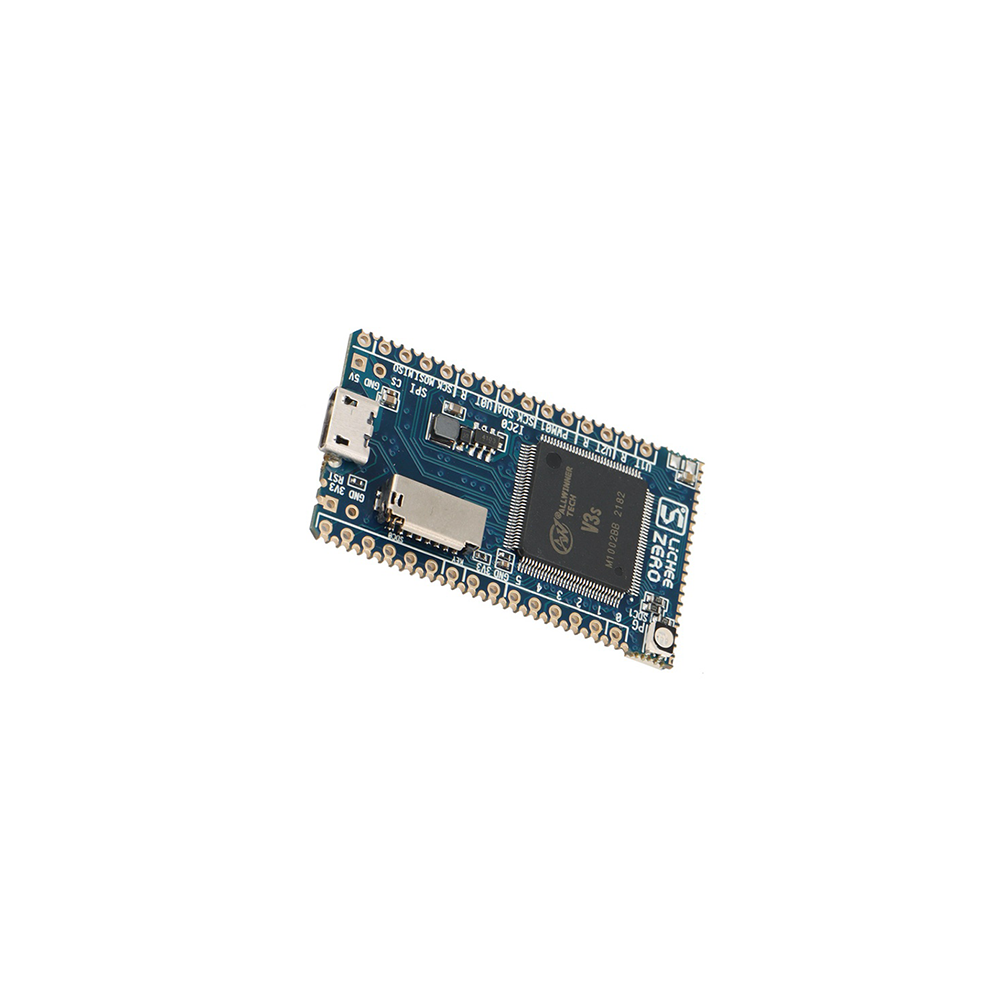

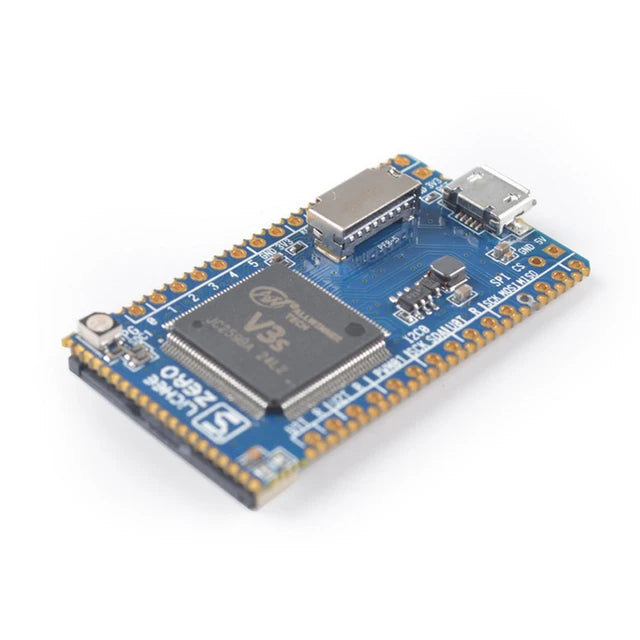

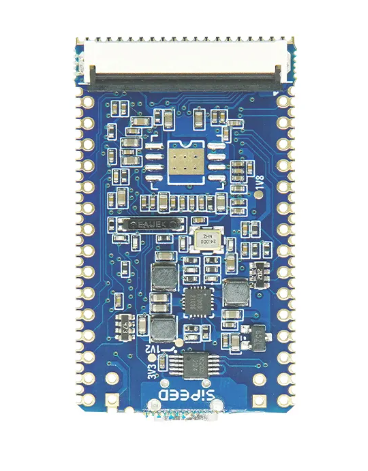

    Core board:

    Core board + expansion board:

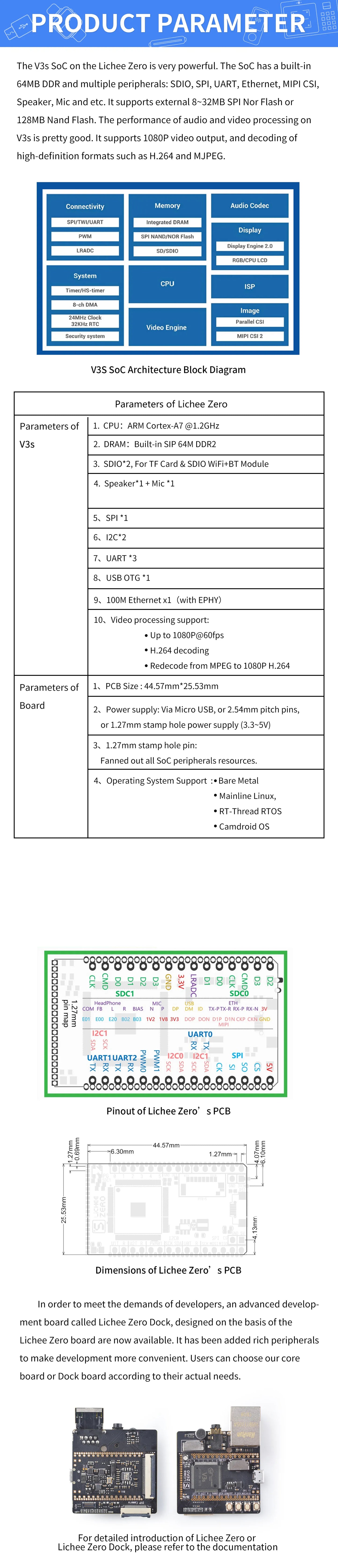

    2. Parameter

    2.1. V3s parameters

    V3s framework

    project parameter
    CPU ARM Cortex™-A7 up to 1.2GHz
    Memory Integrated 64MB DRAM
    Audio Codec • Integrated 92dB audio codec
    • Supports two ADC channels and two DAC channels
    • Supports one low-noise analog microphone bias outputs
    • Supports one microphone input and one stereo microphone outpu
    Video • Supports 1080p@40fps or 1080p@30fps+VGA@30fps H.264 video encoding,
    • Supports H.264 1080p@30fps decoding, MJPEG 1080@30fps decoding
    Video Input/Output • Supports 8/10/12-bit parallel CSI and 4-lane MIPI CSI2
    • Supports up to 5M CMOS sensor
    • Supports RGB/i80/LVDS LCD up to 1024x768 resolution
    Connectivity • 3 x SD card controllers
    • LRADC/SPI/TWI/UART/PWM
    • USB, EMAC+PHY
    ISP • Integrated ISP up to 5M pixels
    • Supports two channel outputs for display and encoding respectively
    • Supports various input and output formats
    • Supports AE/AF/AWB
    • Supports saturation adjustment/ noise reduction/ defect pixel correction/distortion correction

    2.2. Lichee Zero core board parameters #

    project parameter
    CPU V3s
    Memory 64MB DDR2
    storage Reserved SOP8 SPI Flash pad onboard
    TF card holder
    show The universal 40P RGB LCD FPC holder
    can be directly plugged into the common 40P 4.3/5/7-inch screen (onboard backlight driver), and the 50P 7/9-inch screen can be plugged into the adapter board to support common 272x480, 480x800, 1024x600
    and other resolution boards. Contains resistive touch screen chip, supports resistive screen
    onboard RGB LED
    Communication Interface SDIO x2, can be used with matching SDIO WiFi+BT module
    SPl x1
    12C x2
    UART x3
    100M Ether x1 (including EPHY)
    OTG USB x1
    MIPI CSI x1
    Other interfaces
    PWM x2
    LRADC x1
    Speakerx2+ Mic x1
    Electrical characteristics Micro USB 5V power supply
    2.54mm pin 3.3V~5V power supply
    1.27mm stamp hole power supply


    2.3. Lichee Zero expansion board

    project parameter
    CPU V3s
    Memory 64MB DDR2
    storage Reserved SOP8 SPI Flash pad onboard
    TF card holder
    show The universal 40P RGB LCD FPC holder
    can be directly plugged into the common 40P 4.3/5/7-inch screen (onboard backlight driver), and the 50P 7/9-inch screen can be plugged into the adapter board to support common 272x480, 480x800, 1024x600
    and other resolution boards. Contains resistive touch screen chip, supports resistive screen
    onboard RGB LED
    Communication Interface SDIO x2, can be used with matching SDIO WiFi+BT module
    SPI x1
    I2C x2
    UART x3
    100M Ether x1 (including EPHY)
    OTG USB x1
    MIPI CSI x1
    Other interfaces
    PWM x2
    LRADC x1
    Speakerx2+ Mic x1
    Onboard peripherals Ethernet interface
    3.5mm headphone jack
    Electret microphone
    Extra TF card slot
    4 buttons
    MIPI interface
    Electrical characteristics Micro USB 5V power supply
    2.54mm pin 3.3V~5V power supply
    1.27mm stamp hole power supply



For more information about Sipeed Licheepi Zero V3S Linux Starter Core Board, please contact us.

The Sipeed Licheepi Zero Core Board is your passport to the future of embedded computing. Designed to ignite your creativity, this compact and high-performance board empowers developers, enthusiasts, and makers to bring their visions to life with ease.

Key Features:

  1. Compact Marvel: The Licheepi Zero Core Board boasts an ultra-compact form factor, ensuring it fits seamlessly into your projects while remaining remarkably portable.

  2. Powerful Core: Powered by the Allwinner RISC-V processor, this board delivers impressive computing power and efficiency, making it ideal for a wide range of applications.

  3. Versatile Connectivity: With a versatile range of interfaces, including USB, GPIO, I2C, and more, you have the freedom to connect peripherals and expand your project's horizons effortlessly.

  4. AI-Ready: Dive into the realm of artificial intelligence and machine learning with support for neural processing, enabling you to create intelligent and innovative applications.

  5. Open-Source Ecosystem: Join the thriving open-source community and access a treasure trove of resources, tutorials, and community support to fuel your development journey.

  6. Wireless Wonder: Seamlessly connect to the world with integrated Wi-Fi and Bluetooth capabilities, opening doors to remote control and monitoring of your projects.

Whether you're building IoT solutions, robotic marvels, educational masterpieces, or custom applications, the Sipeed Licheepi Zero Core Board is your trusted companion for turning ideas into reality. Elevate your innovation game and embark on a limitless journey of creativity and discovery.

Don't miss out on the opportunity to bring your projects to life effortlessly. Order the Sipeed Licheepi Zero Core Board today and be at the forefront of innovation! Your imagination is the only limit.

For more information about Sipeed Licheepi Zero V3S Linux Starter Core Board, please contact us
