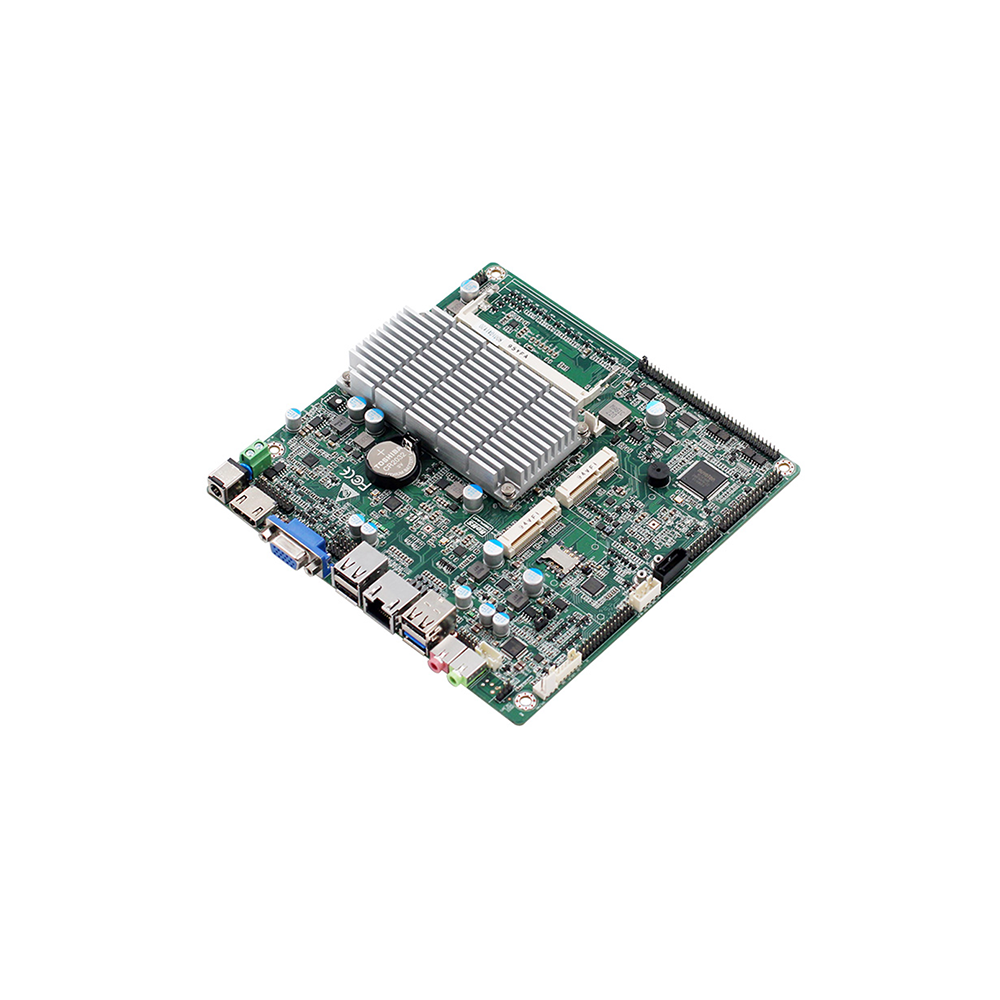

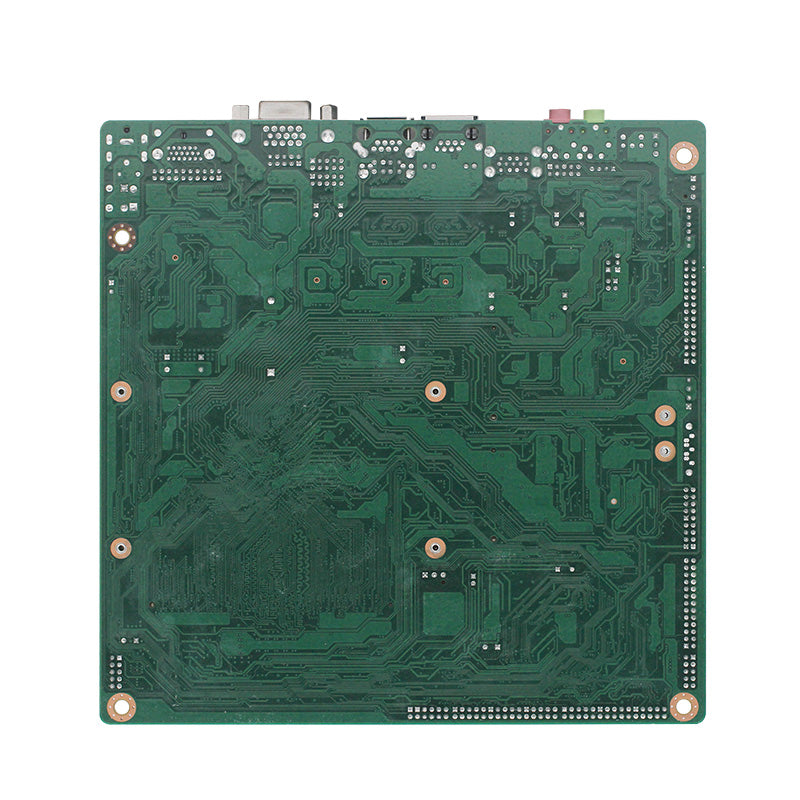

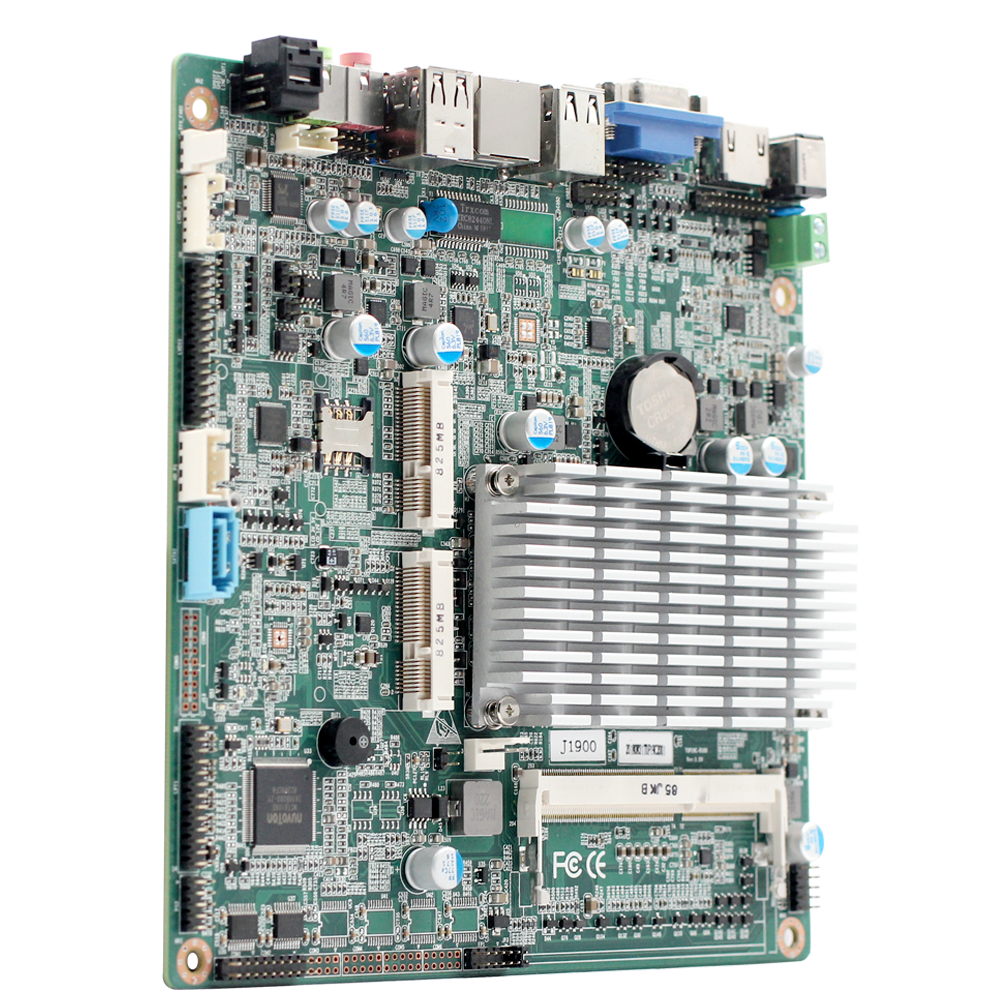

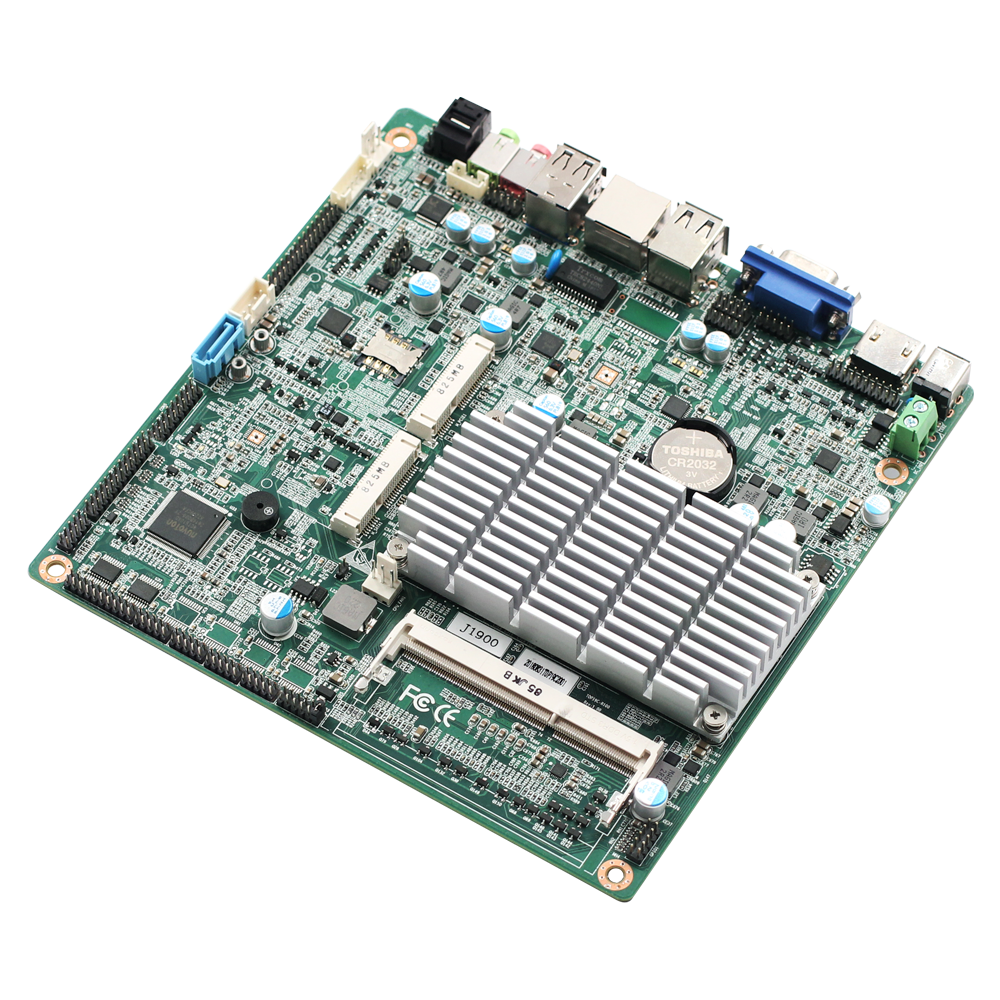

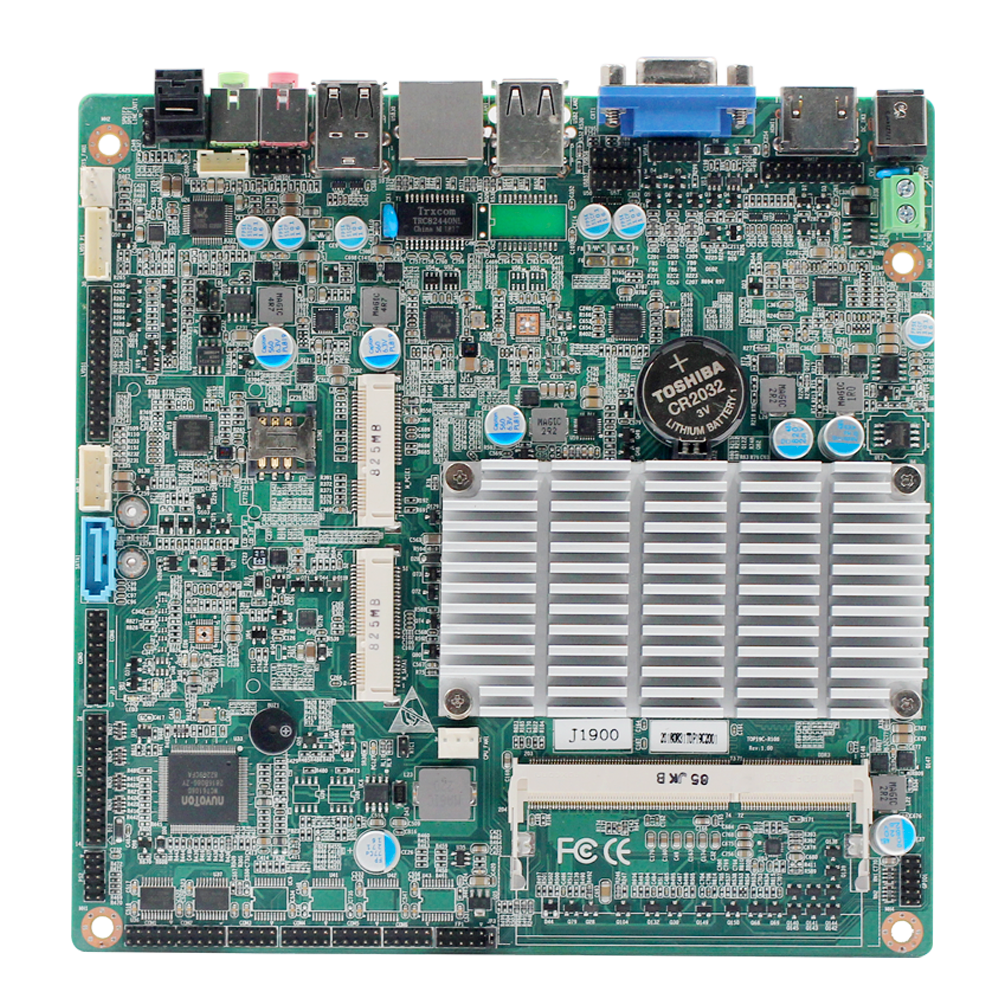

PIESIA TOP19C INDUSTRIAL MINI PC & ITX BOARDS
SPECIFICATION:
PIESIA TOP19C INDUSTRIAL MINI PC & ITX BOARDS has the main specification below:
|
Processor |
CPU |
Support Baytrail-I/D/M serial (J1900 N2900 J1800 N2806) |
|
CPU package |
BGA |
|
|
chipset |
Support Baytrail-I/D/M serial Processor |
|
|
BIOS |
EFI BIOS |
|
|
Memory |
Technology architecture |
Single channel DDR3 1066/1333MHz |
|
Socket |
1*DDR3 SODIMM 240 Socket |
|
|
Video |
Graphic controller |
Intel HD Graphics |
|
Dual LVDS and EDP |
LVDS support dual channel24bits output, Max resolution1920 x 1200 EDP max support resolution 2560*1600（LVDS and EDP display for optional） |
|
|
VGA |
VGA max support resolution 2048x1536 |
|
|
HDMI |
HDMI max support resolution 1920x1200 |
|
|
Dual display support |
LVDS + VGA,LVDS+HDMI,HDMI+VGA Synchronous or asynchronous display |
|
|

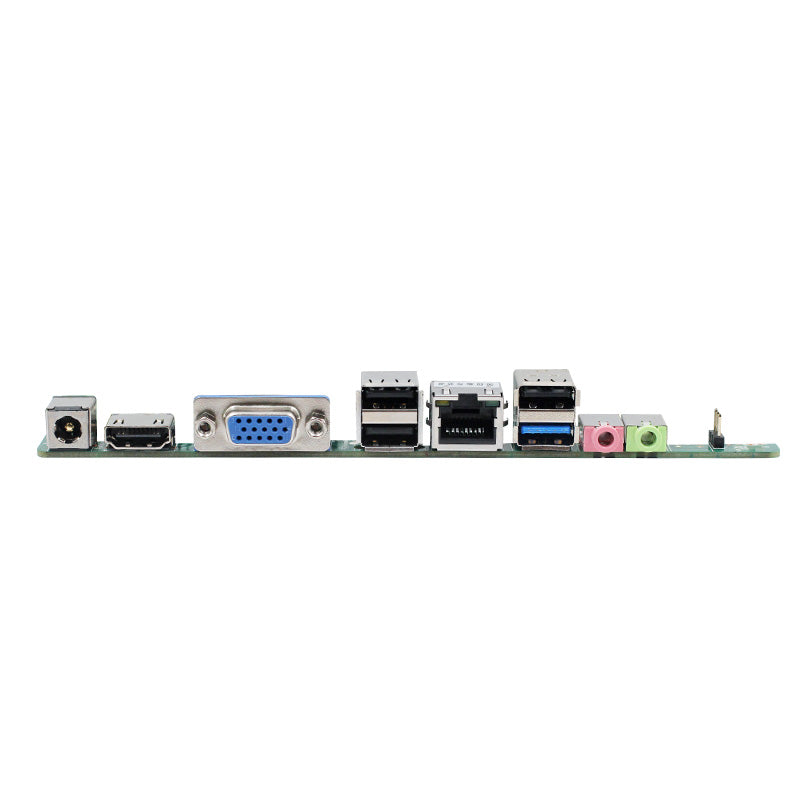

I/O Back Panel |
Port |
1*DC 1*VGA 1*HDMI 1*LAN 2*USB 1*LINE OUT 1*MIC 1*SPDIF |
|
Internet |
Controller |
1*RTL8111E-V Gigabit Lan Port，RJ45 Port(can choose 2*Lan Port，2*Rear USB） |
|
Audio |
Controller |
Raychem HD ALC662 audio decoding (left and right channel + microphone) |
|
Super I/O |
Controller |
NCT6106D |
|
Hardware Controller |
Watchdog Timer |
0-255 Seconds, Provide a watchdog routine |
|
Cooler |
Aluminum fan heatsink (fanless optional) |
|
|
Input/Output Interface |
USB |
5*USB2.0, 1*USB3.0 Max support +5V/1A(When the touch screen is available, only one set of USB57 pins can be use and USB2.0 is 4） |
|
Com |
5*RS-232, 1*RS422/485（can be choose 6*RS232)RS485Support automatic flow control |
|
|
PS/2 |
1*PS/2 pin connector (supports PS/2 keyboard and mouse) |
|
|
Touch screen |
Support for touch screen (4wire 5wire 8wire only one set of USB57 pins is available when the touch screen is available) |
|
|
GPIO |
8-bit, providing routines, freely defined input/output, 3.3V@24mA level |
|
|
Expansion Wire |
Mini-PCle |
1*Mini-PCIe socket, support PCIe and USB equipment |
|
Storage |
SATA |
1*standard SATAII Port, Maximum transfer rate 3Gb/s |
|
M-SATA |
1* M-SATA Scoket, Support SANDISK Protocol，Maximum transfer rate 3Gb/s |
|
|
Power Supply |
Power Type |
Single input DC power supply ,DC12V5A/7A |
|
Power consumption |
20W |
|
|
Work Environment |
Working temperature |
-20°C~60°C (-32°F~140°F) |
|
Storage temperature |
-40°C~85°C (-104°F~185°F ) |
|
|
Working Storage humidity |
10%~90% (non-condensing) |
|
|
Measure |
Size |
170mm x 170 mm |
|
Weight |
0.5KG |
|
|
Certification |
|
CE, RoHS, FCC |
|
Model |
Description |
CPU optional |
|
TOP19C-J1900 |
Integrated celeron Baytrail-D/I/M J1900 Quad core2.0Ghz up to2.4Ghz |
J1900,N2900(quad core） |
|
TOP19C-N2806 |
Integrated celeron Baytrail-D/I/M N2806 dual core1.6Ghz up to2.0Ghz， |
J1800,N2806（dual core） |
For more information about PIESIA TOP19C INDUSTRIAL MINI PC & ITX BOARDS, please contact us
