PIESIA TL500NA6L Tiger Lake-U Series NANO ITX MOTHERBOARDS

Regular price $129.00
Regular price Sale price $129.00
Sale Sold out
Shipping calculated at checkout.
Delivery Guarantee

Delivery Guarantee

Technical Support

Technical Support

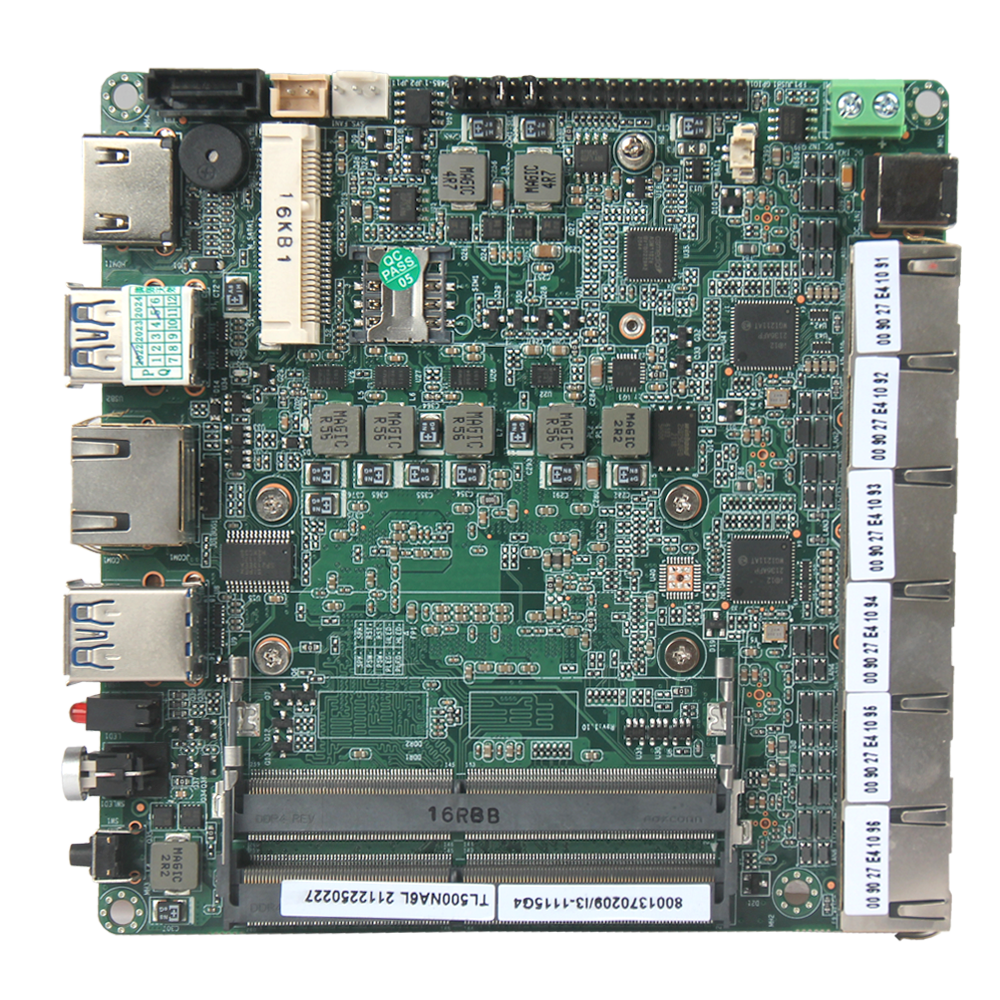

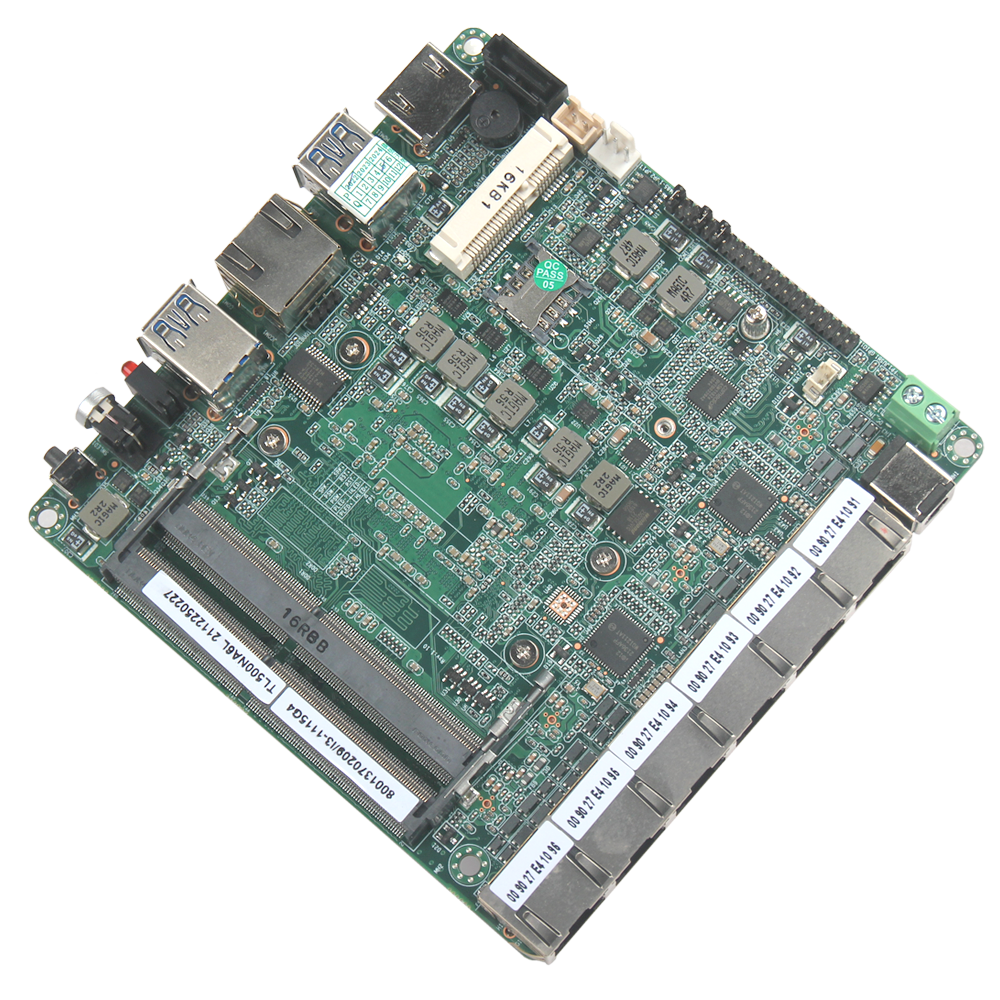

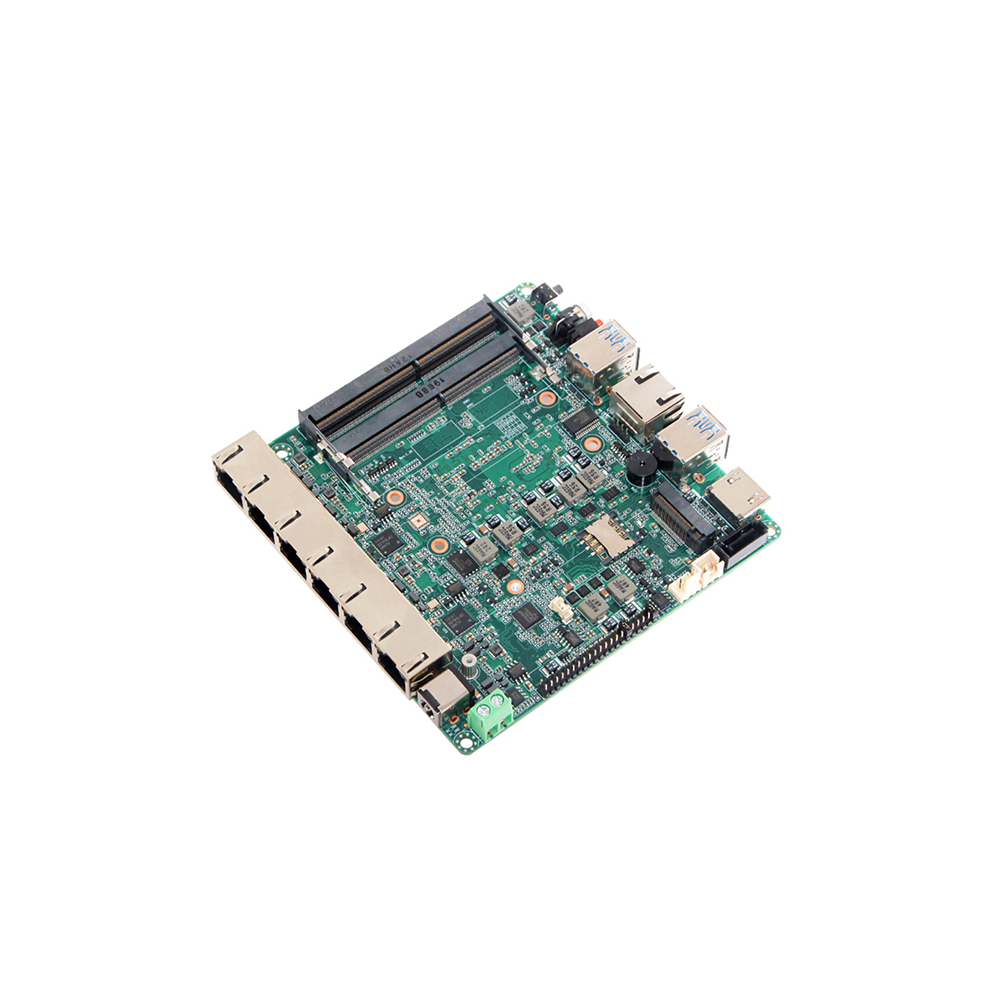

PIESIA TL500NA6L Tiger Lake-U Series NANO ITX MOTHERBOARDS



FEATURES:

PIESIA TL500NA6L NANO ITX MOTHERBOARDS has the main features below:

  • Intel 11th generation Tiger Lake-U series processors;
  • 2 DDR4 SODIMMs, a total of 64GB;
  • 6 Intel 5G network card (4 network ports can be selected);
  • 1 x RS232/RS485 (RJ45 interface)
  • 2 2280 NVMe/SATA3.0
  • 0 (optional)
  • DC 12-19VPower supply

SPECIFICATION:

PIESIA TL500NA6L NANO ITX MOTHERBOARDS has the main specification below:

CPU

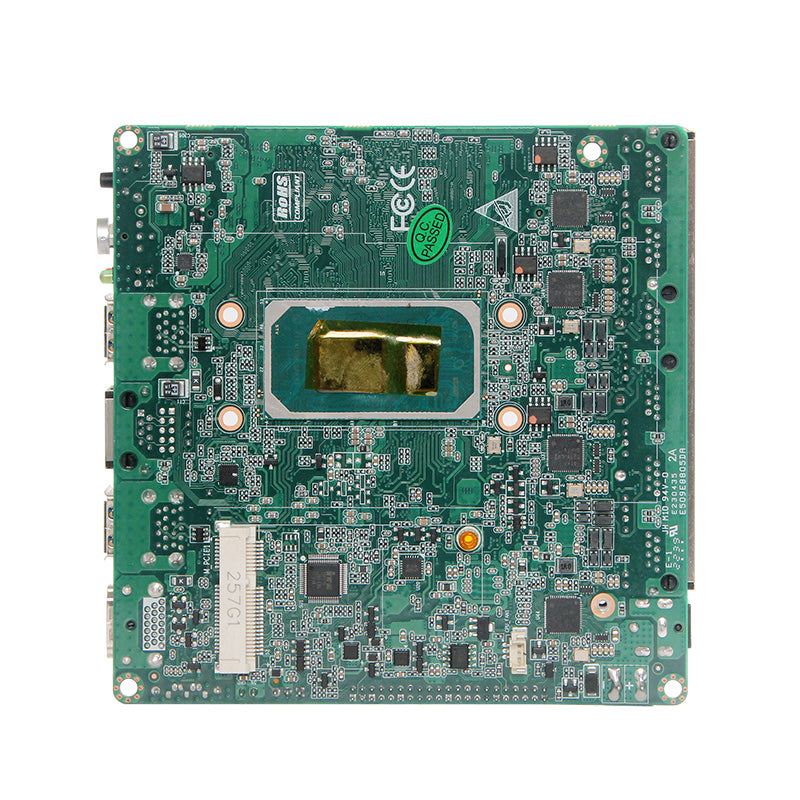

Onboard Intel 11th generation Tiger Lake-U series processors

Memory

Two DDR4 3200MHz SO-DIMMs for a total maximum of 64GB

Display

HDMI 2.0, 4096x2160@60Hz, supports 4K display

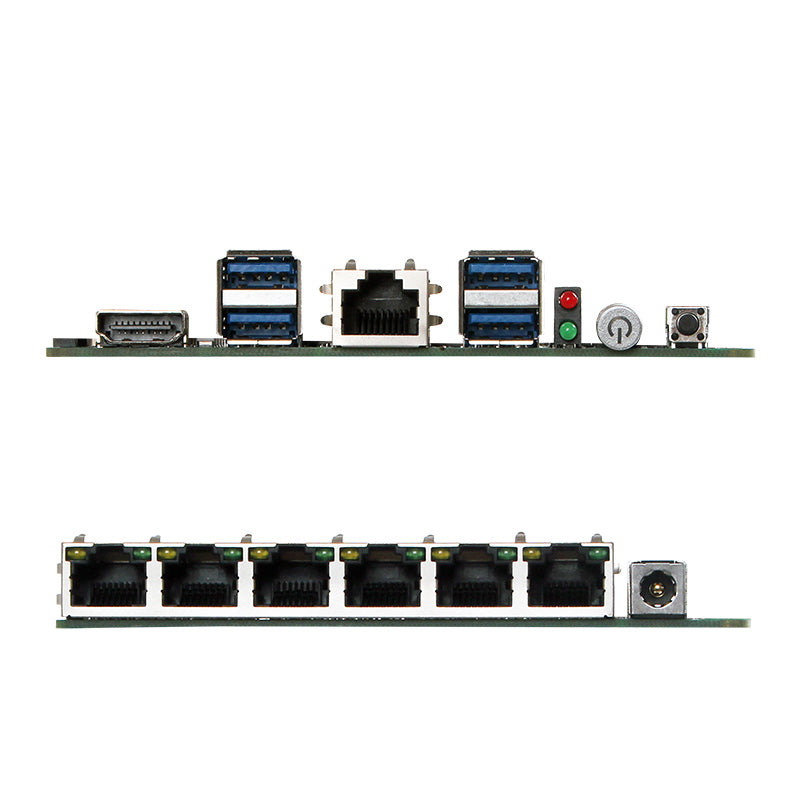

Board       side                  I/O interface

1 x HDMI

6 LANs (RJ45), optional 4 LAN ports

4 x USB3.1

1 COM port (RJ45 interface, default RS232, optional RS485)

1 boot button with indicator and 1 reset button

1 个DC JACK(12-19V)

1 power indicator, 1 hard drive indicator

In-board                    expansion capabilities

2 Pin phoenix terminals (12-19V), optional 4Pin ATX power connector

F_Panel, 2x5Pin, pitch 2.0mm

1 set (2) USB2.0 pins, 2x5Pin, pitch 2.0mm

8-position GPIO pin header, 2x5Pin, pitch 2.0mm

0-255 seconds watchdog

1 x 3Pin CPU fan, 1 x 3Pin system fan

1 SATA3.0, 2Pin 5V power supply

1 MiniPCIe slot, supporting PCIe and USB 2.0 protocols, WIFI/3G/4G devices

Storage

1 SATA 3.0

1 x M.2 Key-M 2280, NVMe (PCIe 3.0 x4)/SATA 3.0 either

Power supply

DC12-19V,90W

Working environment

Working temperature: -20°C ~ +60°C; Working humidity: 0% ~ 90% relative humidity, no

condensation

Storage temperature: -40°C ~ +85°C; Storage humidity: 0% ~ 90% relative humidity, no

condensation

System support

Windows10, Windows11, Linux

Size & weight

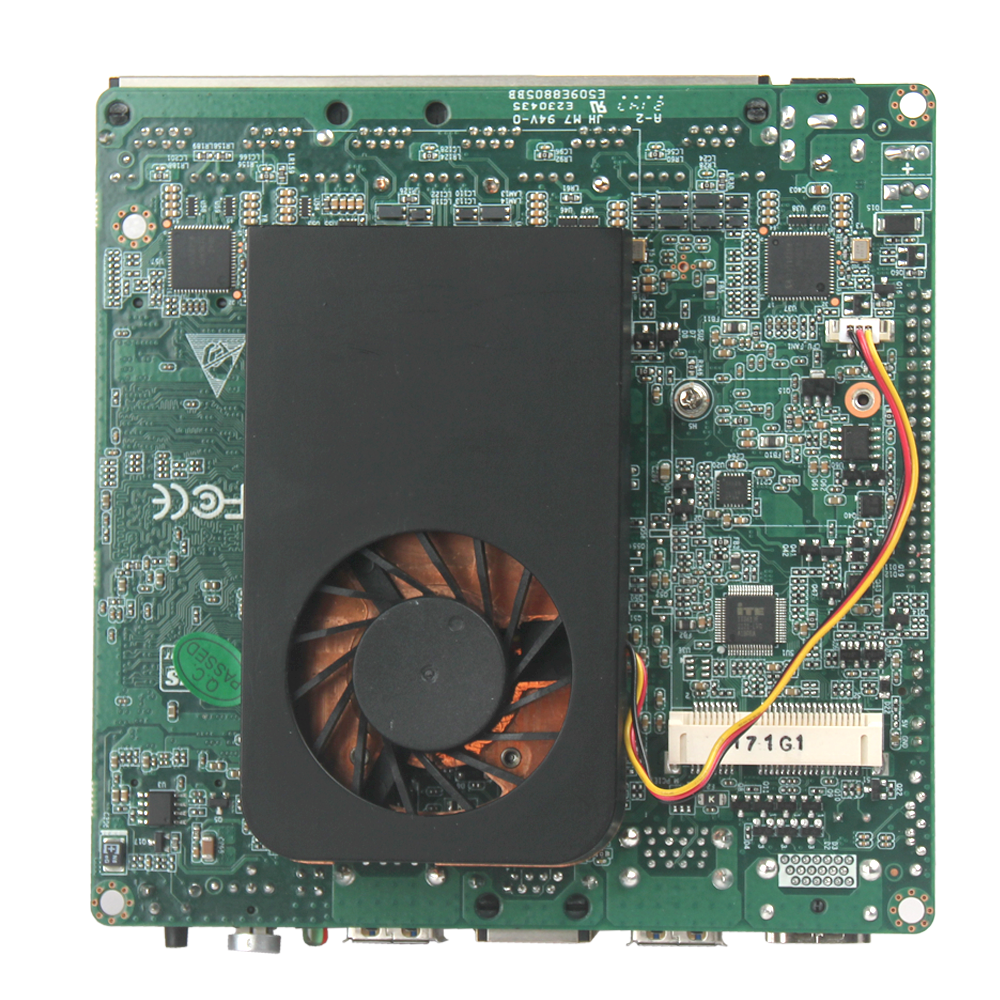

120x120mm, 142g without radiator; 230g with radiator

Model

Optional items

Optional description





TL500NA6L

Onboard Intel's 11th generation Tiger Lake-U series

processors

Celeron 6305/i3-1115G4/

i5-1135G7/i7-1165G7

TPM2.0

Optional

Network port

Optional 6 network ports and 4

network ports

M.2 2280

SATA3.0/NVMe (PCIe 3.0 x4) protocol

optional


For more information about PIESIA TL500NA6L NANO INDUSTRIAL MINI PC & ITX BOARDS, please contact us
