PIESIA Q-BOX-S3 Comet Lake-U Series INDUSTRIAL MINI PC

Regular price $166.00
Regular price Sale price $166.00
Sale Sold out
Shipping calculated at checkout.
Delivery Guarantee

Delivery Guarantee

Technical Support

Technical Support

PIESIA Q-BOX-S3 Comet Lake-U Series INDUSTRIAL MINI PC



FEATURES:

PIESIA Q-BOX-S3 INDUSTRIAL MINI PC  has the main features below:

  • Adopt Intel® Core™ 10th generation Comet Lake-U Series Processor;
  • 2 *DDR4 SODIMM 260 Socket;
  • 1*VGA, 1*HDMI 1.4(support 4K display output);
  • 4*RS232, 2*RS422/485(optional), RS485 support automatic flow direction control (6*RS232 or 1*RS485/RS422+5*RS232 for selection);
  • Support automatic power on function and jumper selection;
  • Single input DC power supply, DC12V;
  • Size: 236*185*85mm;

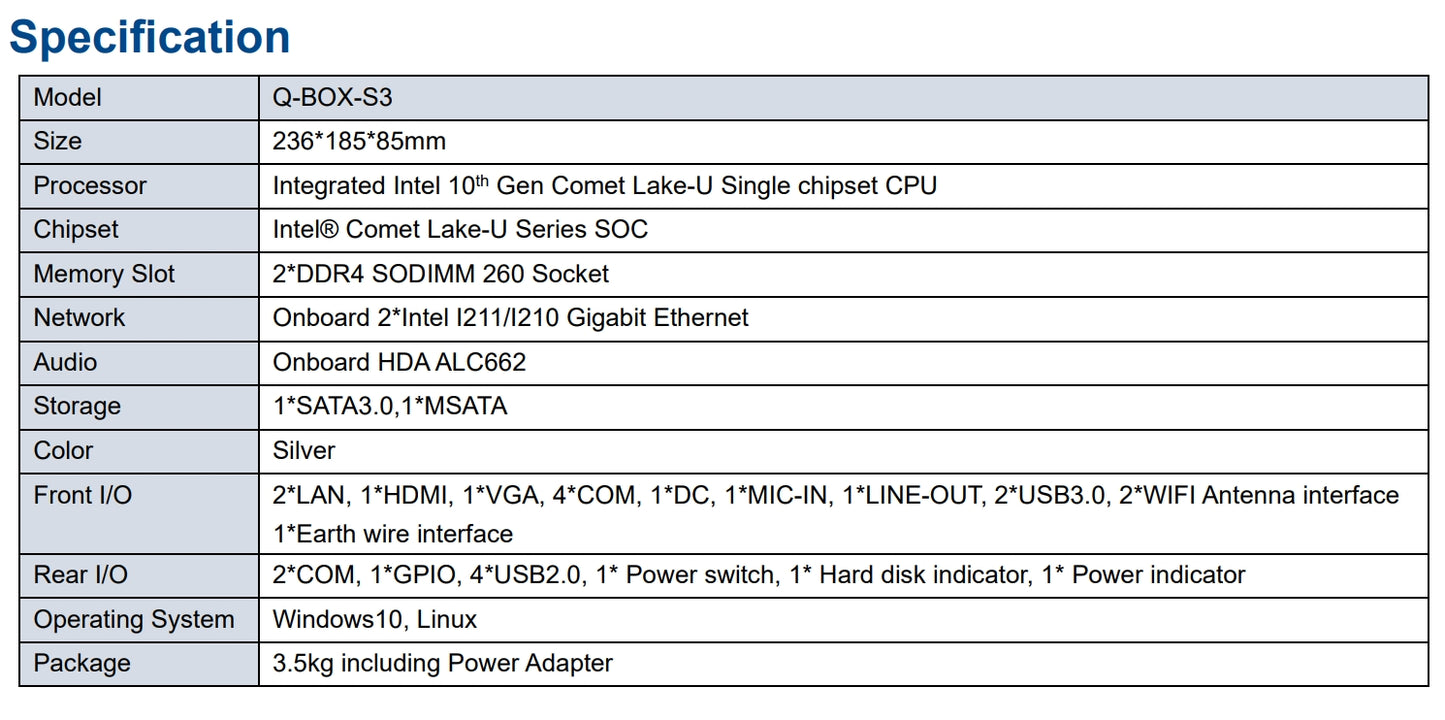

SPECIFICATION:

PIESIA Q-BOX-S3 INDUSTRIAL MINI PC has the main specification below:

Model

Q-BOX-S3

Size

236*185*85mm

Processor

Integrated Intel 10th Gen Comet Lake-U Single chipset CPU

Chipset

Intel® Comet Lake-U Series SOC

Memory Slot

2*DDR4 SODIMM 260 Socket

Network

Onboard 2*Intel I211/I210 Gigabit Ethernet

Audio

Onboard HDA ALC662

Storage

1*SATA3.0,1*MSATA

Color

Silver

Front I/O

2*LAN, 1*HDMI, 1*VGA, 4*COM, 1*DC, 1*MIC-IN, 1*LINE-OUT, 2*USB3.0, 2*WIFI Antenna interface

1*Earth wire interface

Rear I/O

2*COM, 1*GPIO, 4*USB2.0, 1* Power switch, 1* Hard disk indicator, 1* Power indicator

Operating System

Windows10, Linux

Package

3.5kg including Power Adapter

Motherboard

Description

CPU for Option


TOP410B-I3


Integrated Intel 10th Gen Comet Lake-U


I3-10110 Dual Core 15W


TOP410B-I5


Integrated Intel 10th Gen Comet Lake-U


I5-10210U Quad Core 15W


TOP410B-I7


Integrated Intel 10th Gen Comet Lake-U


I7-10710U Six Core 15W


TOP410B-Celeron


Integrated Intel 10th Gen Comet Lake-U


5205U Dual Core 1.9GHz 15W


For more information about PIESIA Q-BOX-S3 INDUSTRIAL MINI PC, please contact us
