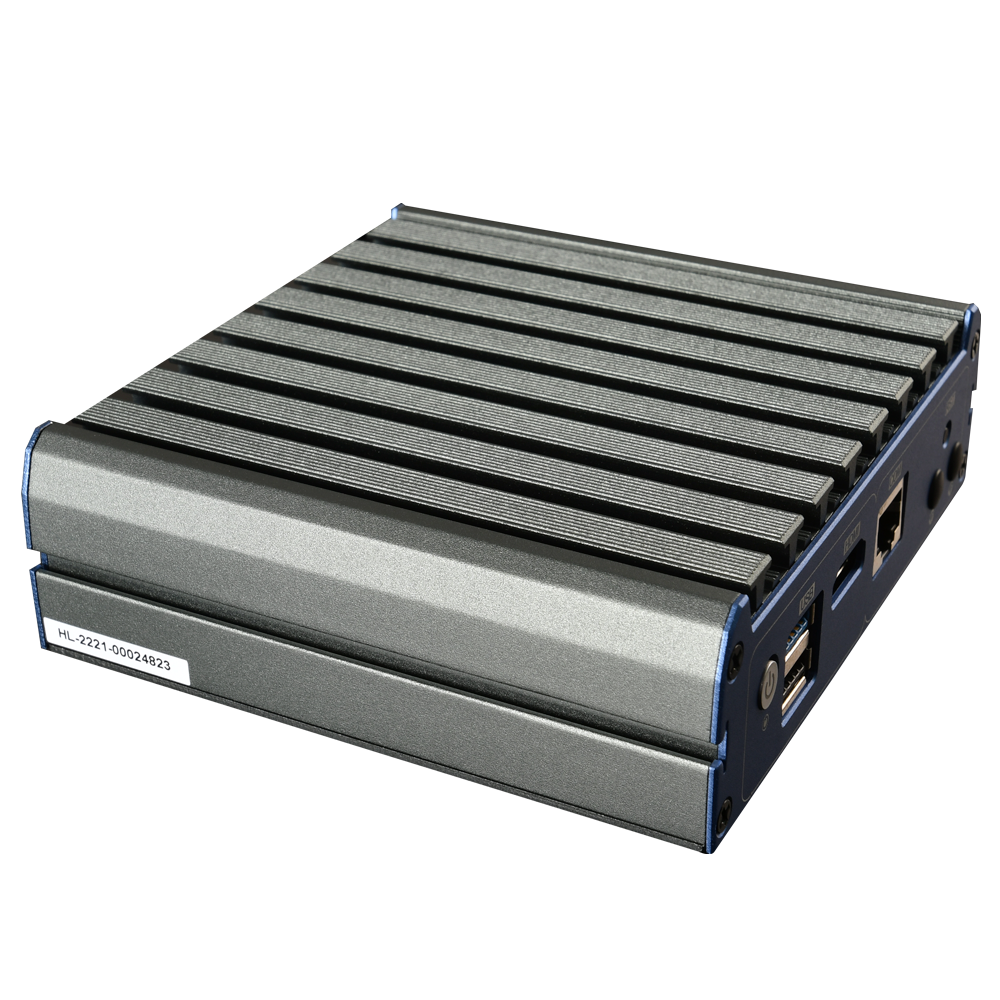

PIESIA N-BOX-J3 Intel Elkhart Lake Series INDUSTRIAL MINI PC



SPECIFICATION:

PIESIA N-BOX-J3 INDUSTRIAL MINI PC  has the main specification below:

Material

Metal body, plastic top cover


Processor system

Intel Elkhart Lake, J4125 series processors

EFI BIOS

Memory

Single-channel DDR4 SO-DIMMs support up to 8GB


Storage

1 SATA 2.0 interface

1 x MiniPCIe mSATA

On-board eMMC, 32GB/64GB/128GB optional

Extend

1 MiniPCIe slot supporting PCIe and USB 2.0 devices

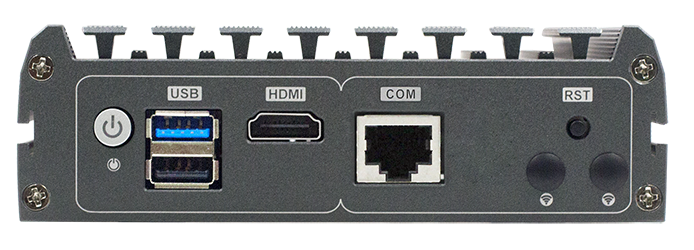

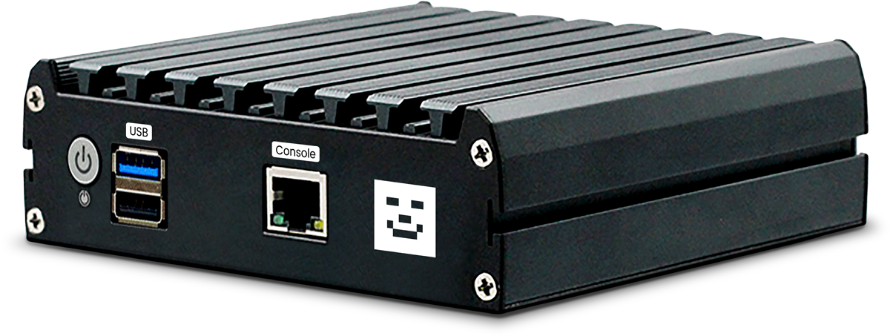

I/O interface

1 x HDMI, 1 CONSOLE, 2 WIFI antenna holes

1 x USB3.0, 1 x USB 2.0

4 x Intel I225/I226 AT High-performance Gigabit LAN, RJ45 Port

1 x COM, RJ45 console

1 boot button, 1 reset button, 1 power indicator, 1 hard disk indicator ,1 DC JACK

Power supply

DC 12-19V, 60W


Working environment

Operating temperature: -20°C ~ +60°C; Operating humidity: 5% ~ 90%

Storage temperature: -40°C ~ +85°C; Storage humidity: 5% ~ 90%

Operating                            system

support

Windows10,Windows11,Linux

Size

134x126x40.6mm

Weight

Approx. 600g

Model

Optional motherboard

Optional motherboard description


N-BOX-J3

NM41NE4L

Intel Elkhart Lake, J4125 series processors

NM19NE4L

Intel Bay Trail, J1900 series processors


For more information about PIESIA N-BOX-J3 INDUSTRIAL MINI PC , please contact us
