PIESIA

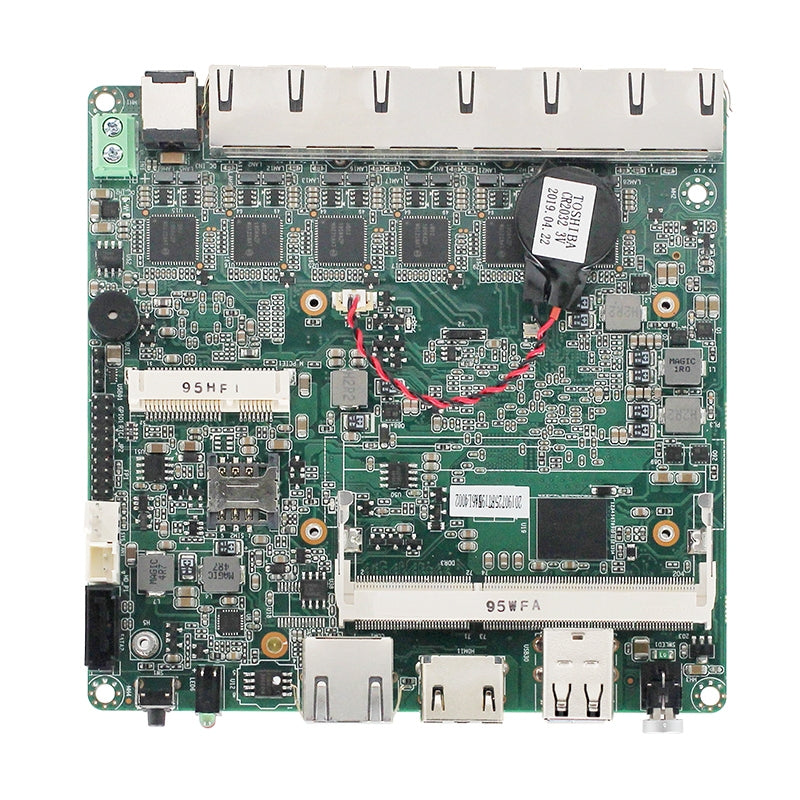

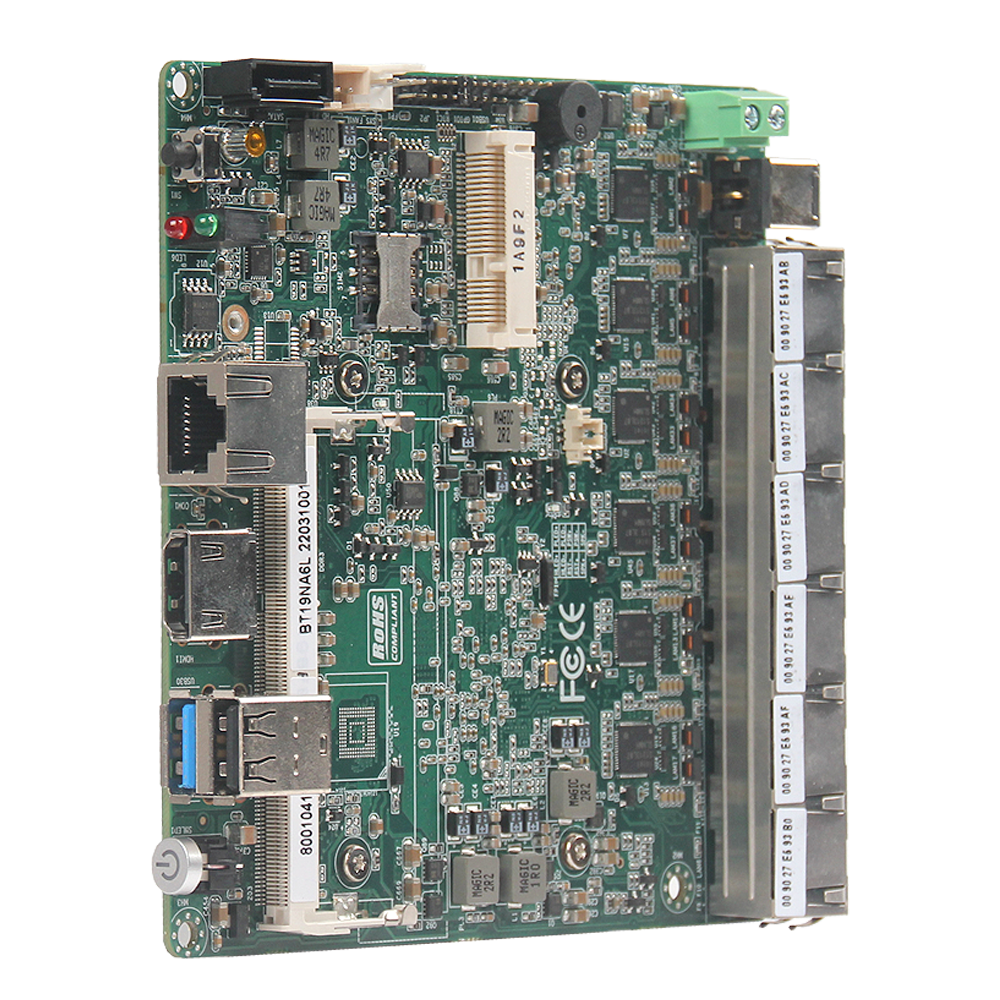

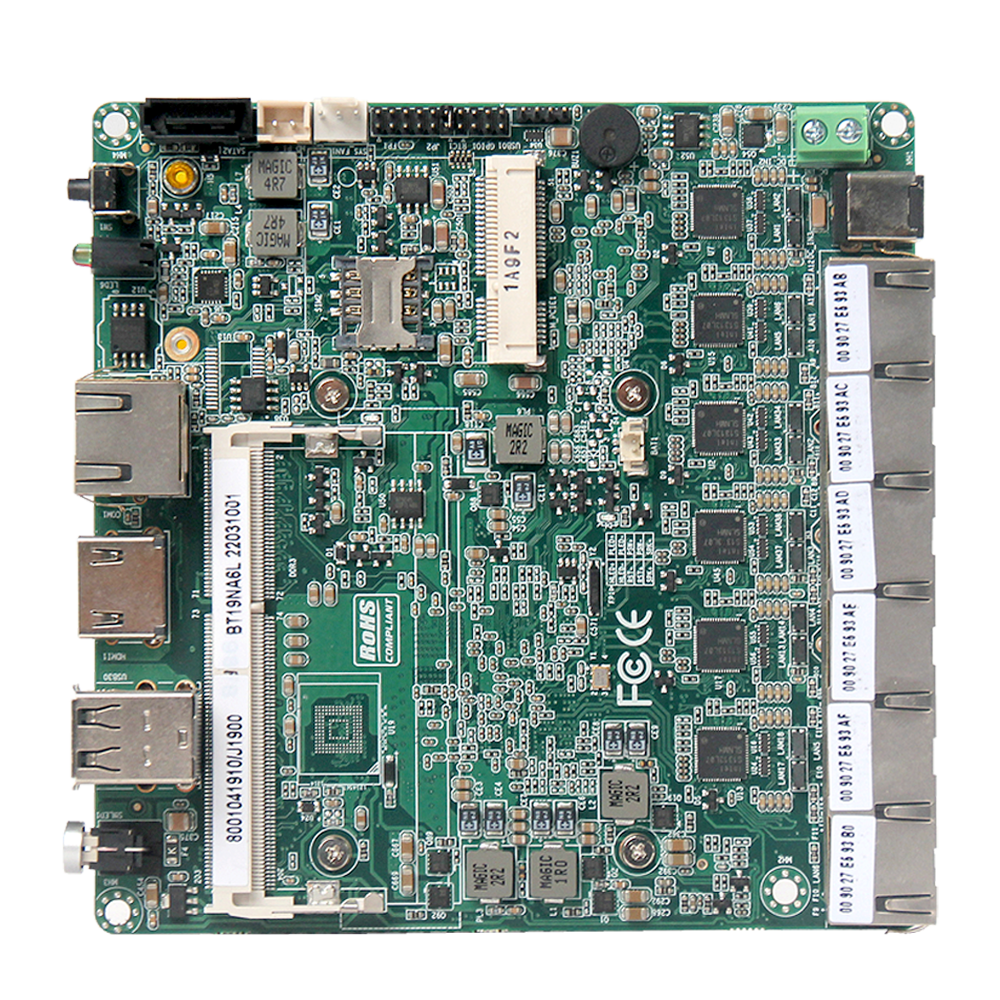

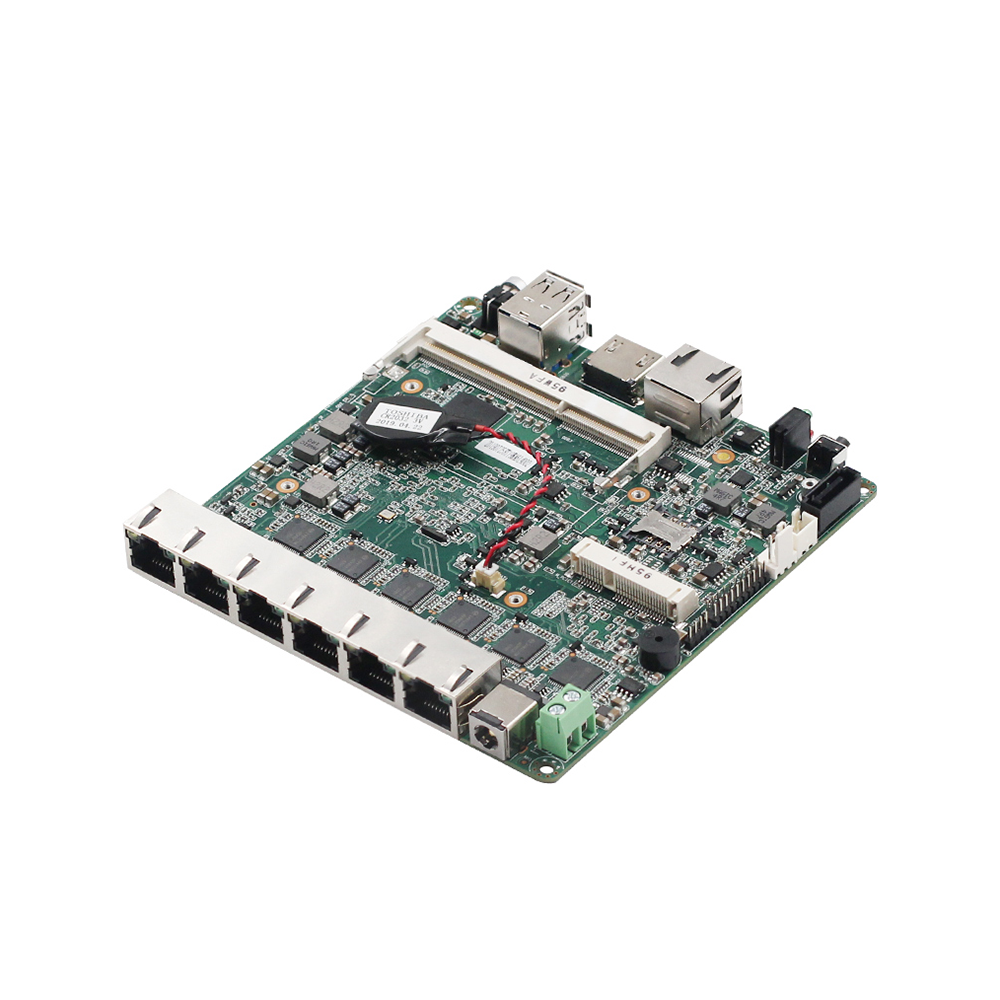

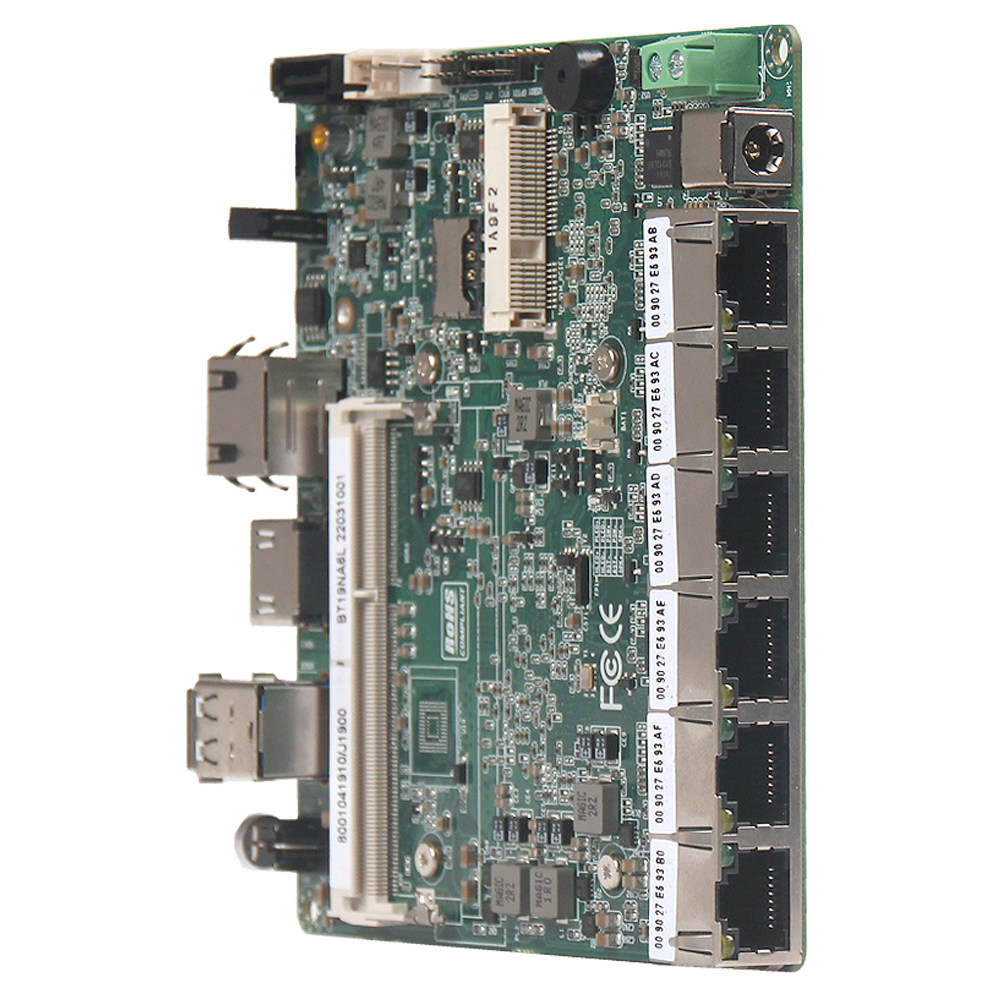

PIESIA BT19NA6L J1900 CPU NANO ITX MOTHERBOARDS

Regular price $70.00
Regular price Sale price $70.00
Sale Sold out
Shipping calculated at checkout.
Delivery Guarantee

Delivery Guarantee

Technical Support

Technical Support

PIESIA BT19NA6L J1900 CPU NANO ITX MOTHERBOARDS



FEATURES:

PIESIA BT19NA6L NANO ITX MOTHERBOARDS has the main features below:

  • On-board Baytrail-D/I/M series processors;
  • 1 DDR3 SODIMM, maximum 8GB;
  • 6 Intel i225 5G network cards;
  • On-board eMMC storage, capacity optional;
  • 1 RS232, RJ45 interface;
  • DC12-19VPower supply;
  • Size: 120x120mm;

SPECIFICATION:

PIESIA BT19NA6L NANO ITX MOTHERBOARDS has the main specification below:

CPU

Onboard Baytrail-I/D/M series processors, J1900/J1800/E3845

EFI BIOS

Memory

1 x DDR3L 1333MHz SO-DIMM, supporting up to 8GB memory

Display

1 x HDMI 1.4, 1920x1080

Storage

1 SATA

1 x MiniPCIe mSATA, supporting the SANDISK protocol

On-board eMMC, 32GB/64GB/128GB optional

Board side I/O interface

1 x HDMI

1 x USB3.0, 1 x USB 2.0

6 x RJ45

1 x RS232 (RJ45 CONSOLE)

1 个DC JACK

1 power on button with indicator light, 1 reset button, 1 power indicator, 1 hard disk

indicator

On-board                          extended functionality/interface

6 i225 2.5G networks

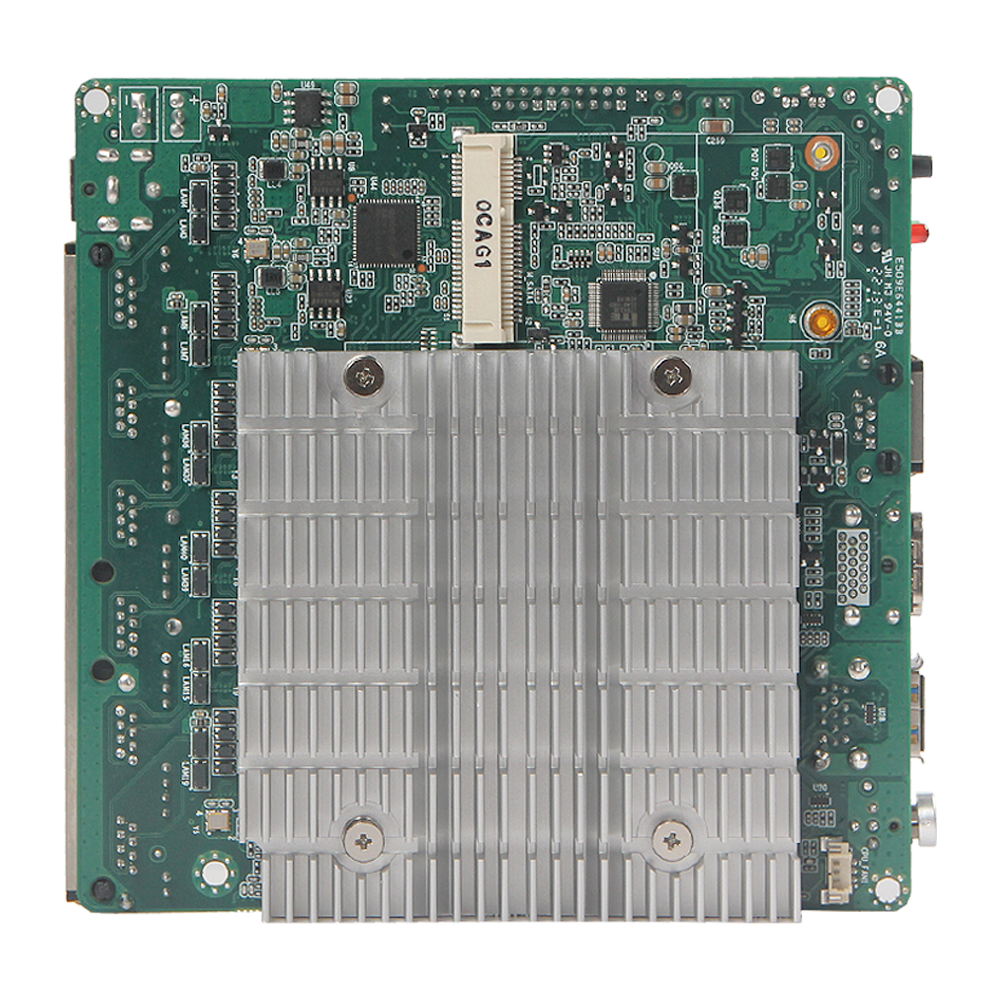

Aluminum fanless heatsink

2 x USB2.0, 1 x USB 3.0

1 x COM RS232 (RJ45 interface)

1 MiniPCIe slot supporting PCIe and USB 2.0 protocol devices

Power supply

DC12-19V

Working environment

Working temperature: -20°C ~ +60°C; Working humidity: 0% ~ 90% relative humidity, no

condensation

Storage temperature: -40°C ~ +85°C; Storage humidity: 0% ~ 90% relative humidity, no condensation

Operating                               system support

Windows7/Windows8.1/Windows10/Linux

(When installing the system with eMMC, J1900/J1800 only supports Windows 8.1/Windows 10.)


E3845 CPU supports Windows 8.1/Windows 10/Linux)

Size& Weight

120x120mm, 300g with radiator, 180g without radiator

Model

Optional items

Optional description


BT19NA6L

Onboard Baytrail-I/D/M series processors

J1900/J1800/E3845

On-board eMMC

32GB/64GB/128GB optional


For more information about PIESIA BT19NA6L NANO INDUSTRIAL MINI PC & ITX BOARDS, please contact us
