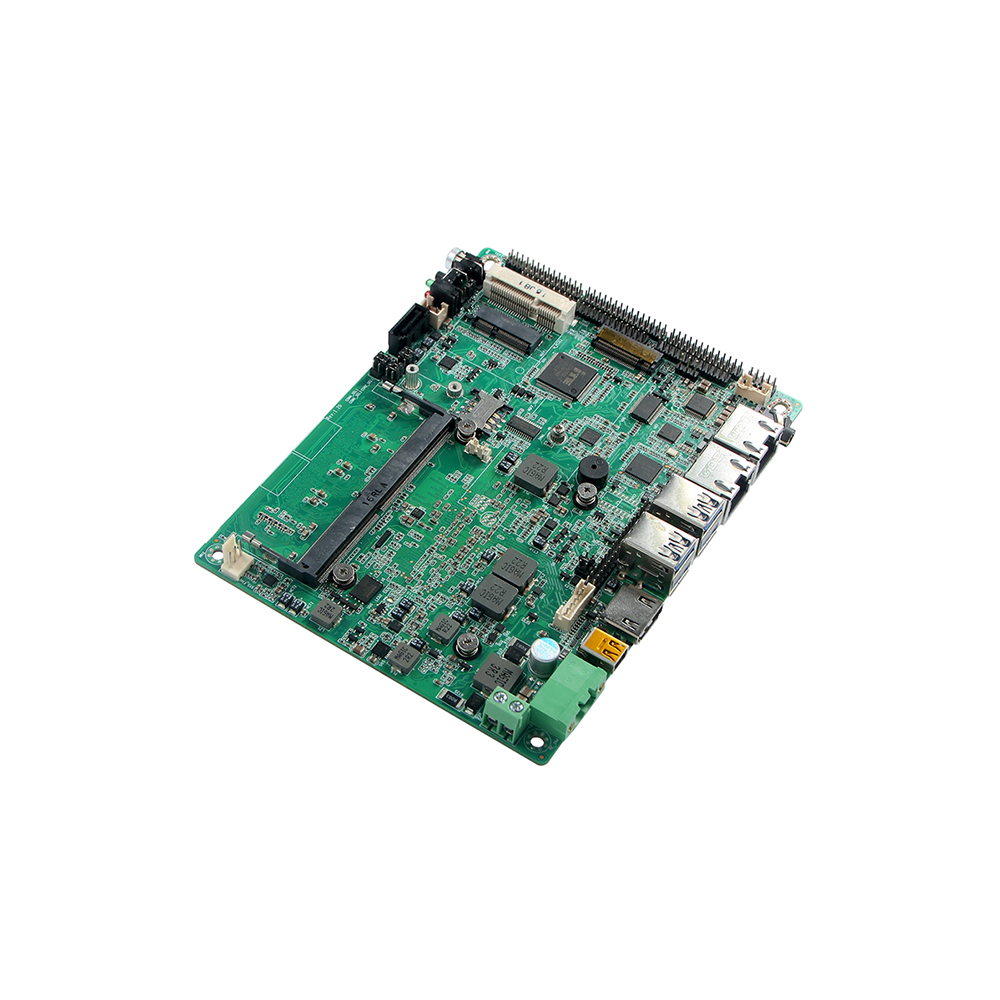

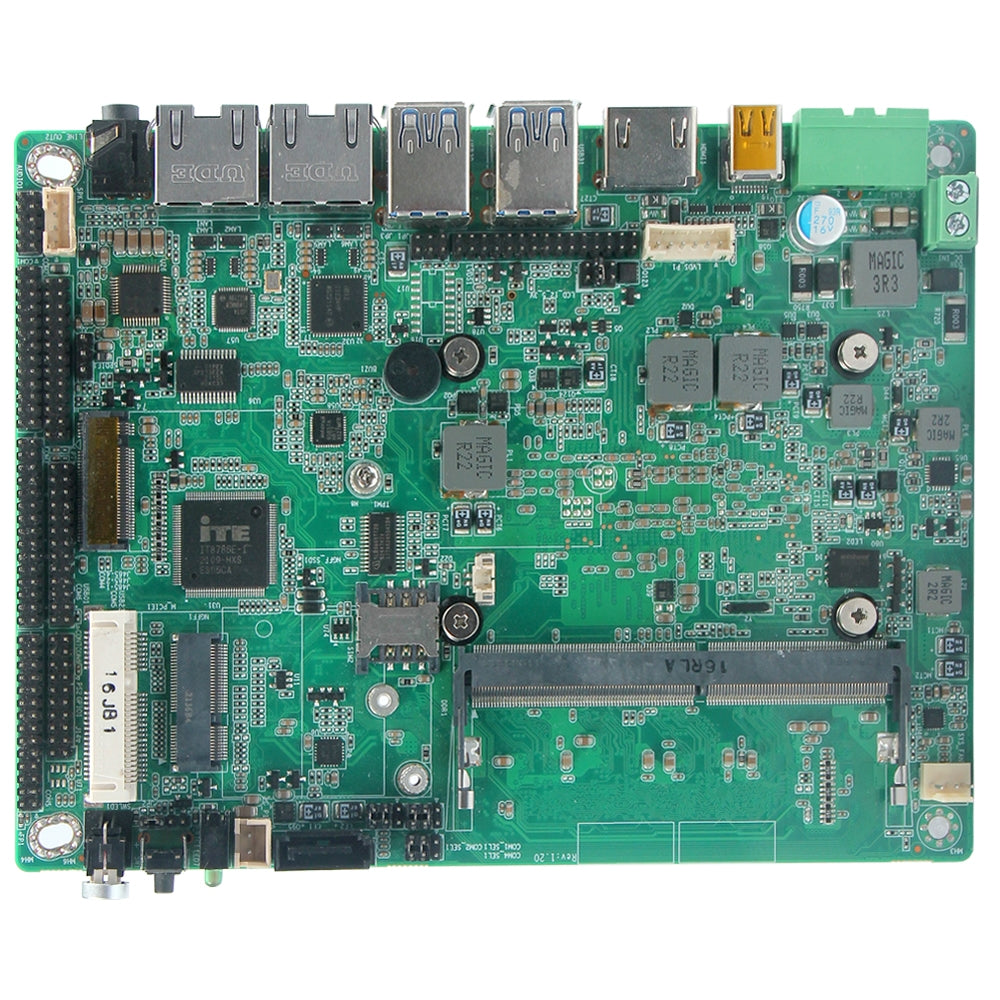

PIESIA WU410Z3A Z-3.5 inch Comet Lake-U Series ITX MOTHERBOARDS

Regular price $119.00
Regular price Sale price $119.00
Sale Sold out
Delivery Guarantee

Delivery Guarantee

Technical Support

Technical Support

PIESIA WU410Z3A Z-3.5 inch Comet Lake-U Series ITX MOTHERBOARDS



FEATURES:

PIESIA WU410Z3A Z-3.5 inch ITX MOTHERBOARDS has the main features below:

  • Intel 10th generation Comet Lake-U series processors
  • On-board memory particles, 1 memory slot expansion, total maximum 40GB
  • 0 optional
  • 1 i225, 1 i219-LM Gigabit network card
  • 1 Mini DP interface, 1 HDMI interface, 1 EDP/LVDS interface to choose one
  • DC9-36V,60W

SPECIFICATION:

PIESIA WU410Z3A Z-3.5 inch ITX MOTHERBOARDS has the main specification below:



CPU

Onboard Intel 10th generation Comet Lake-U series processors

EFI BIOS



RAM

Onboard 4GB/8GB DDR4(Max 8GB)

1*DDR4 SO-DIMM slot,Max 32GB

Display

1*HDMI1.4;1*24 bit LVDS(LVDS/EDP two choose one);1*MiniDP1.4



Storage

1*M.2 KEY-M 2242(PCIe_X2 NVMe,Optional SATA3.0, Selected by resistor)

1*7Pin SATA3.0,SATA power 5V 2Pin



I/O interface

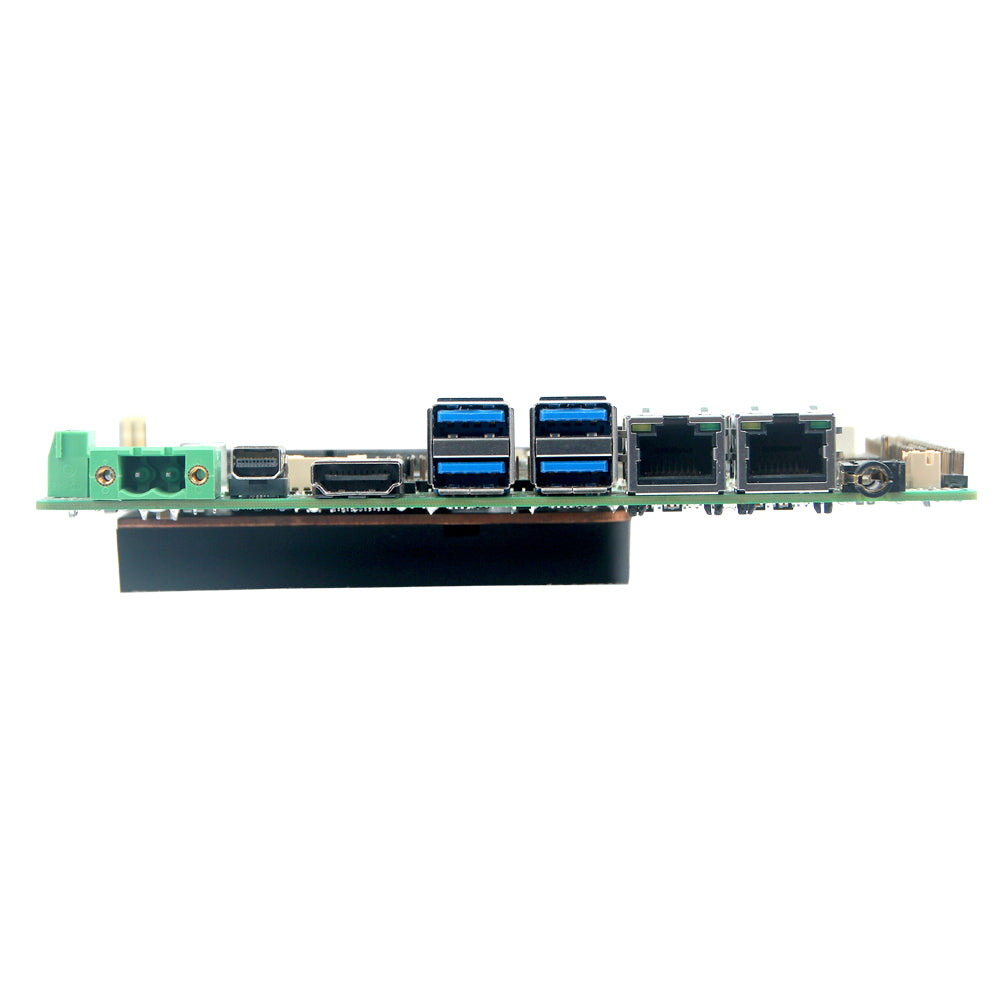

Rear panel:1*5.08 Phoenix terminals,1*Mini DP,1*HDMI1.4,4*USB3.1,2*RJ45 Lan Ports

(1*i225/I226;1*i219-LM,Support AMT,need Vpro CPU),1*2-in-1 audio

Front Panel: Power on button, reset button,POWER LED,HDD LED











Extend interfaces/function ality

1*TPM2.0(Optional, No by default)

1*Mini PCIe Slot, support the PCIe/USB protocol devices

1*SIM Slot

1*M.2 KEY-E 2230(PCIE_X1 protocol,WIFI Module etc)

6*COM,2x5Pin,space 2.0(COM1/2/4 selected by jumper and BIOS set RS232 or RS485, COM3 set by BIOS as RS422/RS485,COM5/COM6 is RS232)

1 group Audio Pins ,2x5Pin,Space 2.0,6W8ΩDual-channel amplifier

4*USB2.0(2group)Pins,2x5Pin,Space 2.0mm

1*CPU Smart FAN,3Pin;1*system fan,3Pin

1*LPT,2x13Pin,space 2.0mm

1*8 bit GPIO pins,2x5Pin,space 2.0mm; 255 level Watchdog

1*PS/2,2x4Pin,space2.0 pins;      1*SPDIF pins,3Pin,space 2.54mm

Power

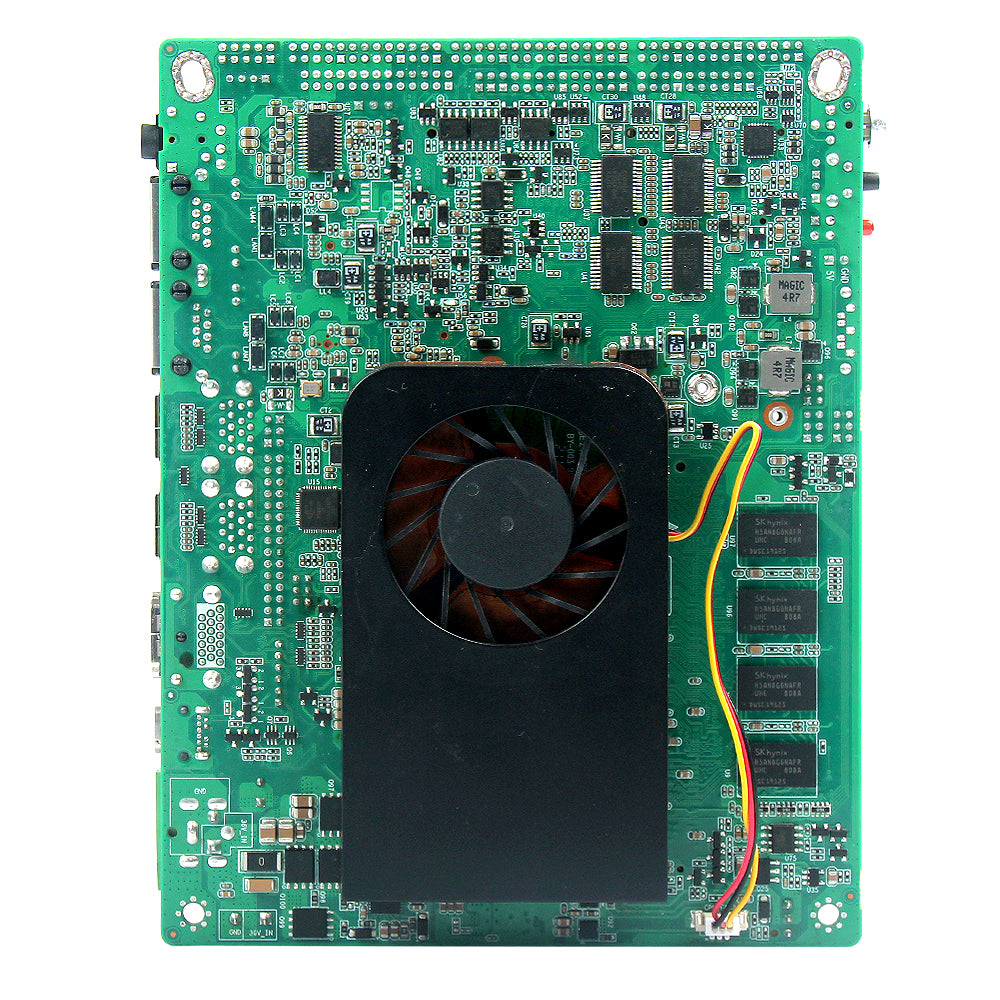

DC9-36V,60W;Copper fan heatsink



Working Environment

Working temperature: -20°C ~ +60°C; Working humidity: 0% ~ 90% relative humidity, no

condensation

Storage temperature: -40°C ~ +85°C; Storage humidity: 0% ~ 90% relative humidity, no condensation

OS

Windows10,windows11,Linux

Size

155x117x23mm

Model

Optional

Description











WU410Z3A

Integrated Intel 10th generation Comet Lake-U

series processors

Celeron 5205/I3-10110U/

I5-10210U/I7-10510U

Onboard Ram

Optional 4GB/8GB

TPM2.0

Optional

Max 6*COM

Optional

LVDS

Optional

M.2 2242

SATA3.0/NVMe protocol Optional


For more information about PIESIA WU410Z3A Z-3.5 inch INDUSTRIAL MINI PC & ITX BOARDS, please contact us
