  • Module No:NV156FHM-N42
  • Brand:BOE
  • Size:15.6 inch
  • Resolution:1920x1080
  • Brightness:250
  • Viewing angle:85/85/85/85
  • Interface:eDP
  • CR:800:1
  • Operating Temp.: 0 ~ 50 °C
  • Parameters
Manufacturer BOE
Model Name NV156FHM-N42
Screen Size 15.6
Pixel Number 1920(RGB)x1080
Active Area(mm) 344.16x193.59 (HxV)
Outline(mm) 359.5x223.8x3.2(HxV)
Treatment Anti-Glare, Hard coating (3H)
Luminance 250 cd/m² (Typ.)
Contrast Ratio 800 : 1 (Typ.) (TM)
Viewing Angle 85/85/85/85(CR≥10) Left / Right / Up / Down
Response 30 (Typ.)(Tr+Td) ms
Work Mode Normally black, Transmissive
Color Depth 262K   45% (NTSC)
Backlight 15K hours,With Driver
Net Weight 380g (Typ.)
operating frequency 60Hz
Touchscreen without
Signal Type/interface Type eDP( 2 lanes) , 30 pins,connector
Voltage Supply 3.3V (Typ.)
Temperature Storage Temp.: 0 ~ 50 °C
Operating Temp.: -20 ~ 60 °C
Package As request

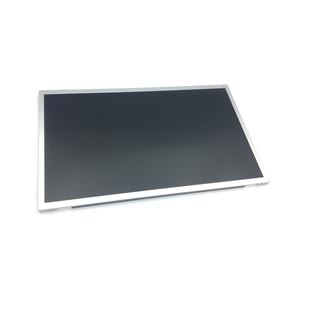

BOE 15.6 inch IPS lcd panel NV156FHM-N42 with 1920x1080 resolution.

eDP interface special for laptop. This lcd panel is very thin 3.2mm, with good view angle,

Standard brightness 250nits.
