Friendly Elec NanoPi R5S-LTS Development Board

Regular price $64.90
Regular price Sale price $64.90
Sale Sold out
Delivery Guarantee

Delivery Guarantee

Technical Support

Technical Support

Friendly Elec NanoPi R5S-LTS Development Board

The NanoPi R5S (as “R5S”) is an open-sourced mini IoT gateway device with two 2.5G and one Gbps Ethernet ports, designed and developed by FriendlyElec. It is integrated with a Rockchip RK3568B2 CPU, 2GB/4GB LPDDR4x RAM and 8GB eMMC flash. It supports booting with TF cards and works with operating systems such as FriendlyWrt etc.

The NanoPi R5S has rich hardware resources with a compact size of 90 x 62 mm. FriendlyElec has released a carefully-designed custom CNC housing for it. It has one HDMI port. It works with Android, Ubuntu Desktop and Buildroot etc and works with headless systems as well. It supports decoding 4K60p H.265/H.264 formatted videos.

The NanoPi R5S has one M.2 NVME port, two USB 3.0 ports, and supports USB type-C power delivery. It is an ideal portable drive for saving images and videos.

All in all, the NanoPi R5S is a board featured with multiple Ethernet ports, light NAS and video playing. It is a cannot-miss platform with infinite possibilities for geeks, fans and developers.

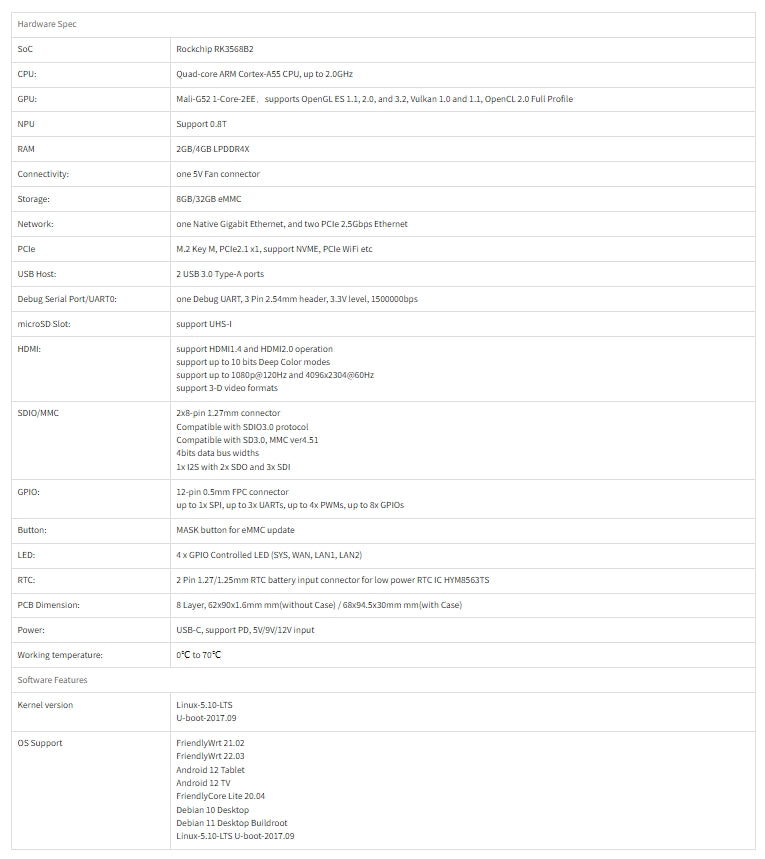

CPU Model: Rockchip RK3568B2
Number of Cores: Quad-core ARM Cortex-A55
Frequency: 4 x Cortex-A55 up to 2.0GHz
GPU Mali-G52 1-Core-2EE, supports OpenGL ES 1.1/2.0/3.2, Vulkan 1.0/1.1, OpenCL 2.0 Full Profile
VPU 4KP60 H.265/H.264/VP9 video decoder, 1080P60 H.264/H.265 video encoder
NPU Support 0.8T
Memory RAM: 2GB/4GB LPDDR4X
Storage MicroSD Slot: MicroSD x1, support UHS-I, for external storage up to 128GB
Flash: 8GB/16GB/32GB eMMC 5.1 Flash
PCIe: M.2 M-Key, PCIe2.0 x1, support NVME, PCIe WiFi etc
Onboard M3 PCB nut for mounting M.2 2280 module
Connectivity Ethernet: Native Gigabit Ethernet x1, RTL8211F-CG chip
PCIe 2.5G Ethernet Ethernet x2, RTL8125BG chip
Video Output HDMI: support HDMI1.4 and HDMI2.0 operation
support up to 10 bits Deep Color modes
support up to 1080p@120Hz and 4096x2304@60Hz
support 3-D video formats
USB USB 3.0 Host x2: USB Type A
USB 2.0 Host x1: 2.54mm 4pin-header
Type-C x1: Power Input Only
Pin-header GPIO: 12-pin 0.5mm FPC connector
up to 1x SPI, up to 3x UARTs, up to 4x PWMs, up to 8x GPIOs
SD/MMC/SDIO/I2S: 2x8-pin 1.27mm connector
Compatible with SDIO3.0 protocol
Compatible with SD3.0, MMC ver4.51
4bits data bus widths
1x I2S with 2x SDO and 3x SDI
Debug: Debug UART x1, 3 Pin 2.54mm header, 3V level, 1500000bps
LED SYS LED(Red) x1
WAN LED(Green) x1
LAN1 LED(Green) x1
LAN2 LED(Green) x1
Button MASK Button x1 for eMMC update
Others RTC Battery: 2 Pin 1.27/1.25mm RTC battery input connector for low power RTC IC HYM8563TS
Fan Connector(ZH1.5-2A) x1, 5V
Working Temperature: 0℃ to 70℃
Power DC 5V/3A, via USB-C connector or Pin header

OS Support FriendlyWrt 22.03 (64-bit)
Debian Buster Desktop (64-bit)
FriendlyCore Focal Lite(Base on Ubuntu 20.04)
Kernel version Linux-5.10-LTS
U-boot-2017.09



PCB 8 Layer
Dimension 62x90x1.6mm mm(without Case) / 68x94.5x30mm mm(with Case)
Weight 57.5g(without Case) / 260g(with Case)
