- Introduction

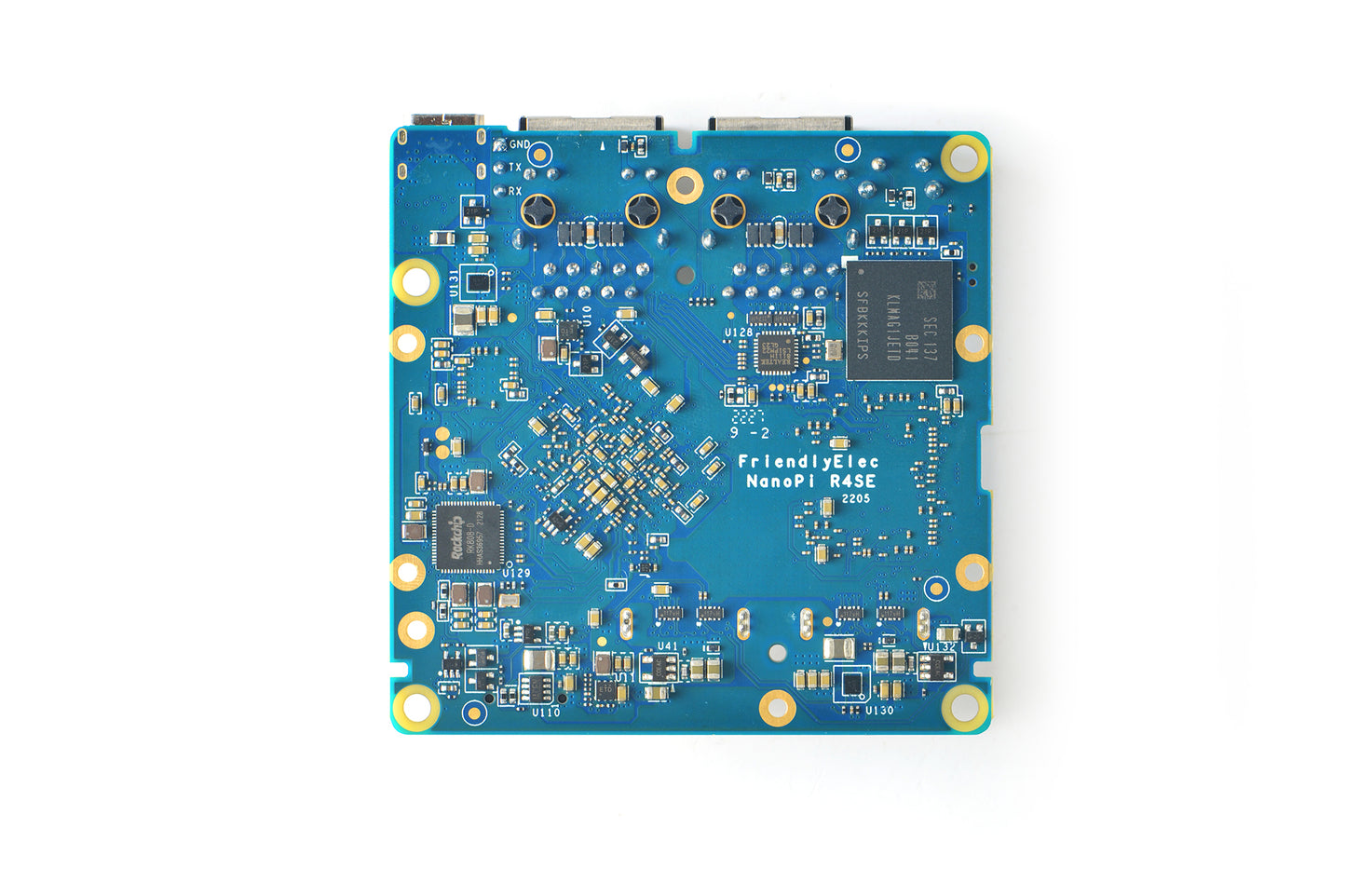

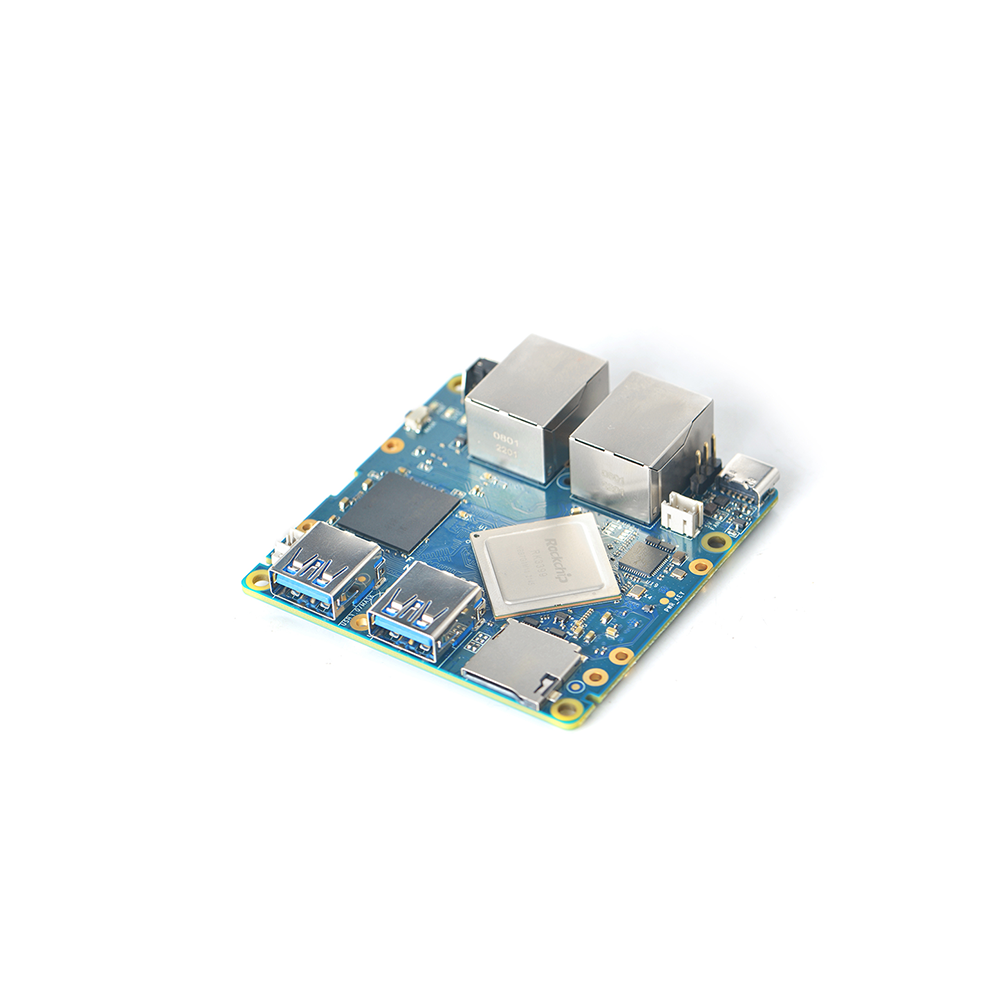

The NanoPi R4SE (as "R4SE") is a high-end FriendlyElec mini-router with edge-computing and dual Gbps Ethernet ports. Its dimension is 66 x 66 mm. It is powered through USB Type C port. It works with FriendlyWRT, Ubuntu, Armbian etc.
The NanoPi R4SE uses Rockchip's high performance RK3399 SoC. This SoC's frequency can reach as high as 1.8GHz. The NanoPi R4SE has 4GB LPDDR4 RAM, 32G eMMC and dual Gbps Ethernet ports. It supports dynamic frequency scaling. It has two USB 3.0 ports that can interface with external hard drives, 4G modules, USB HD cameras, USB WiFi modules etc. In addition, it has a MASK key. When the key is pressed the board will enter the USB installation mode.

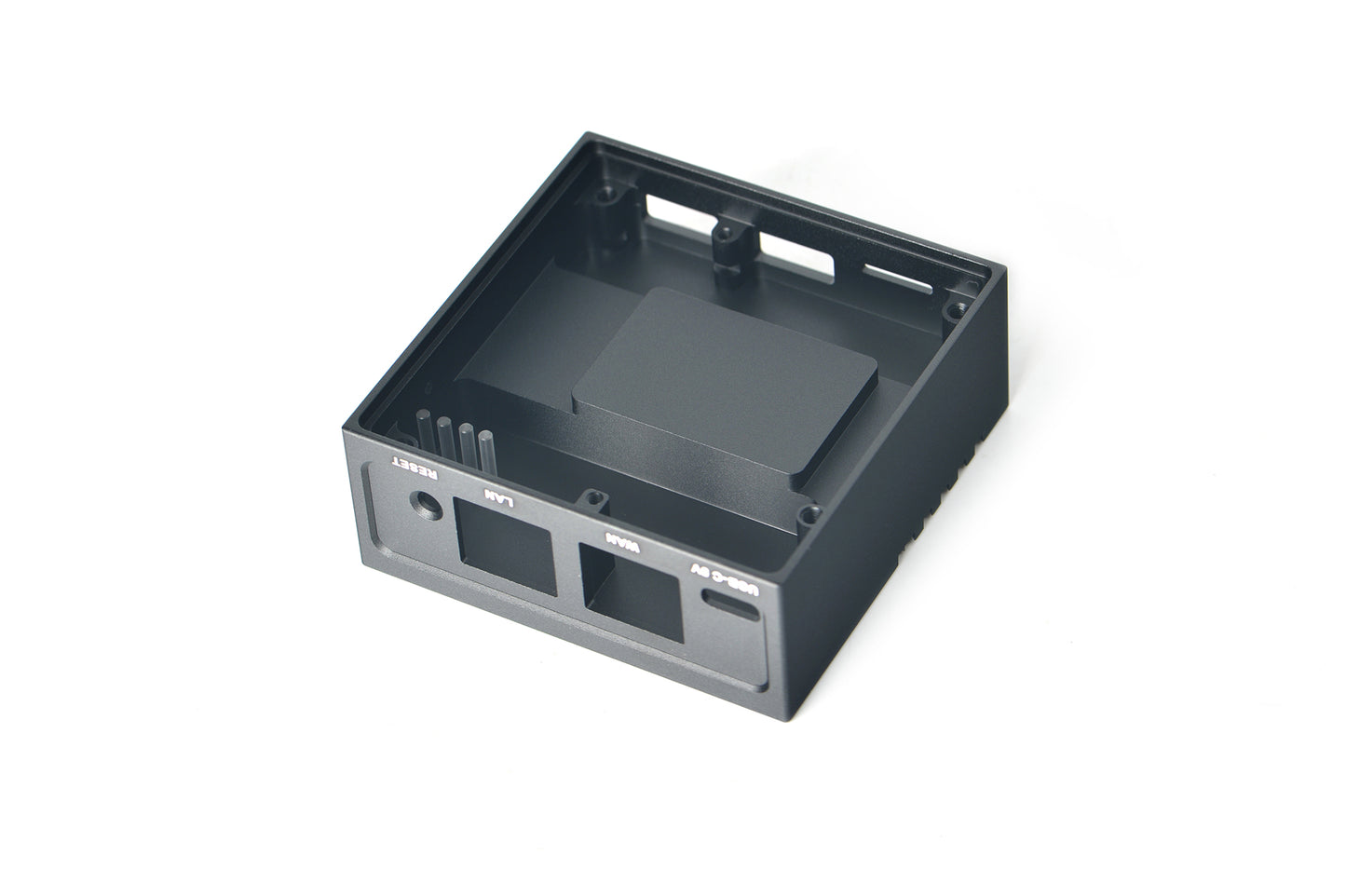

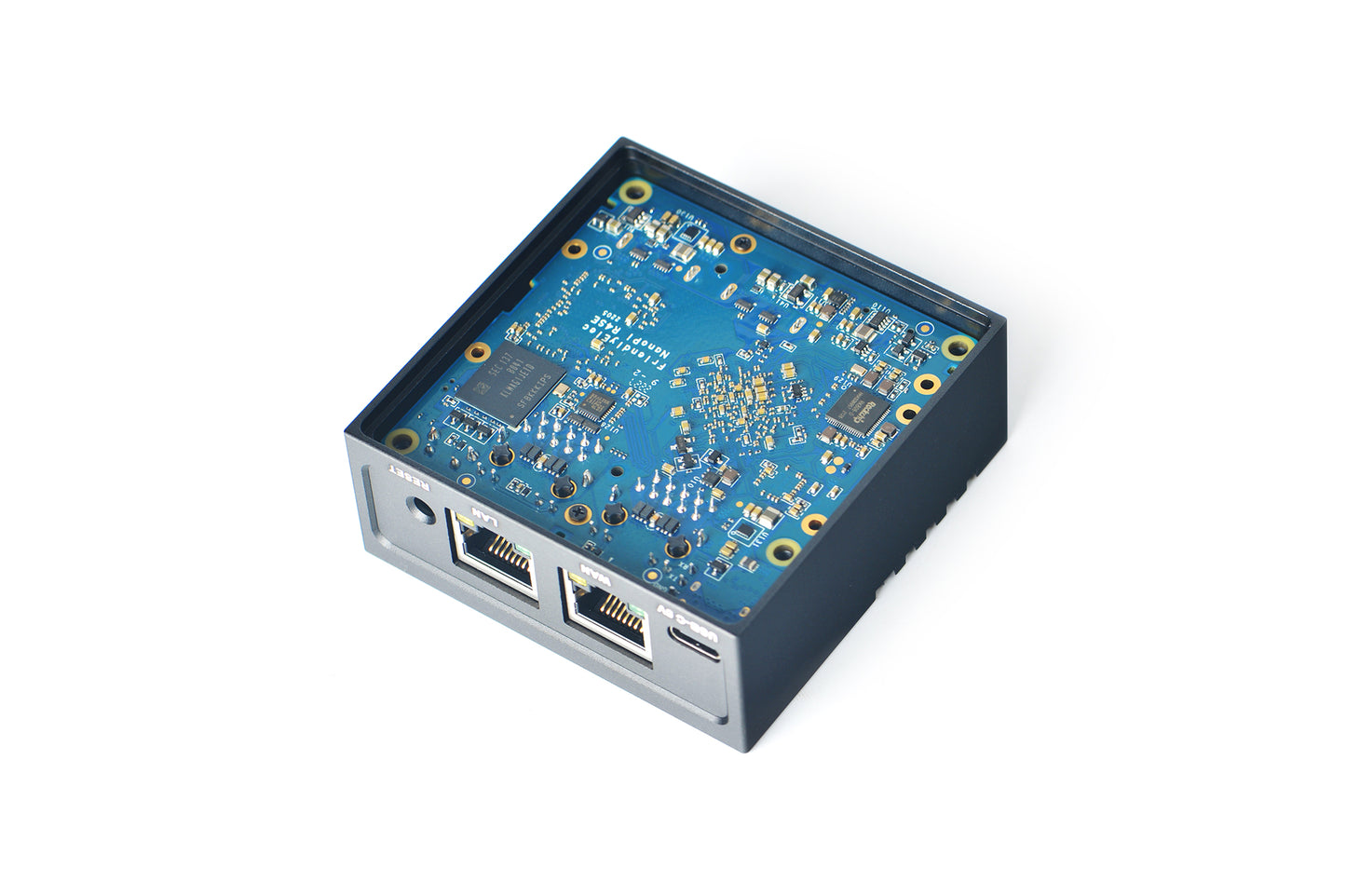

Specifically FriendlyElec released a CNC metal case with fine engineering works for the NanoPi R4SE. This metal case has excellent heat dissipation. In our test when assembled with this metal case the NanoPi R4SE could run smoothly without frequency reduction.

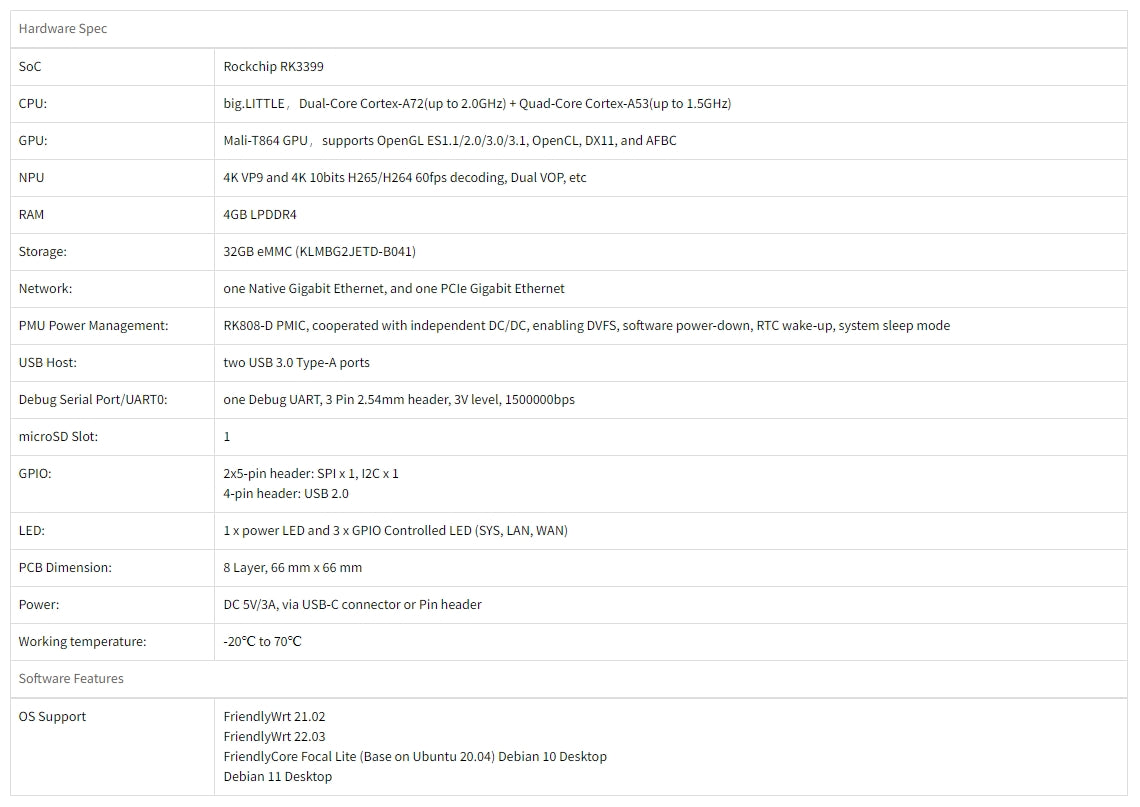

- Hardware Spec
| İşlemci |
Model: Rockchip RK3399 Çekirdek Sayısı: 64-bit Çift Çekirdekli Cortex-A72 + Dört Çekirdekli Cortex-A53 Frekans: Cortex-A72(2.0GHz'e kadar), Cortex-A53(1.5GHz'e kadar) |
| GPU | Mali-T864 GPU, OpenGL® ES1.1/2.0/3.0/3.1, OpenCL™, DX11 ve AFBC'yi destekler |
| VPU | 4K VP9 ve 4K 10 bit H265/H264 60 fps kod çözme, Çift VOP, vb. |
| Güç yönetimi | RK808-D PMIC, bağımsız DC/DC ile işbirliği yaparak DVFS, yazılım kapatma, RTC uyandırma, sistem uyku modunu etkinleştirir |
| Hafıza | RAM: 4GB LPDDR4 |
| Depolamak |
Flash: 32GB eMMC (KLMBG2JETD-B041) MicroSD Yuvası: 128GB'a kadar harici depolama için MicroSD x1 |
| bağlantı |
Ethernet: Yerel Gigabit Ethernet x1 PCIe Gigabit Ethernet x1 |
| USB |
USB 3.0 Ana Bilgisayar x2: USB Tip A Tip-C x1: Yalnızca Güç Girişi |
| PIN başlığı | Seri Hata Ayıklama Bağlantı Noktası x1: 2,54 mm aralıklı 3 pimli başlık, 3V düzeyi, 1500000bps |
| Anahtar |
Kullanıcı Düğmesi x1 MASK Düğmesi eMMC güncellemesi için x1 |
| NEDEN OLMUŞ |
PWR LED(Kırmızı) x1 STAT LED(Yeşil) x1 LAN LED(Yeşil) x1 WAN LED(Yeşil) x1 |
| Diğerleri |
RTC: 2 Pin 1.27/1.25mm RTC pil giriş konektörü Fan: 5V Fan konektörü Çalışma Sıcaklığı: -20℃ ila 70℃ |
| Güç | DC 5V/3A, USB-C konektörü veya Pin başlığı aracılığıyla |
- OS / Software
| İşletim Sistemi Desteği |
FriendlyCore Focal Lite (Ubuntu 20.04 Tabanlı) (Linux-4.19.111 + U-boot-2017.09) FriendlyWrt 21.02.1 (64-bit) |
