Friendly Elec

NanoPi R4S - 4 GB RAM

Regular price $64.80 USD
Regular price Sale price $64.80 USD
Sale Sold out

NanoPi R4S -  4 GB RAM

The NanoPi R4S is a high-end FriendlyElec mini-router with edge-computing and dual Gbps Ethernet ports.

The NanoPi R4S uses the RK3399 SoC. It has two Gbps Ethernet ports and 1G/4G DDR4 RAM. FriendlyElec ported an OpenWrt system for it. It works with Docker CE. It is a good platform for developing IoT applications, NAS applications, smart home gateways etc.

Its dimension is 66 x 66 mm. It is powered through USB Type C port. It works with FriendlyWRT, Ubuntu, Armbian etc.

The NanoPi R4S uses Rockchip's high performance RK3399 SoC. This SoC's frequency can reach as high as 1.8GHz. The NanoPi R4S has 1GB DDR3/4GB LPDDR4 RAM and dual Gbps Ethernet ports. It supports dynamic frequency scaling. It has two USB 3.0 ports that can interface with external hard drives, 4G modules, USB HD cameras, USB WiFi modules etc.

Specifically FriendlyElec released a CNC metal case with fine engineering works for the NanoPi R4S. This metal case has excellent heat dissipation. In our test when assembled with this metal case the NanoPi R4S could run smoothly without frequency reduction.

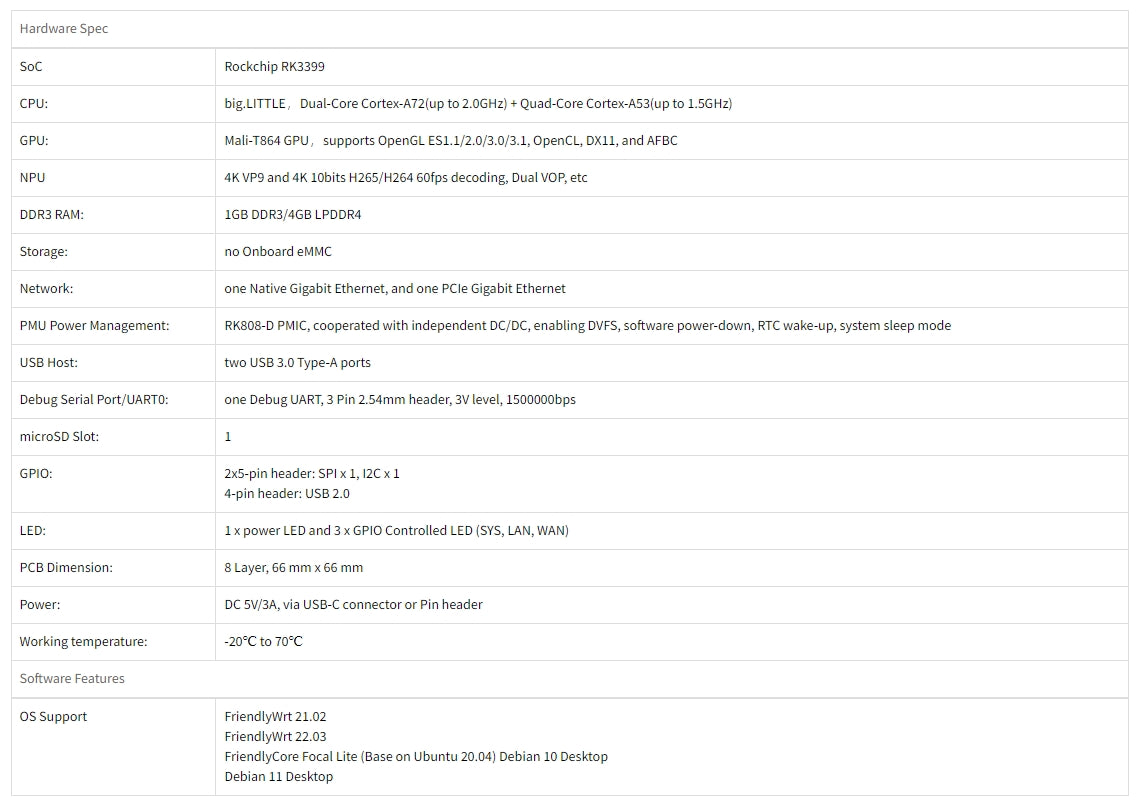

  • CPU: big.LITTLE,Dual-Core Cortex-A72(up to 2.0GHz) + Quad-Core Cortex-A53(up to 1.5GHz)
  • GPU: Mali-T864 GPU, supports OpenGL ES1.1/2.0/3.0/3.1, OpenCL, DX11, and AFBC
  • VPU: 4K VP9 and 4K 10bits H265/H264 60fps decoding, Dual VOP, etc
Memory 1GB DDR3/4GB LPDDR4
Power Management RK808-D PMIC, cooperated with independent DC/DC, enabling DVFS, software power-down, RTC wake-up, system sleep mode
  • Flash: no Onboard eMMC
  • microSD Slot x 1
  • Ethernet: one Native Gigabit Ethernet, and one PCIe Gigabit Ethernet
  • 2x5-pin header: SPI x 1
  • I2C x 1  4-pin header: USB 2.0
  • one Debug UART, 3 Pin 2.54mm header, 3V level, 1500000bps
  • 2 Pin 1.27/1.25mm RTC battery input connector
  • 1x User Button
  • 1x 5V Fan connector
  • FriendlyCore 20.04 (64-bit) (Linux-4.19.111 + U-boot-2017.09)
  • FriendlyWrt 21.02.1 (64-bit)
  • USB: two USB 3.0 Type-A ports
    LED & Key
    • 1 x power LED
    • 3 x GPIO Controlled LED (SYS, LAN, WAN)
    • DC 5V/3A, via USB-C connector or Pin header
    • 8 Layer, 66 mm x 66 mm
    • Working Temperature: -20℃ to 70℃

    Network Transmission Rates:




    941 Mbps

    941 Mbps


    941 Mbps

    941 Mbps


    1. test utility: iperf
    2. use indepedent IP address section and test with a PC in simplex communication mode
