Friendly Elec

Friendly Elec NanoPi R2C Plus Development Board

Regular price $32.65 USD
Regular price Sale price $32.65 USD
Sale Sold out

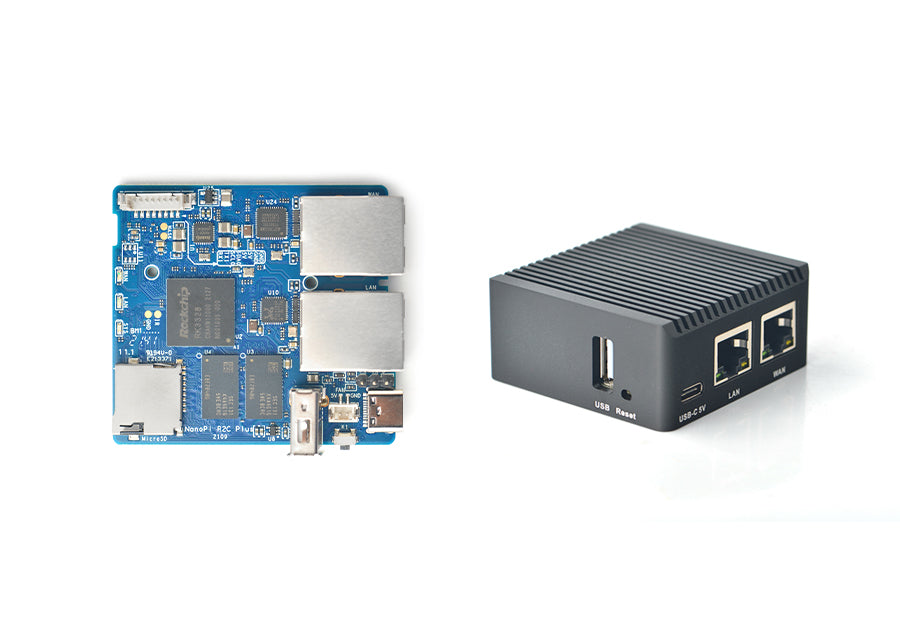

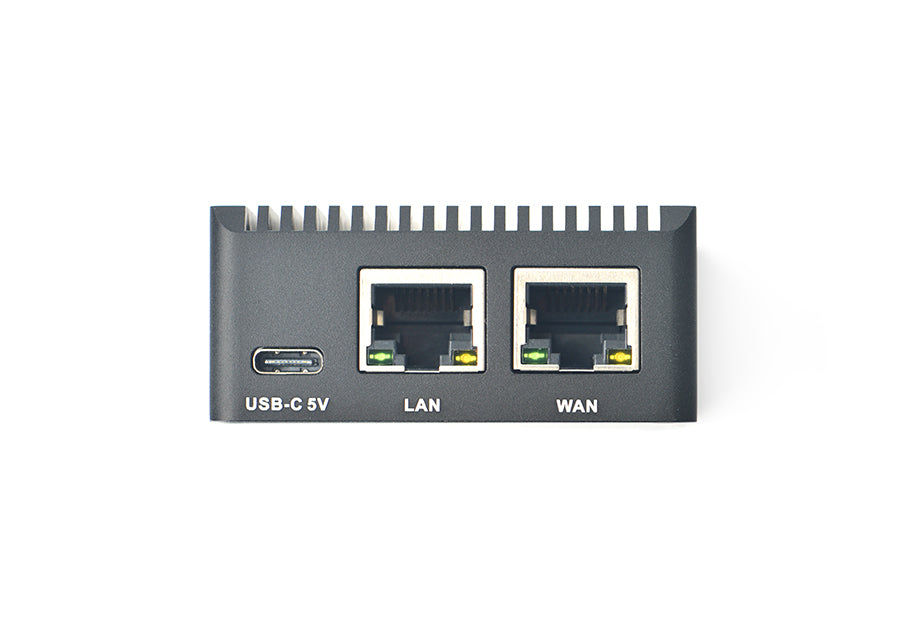

Friendly Elec NanoPi R2C Plus Development Board

NanoPi R2C PLUS is a FriendlyElec mini-router with edge-computing, dual Gbps Ethernet ports and open source platform. It is highly compact with a dimension of 54.3 x 57.5 mm. FriendlyElec ported an OpenWrt system for it. It works with Docker CE. It is a good platform for developing IoT applications, NAS applications, smart home gateways etc.

The NanoPi R2C PLUS uses Rockchip's quad-core A53 RK3328 SoC with powerful performance. Its default frequency is 1.2GHz. The NanoPi R2C PLUS has 1GB (or optional 2GB) RAM, 8G eMMC flash, dual Gbps Ethernet ports, a GPIO connector etc. It uses RK805 PMU chip and supports dynamic frequency scaling. It has one USB 2.0 port that can interface with 4G modules, USB HD cameras, USB WiFi modules etc.

The NanoPi R2C Plus supports TF card booting. It works with FriendlyWrt, UbuntuCore, Armbian etc and has good support from various communities among which OpenWrt supports it in the mainline versions. These systems are based on Linux-5.4 (LTS). The NanoPi R2C Plus is powered through USB Type-C. It is a good choice for applications that need to be deployed in compact space and need strong networking performance.

  • Model: Rockchip RK3328
  • Number of Cores: Quad-Core Cortex-A53
  • Frequency: 4 x Cortex-A53 Up to 1.4GHz
Memory 1GB DDR4 RAM
  • MicroSD Slot: MicroSD of for extemal storage up to 128GB
  • Flash: 8GB eMMC 5.1 Flash
  • Ethernet: Internal Gbps Ethernet, YT8521S chip
  • USB3.0 converted 10/100/1000M Gbps Ethernet
  • Serial Debug Port x1: 2.54mm pitch 3pin-header(3.3V TTL)
  • 8 Pin GPIO Connector:1 x I2C,1 x UART/2 x GPIOs
  • Fan Connector(ZH1.5-2A)
  • FriendlyWrt 19.07-snapshot (64-bit)
  • FriendlyCore Focal Lite (Base on Ubuntu 20.04)
  • USB 2.0 Host x1: USB Type A
  • MicroUSB x1: Power input(5V/2A) and Slave
    LED & Key
    • SYS LED(Red) x1
    • WAN LED(Green) x1
    • LAN LED(Green) x1
    • User  Key x 1 programmable
    • DC 5V/2A
    • 6 Layer PCB, size 57.5 x 54.3mm, With Case 63.5x63.5x24.5 mm
    • Working Temperature: 0°C to 80°C

    Network Transmission Rates:




    941 Mbps

    941 Mbps


    941 Mbps

    941 Mbps


    1. test utility: iperf
    2. use indepedent IP address section and test with a PC in simplex communication mode
