- The NanoPi Fire 2A is a super tiny Quad-Core Cortex-A9 ARM board. It uses Samsung's S5P4418 SoC and has onboard 512M DDR3 RAM. The Fire2A has a Gbps Ethernet, MicroHDMI port, CMOS camera interface and RGB LCD interface. Its GPIOs are compatible with RPi's GPIO. Its size is only 75 x 40 mm.
- The NanoPi Fire 2A has an MCU based power management system and supports dynamic voltage control with good performance and reliability. FriendlyElec provides image files of FriendlyCore (based on UbuntuCore 16.04) and Debian for NanoPi Fire2A. The FriendlyCore image has Qt-5.9 and OpenGL ES1.1/2.0, and supports video playing with hardware-decoding/encoding. It is a good choice for rapidly developing products for applications in distributed computing, artificial intelligence and embedded systems.

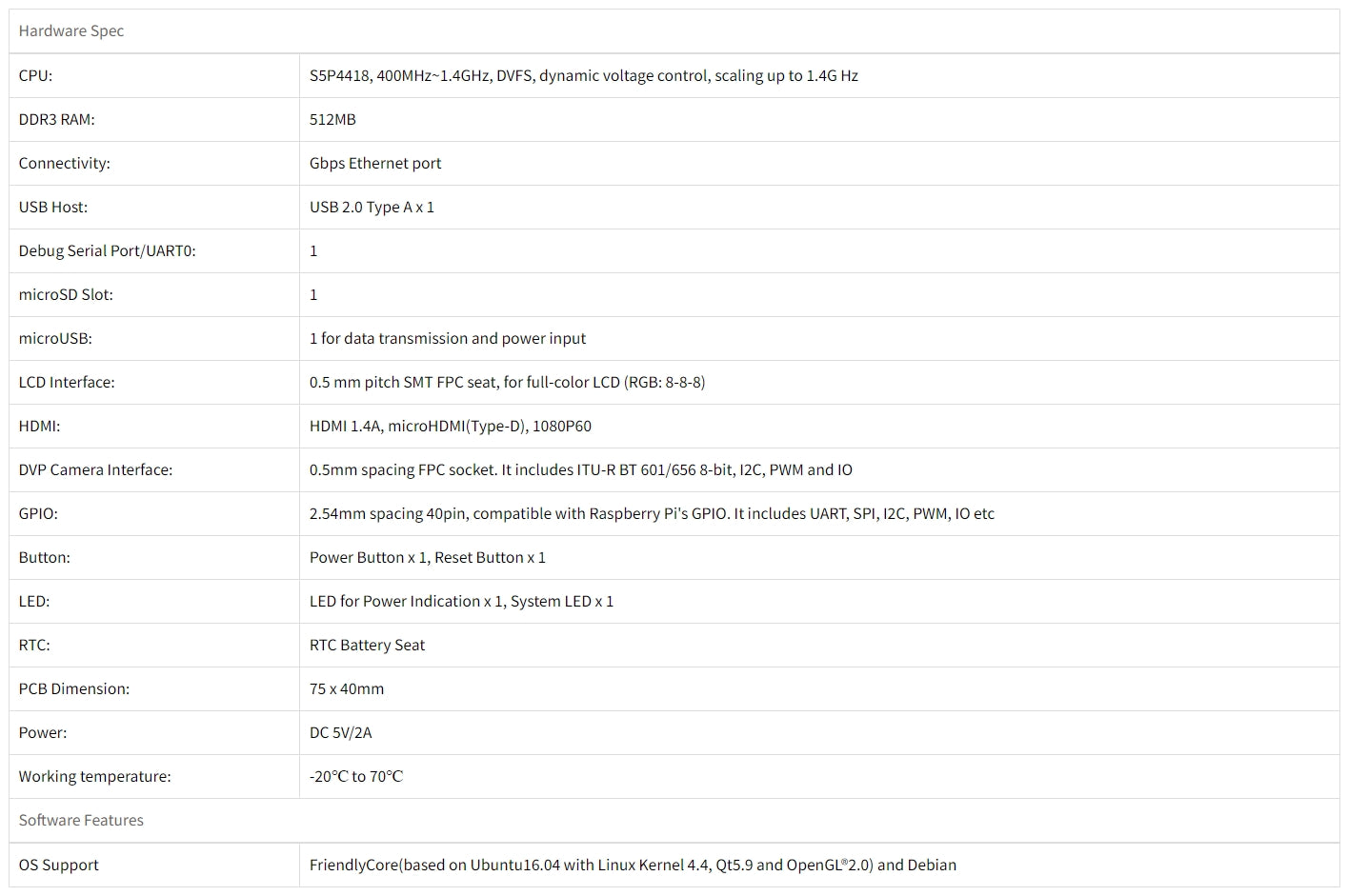

2 Hardware Spec
- CPU: S5P4418, 400MHz~1.4GHz, DVFS, dynamic voltage control, scaling up to 1.4G Hz
- RAM: 512MB DDR3
- Connectivity: Gbps Ethernet port
- PMU Power Management: Implemented by a Cortex-M0 MCU, support software power-off, and RTC alarm power-on functions
- USB 2.0 Type A x 1
- Debug Serial Port/UART0 x 1
- microSD Slot x 1
- microUSB x 1: for data transmission and power input
- LCD Interface: 0.5 mm pitch SMT FPC seat, for full-color LCD (RGB: 8-8-8)
- HDMI: HDMI 1.4A, microHDMI(Type-D), 1080P60
- DVP Camera Interface: 0.5mm spacing FPC socket. It includes ITU-R BT 601/656 8-bit, I2C, PWM and IO
- GPIO: 2.54mm spacing 40pin, compatible with Raspberry Pi's GPIO. It includes UART, SPI, I2C, PWM, IO etc
- Button: Power Button x 1, Reset Button x 1
- LED: LED for Power Indication x 1, System LED x 1
- RTC: RTC Battery Seat
- PCB Dimension: 75 x 40mm
- Power: DC 5V/2A
- Temperature measuring range: -20℃ to 80℃
- OS: FriendlyCore(based on Ubuntu16.04 with Linux Kernel 4.4, Qt 5.10.0 and OpenGL2.0) and Debian
3 Software Features
3.1 FriendlyCore (Based on UbuntuCore16.04 with Qt 5.10.0 and OpenGL ES1.1/2.0)
- Linux Kernel 4.4
- npi-config: npi-config: system configuration utility for setting passwords, language, timezone, hostname, SSH and auto-login
- networkmanager: manage network
- system log output from serial port
- welcome window with basic system information and status
- auto-login with user account "pi" with access to npi-config
- LibMali & OpenGL2.0 driver supported
- Qt 5.10.0 TLS with OpenGL hardware acceleration
- HD video playing with hardware decoding
- GStreamer 1.0 with VPU hardware acceleration
- RPI.GPIO Support: work in progress, not ready yet
- WiringPi Support: work in progress, not ready yet
