Friendly Elec

Friendly Elec NanoPC-T4

Regular price $114.75 USD
Regular price Sale price $114.75 USD
Sale Sold out

NanoPC-T4 RK3399 Board Only

Friendly Elec NanoPC-T4 Dual-Channel 4GB LPDDR3-1866 16GB eMMC

Genova Industrial Products, in collaboration with Friendly Elec, presents the NanoPC-T4 – a revolutionary single-board computer designed to redefine the landscape of industrial computing. Offering unmatched performance, reliability, and versatility, the NanoPC-T4 is your gateway to enhanced precision, efficiency, and innovation in the industrial realm. Explore the limitless potential and elevate your industrial processes with the NanoPC-T4, a testament to our unwavering commitment to delivering top-tier solutions for Genova Industrial Products.


The NanoPC-T4 is by far the smallest RK3399 based high-performance ARM board with popular ports and interfaces. Its software is fully open source. It is as small as 100 x 64 mm. It has 4GB LPDDR3 RAM, 16GB eMMC flash, onboard 2.4G & 5G dual-band WiFi module and a full standard M.2 PCIe interface which supports an NVME SSD high-speed hard drive. The NanoPC-T4 supports GPU and VPU acceleration and works with Android 8.1 and Lubuntu Desktop.

The NanoPC-T4 has a MIPI-CSI dual camera interface, a MIPI-DSI and an eDP display interfaces, and an HDMI 2.0 interface. It has Type-C/DP, USB 3.0, USB2.0, MicroSD, Gbps Ethernet port, 3.5mm audio jack, infrared receiver, AD input, serial debug interface and a 40Pin RPi compatible connector.

The RK3399 SoC has an internal Mali-T860 GPU which has powerful capabilities of processing 3D and HD H.265/H2.64 video streams. It supports dual camera inputs, dual ISP interface capable of doing image processing up to 800M Pix/s. The NanoPC-T4 is a perfect platform forAl and deep learning applications. It can be widely used in advertisement machines, game machines, video conference applications, surveillance systems, clusters, VR/AR applications, machine vision applications and etc.

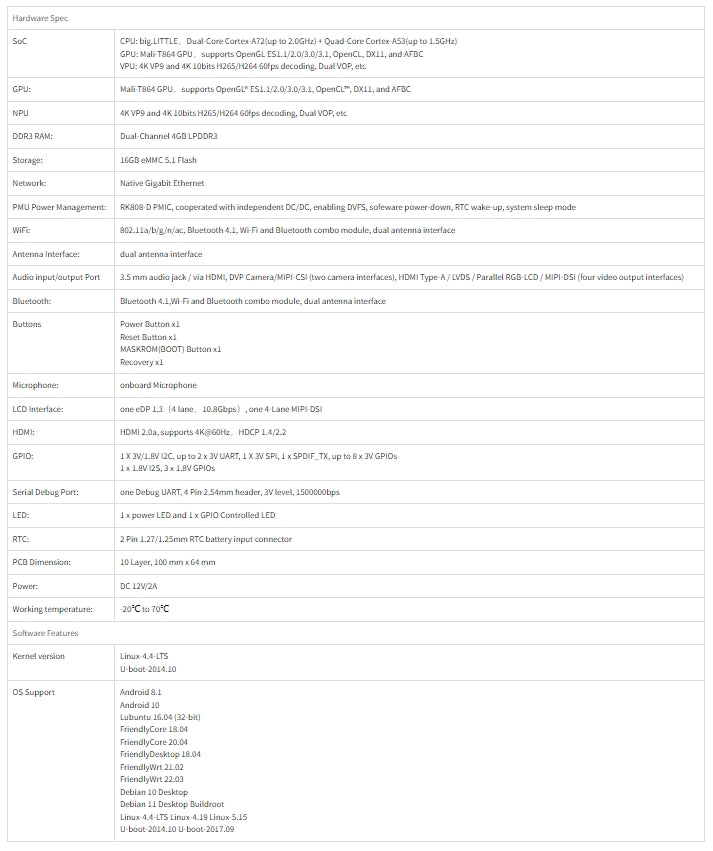

CPU
  • Model: Rockchip RK3399
  • 64-bit Dual Core Cortex-A72 + Quad Core Cortex-A53
  • Frequency: Cortex-A72(up to 2.0GHz), Cortex-A53(up to 1.5GHz)
GPU Mali-T864 GPU, supports OpenGL® ES1.1/2.0/3.0/3.1, OpenCL™, DX11, and AFBC
VPU 4K VP9 and 4K 10bits H265/H264 60fps decoding, Dual VOP, etc
Memory RAM: Dual-Channel 4GB LPDDR3-1866
Storage
  • eMMC: 16GB 5.1 Flash
  • MicroSD Slot: MicroSD x1 for external storage up to 128GB
  • PCIe x1: M.2 M-Key PCIe X4 socket, compatible with PCIe 2.1, Dual operation mode
  • Onboard M3 PCB nut for mounting M.2 2280 module
Power Management

RK808-D PMIC, cooperated with independent DC/DC, enabling DVFS, software power-down, RTC wake-up, system sleep mode

Connectivity
  • Native Gigabit Ethernet
  • Wi-Fi: 802.11a/b/g/n/ac,AP6389SV Chip
  • Bluetooth: 4.1 dual-mode
  • Wi-Fi and Bluetooth combo module, 2x2 MIMO
  • Antenna: Dual Antenna Interface
Video

Video Input:

  • 2 x 4-Lane MIPI-CSI, dual ISP, up to 13MPix/s
  • Supports simultaneous input of dual-camera data

Video Output:

  • HDMI: HDMI 2.0a, supports 4K@60Hz HDCP 1.4/2.2
  • DP on Type-C: DisplayPort 1.2 Alt Mode on USB Type-C
LCD Interface One eDP 1.3(4 line,10.8Gbps), one 4-Line MIPI-DSI
Audio
  • Audio Out: 3.5mm Dual channel headphone jack, or HDMI
  • Audio In: 2-Pin 2.54mm header for microphone
Pin-header
  • 40Pin GPIO Extension ports:
  • 1 x 3V/1.8V I2C, up to 2 x 3V UART, 1 x 3V SPI, 1 x SPDIF_TX, up to 8 x 3V GPIOs 1 x 1.8V I2S, 3 x 1.8V GPIOs
  • ADC: 3 x 1.8V ADC inputs, 5 Pin 2.54mm header
  • Debug: 1 x Debug UART, 4 Pin 2.54mm header, 3V level, 1500000bps
OS/Software
  • Android 8.1
  • Android 10
  • Lubuntu 16.04 (32-bit)
  • FriendlyCore 18.04 (64-bit)
  • FriendlyDesktop 18.04 (64-bit)
  • FriendlyWrt 21.02.1 (64-bit)
Kernel version
  • Linux-4.4-LTS
  • U-boot-2014.10
USB
  • USB 2.0 x2: independent native USB 2.0 Host A interfaces
  • USB 3.0 x1: native USB 3.0 Host A-type interface
  • USB Type-C x1: Supports USB3.0 Type-C and DisplayPort 1.2 Alt Mode on USB Type-C
Pin Headers
  • 40Pin GPIO Extension ports:
  • 1 x 3V/1.8V I2C, up to 2 x 3V UART, 1 x 3V SPI, 1 x SPDIF_TX, up to 8 x 3V GPIOs 1 x 1.8V I2S, 3 x 1.8V GPIOs
  • ADC: 3 x 1.8V ADC inputs, 5 Pin 2.54mm header
  • Debug: 1 x Debug UART, 4 Pin 2.54mm header, 3V level, 1500000bps
User Button
  • Power Button x1
  • Reset Button x1
  • MASKROM(BOOT) Button x1
  • Recovery x1
LED
  • Power LED x 1 (Red)
  • STAT LED LED x 1 (Green)
Others
  • IR receiver: Onboard IR receiver, Accepted 38KHz carrier frequency
  • RTC Battery: 2 Pin 1.27/1.25mm RTC battery input connector
  • Cooling: two 2.5mm PCB nuts for mounting heat sink; 3 Pin 12V cooling fan interface with PWM
  • Working Temperature: -20℃ to 70℃
Power DC 12V, up to 2A
Dimensions
  • 10 Layer
  • 100*64mm
  • 63.06g



Elevate Your Industrial Performance with Genova Industrial Products and the Powerhouse NanoPC-T4 by Friendly Elec!
