Friendly Elec

Mini Shield for NanoPi NEO Core/Core2

Regular price $10.99 USD
Regular price Sale price $10.99 USD
Sale Sold out

• The Mini Shield for NanoPi NEO Core/Core2 is a custom SDK carrier board developed for the NanoPi NEO Core and NanoPi NE0 Core2. It has Ethernet port, serial debug port, audio, USB port and etc.

- 1 x Onboard JMS567 USB to SATA IC and 1 x M.2 SSD interface for connecting a 2242 SSD. • 2 x USB Host ports.

• 1 x Serial debug port for connecting a serial communication board and 1 x Ethernet port.

• 1 x Onboard Microphone and 1 x 3.5mm audio jack for audio recording and playing.

• 2 x 13 Pin header which populate the NanoPi NEO Core/Core2's10 pins.

• 1 x button and 1 x IR interface for working with a remote control • Room for an SPI Flash(SOP8-200mil) is reserved. Users can solder an SPI flash on the board.

• It has the same dimension and mounting holes as those of a Raspberry Pi. The whole board can be well fit into a RPi's case.

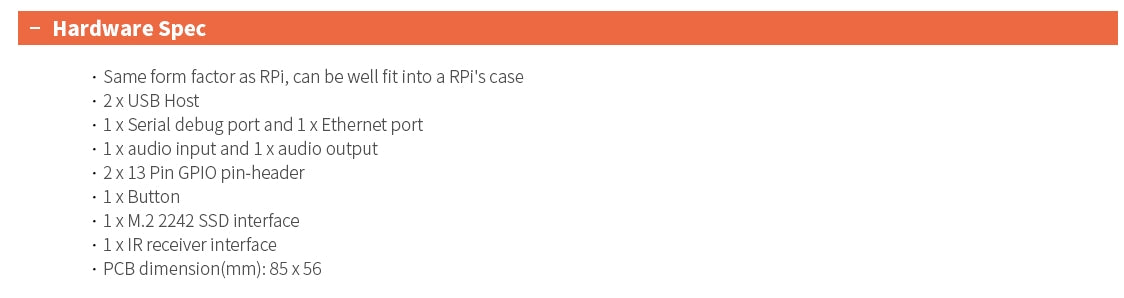

- Hardware Spec

  • Same form factor as RPi, can be well fit into a RPi's case
  • 2x USB Host
  • 1 x Serial debug port and 1 x Ethernet port
  • 1 x audio input and 1 x audio output
  • 2 x 13 Pin GPIO pin-header
  • 1 x Button
  • 1 x M.2 2242 SSD interface
  • 1 x IR receiver interface
  • PCB dimension(mm): 85 x 56

- Shipping List

  • 1 x Mini Shield for NanoPi NEO Core/Core2
  • 1 x NanoPi K2 Case with Screws & Pads
  • 1 x Screw for mounting as SSD hard drive
