MATRIX Potentiometer
- Standard 3pin interface
- GPIO
- 254 mm pitch pin-header
- PCB DImenslon(mm):16 x 24
The Matrix - Potentiometer module is a Potentiometer module. It can be used in

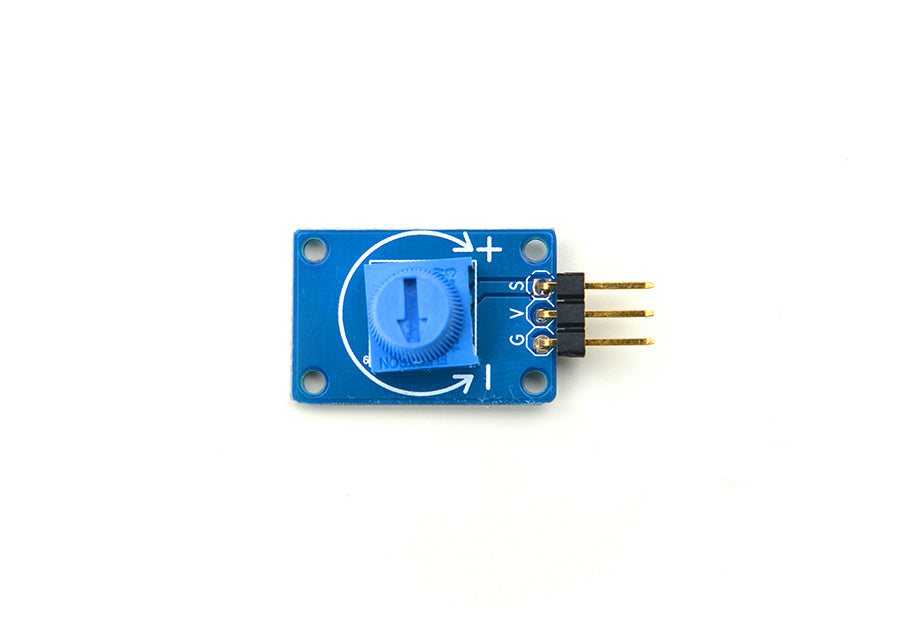

audio control, motion control, transducers, computation and etc. It has a 3 Pin 2.54mm spacing pin header, V is supply voltage, G is ground and S is output analog signal. Users can convert output analog signals to digital signals via ADC conversion.
Pin | Spec |
S | GPIO |
V | Power supply 5V |
G | ground |
Specifications
