Friendly Elec

Matrix One_Touch_Sensor Module

Regular price $2.99
Regular price Sale price $2.99
Sale Sold out
Delivery Guarantee

Delivery Guarantee

Technical Support

Technical Support

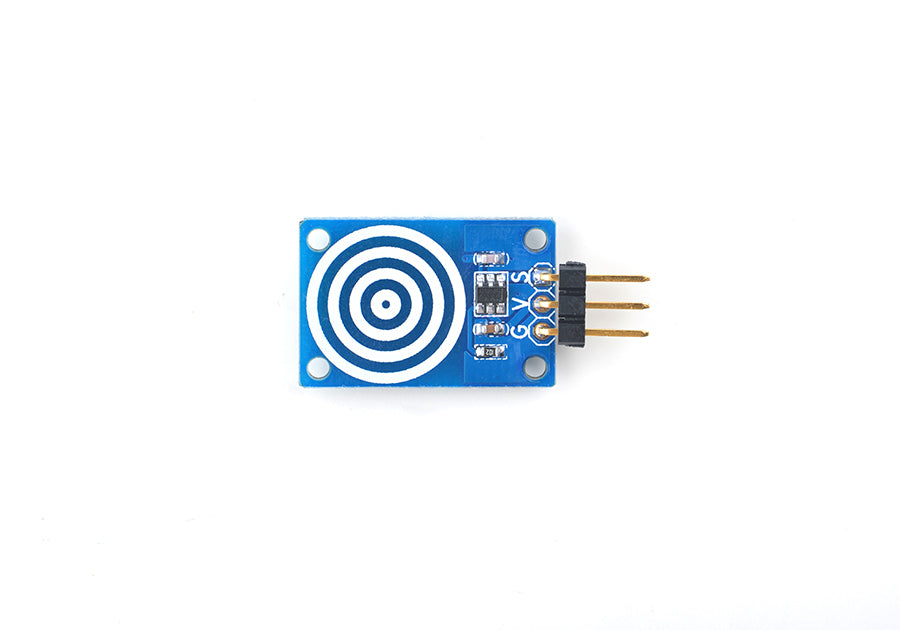

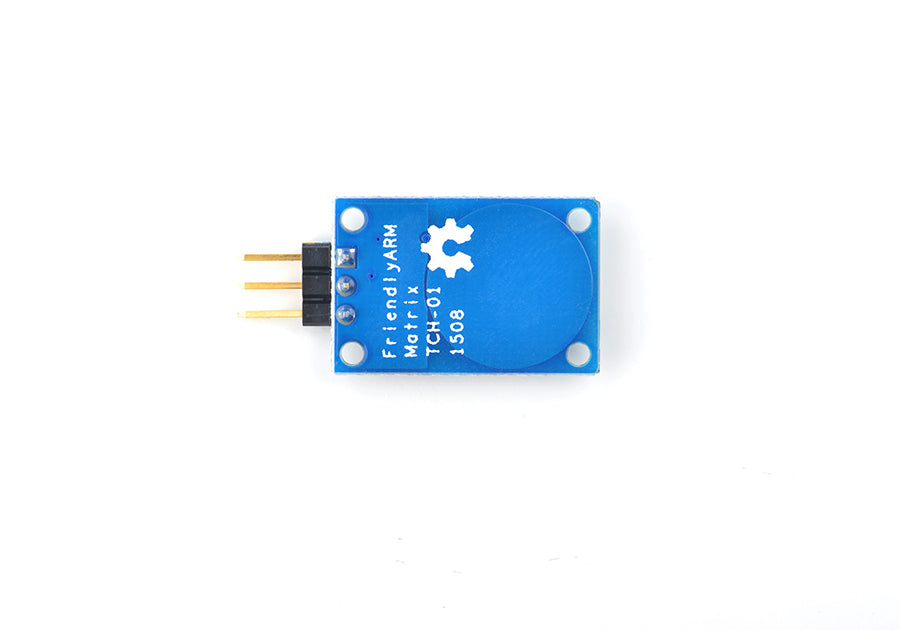

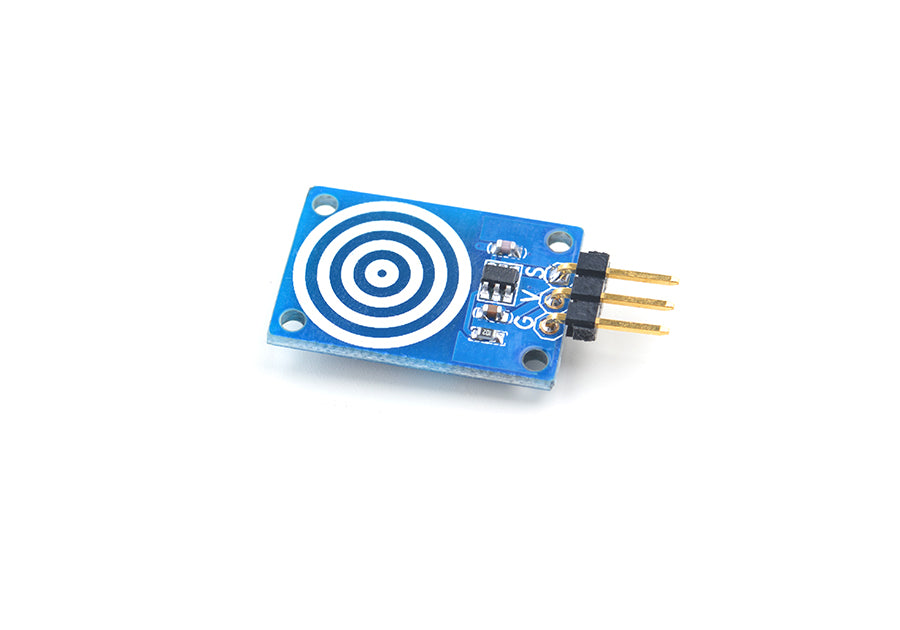

MATRIX one Touch sensor Module

  • Standard 3Pin interface
  • Stable touching detection of human body
  • Touch pad detector IC TTP223 which offers one capacitive touch key
  • PCB Dimension(mm): 16x24

The Matrix One_Touch_Sensor is a digital one capacitive touch key module. It uses
the one key capacitive touch pad detector IC TTP223. It has a touch key with stable

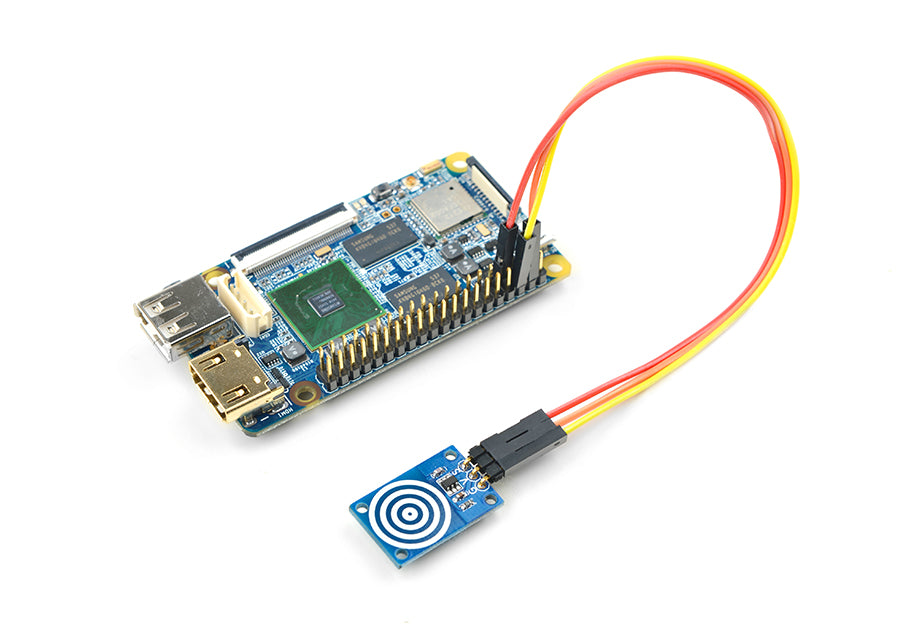

touching detection. It is designed for replacing traditional direct button key with diverse pad size By default it outputs low. When a finger touches the touch key it outputs high. It works with all FriendlyARM ARM boards, Raspberry Pi boards and Arduino boards.

Pin  Spec
S GPIO
V Power supply 5V
G ground
