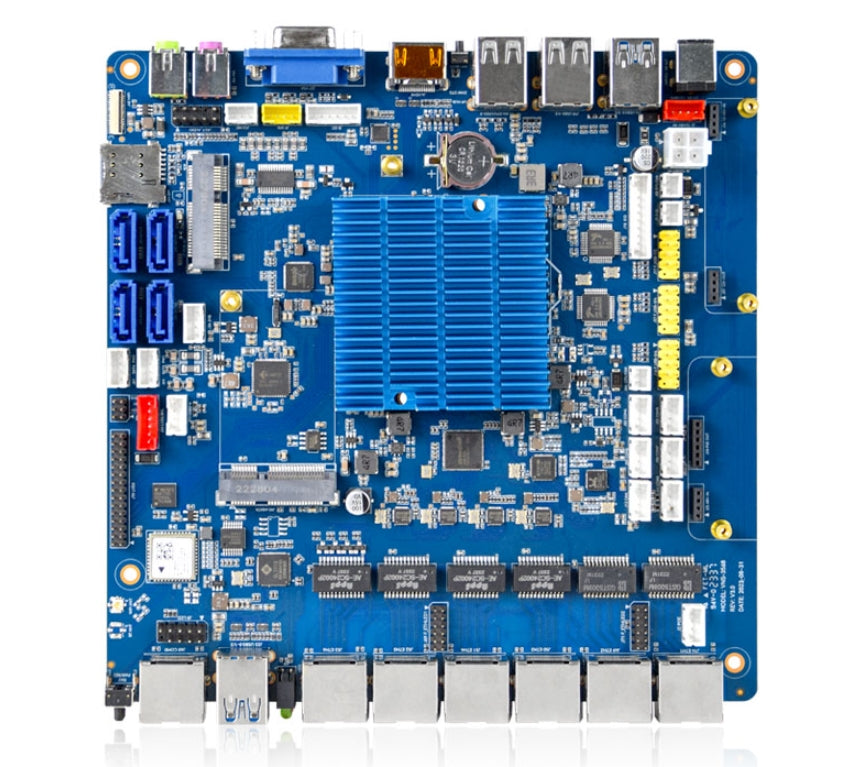

LIONTRON VSN-3568 Rockchip RK3568 Smart Multi-network Ports Motherboard

Key Features

  • Rockchip RK3568, ARM Hexa core CPU
  • Support LVDS, MIPI, HDMI and VGA display
  • Support WiFi6 and Bluetooth V5.0
  • 4 USB3.0, 11 USB2.0
  • 4 SATA3.0, 1 mSATA
  • Up to 8GB RAM and 128GB ROM
  • Mini PCIe interface, Support 4G/5G module
  • UP to 5 RS232, optional 2 as RS485
  • 6 Gigabit Ethernet (optional 4 as PSE outputs)
  • Size 170mm*170mm

Specification

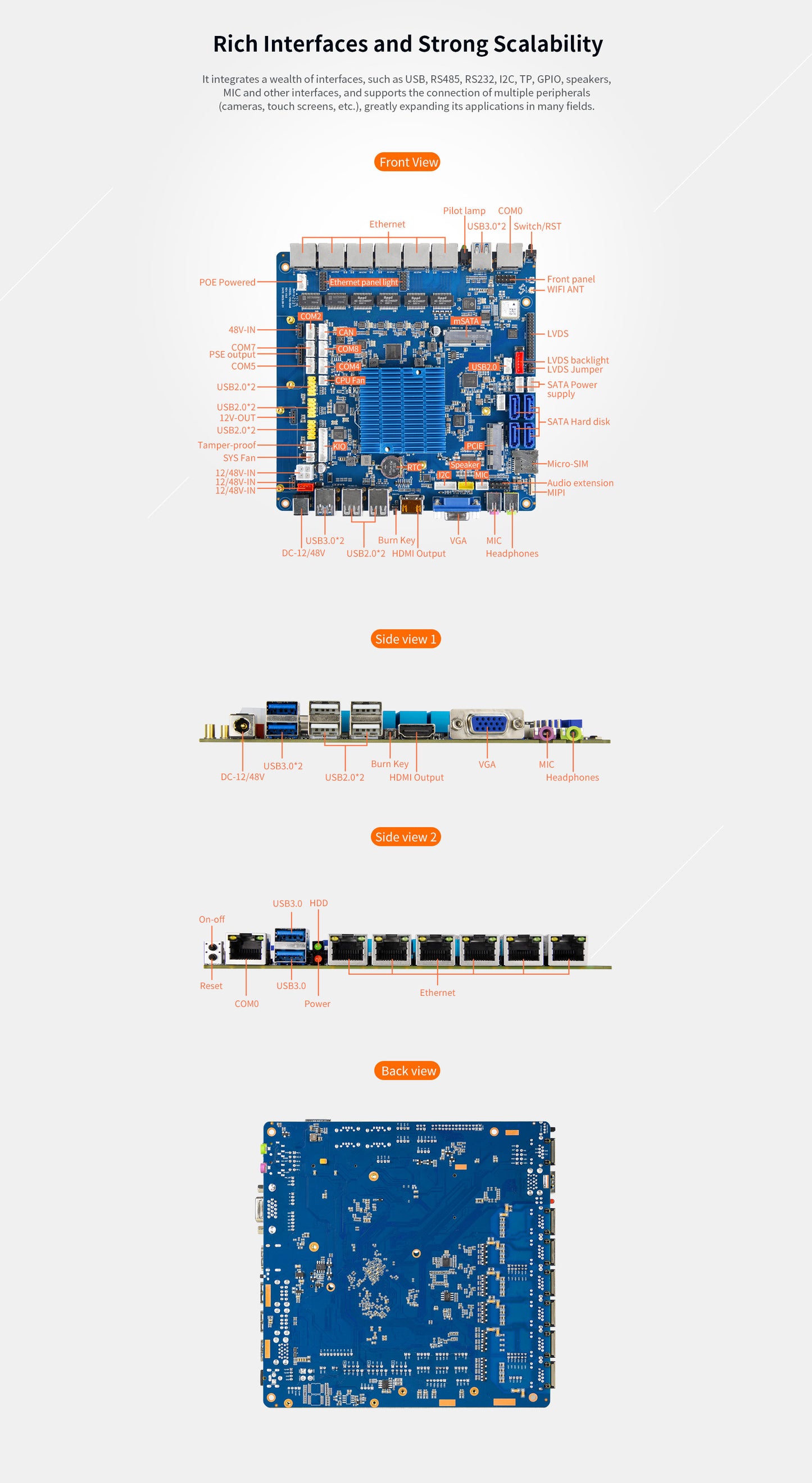

Function & Interface

Detailed Description

CPU

RK3568 Cortex-A55 quad-core, up to 2.0GHz

DDR

LPDDR4 2GB (4GB|8GB optional)

Storage

The default comes with an 16GB EMMC NAND chip that can scale up to 128GB

LVDS

30-pin industry-standard dual LVDS supporting VESA/JEITA format up to 1080P output

MIPI-DSI

31-Pin FPC MIPI-DSI display port supporting up to 1920x1200

HDMI Output

1 HDMI 2.0 standard display interface supports up to 4K output

VGA Output

Industry-standard DB-15 VGA output up to 1080P

Amplifier Output

8 Ohm 6W Dual Audio Amplifier Output

Headphone Output

Stereo Headphone Output (Audio Jack)

MIC Input

Differential MIC input (Audio Jack)

USB Interface

8 horizontal connectors (USB Host 3.0x4, USB Hub 2.0x3 and USB OTGx1), 7 pin headers USB 2.0

Serial Port

1 TTL, 2 TTL/RS-232/RS-485 compatible, 3 TTL/RS-232 compatible,

Camera

Support USB camera within 8 million pixels

WIFI

Built-in high performance SDIO interface WiFi6 module, support IEEE 802.11 a/b/g/n/ac/ax, dualband is configured by default.

Bluetooth

Built-in high performance serial interface BT module with support for V2.1+EDR/BT v3.0/BT v3.0+HS/BT v4.0/BT v5.0

Ethernet

6 port 10/100/1000M Adaptive Ethernet RJ45 connector + 4-Pin POE PD header

m-PCIE 4G

1 Industry standard m-PCIE 4G module interface

Backlight Control

1 port Industry standard LCD backlight control header, support for backlight switch and brightness adjustment

GPIO Signals

Up to 8-way GPIO signals for such as GPIO buttons and/or 3.3V digital input/output

I2C Bus

I2C pin header for I2C capacitive screen and etc

Security Port

1 Tamper control port

CAN Bus

1 CAN pin headers for CAN Bus peripherals

m-SATA

1 Industry standard mSATA module interface

SATA HD

4 Standard SATA 3.0 hard disk port with power supply header

Real Time Clock

Ultra-low-power RTC circuit (CR1220 battery) with timer and alarm functionalities

LED Indicator

Red LED indicator for standby and green LED indicator for running

Fan Header

SYS fan power and CPU fan power

Buttons

Recovery mode button,power switch button and reset button

POE PSE

4-way RJ45 network port PSE output 48V power supply (optional)

DC Input

Supports 9~15V wide voltage DC power input (18~52V power input optional)

Ambient Requirement

Working temperature -20°C ~ 70°C, working humidity 0%~95% (non-condensing)

Physical Size

Length*Width*Height (170mm*170mm*17.5mm), PCB top side height 16mm
