LIONTRON TM-YA133 Allwinner A133 Smart Treadmill Motherboard

Regular price $54.80
Regular price Sale price $54.80
Sale Sold out
Shipping calculated at checkout.
Delivery Guarantee

Delivery Guarantee

Technical Support

Technical Support

Liontron TM-YA133 Allwinner A133 Smart Treadmill Motherboard

Key Features

  • Allwinner A133, ARM quad-core A53
  • Built-in LVDS and MIPI display supports up to 1080P
  • LCD RGB interface, support conventional LCD screen
  • WiFi802.11b/g/n/ac and Bluetooth V4.0
  • Up to 2GB memory, 128GB storage
  • Up to 6 USB2.0
  • Support 9-15V wide voltage DC power input
  • 2 TTL/RS232 serial ports, 1 TTL/RS485
  • Size 100mm*80mm

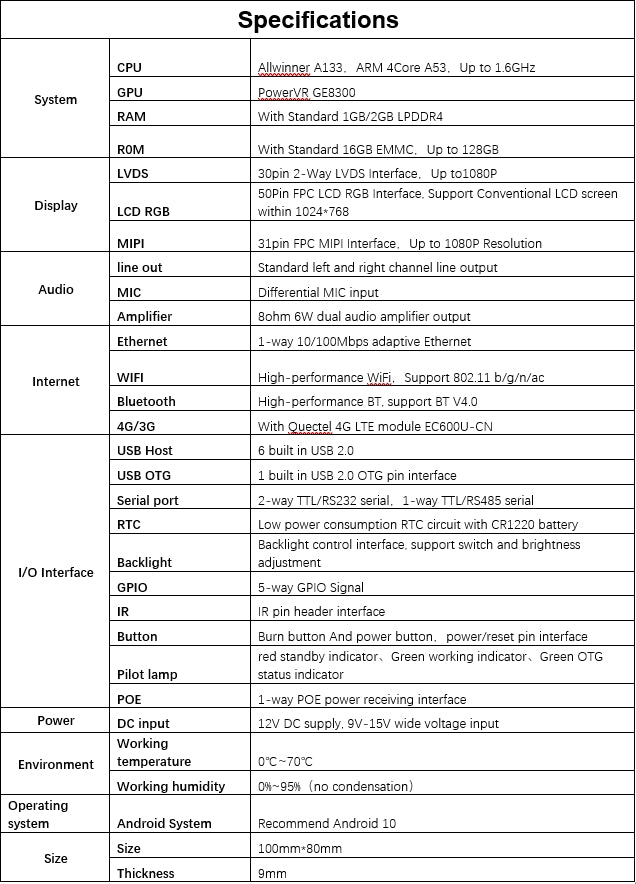

Specifications

System

CPU

Allwinner A133ARM 4Core A53Up to 1.6GHz

GPU

PowerVR GE8300

RAM

With Standard 1GB/2GB LPDDR4

R0M

With Standard 16GB EMMCUp to 128GB

Display

LVDS

30pin 2-Way LVDS InterfaceUp to1080P

LCD RGB

50Pin FPC LCD RGB Interface, Support Conventional LCD screen within 1024*768

MIPI

31pin FPC MIPI InterfaceUp to 1080P Resolution

Audio

line out

Standard left and right channel line output

MIC

Differential MIC input

Amplifier

8ohm 6W dual audio amplifier output

Internet

Ethernet

1-way 10/100Mbps adaptive Ethernet

WIFI

High-performance WiFiSupport 802.11 b/g/n/ac

Bluetooth

High-performance BT, support BT V4.0

4G/3G

With Quectel 4G LTE module EC600U-CN

I/O Interface

USB Host

6 built in USB 2.0

USB OTG

1 built in USB 2.0 OTG pin interface

Serial port

2-way TTL/RS232 serial1-way TTL/RS485 serial

RTC

Low power consumption RTC circuit with CR1220 battery

Backlight

Backlight control interface, support switch and brightness adjustment

GPIO

5-way GPIO Signal

IR

IR pin header interface

Button

Burn button And power buttonpower/reset pin interface

Pilot lamp

red standby indicatorGreen working indicatorGreen OTG status indicator

POE

1-way POE power receiving interface

Power

DC input

12V DC supply, 9V-15V wide voltage input

Environment

Working temperature

0~70

Working humidity

0%~95%no condensation

Operating system

Android System

Recommend Android 10

Size

Size

100mm*80mm

Thickness

9mm
