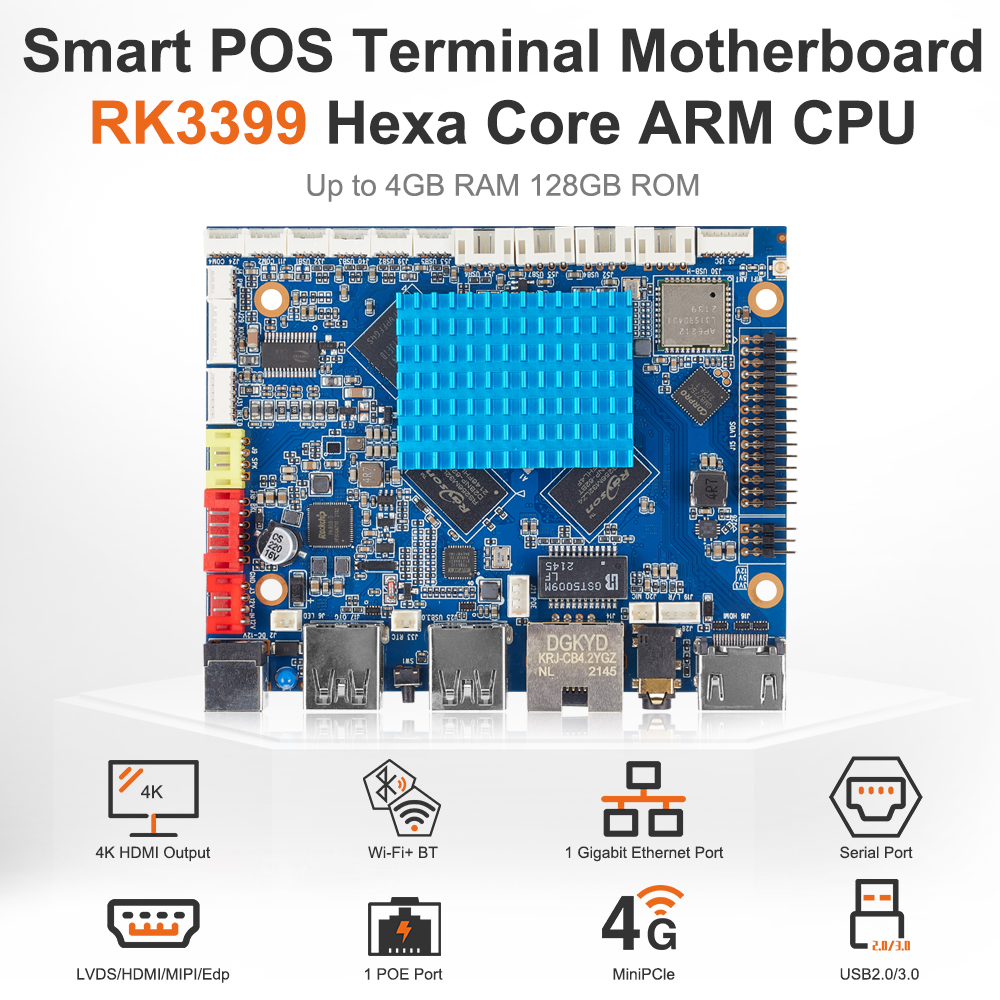

Liontron PX-3399 Rockchip RK3399 Smart POS Terminal Motherboard

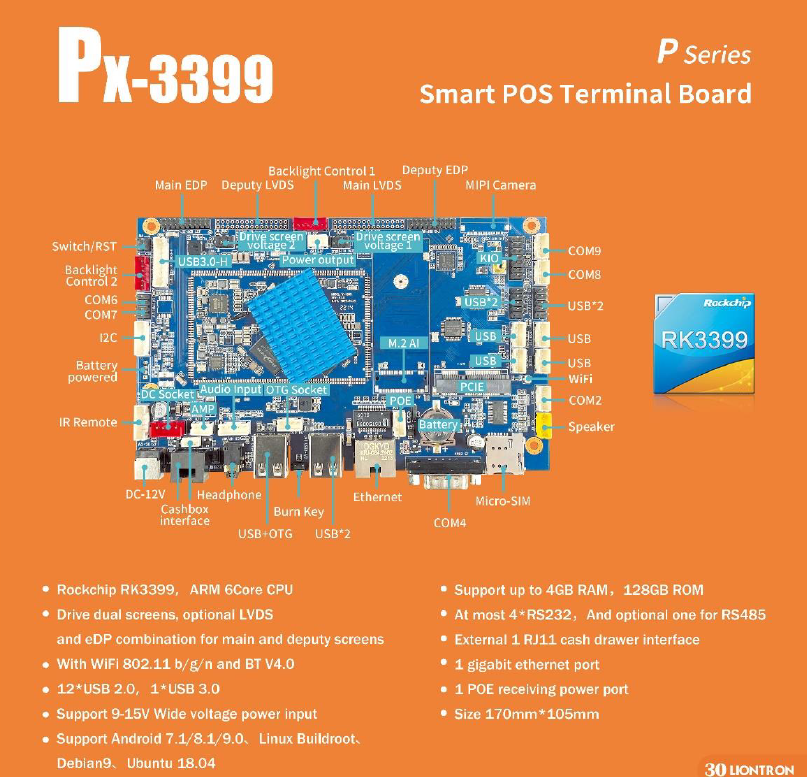

Key Features：
- Rockchip RK3399, ARM Hexa core CPU

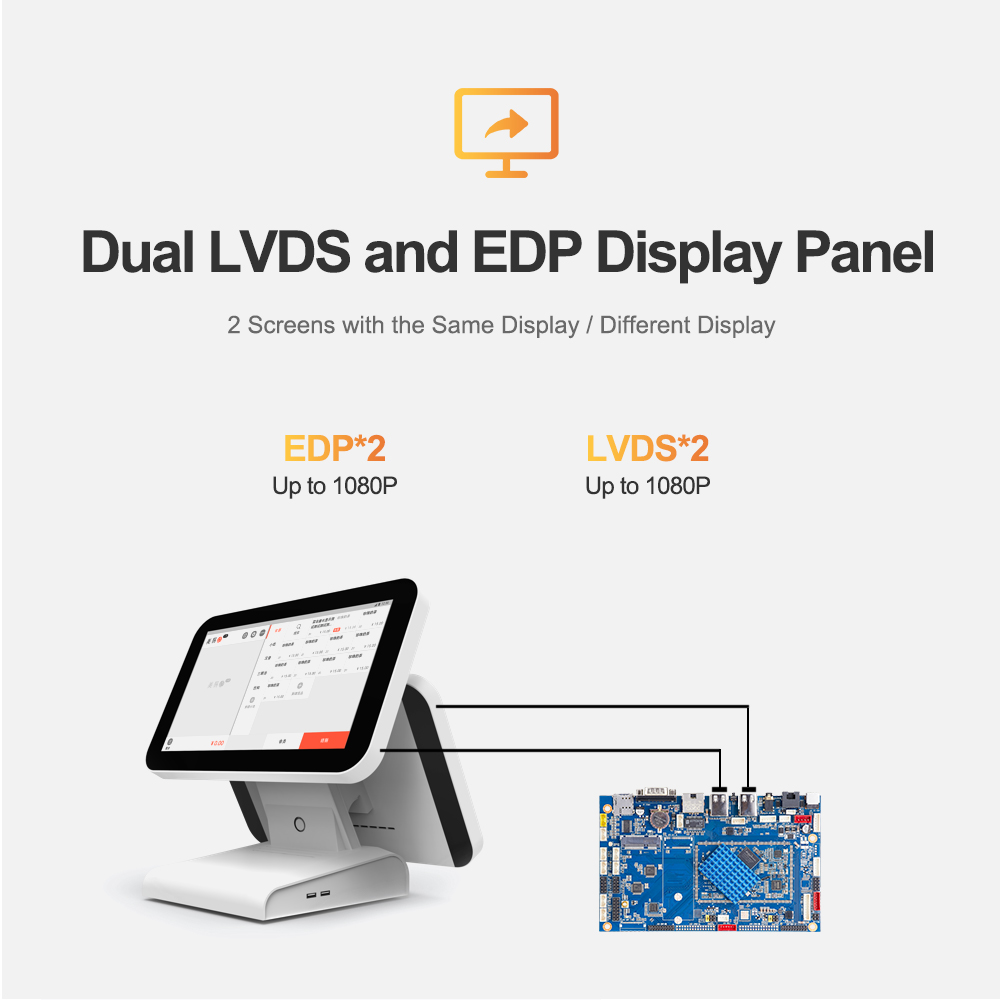

- Drive dual screens, optional LVDS and eDP combination for main and secondary screens
- WiFi802.11b/g/n and Bluetooth V4.0
- 12 USB 2.0, 1 USB 3.0
- Up to 4GB memory, 128GB storage
- Up to 4 RS232, and optional 1 RS485
- External 1 RJ11 cash drawer interface
- Support 9-15V wide voltage DC power input
- 1 Gigabit Ethernet, 1 POE powered interface
- size 170mm*105mm
|

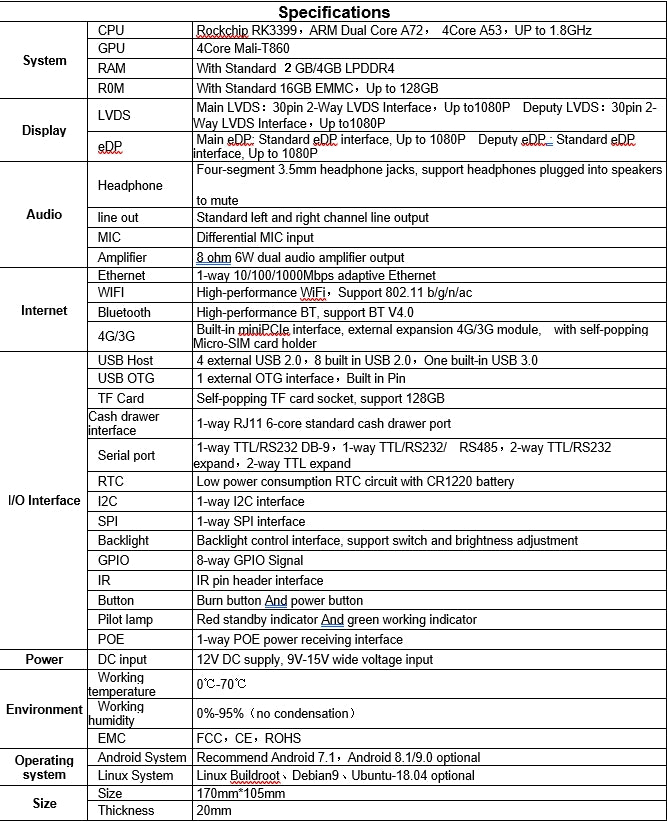

Specifications |
||
|
System |
CPU |
Rockchip RK3399，ARM Dual Core A72， 4Core A53，UP to 1.8GHz |
|
GPU |
4Core Mali-T860 |
|
|
RAM |
With Standard ２GB/4GB LPDDR4 |
|
|
R0M |
With Standard 16GB EMMC，Up to 128GB |
|
|
Display |
LVDS |
Main LVDS：30pin 2-Way LVDS Interface，Up to1080P Deputy LVDS：30pin 2-Way LVDS Interface，Up to1080P |
|
eDP |
Main eDP: Standard eDP interface, Up to 1080P Deputy eDP : Standard eDP interface, Up to 1080P |
|
|
Audio |
Headphone |
Four-segment 3.5mm headphone jacks, support headphones plugged into speakers to mute |
|
line out |
Standard left and right channel line output |
|
|
MIC |
Differential MIC input |
|
|
Amplifier |
8 ohm 6W dual audio amplifier output |
|
|
Internet |
Ethernet |
1-way 10/100/1000Mbps adaptive Ethernet |
|
WIFI |
High-performance WiFi，Support 802.11 b/g/n/ac |
|
|
Bluetooth |
High-performance BT, support BT V4.0 |
|
|
4G/3G |
Built-in miniPCIe interface, external expansion 4G/3G module, with self-popping Micro-SIM card holder |
|
|

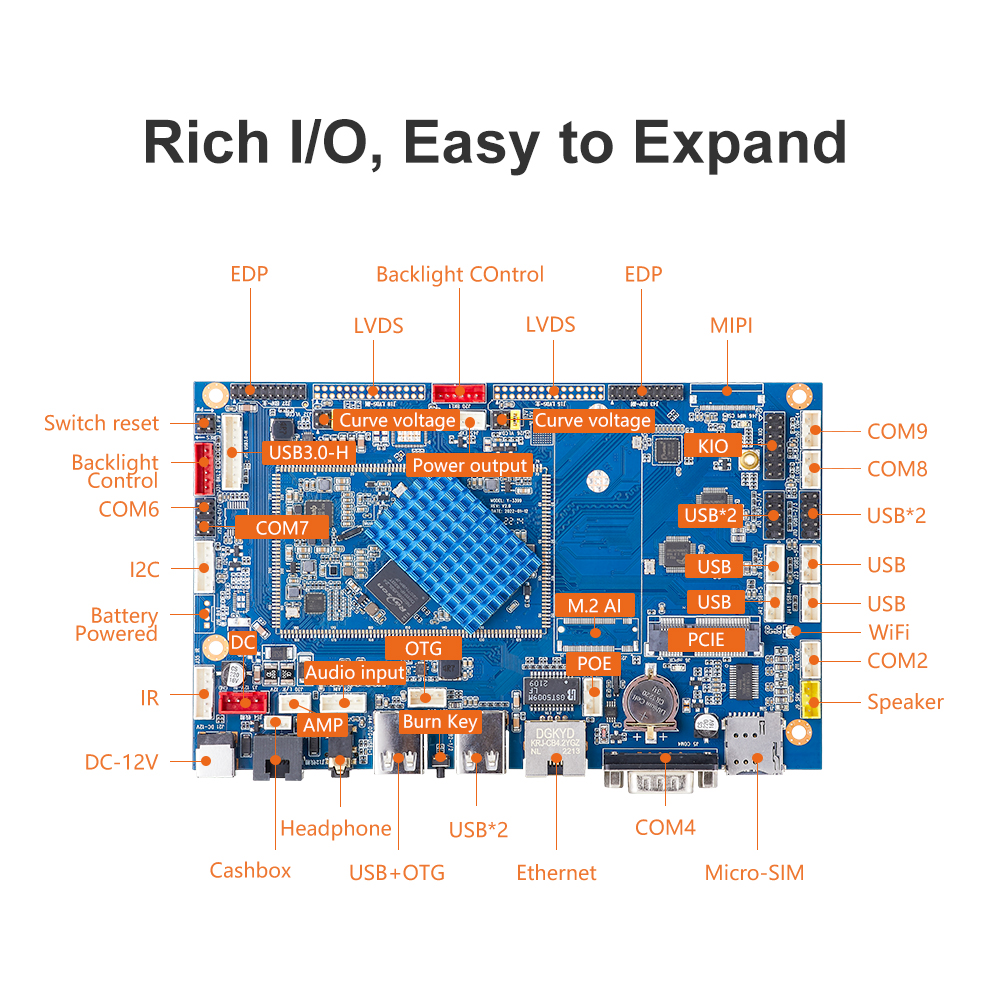

I/O Interface |
USB Host |
4 external USB 2.0，8 built in USB 2.0，One built-in USB 3.0 |
|
USB OTG |
1 external OTG interface，Built in Pin |
|
|
TF Card |
Self-popping TF card socket, support 128GB |
|
|
Cash drawer interface |
1-way RJ11 6-core standard cash drawer port |
|
|
Serial port |
1-way TTL/RS232 DB-9，1-way TTL/RS232/ RS485，2-way TTL/RS232 expand，2-way TTL expand |
|
|
RTC |
Low power consumption RTC circuit with CR1220 battery |
|
|
I2C |
1-way I2C interface |
|
|
SPI |
1-way SPI interface |
|
|
Backlight |
Backlight control interface, support switch and brightness adjustment |
|
|
GPIO |
8-way GPIO Signal |
|
|
IR |
IR pin header interface |
|
|
Button |
Burn button And power button |
|
|
Pilot lamp |
Red standby indicator And green working indicator |
|
|
POE |
1-way POE power receiving interface |
|
|
Power |
DC input |
12V DC supply, 9V-15V wide voltage input |
|
Environment |
Working temperature |
0℃-70℃ |
|
Working humidity |
0%-95%（no condensation） |
|
|
EMC |
FCC，CE，ROHS |
|
|
Operating system |
Android System |
Recommend Android 7.1，Android 8.1/9.0 optional |
|
Linux System |
Linux Buildroot、Debian9、Ubuntu-18.04 optional |
|
|
Size |
Size |
170mm*105mm |
|
Thickness |
20mm |
|
