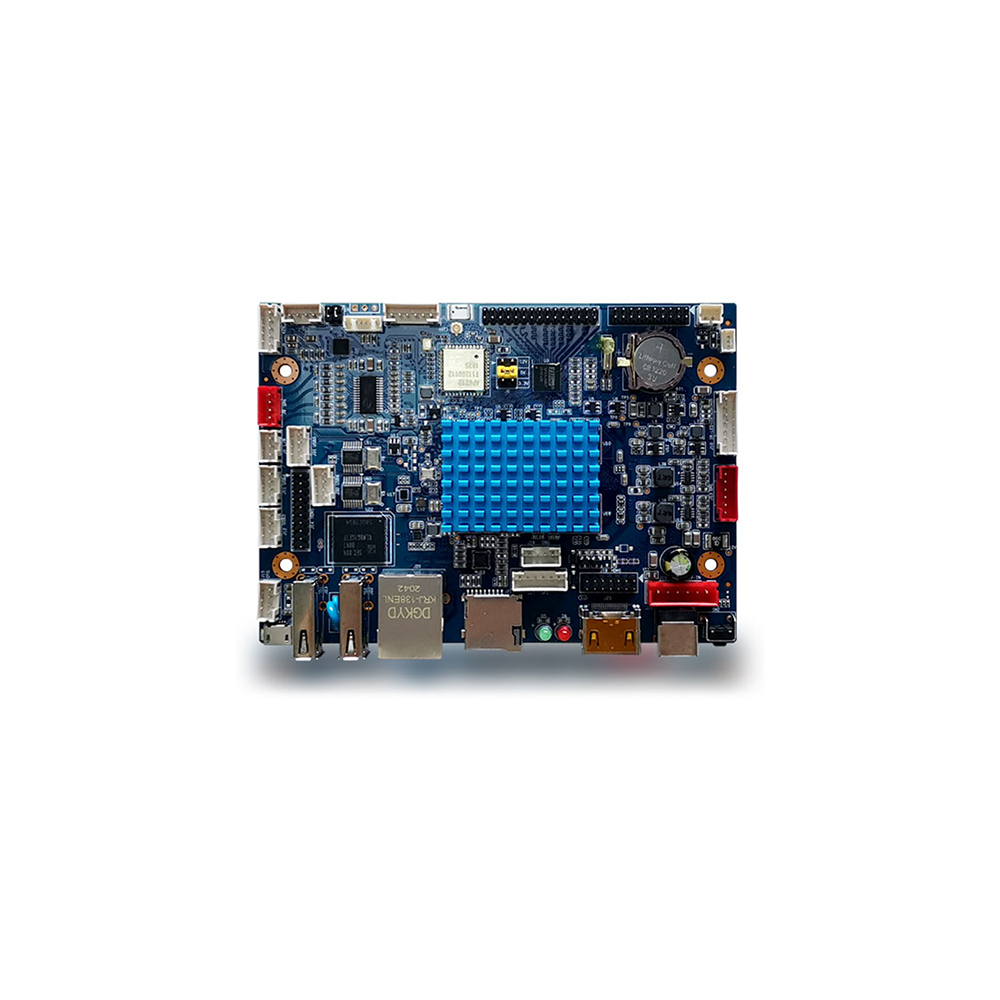

LIONTRON M2 RK3368 CPU 1GB RAM 8GB eMMC Smart Commercial Display Board

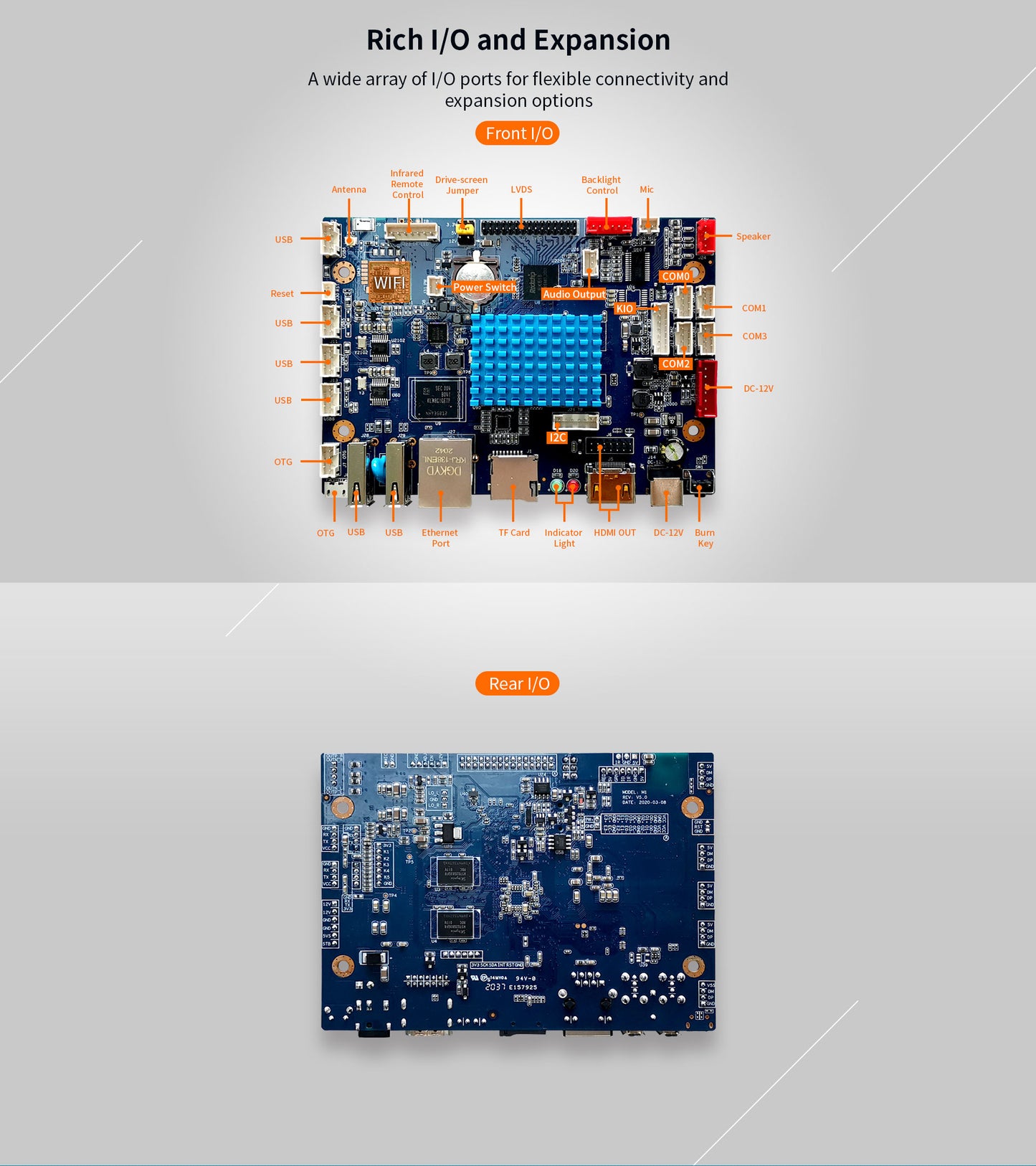

The M2 board is powered by Rockchip RK3368 processor and integrated octa-core Cortex-A53 processor, with dominant frequency up to 1.5GHz. The integrated GC6110 graphics processing unit (GPU) supports OpenGL ES 1.1/2.0/3.1 and can achieve 4K and 1080P hardware video decoding, respectively. Various onboard display and expansion interfaces are available for secondary development of openAPI SDK, which can be quickly used in various industries.

  • Rockchip RK3368, ARM octa-core A53
    ●  Built-in LVDS and EDP, up to 1080P
    ●  Onboard Wi-Fi 802.11 b/g/n and Bluetooth V4.0
    ●  USB 2.0 ports (2 Ext. + 4 Int.)
    ●  DC (wide voltage 9V-15V)
  • 2GB ROM + 128GB RAM
    ●  HDMI 2.0 interface, supporting 4K resolution
    ●  1 10/100Mbps Ethernet port
    ●  4 TTL serial ports

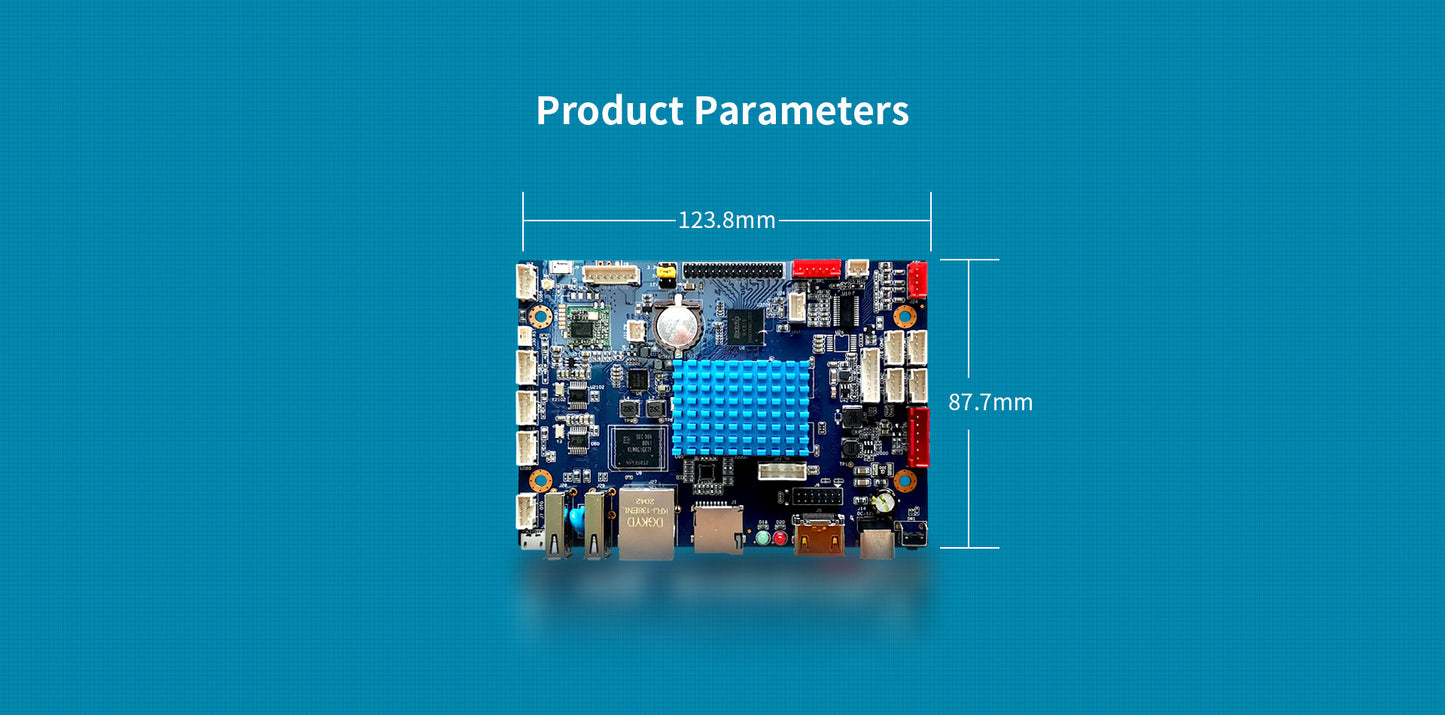

    ●  Dimensions: 123.8mm*87.7mm
