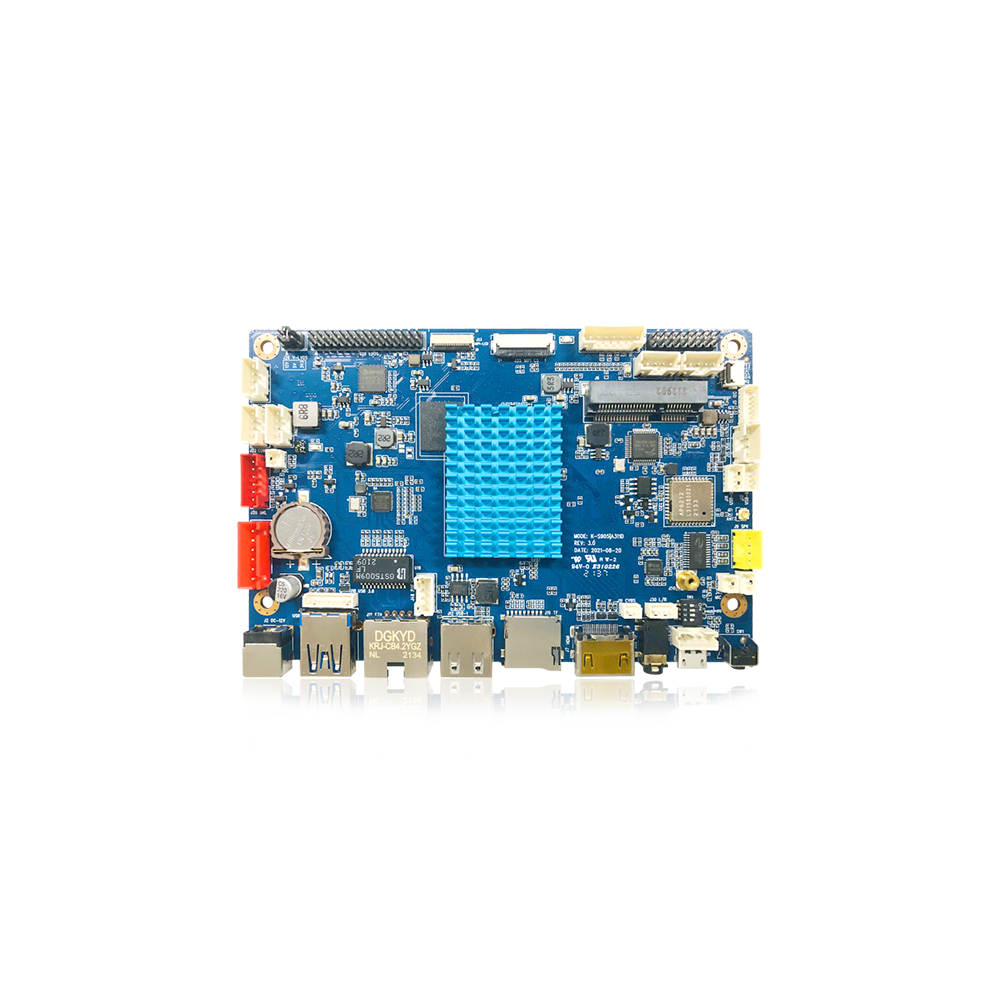

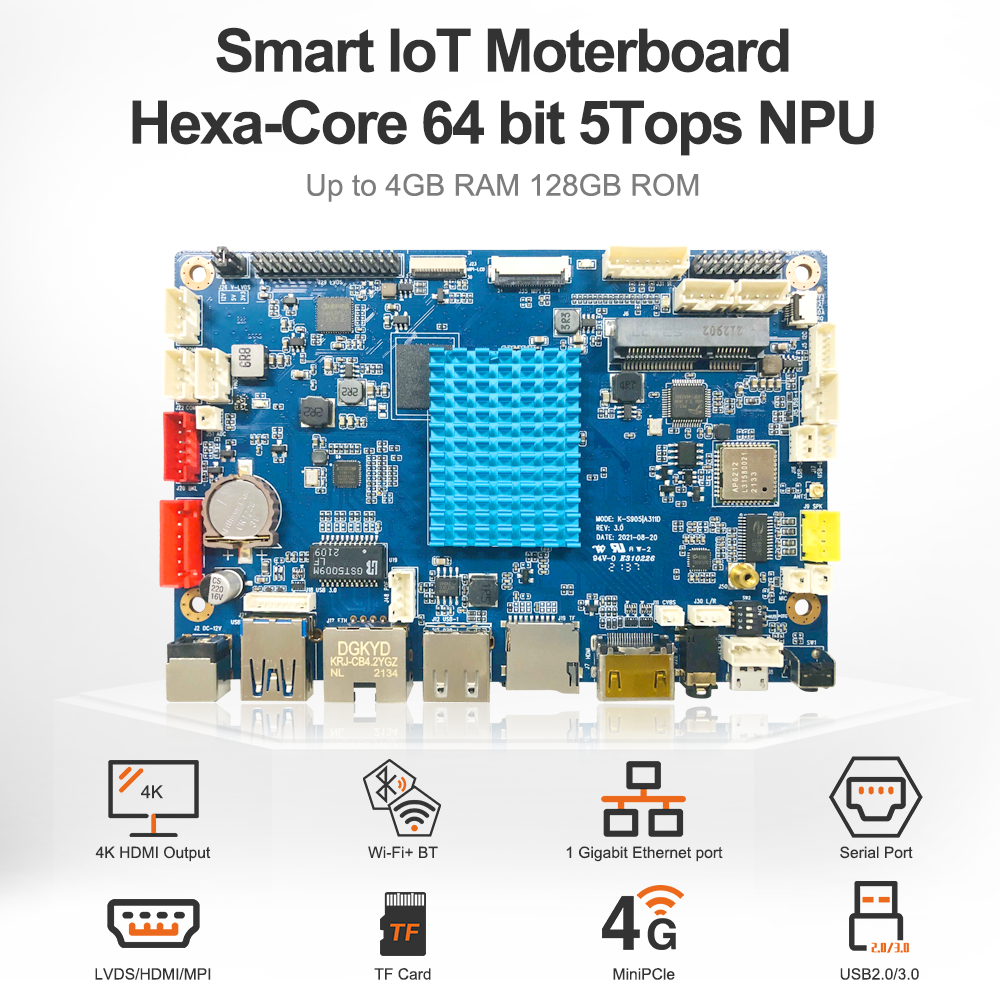

LIONTRON K-A311D Amlogic A311D Smart IoT Motherboard

Regular price $97.80
Regular price Sale price $97.80
Sale Sold out
Shipping calculated at checkout.
Delivery Guarantee

Delivery Guarantee

Technical Support

Technical Support

Liontron K-A311D Amlogic A311D Smart IoT Motherboard

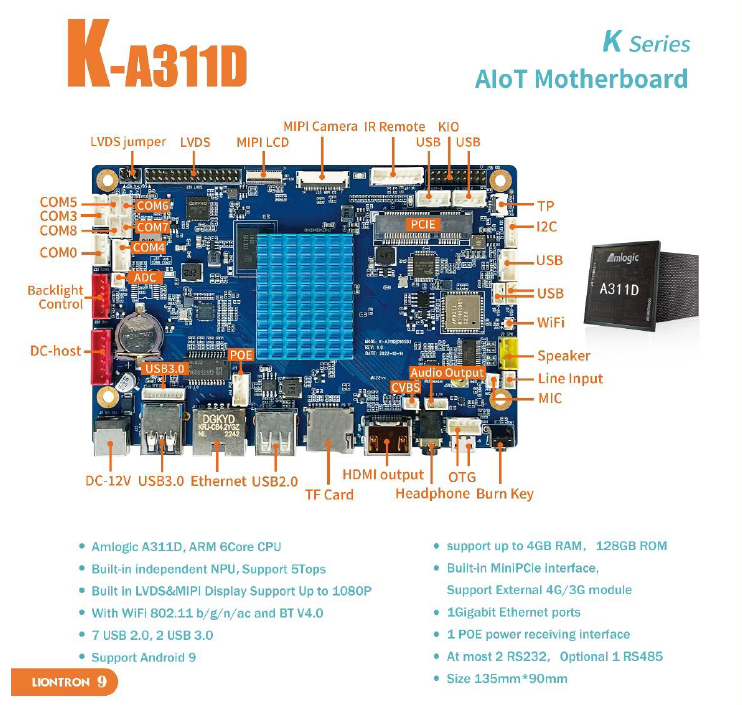

Key Features

  • Amlogic A311D, ARM Hexa-core CPU
  • Built-in independent NPU, supporting 5Tops computing power
  • Built-in LVDS and MIPI display supports up to 1080P
  • Up to 4GB memory, 128GB storage
  • 6 USB2.0, 1 USB3.0
  • WiFi802.11b/g/n/ac and Bluetooth V5.2
  • Up to 6 RS232, optional 1 RS485
  • MiniPCle interface, external expansion 4G module
  • 1 Gigabit Ethernet, 1 POE powered interface
  • Ultra-thin design, the thickness of the whole board is 9mm
  • Size 135mm*90mm

Specifications

System

  CPU

 Amlogic A311D,ARM 4Core A73,Dual Core A53 Up to 2.2GHz

  GPU

 Mali-G52 MP4

  NPU

 Support 5.0Tops Computing power

  RAM

 With Standard 2GB/4GB LPDDR4

  R0M

 With Standard 8GB EMMC,Up to 128GB

Display

  LVDS

 2 Way LVDS Interface,Up to1080P

  HDMI

 HDMI 2.1 interface Opt,Support up to 4K

  MIPI

 31Pin FPC MIPI-DSI Display Interface

 Support 1920x1200(MIPI&LVDS Only Choose One)

Audio

  Headphone

 Four-section 3.5mm headphone/MIC socket

  line out

 Left and right channel stereo line output

  MIC

 Differential MIC input

  Amplifier

 8 ohm 6W dual audio amplifier output

Internet

  Ethernet

 1-way 10/100/1000Mbps adaptive Ethernet

  WIFI

 High-performance WiFi,Support 802.11 b/g/n/ac

  Bluetooth

 High-performance BT, support BT V4.0

  4G/3G

 1-way MiniPCI-E 4G interface, can expand 4G/3G module, with self-popping Micro-SIM ​ card holder

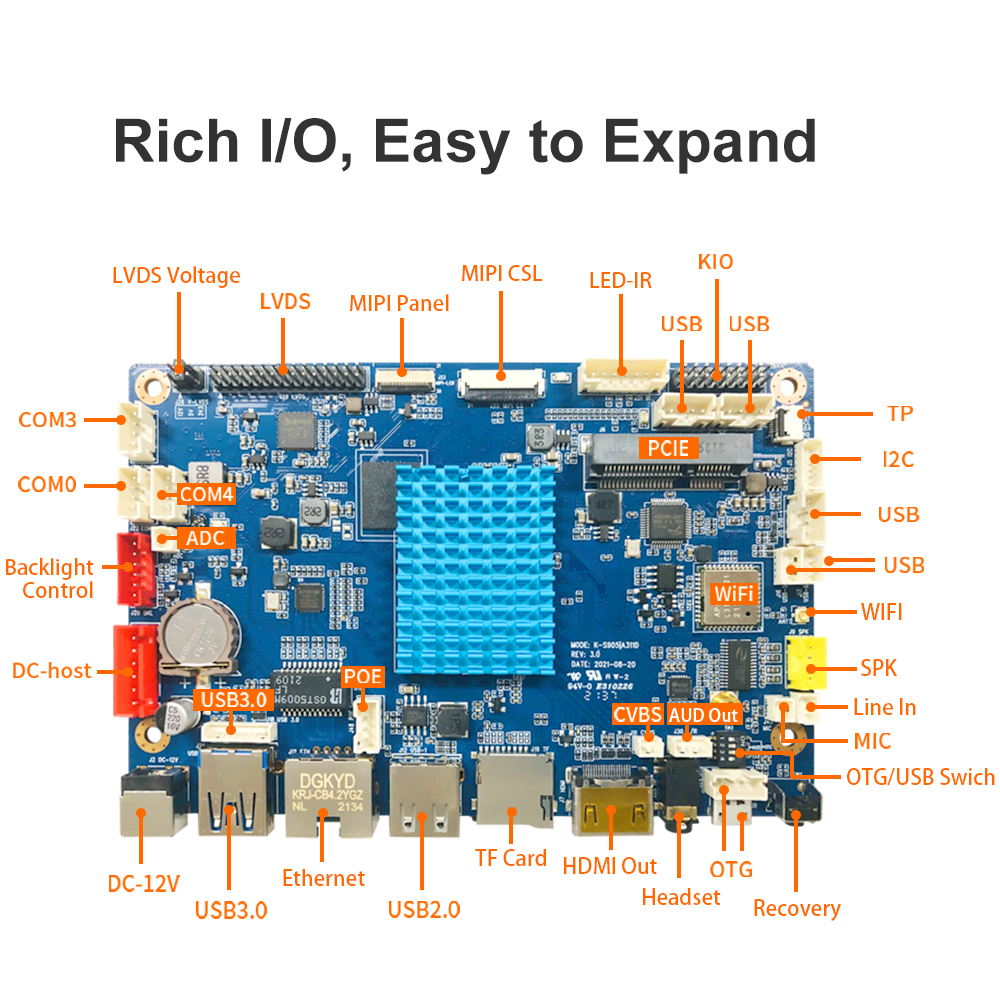

I/O Interface

  USB Host

 2 external USB(USB 3.0x1 And USB 2.0x1), ​ 7 built in USB(USB 3.0x1 And USB 2.0x6)

  USB OTG

 1 Micro-USB OTG interface,Built in pin

  TF Card

 Self-popping TF card socket, support 128GB

  Serial port

 Built in 1-way TTL,Built in 1-way TTL/RS232/RS485 compatible,

 Built in 1-way TTL/RS232

  RTC

 Low power consumption RTC circuit with CR1220 battery

  I2C

 1-way I2C interface

  Backlight

 1-way Backlight control interface, support switch and brightness adjustment

  GPIO

 8-wayGPIO Signal

  IR

 IR receiver interface

  Button

 Burn button And power button

  Pilot lamp

 Red standby indicator And green working indicator

   POE

 1-way POE power receiving interface

Power

  DC input

 12V DC supply, 9V-15V wide voltage input

Environment

  Working ​ temperature

 0℃~70℃

 Working humidity

 0%~95%(no condensation)

Operating system

  Android System

 Recommend Android 9.0

Size

  Size

 135mm*90mm

  Thickness

 9mm
