LIONTRON K-3566 RK3566 CPU 2GB RAM 16GB eMMC Smart Vending Machine Board

Regular price $70.00
Regular price Sale price $70.00
Sale Sold out
Shipping calculated at checkout.
Delivery Guarantee

Delivery Guarantee

Technical Support

Technical Support

LIONTRON K-3566 RK3566 CPU 2GB RAM 16GB  eMMC Smart Vending Machine Board

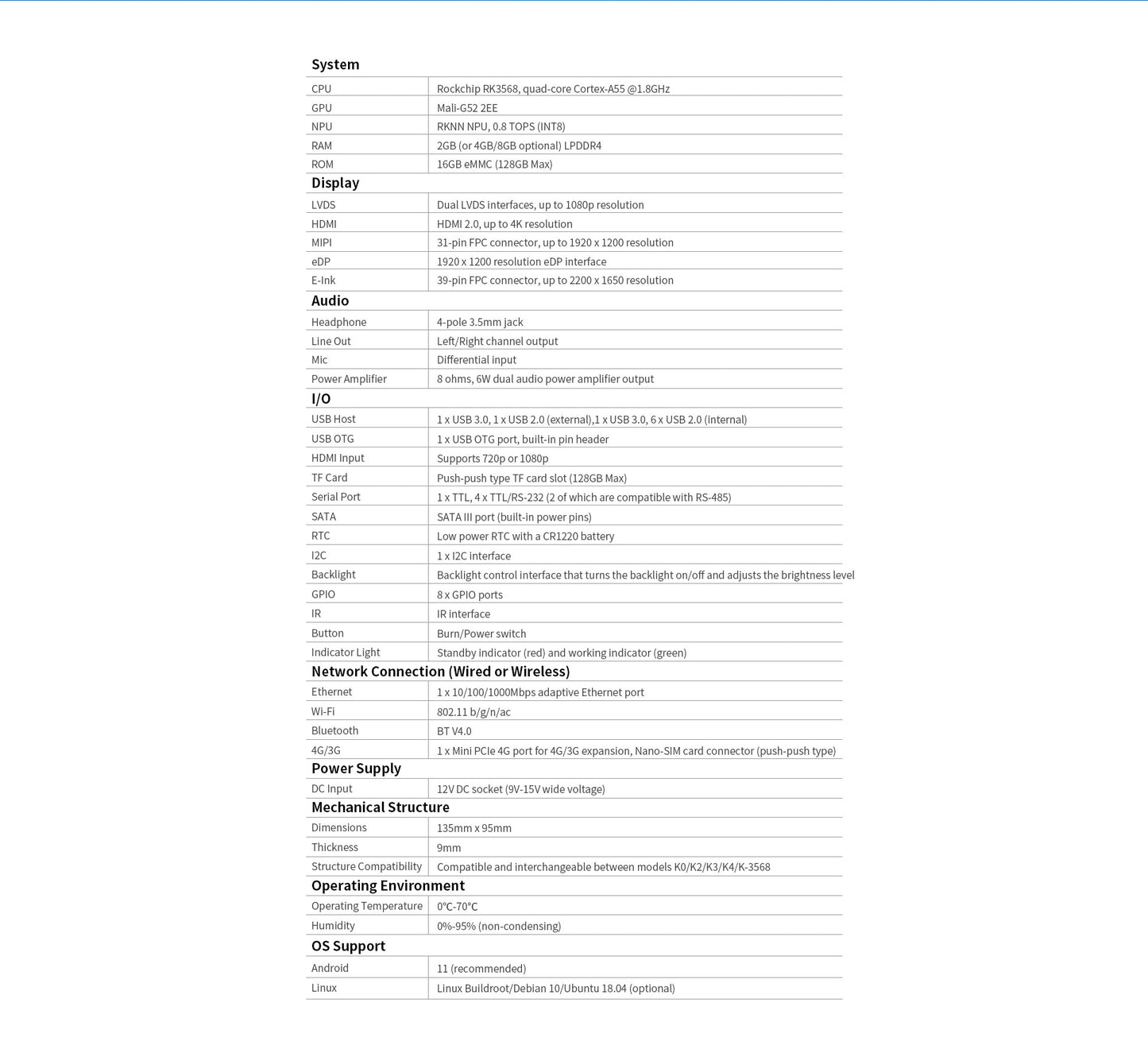

The K-3566 board is driven by a quad-core Cortex-A55 processor that is capable of reaching a maximum clock speed of 1.8GHz. The Mali-G52 GPU can efficiently handle far greater graphical complexity. It also comes with a 0.8-TOPS NPU for AI acceleration and a max RAM capacity of 8GB. With a variety of onboard display interfaces, multiple I/O and expansion options, this board may be readily applied to cloud-based terminals, industrial control, edge computing, and more.

  • Rockchip RK3566 quad-core ARM Cortex-A55 CPU
    ● LVDS/eDP display, up to 1080p resolution
    ● E-Ink display interface
    ● 8GB RAM + 128GB ROM
    ● 7 x USB 2.0 ports, 2 x USB 3.0 ports, 1 x SATA III port
  • 4 x RS-232, 2 x RS-485 (optional)
    ● Mini PCIe port, 4G expansion module
    ● Wi-Fi 802.11b/g/n/ac and Bluetooth 4.0
    ● Dimensions: 135mm x 95mm
    ● 9mm ultra-thin design
