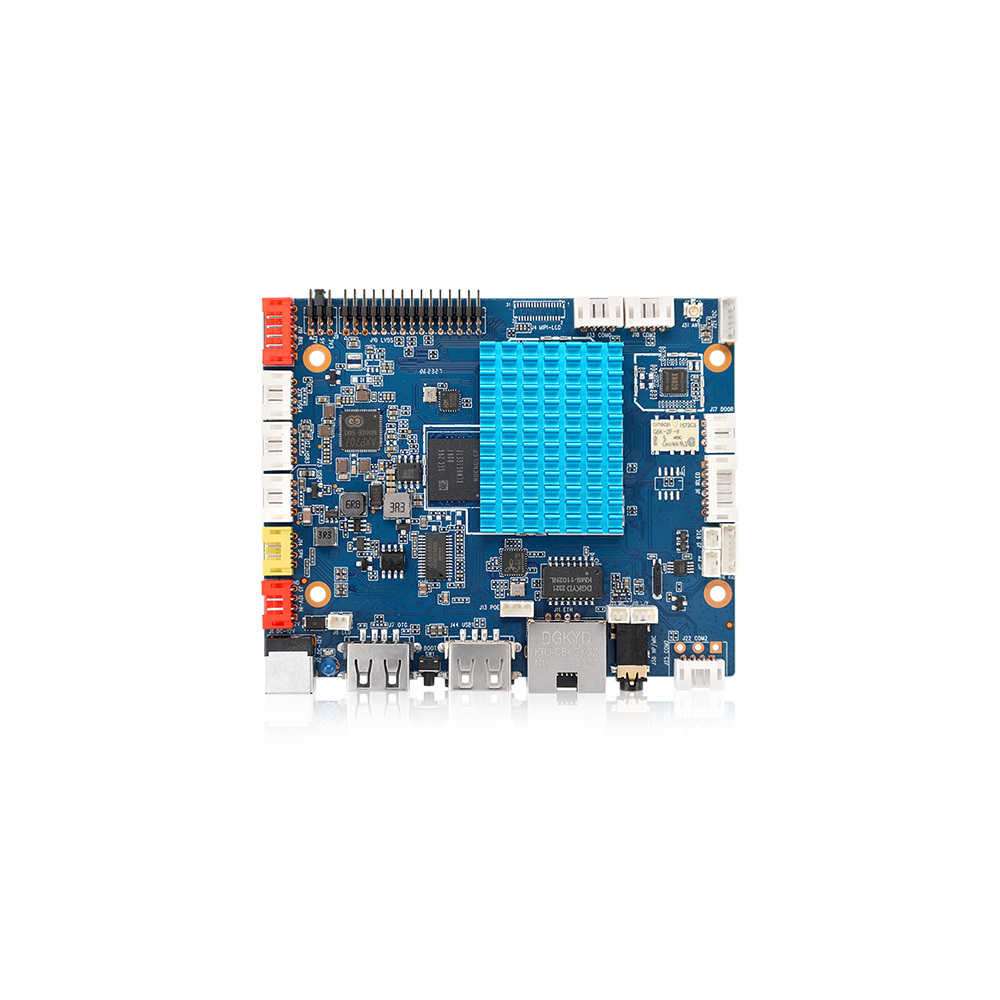

Liontron H-A133L Allwinner A133 Smart HMI Motherboard
Key Features：
- Allwinner A133, ARM quad-core A53
- MIPI or LVDS(Optional) display up to 1080P
- 1 access control interface (optional)
- WiFi802.11b/g/n/ac and Bluetooth V4.2
- Up to 4GB memory, 128GB storage
- 5 USB2.0
- 9-15V wide voltage DC power supply
- Up to 2 RS232, optional 1 RS485
- 1 100M network port, 1 POE power receiving port
- Size 100mm*80mm
|
Specifications |
||
|
System |
CPU |
Allwinner A133 Cortex-A53 quad-core, up to 1.6GHz |
|
GPU |
PowerVR GE8300 |
|
|
RAM |
LPDDR4 1GB (2GB |4GB optional) |
|
|
R0M |
The default comes with an 8GB EMMC NAND chip that can scale up to 128GB |
|
|
Display |
LVDS |
30-pin industry-standard dual LVDS supporting VESA/JEITA format up to 1080P output |
|
MIPI |
31-Pin common MIPI DSI interface for extended MIPI panel sub-board |
|
|
Audio |
Headphone |
Support CTIA 4-pole HP/MIC socket (Left-Right-GND-Mic) |
|
line out |
Support standard left and right channel line output (pin header) |
|
|
MIC |
Differential MIC input (pin header) |
|
|
Amplifier |
8 Ohm 6W Dual Audio Amplifier Output |
|
|
Internet |
Ethernet |
10/100M Adaptive Ethernet RJ45 connector + 4-Pin POE header |
|
WIFI |
Built-in high performance SDIO interface WiFi module, support IEEE 802.11 b/g/n/ac |
|
|
Bluetooth |
Built-in high performance serial interface BT module with support for V2.1+EDR/BT v3.0/BT v3.0+HS/BT v4.2 |
|
|

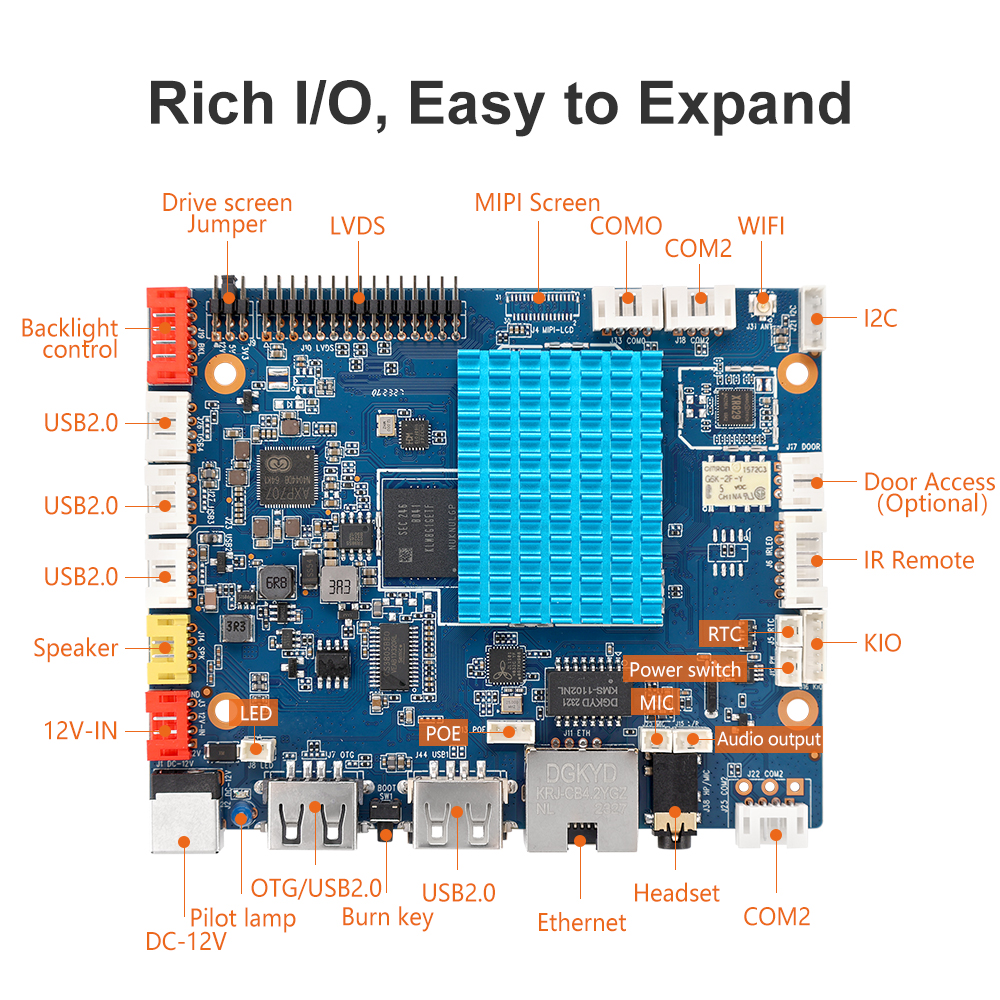

I/O Interface |
USB Host |
2 horizontal USB 2.0 connectors (Single Socket，one is for OTG), 3 pin headers |
|
TF Card |
Self-elastic micro-SD card socket, up to 128GB capacity |
|
|

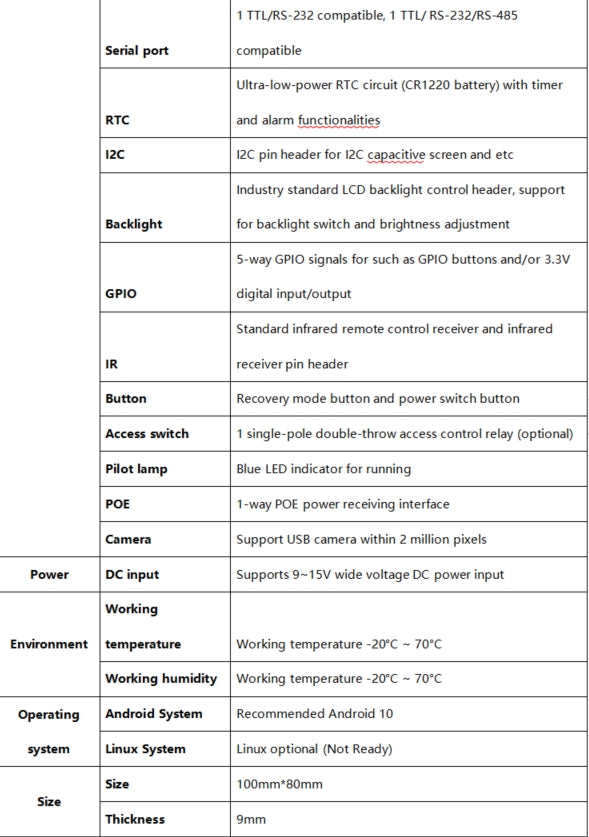

Serial port |
1 TTL/RS-232 compatible, 1 TTL/ RS-232/RS-485 compatible |
|
|
RTC |
Ultra-low-power RTC circuit (CR1220 battery) with timer and alarm functionalities |
|
|
I2C |
I2C pin header for I2C capacitive screen and etc |
|
|
Backlight |
Industry standard LCD backlight control header, support for backlight switch and brightness adjustment |
|
|
GPIO |
5-way GPIO signals for such as GPIO buttons and/or 3.3V digital input/output |
|
|
IR |
Standard infrared remote control receiver and infrared receiver pin header |
|
|
Button |
Recovery mode button and power switch button |
|
|

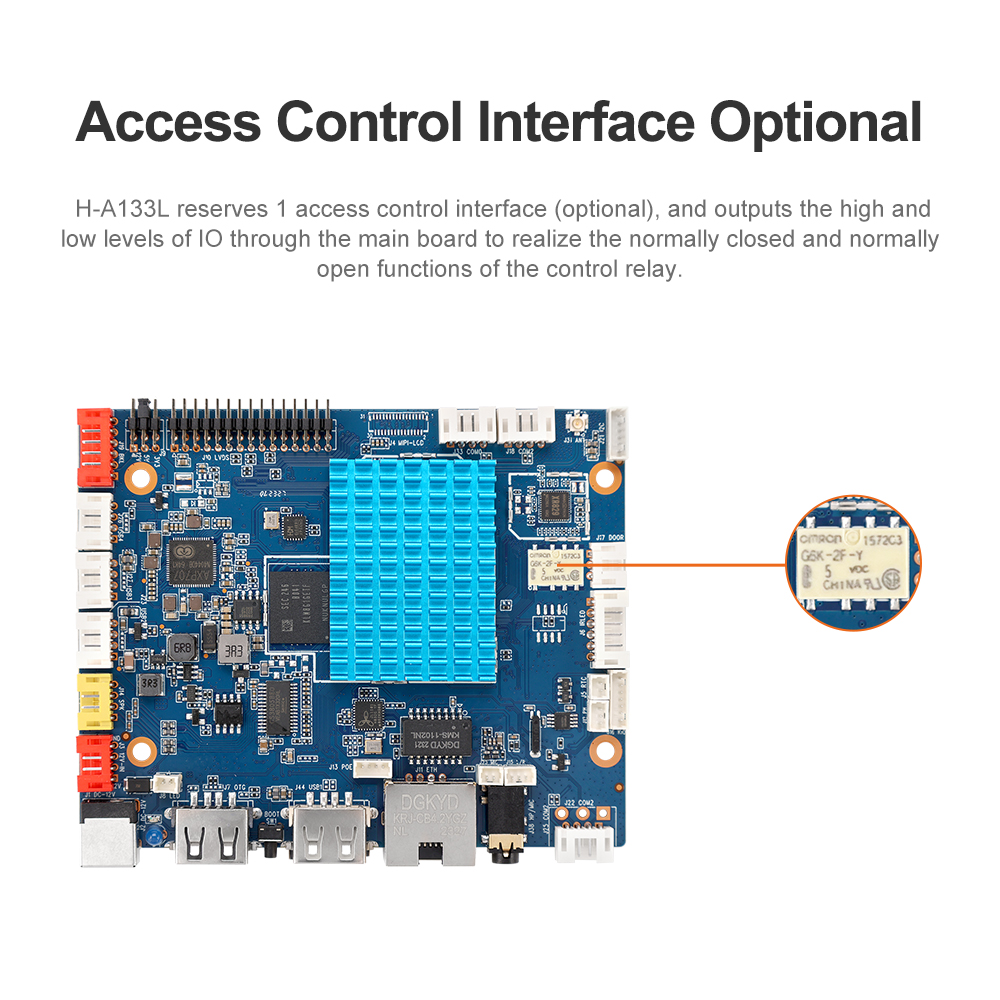

Access switch |
1 single-pole double-throw access control relay (optional) |
|
|
Pilot lamp |
Blue LED indicator for running |
|
|
POE |
1-way POE power receiving interface |
|
|
Camera |
Support USB camera within 2 million pixels |
|
|
Power |
DC input |
Supports 9~15V wide voltage DC power input |
|
Environment |
Working temperature |
Working temperature -20°C ~ 70°C |
|
Working humidity |
Working temperature -20°C ~ 70°C |
|
|
Operating system |
Android System |
Recommended Android 10 |
|
Linux System |
Linux optional (Not Ready) |
|
|
Size |
Size |
100mm*80mm |
|
Thickness |
9mm |
|
