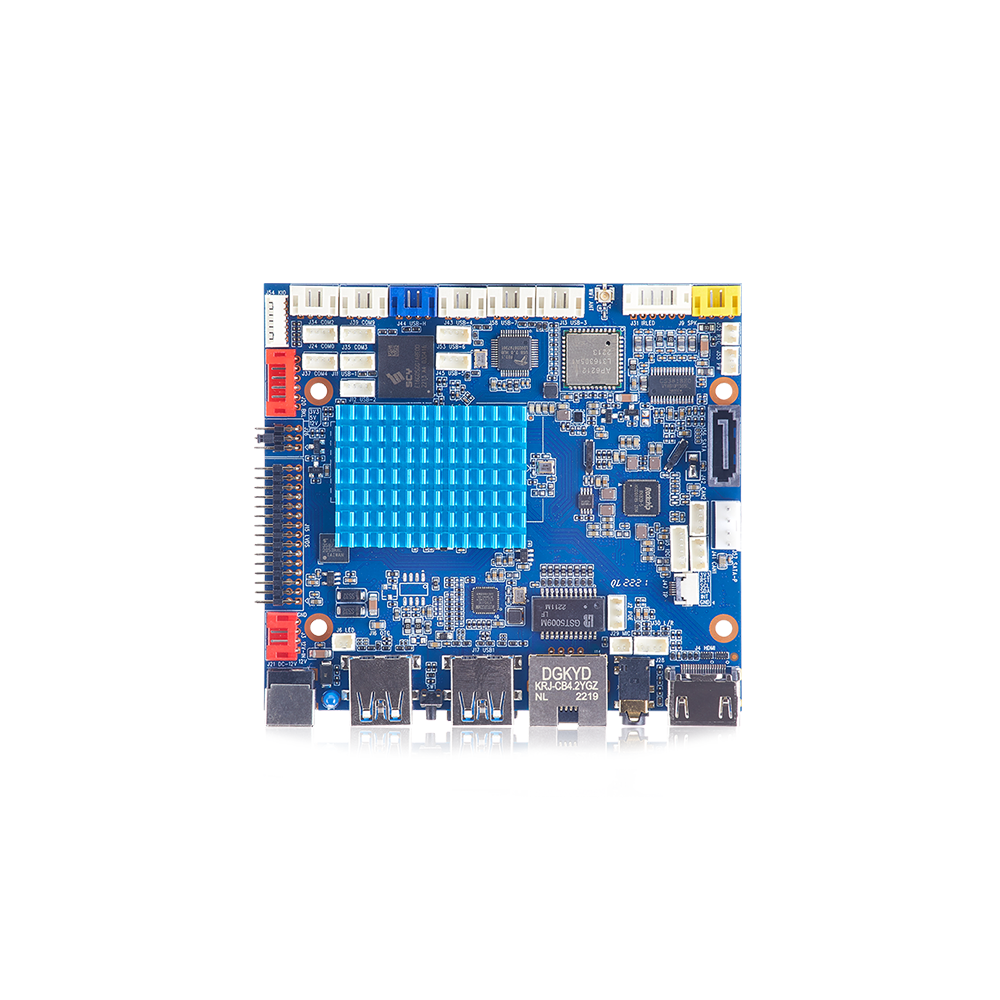

Liontron H-3568 Rockchip RK3568 Smart HMI Motherboard

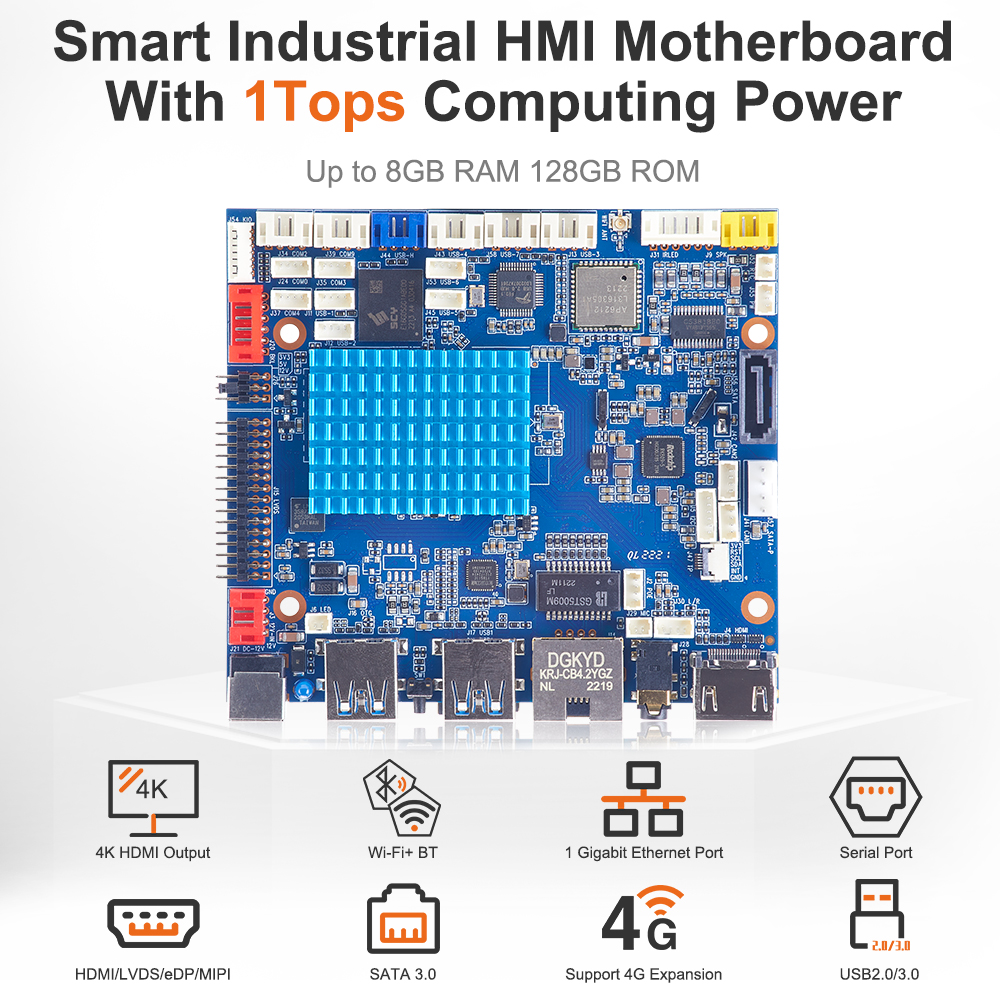

Key Features：
- Rockchip RK3568, ARM quad-core A55
- Built-in independent NPU, supporting 1Tops computing power
- Built-in LVDS and MIPI display supports up to 1080P
- WiFi802.11b/g/n/ac and Bluetooth V4.0
- 2 External USB3.0, 8 built-in USB2.0
- 1 SATA3.0 hard disk interface, 2 CAN interfaces
- Up to 8GB memory, 128GB storage
- 4 TTL/RS232 serial ports, 1 TTL/RS485 serial port
- 1 Gigabit Ethernet, 1 POE powered interface
- Size 100mm*80mm
|
Specifications |
||
|
System |
CPU |
Rockchip RK3568，ARM 4Core A55，Up to 2.0GHz |
|
GPU |
Mali-G52 2EE |
|
|
NPU |
Support 1Tops Computing power |
|
|
RAM |
With Standard 2GB/4GB/8GB LPDDR4 |
|
|
R0M |
With Standard 16GB EMMC，Up to 128GB |
|
|

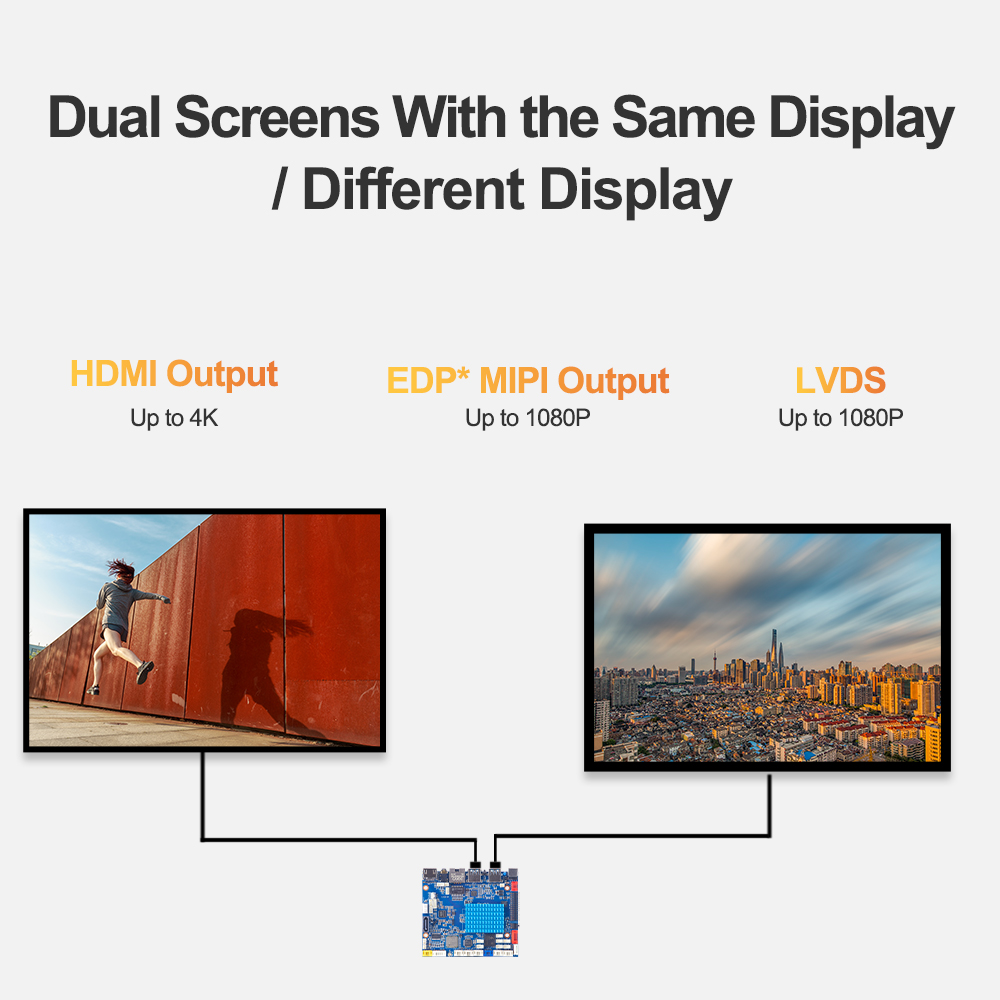

Display |
LVDS |
30pin 2-Way LVDS Interface，Up to1080P |
|
HDMI |
HDMI 2.0 interface，Support up to 4K |
|
|
MIPI |
31pin FPC MIPI Interface，Up to 1080P Resolution |
|
|
eDP |
Standard eDP interface，Up to 1080P resolution |
|
|
Audio |
Headphone |
Four-segment 3.5mm headphone jacks, support headphones plugged into speakers to mute |
|
line out |
Standard left and right channel line output |
|
|
MIC |
Differential MIC input |
|
|
Amplifier |
8 ohm 6W dual audio amplifier output |
|
|
Internet |
Ethernet |
1-way 10/100/1000Mbps adaptive Ethernet |
|
WIFI |
High-performance WiFi，Support 802.11 b/g/n/ac |
|
|
Bluetooth |
High-performance BT, support BT V4.0 |
|
|
4G/3G |
Expand 4G/3G module through external backplane |
|
|

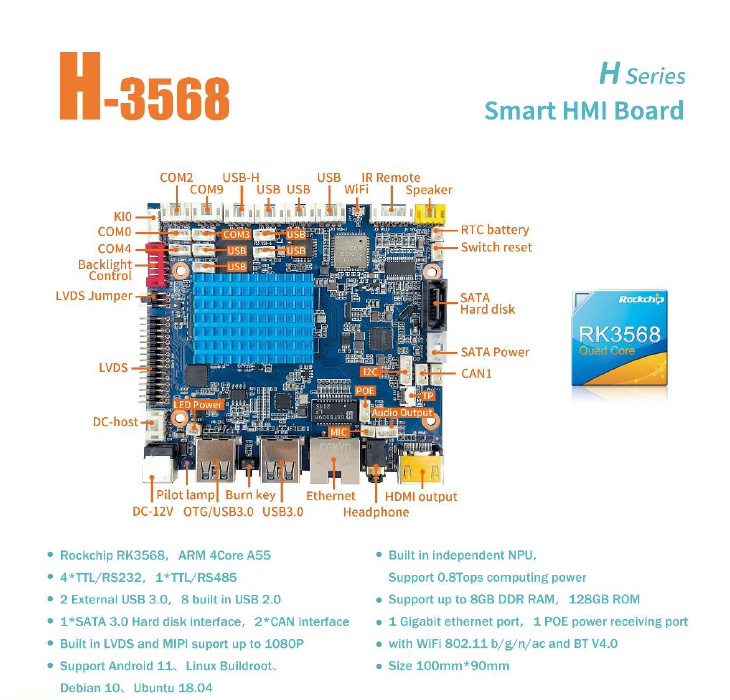

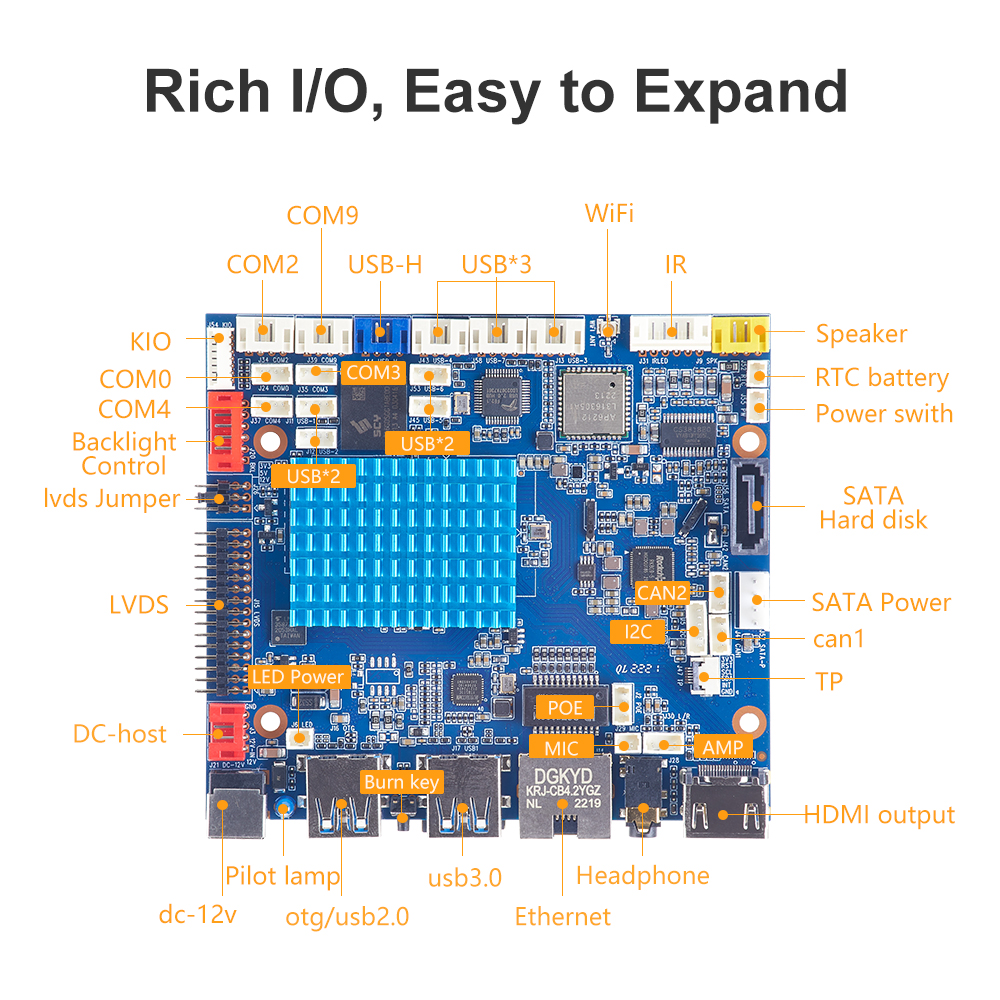

I/O Interface |
USB Host |
2 external USB 3.0，8 built in USB 2.0（One of them is CPU pass-through USB） |
|
USB OTG |
1 USB 3.0 OTG interface |
|
|
TF Card |
Self-popping TF card socket, support 128GB |
|
|
Serial port |
4-way TTL/RS232 serial，1-way TTL/RS485 serial |
|
|
RTC |
Low power consumption RTC circuit with CR1220 battery |
|
|
I2C |
1-way I2C interface |
|
|
Backlight |
Backlight control interface, support switch and brightness adjustment |
|
|
GPIO |
5-way GPIO Signal |
|
|
IR |
IR pin header interface |
|
|
Button |
Burn button And power button |
|
|
Pilot lamp |
Green working indicator |
|
|
POE |
1-way POE power receiving interface |
|
|
Camera |
40Pin FPC binocular MIPI-CSI Camera interface |
|
|
SATA hard disk |
1 standard SATA 3.0 hard disk interface (with power pin header) |
|
|
CAN bus |
2-way CAN pin interface, expandable CAN bus peripherals |
|
|
Power |
DC input |
12V DC supply, 9V-15V wide voltage input |
|
Environment |
Working temperature |
0℃~70℃ |
|
Working humidity |
0%~95%（no condensation） |
|
|
EMC |
FCC，CE，ROHS |
|
|
Operating system |
Android System |
Recommend Android 11 |
|
Linux System |
Linux Buildroot、Debian 10、Ubuntu-18.04 optional |
|
|
Size |
Size |
100mm*80mm |
|
Thickness |
9mm |
|
