LIONTRON

LIONTRON H-3399 Rockchip RK3399 Smart HMI Motherboard

Regular price $86.80
Regular price Sale price $86.80
Sale Sold out
Shipping calculated at checkout.
Delivery Guarantee

Delivery Guarantee

Technical Support

Technical Support

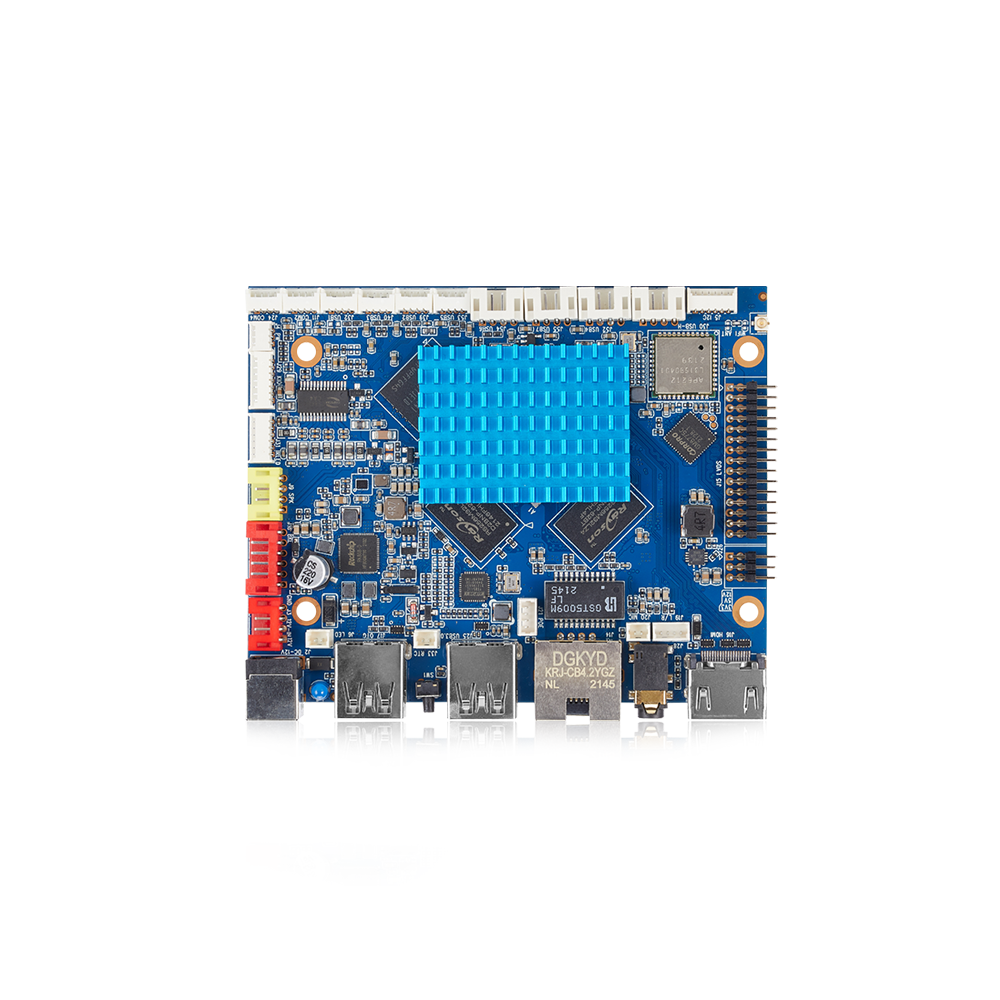

Liontron H-3399 Rockchip RK3399 Smart HMI Motherboard

Key Features

  • Rockchip RK3399, ARM Hexa core CPU
  • Built-in LVDS and MIPI display supports up to 1080P
  • WiFi802.11b/g/n and Bluetooth V4.0
  • 2 External USB3.0, 8 built-in USB2.0
  • Up to 4GB memory, 128GB storage
  • 2 TTL/RS232 compatible serial ports
  • HDMI 2.0, up to 4K output
  • Support 9-15V wide voltage DC power input
  • 1 Gigabit Ethernet, 1 POE powered interface
  • Ultra-thin design, the thickness of the whole board is 9mm

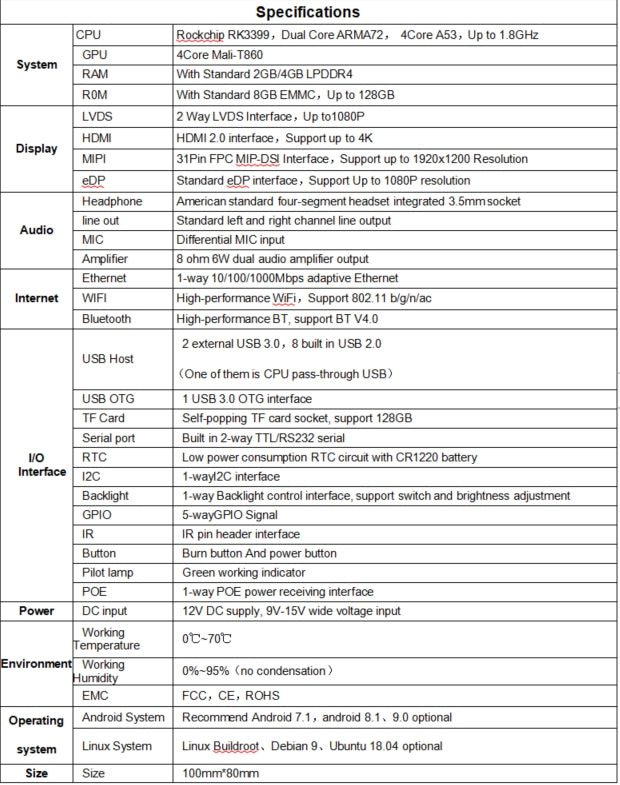

Specifications

System

 CPU

 Rockchip RK3399,Dual Core ARMA72, 4Core A53,Up to 1.8GHz

  GPU

 4Core Mali-T860

  RAM

 With Standard 2GB/4GB LPDDR4

  R0M

 With Standard 8GB EMMC,Up to 128GB

Display

  LVDS

 2 Way LVDS Interface,Up to1080P

  HDMI

 HDMI 2.0 interface,Support up to 4K

  MIPI

 31Pin FPC MIP-DSI Interface,Support up to 1920x1200 Resolution

  eDP

 Standard eDP interface,Support Up to 1080P resolution

Audio

  Headphone

 American standard four-segment headset integrated 3.5mm socket

  line out

 Standard left and right channel line output

  MIC

 Differential MIC input

  Amplifier

 8 ohm 6W dual audio amplifier output

Internet

  Ethernet

 1-way 10/100/1000Mbps adaptive Ethernet

  WIFI

 High-performance WiFi,Support 802.11 b/g/n/ac

  Bluetooth

 High-performance BT, support BT V4.0

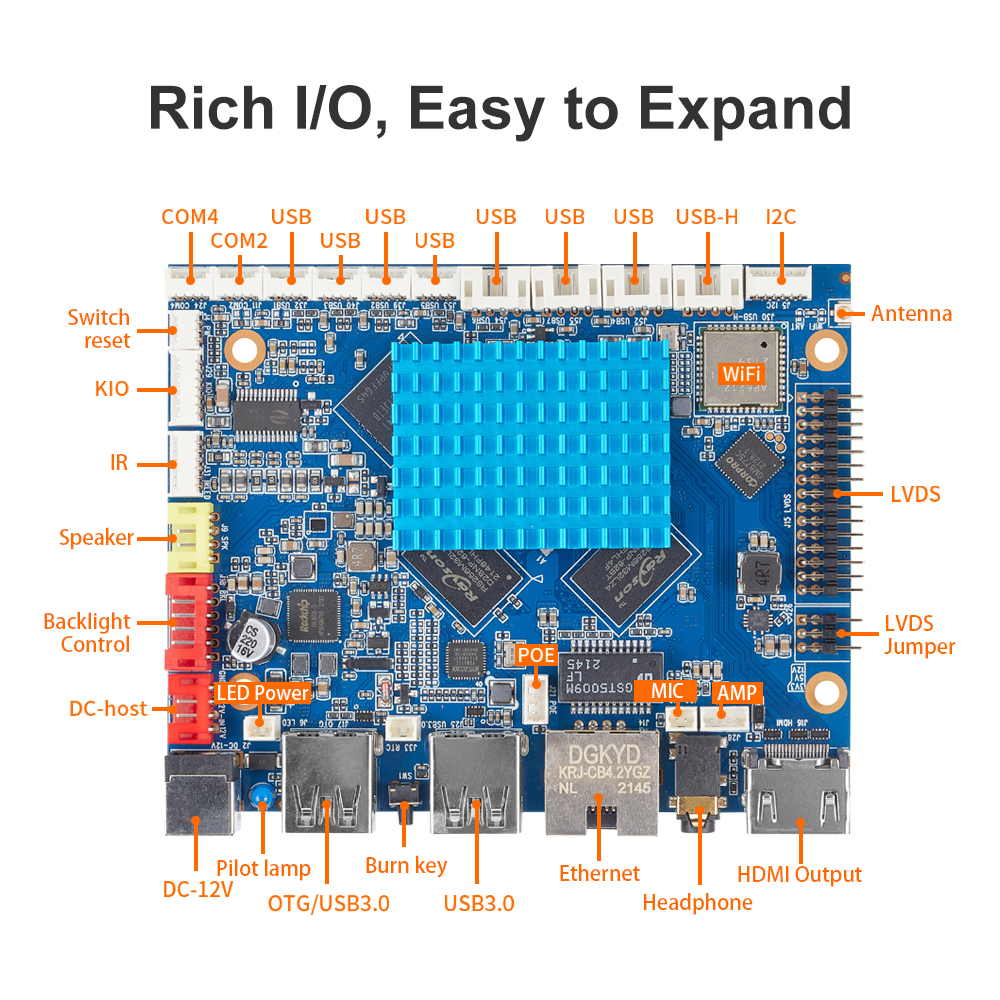

I/O Interface

  USB Host

  2 external USB 3.0,8 built in USB 2.0

(One of them is CPU pass-through USB)

  USB OTG

  1 USB 3.0 OTG interface

  TF Card

  Self-popping TF card socket, support 128GB

  Serial port

  Built in 2-way TTL/RS232 serial

  RTC

  Low power consumption RTC circuit with CR1220 battery

  I2C

  1-wayI2C interface

  Backlight

  1-way Backlight control interface, support switch and brightness adjustment

  GPIO

  5-wayGPIO Signal

  IR

  IR pin header interface

  Button

  Burn button And power button

  Pilot lamp

  Green working indicator

  POE

  1-way POE power receiving interface

Power

  DC input

  12V DC supply, 9V-15V wide voltage input

Environment

  Working Temperature

  0℃~70℃

  Working Humidity

  0%~95%(no condensation)

  EMC

  FCC,CE,ROHS

Operating

system

  Android System

  Recommend Android 7.1,android 8.1、9.0 optional

  Linux System

  Linux Buildroot、Debian 9、Ubuntu 18.04 optional

Size

  Size

  100mm*80mm

  Thickness

  9mm
