Liontron Fi-S905D3 Amlogic S905D3 Digital Sentinel Motherboard
Key Features:
- Amlogic S905D3, ARM quad-core CPU
- Built-in HDMI and MIPI display supports up to 4K
- WiFi802.11b/g/n and Bluetooth V4.0
- Up to 5 USB2.0
- Built-in independent NPU, supporting 1.2Tops computing power
- Up to 4GB memory, 128GB storage
- RS232, RS485, Wiegand, relay interface
- 1 10/100Mbps Ethernet
- Built-in fill light and LED interface
- 110mm*68mm
Specifications |
||
System |
CPU |
Amlogic S905D3,ARM 4Core A55, |
GPU |
Mali-G31 2MP |
|
NPU |
Support 1.2Tops Computing power |
|
RAM |
With Standard 2GB/4GB LPDDR4 |
|
R0M |
With Standard 16GB EMMC,Up to 128GB |
|
Display |
HDMI |
HDMI 2.1 interface,Support up to 4K |
MIPI |
31Pin FPC MIPI-DSI interface,Support up to 1080P resolution |
|
Audio |
line out |
Standard left and right channel line output |
MIC |
Digital silicon microphone DMIC input |
|
Amplifier |
4ohm 3W Single-way audio amplifier output |
|
Internet |
Ethernet |
1-way 10/100Mbps adaptive Ethernet |
WIFI |
High-performance WiFi,Support 802.11 b/g/n |
|
Bluetooth |
High-performance BT, support BT V4.0 |
|
4G/3G |
Expand 4G/3G module through external backplane |
|
I/O Interface |
USB Host |
5 built in USB 2.0(1 requires software switching to use) |
USB OTG |
1 USB 2.0 OTG+V27:W27 |
|
Serial port |
1-way TTL serial,1-way TTL/RS232/RS485 Serial ,1-way TTL/RS232 serial |
|
Wiegand |
1-way Wiegand input and 1-way Wiegand output interface |
|
RTC |
Low power consumption RTC circuit with CR1220 battery |
|
I2C |
1-way I2C interface |
|

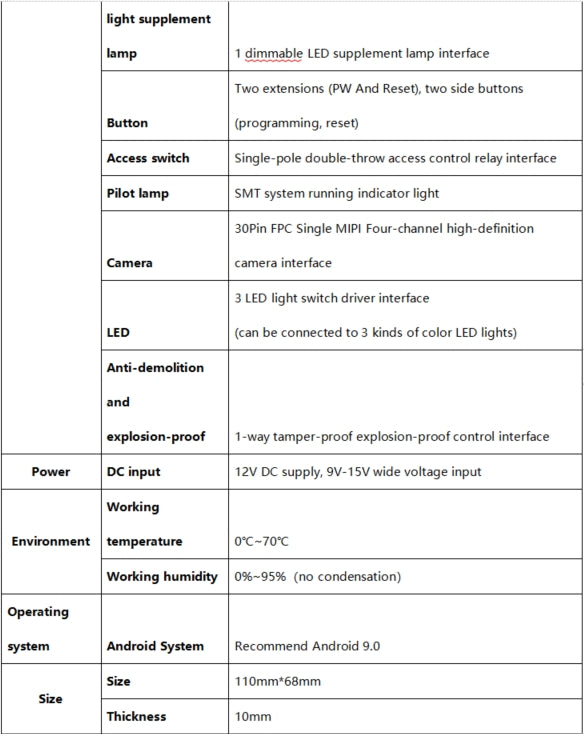

light supplement lamp |
1 dimmable LED supplement lamp interface |
|
Button |
Two extensions (PW And Reset), two side buttons |
|
Access switch |
Single-pole double-throw access control relay interface |
|
Pilot lamp |
SMT system running indicator light |
|
Camera |
30Pin FPC Single MIPI Four-channel high-definition camera interface |
|
LED |
3 LED light switch driver interface |
|
Anti-demolition and explosion-proof |
1-way tamper-proof explosion-proof control interface |
|
Power |
DC input |
12V DC supply, 9V-15V wide voltage input |
Environment |
Working temperature |
0℃~70℃ |
Working humidity |
0%~95%(no condensation) |
|
Operating system |
Android System |
Recommend Android 9.0 |
Size |
Size |
110mm*68mm |
Thickness |
10mm |
