LIONTRON

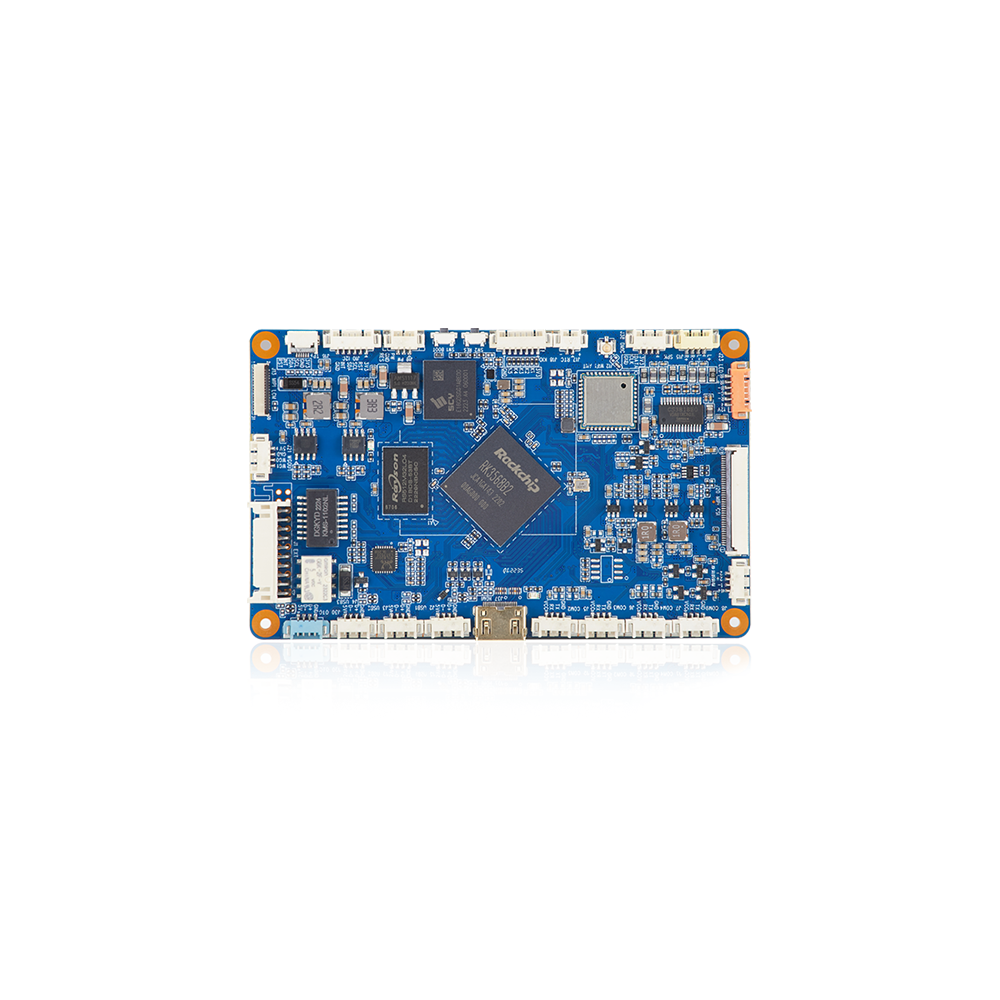

LIONTRON Fi-3568 Rockchip RK3568 Face Recognition Access Control Motherboard

Regular price $65.80
Regular price Sale price $65.80
Sale Sold out
Shipping calculated at checkout.
Delivery Guarantee

Delivery Guarantee

Technical Support

Technical Support

Liontron Fi-3568 Rockchip RK356 Face Recognition Access Control Motherboard

Key Features

  • Rockchip RK3568, ARM quad-core CPU
  • Up to 8GB memory, 128GB storage
  • Built-in independent NPU, supporting 1Tops computing power
  • Built-in HDMI and MIPI display supports up to 4K
  • Optional LCD RGB interface, support conventional LCD screen
  • WiFi802.11b/g/n and Bluetooth V4.0
  • 1 10/100Mbps Ethernet
  • Built-in fill light and LED interface
  • Up to 4 USB2.0
  • RS232, RS485, Wiegand, relay interface
  • 110mm*68mm

Specifications

System

CPU

Rockchip RK3568ARM 4Core A55Up to 2.0GHz

GPU

Mali-G52 2EE

NPU

Support 1Tops Computing power

RAM

With Standard 2GB/4GB/8GB LPDDR4

R0M

With Standard 16GB EMMCUp to 128GB

Display

HDMI

HDMI 2.0 interfaceSupport up to 4K

MIPI

31Pin FPC MIPI-DSI display interfaceSupport up to
1920x1200 Resolution

eDP

30Pin Standard eDP interfaceUp to 1080P resolution

Audio

line out

Standard left and right channel line output

MIC

Digital silicon microphone DMIC input

Amplifier

8ohm 6W dual audio amplifier output

Internet

Ethernet

1-way 10/100Mbps adaptive Ethernet

WIFI

High-performance WiFiSupport 802.11 b/g/n

Bluetooth

High-performance BT, support BT V4.0

4G/3G

Expand 4G/3G module through external backplane

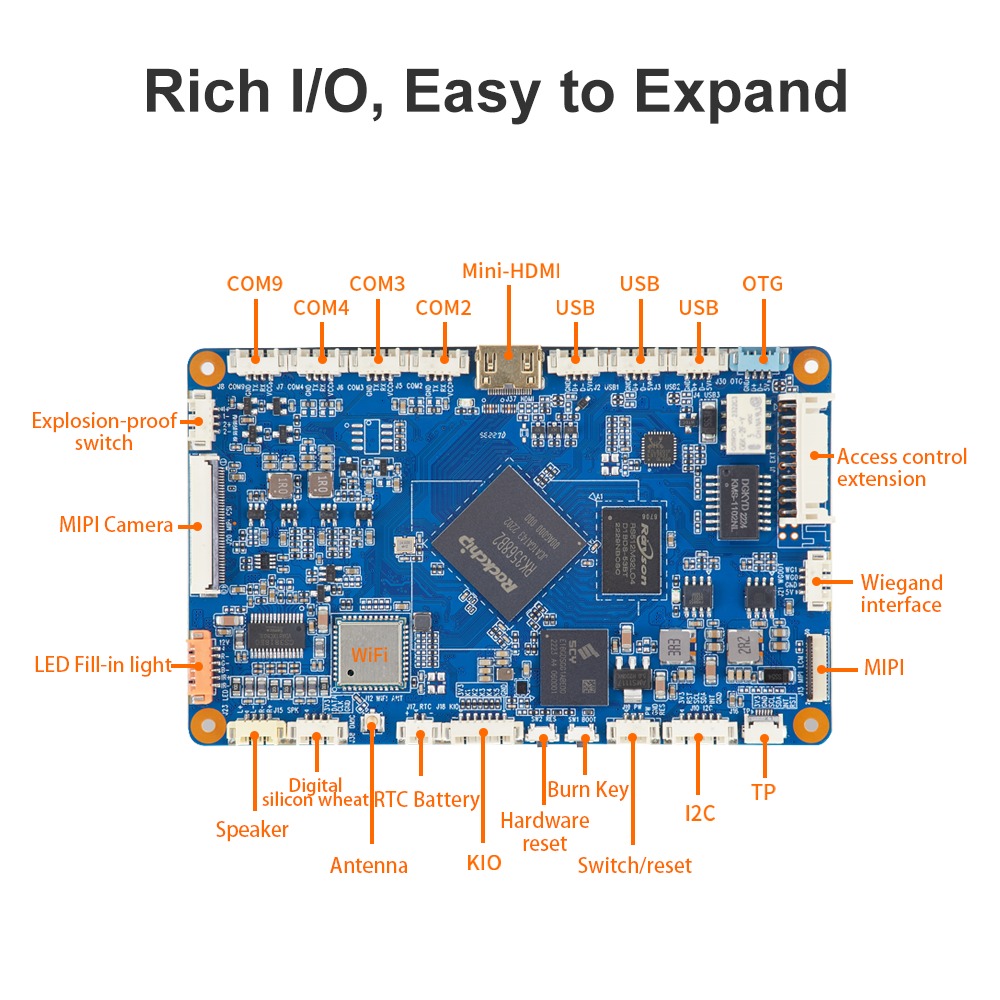

I/O Interface

USB Host

4*USB 2.0

USB OTG

1 USB 2.0 OTG interface

Serial port

1-way TTL Built in serial1-way TTL/RS232/RS485
 serial3-way TTL/RS232 serial

Wiegand

1-way Wiegand input and 1-way Wiegand output interface

RTC

Low power consumption RTC circuit with CR1220 battery

I2C

2-way I2C interface

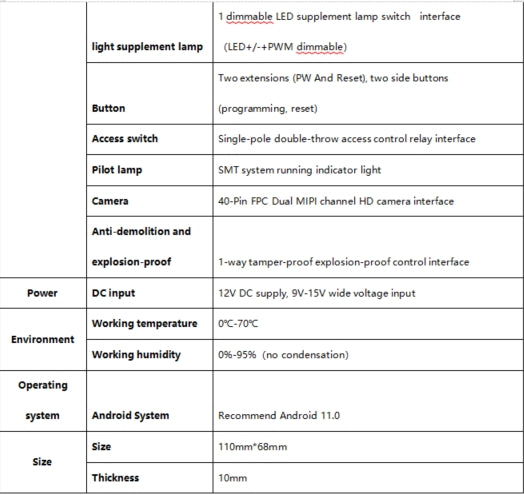

light supplement lamp

1 dimmable LED supplement lamp switch  interfaceLED+/-+PWM dimmable

Button

Two extensions (PW And Reset), two side buttons
(programming, reset)

Access switch

Single-pole double-throw access control relay interface

Pilot lamp

SMT system running indicator light

Camera

40-Pin FPC Dual MIPI channel HD camera interface

Anti-demolition and explosion-proof

1-way tamper-proof explosion-proof control interface

Power

DC input

12V DC supply, 9V-15V wide voltage input

Environment

Working temperature

0-70

Working humidity

0%-95%no condensation

Operating system

Android System

Recommend Android 11.0

Size

Size

110mm*68mm

Thickness

10mm
