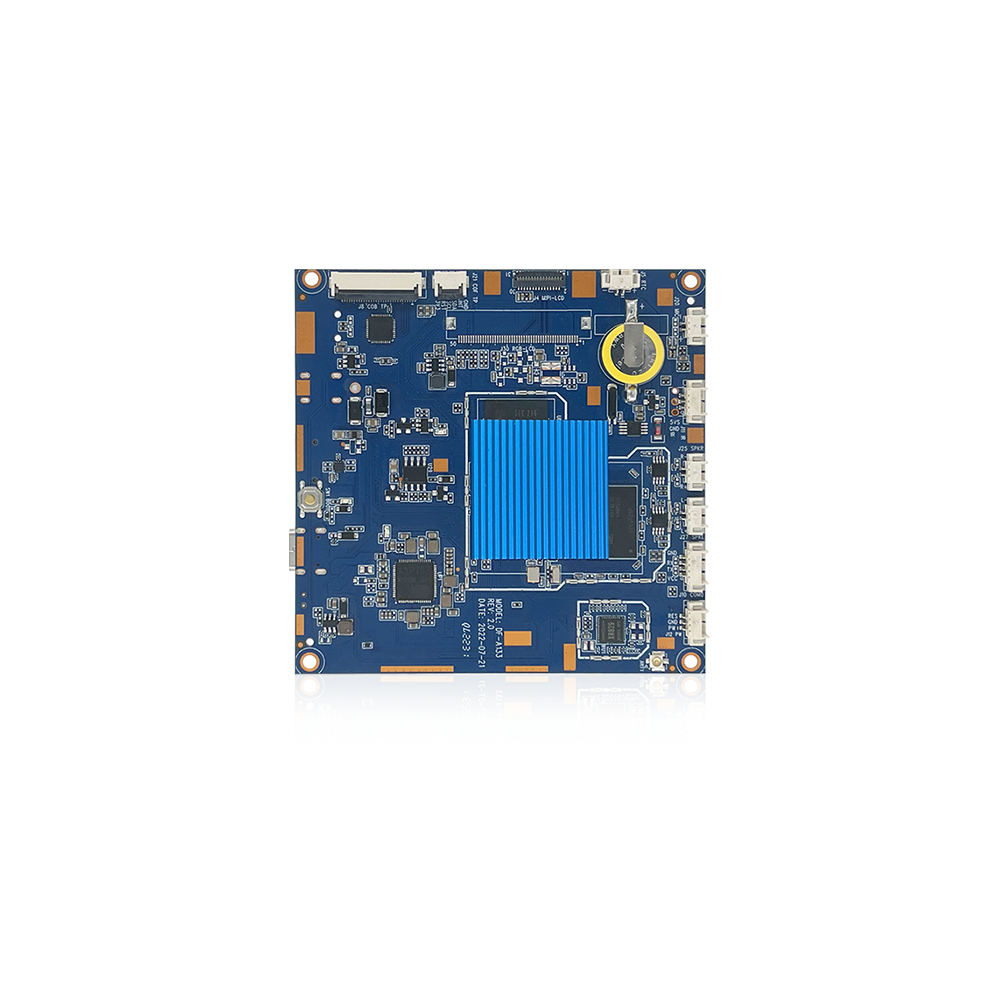

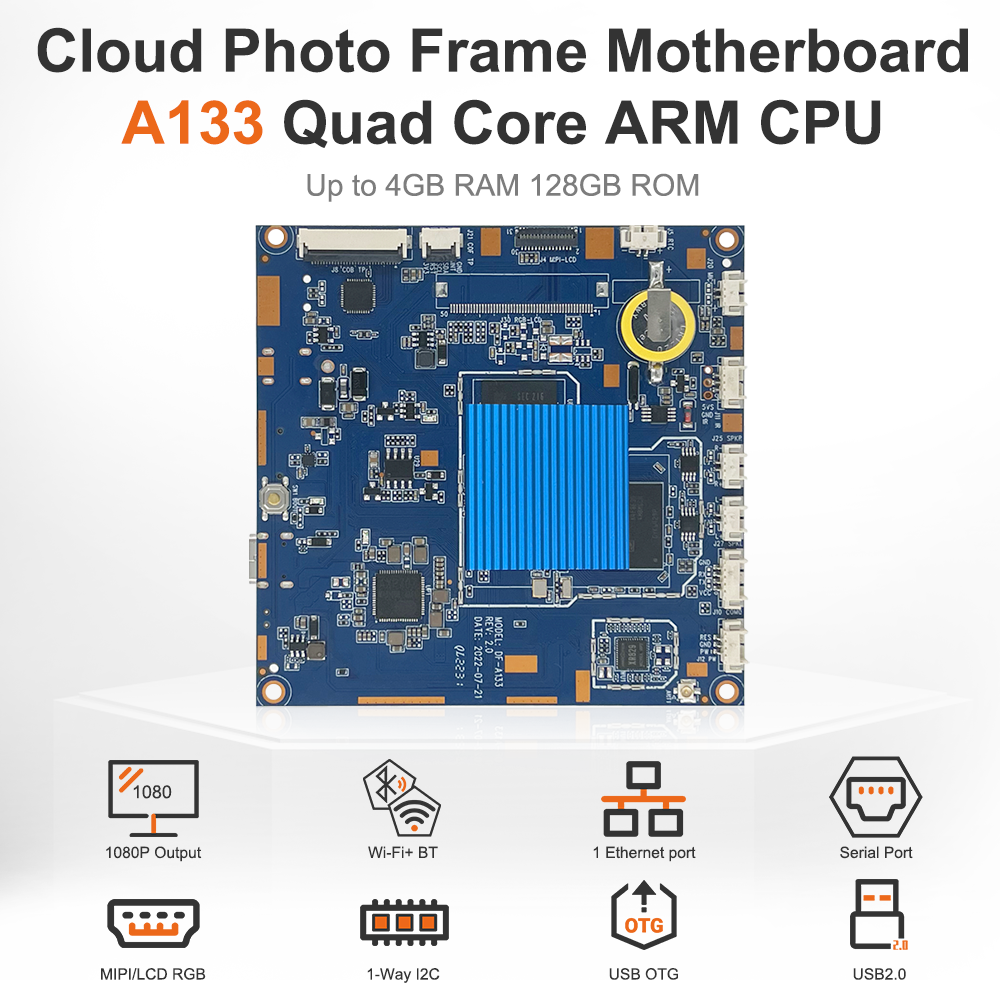

LIONTRON DF-A133 Allwinner A133 “Cloud Photo Frame” Motherboard

Regular price $41.80
Regular price Sale price $41.80
Sale Sold out
Shipping calculated at checkout.
Delivery Guarantee

Delivery Guarantee

Technical Support

Technical Support

Liontron DF-A133 Allwinner A133 Cloud Photo FrameMotherboard

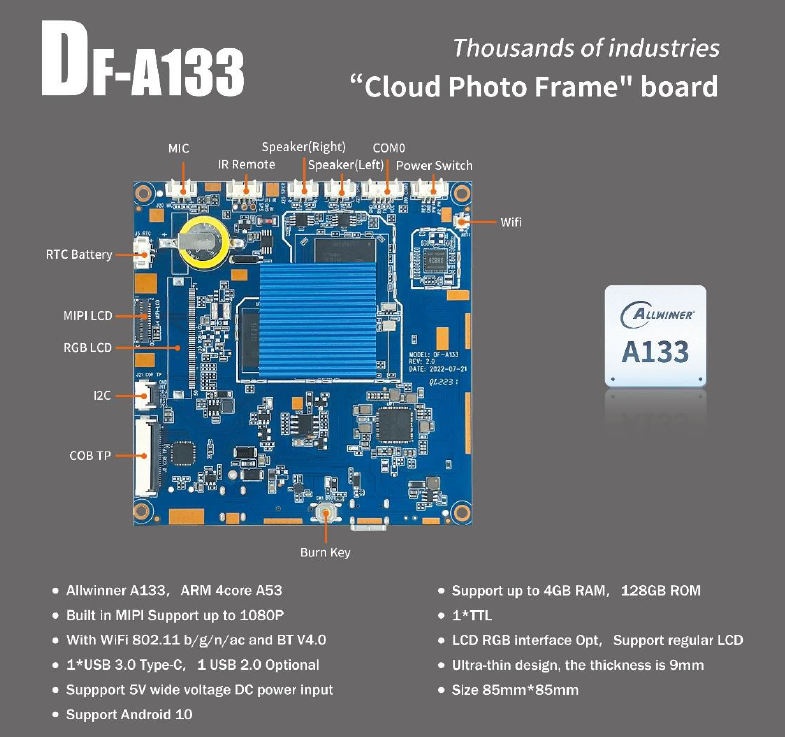

Key Features

  • Allwinner A133, ARM quad-core A53
  • Built-in MIPI display supports up to 1080P
  • Optional LCD RGB interface, support conventional LCD screen
  • WiFi802.11b/g/n/ac and Bluetooth V4.0
  • Up to 4GB memory, 128GB storage
  • 1 USB3.0 Type-C, optional 1 USB2.0
  • Built-in support for 5V wide voltage DC power input
  • 1 TTL serial port
  • Ultra-thin design, the thickness of the whole board is 9mm
  • Size 85mm*85mm

Specifications

System

CPU

Allwinner A133ARM 4Core A53Up to 1.6GHz

GPU

PowerVR GE8300

RAM

With Standard 1GB/2GB/4GB LPDDR4

R0M

With Standard 8GB EMMCUp to 128GB

Display

LCD RGB

50Pin FPC LCD RGB Interface, Support Conventional LCD screen within 1024*768

MIPI

31pin FPC MIPI-DSI InterfaceSupport Up to 1920*1200 Resolution

Audio

line out

Standard left and right channel line output

MIC

Differential MIC input

Internet

WIFI

High-performance WiFiSupport 802.11 b/g/n/ac

Bluetooth

High-performance BT, support BT V4.0

4G/3G

Expand 4G/3G module through external backplane

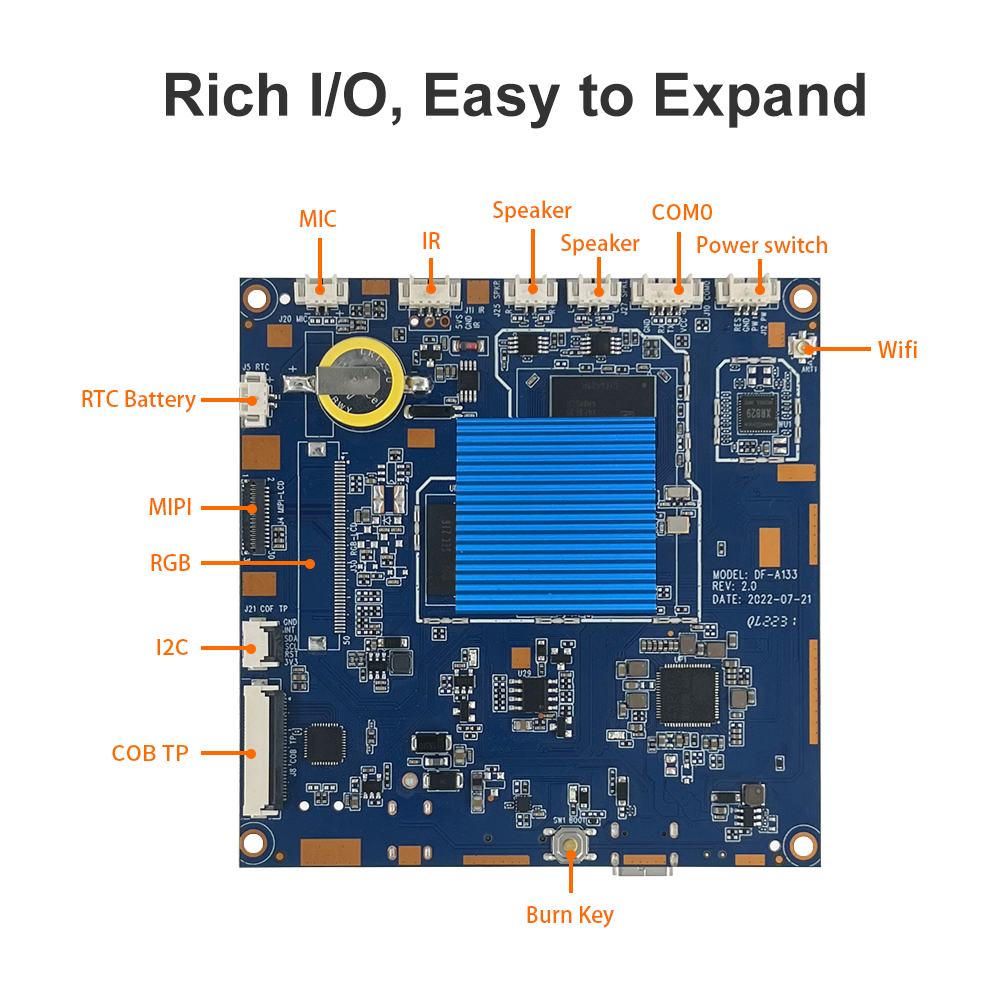

I/O Interface

USB Host

1 external USB 2.0Optional

USB OTG

1 USB 3.0 Type-C interface

TF Card

Self-popping TF card socket, support 128GB

Serial port

1 TTL Built in serial

RTC

Low power consumption RTC circuit with CR1220 battery

I2C

1-way I2C interface

IR

IR pin header interface

Button

Burn button and power button

Pilot lamp

Green working indicator

Power

DC input

Support 5V wide voltage DC power input

Environment

Working temperature

0-70

Working humidity

0%-95%no condensation

Operating system

Android System

Recommend Android 10.0

Size

Size

85mm*85mm

Thickness

9mm
