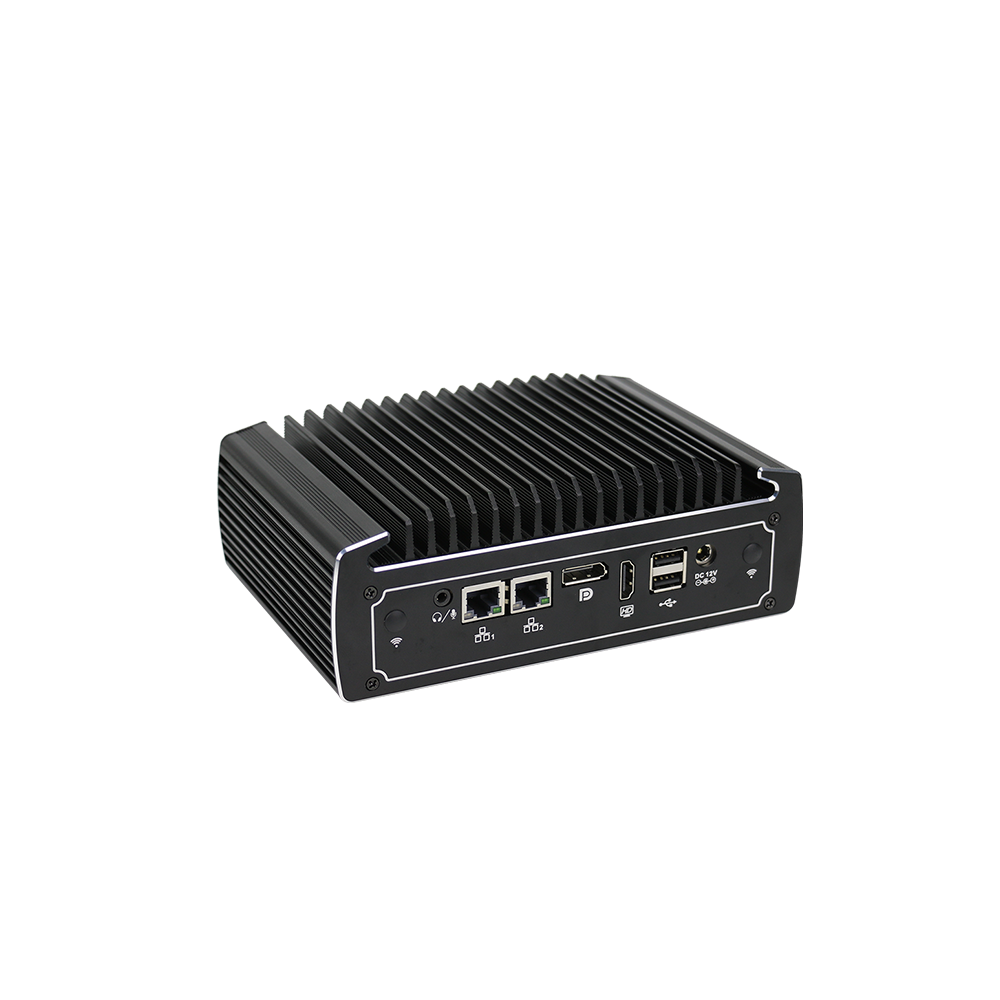

IWILL N3022 Comet Lake Series Industrial Mini PC
|
Specification |
|
|
Model |
Nano N3022 |
|
Color |
Black (color can be customized) |
|
Material |

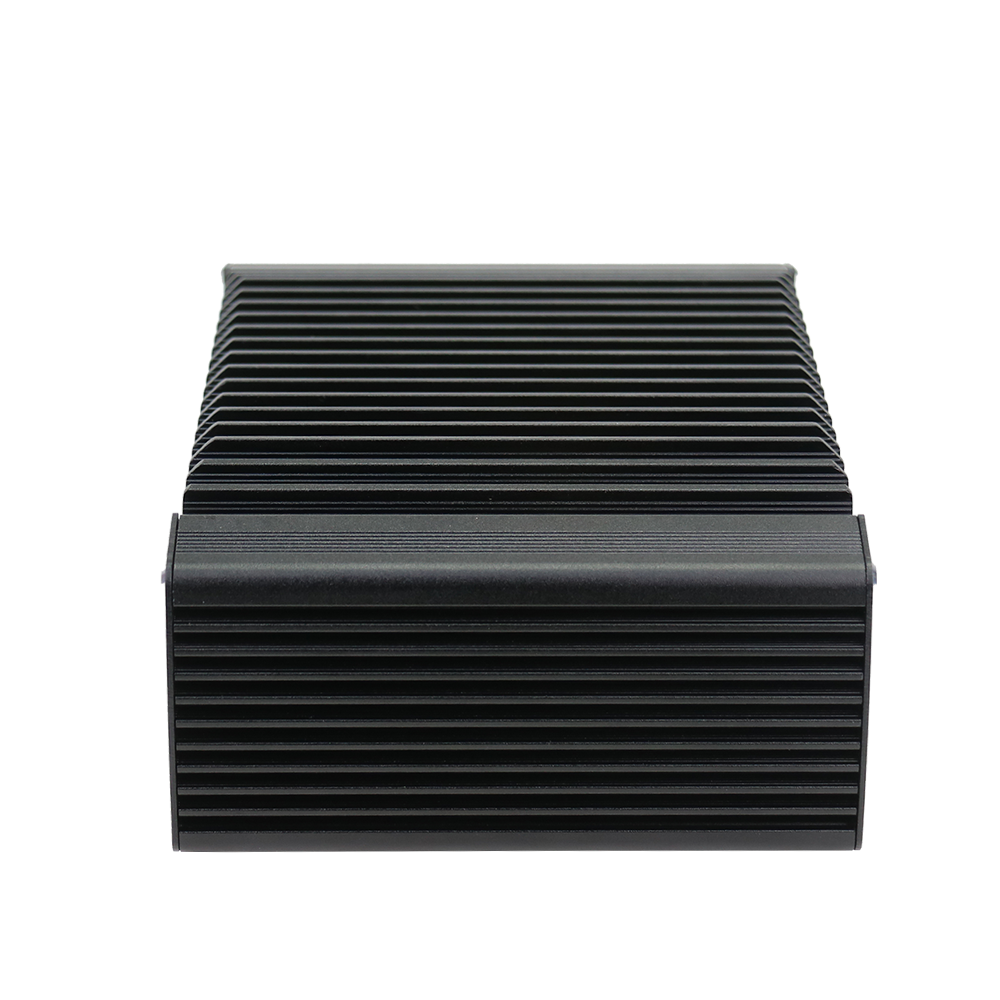

High-quality all aluminum |
|
Processor |
Intel Core i3 10110U (Dual core 4 threads, 2.1G, Max. Turbo 4.1G, 4MB Cache) |
|
Intel Core i5 10210U (Quad core 8 threads, 1.6G,Max. Turbo 4.2G, 6MB Cache) |
|
|
Intel Core i5 8260U（Quad core 8 threads，1.6GHz，Turbo 3.9G） |
|
|
Intel Core i7 10810U (Six core 12 threads, 1.1GHz,Max. Turbo 4.9G, 12MB Cache) |
|
|
CPU Architecture |
Comet Lake |
|
RAM |
Support 1*DDR4 2400/2600 SODIMM memory slot, Max. Support 32GB |
|
BIOS |
AMI EFI BIOS |
|
Display Chip |
Intel UHD Graphics for 10th Gen Intel Processors |
|
Display Port |
1*DP, 1*HDMI |
|

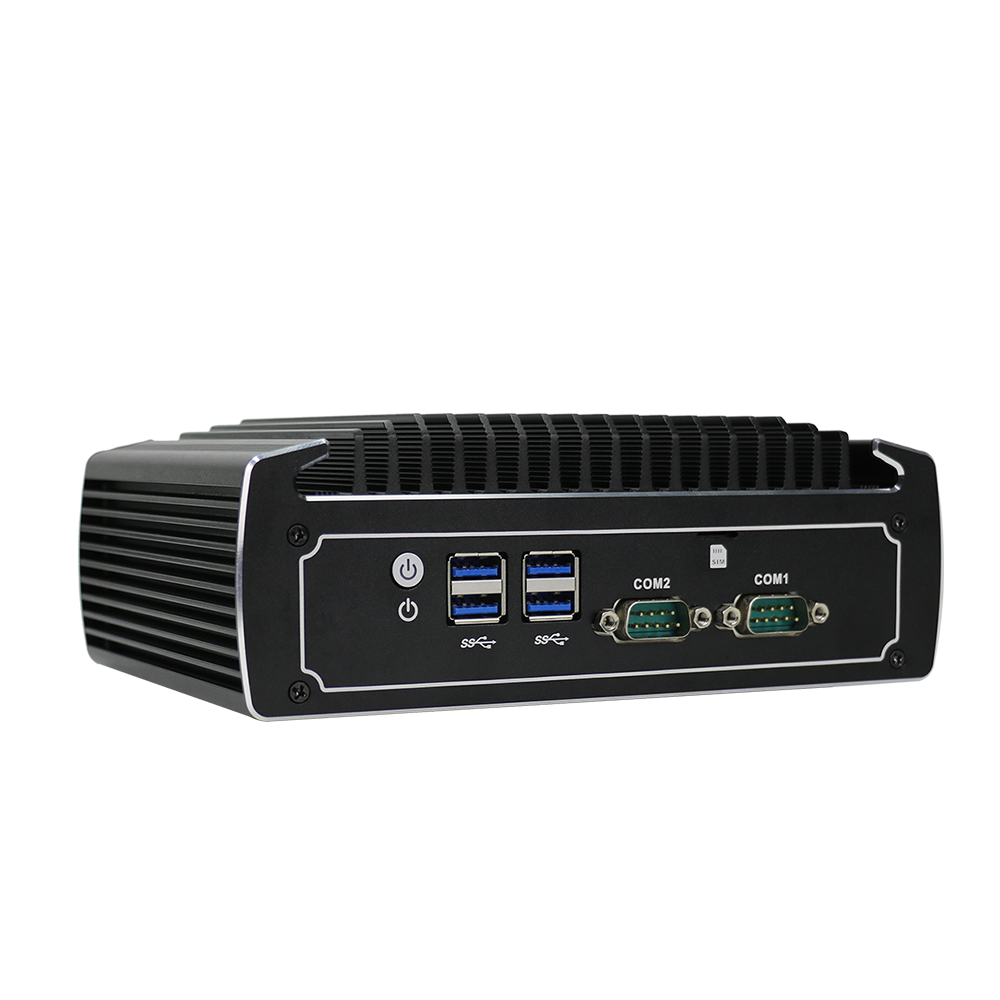

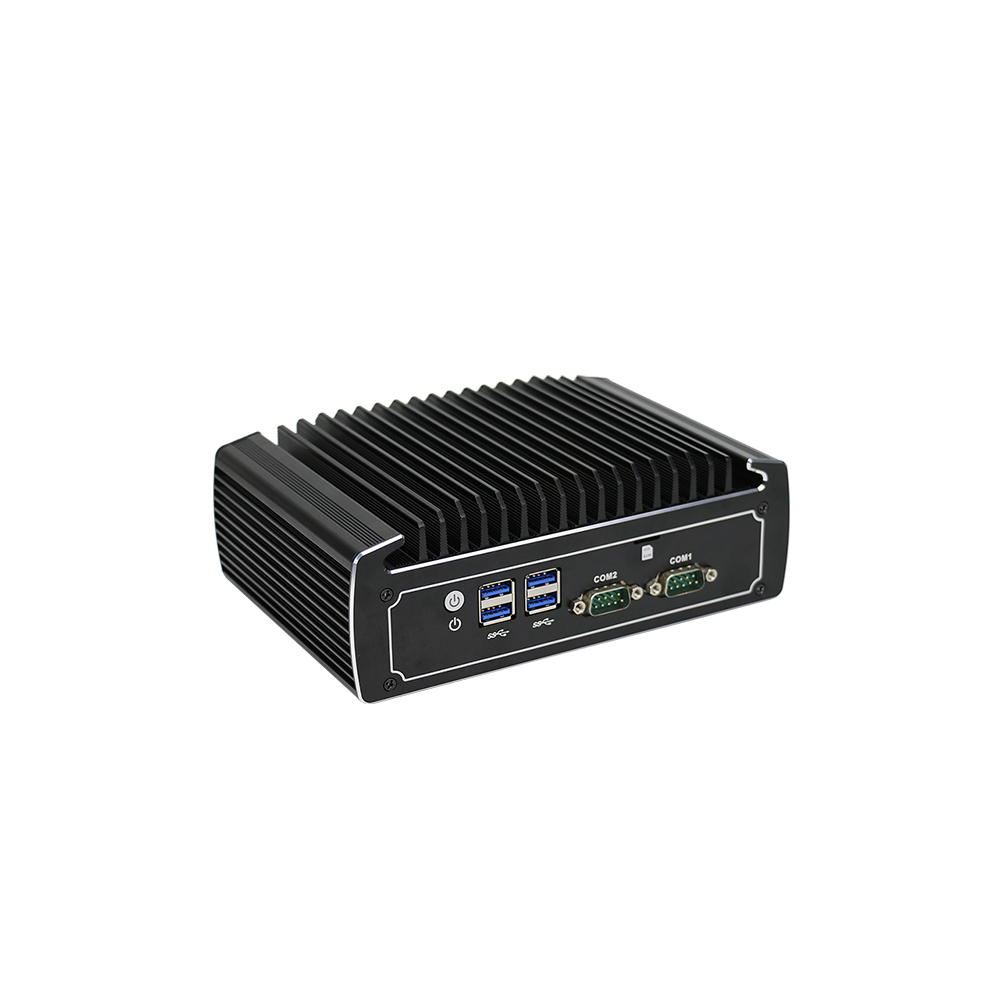

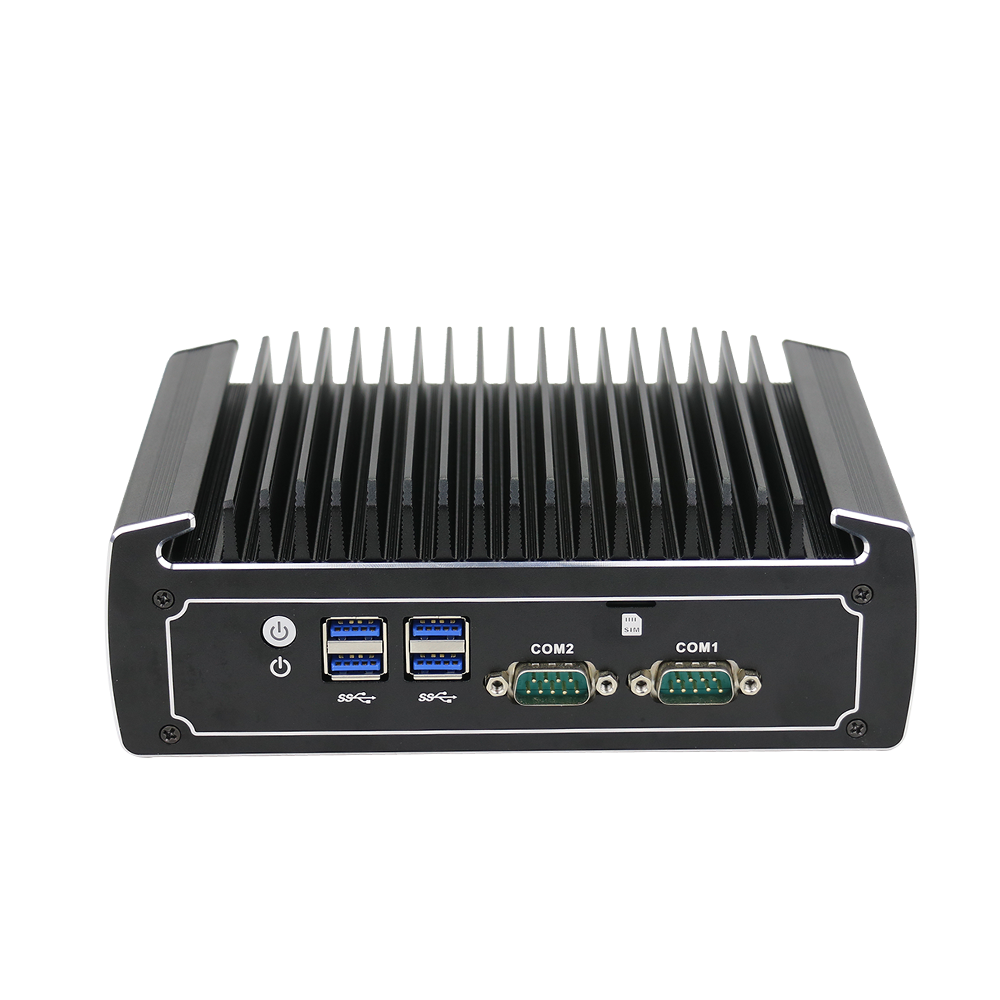

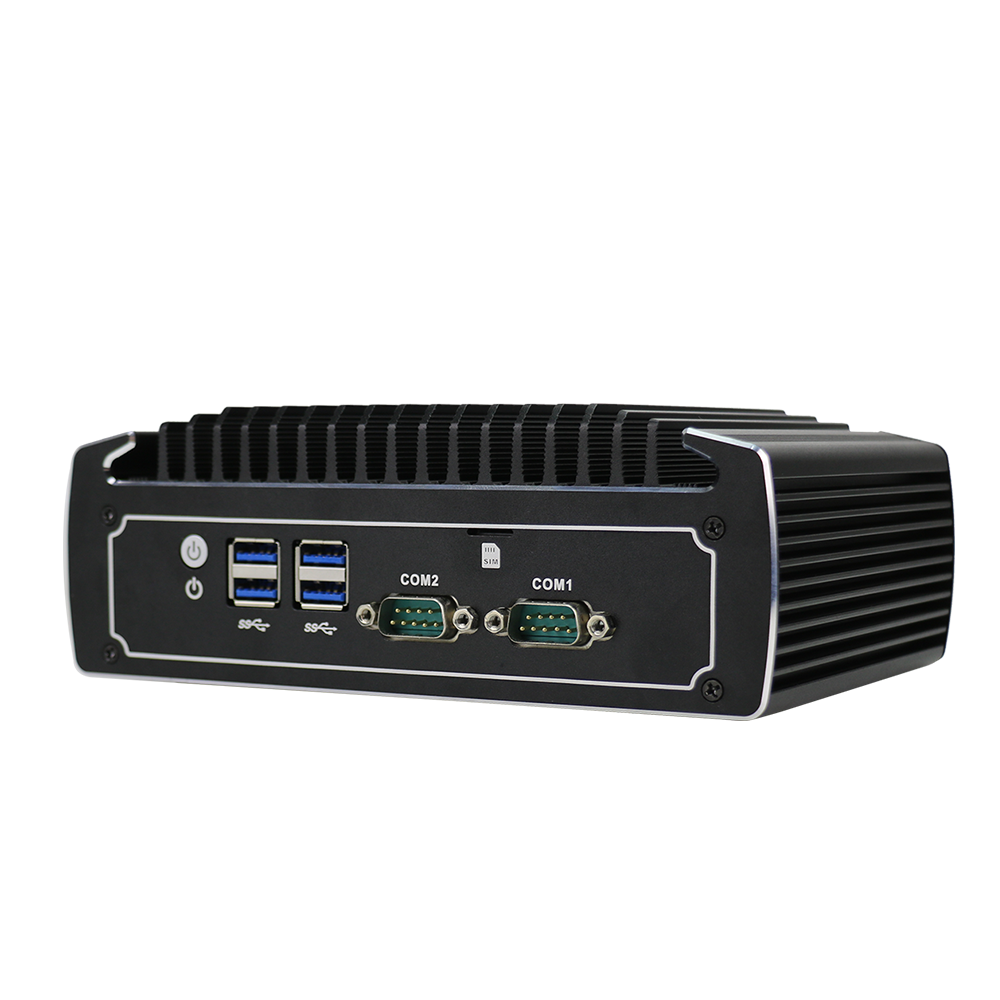

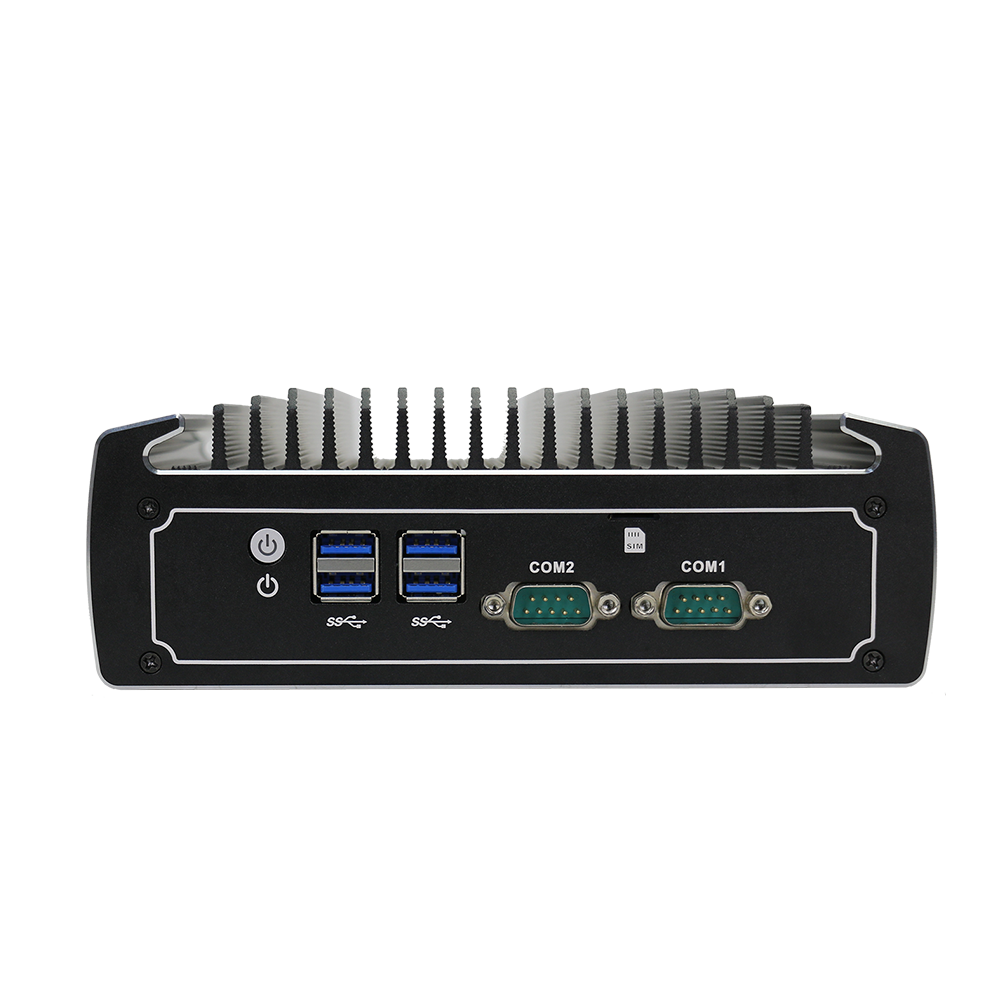

Front I/O |
2*COM (2*COM RS232/485 is Optional), 4*USB3.0, 1*Power Switch, 1*SIM slot |
|

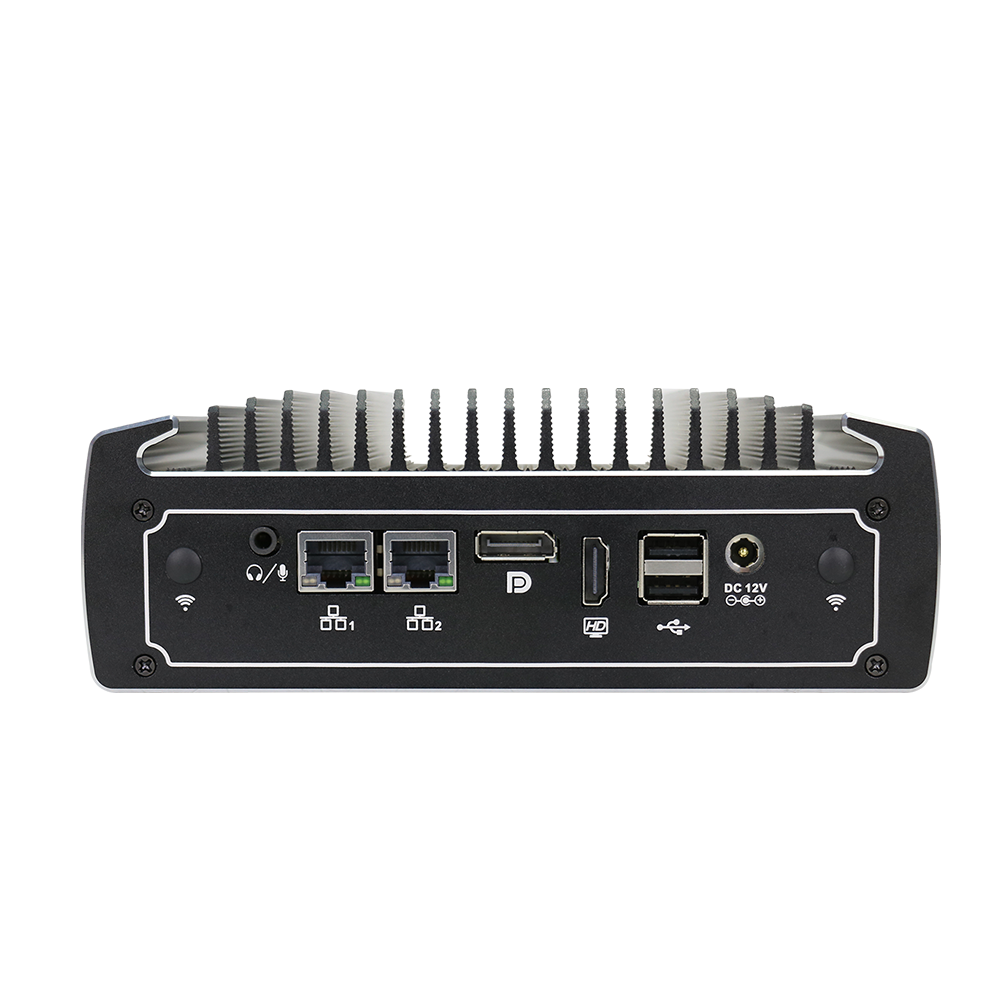

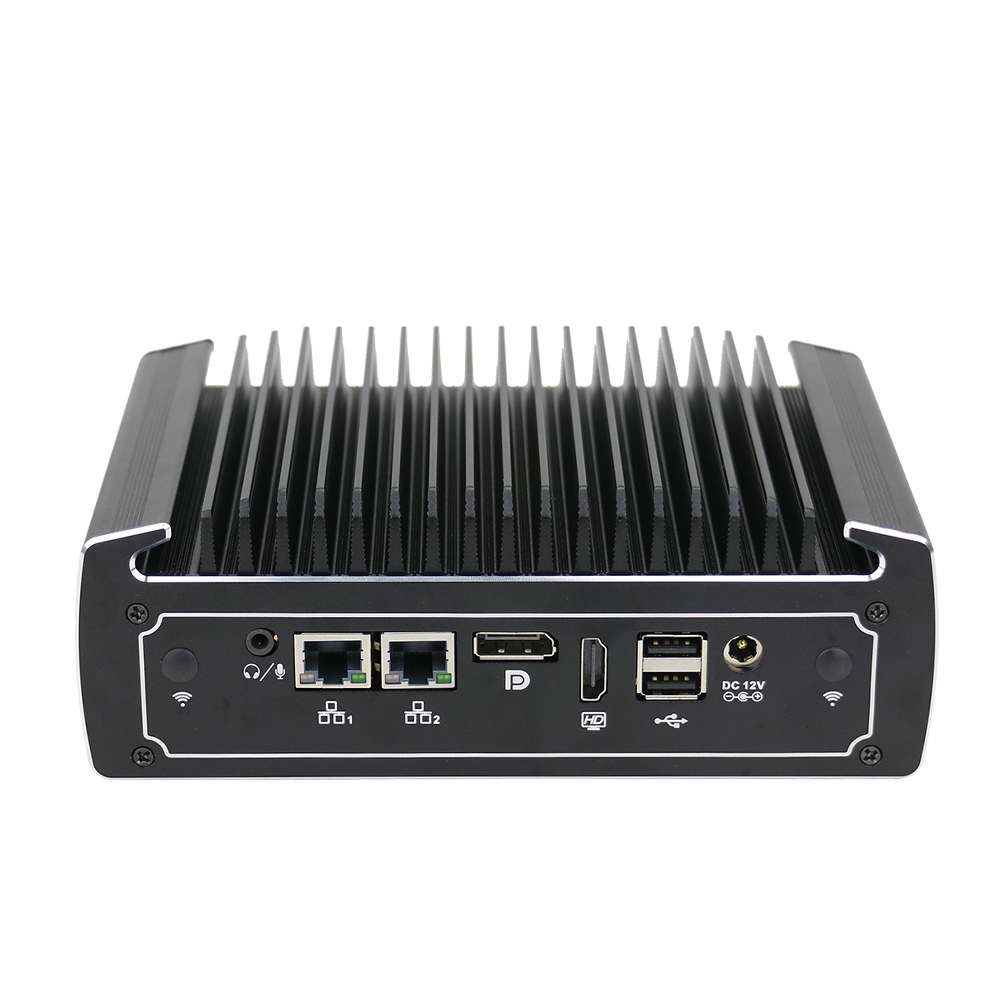

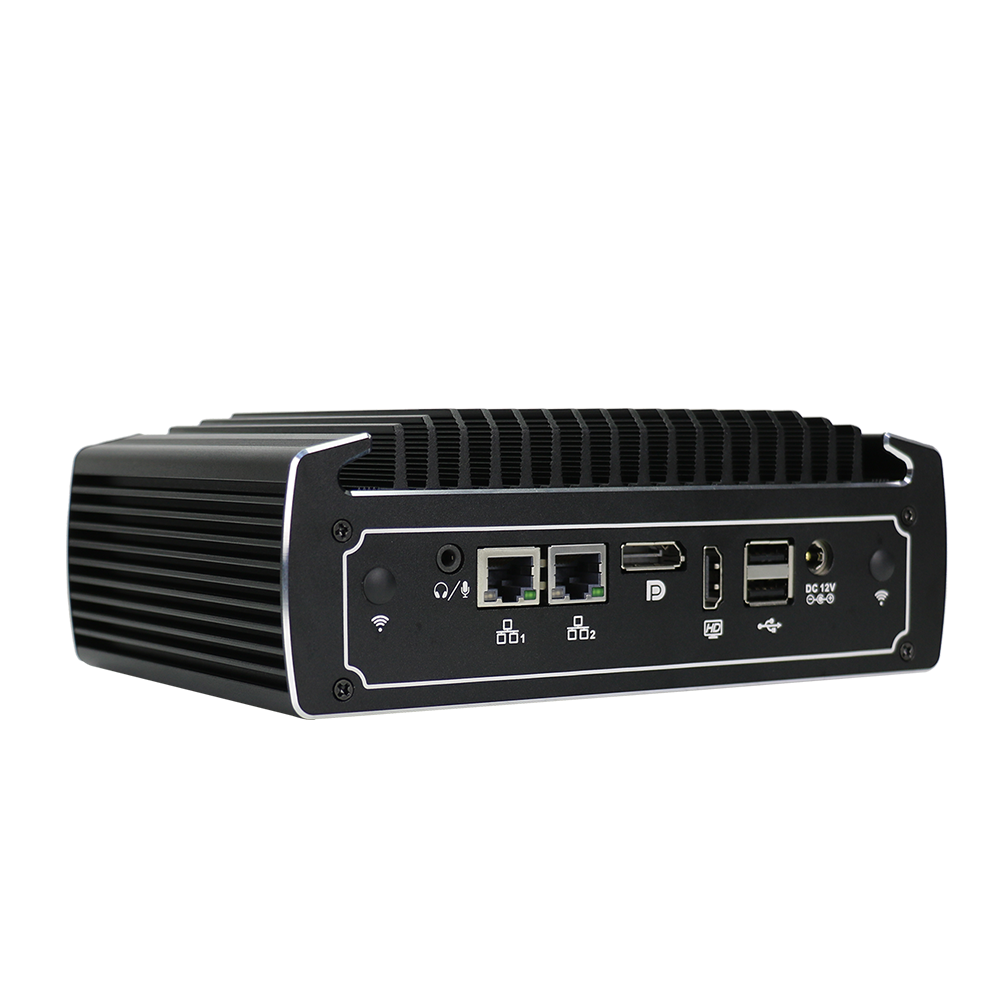

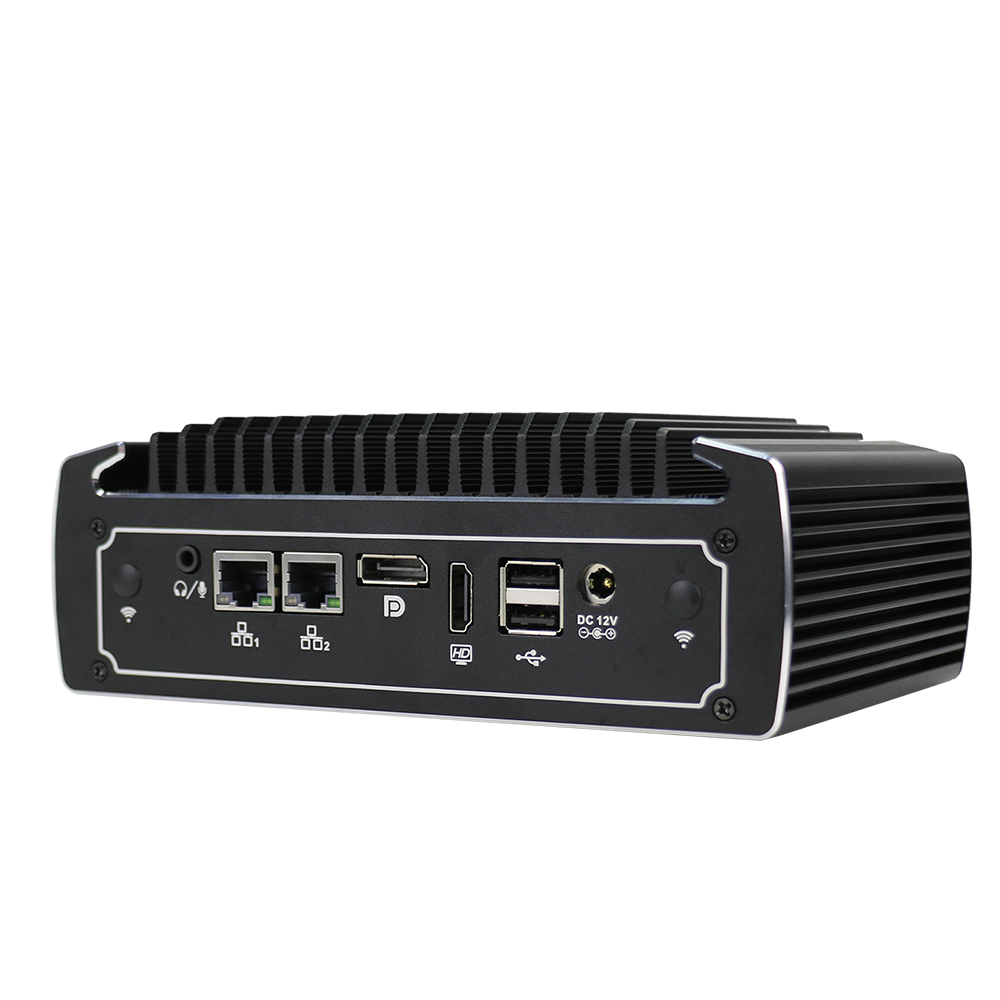

Rear I/O |
1*DC-IN 12V, 2*USB2.0, 1*HDMI, 1*DP, 2*Intel 1000M LAN, 1*Audio ( Support Mic and Speaker at the same time) |
|
Expansion Slot |
Support 1*M.2 2280 slot (Support M.2 PCIE X4 and M.2 SATA SSD); |
|
Support 1*MINI PCIE slot (WIFI/3G/4G choose one from three),embedded SIM socket; |
|
|
Network |
2*Intel i211-AT 1000M LAN or 2*Intel i225V 2.5G LAN |
|
Storage |
Support 1*M.2 2280 slot, 1*2.5”HDD, support RAID 0/1 |
|
Power Supply |
DC 12V |
|
Work Temp |
0℃ ～ +40℃(HDD), -20℃ ～ +50℃(Industrial grade SSD), surface air flow |
|
Work Humidity |
5% ～ 95% non-condensing |
|
Dimension |
186 * 126.5 * 66 mm |
|
Net Weight |
1.3 kg |
|
Accessories List |
||
|
Name |
Quantity |
Specification |
|
Power Adapter |
1 |
12V 5A |
|
12V 7.5A |
||
|
Power Cord |
1 |
Any Plug is optional (Chinese, British, USA standard etc) |
|
Order Information |
|||
|
Configuration one |
N3022 |
Intel Core i3 10110U |
Standard Port |
|
Configuration two |
Intel Core i5 10210U |
Standard Port |
|
|
Configuration three |
Intel Core i5 8260U |
Standard Port |
|
|
Configuration four |
Intel Core i7 10810U |
Standard Port |
|
