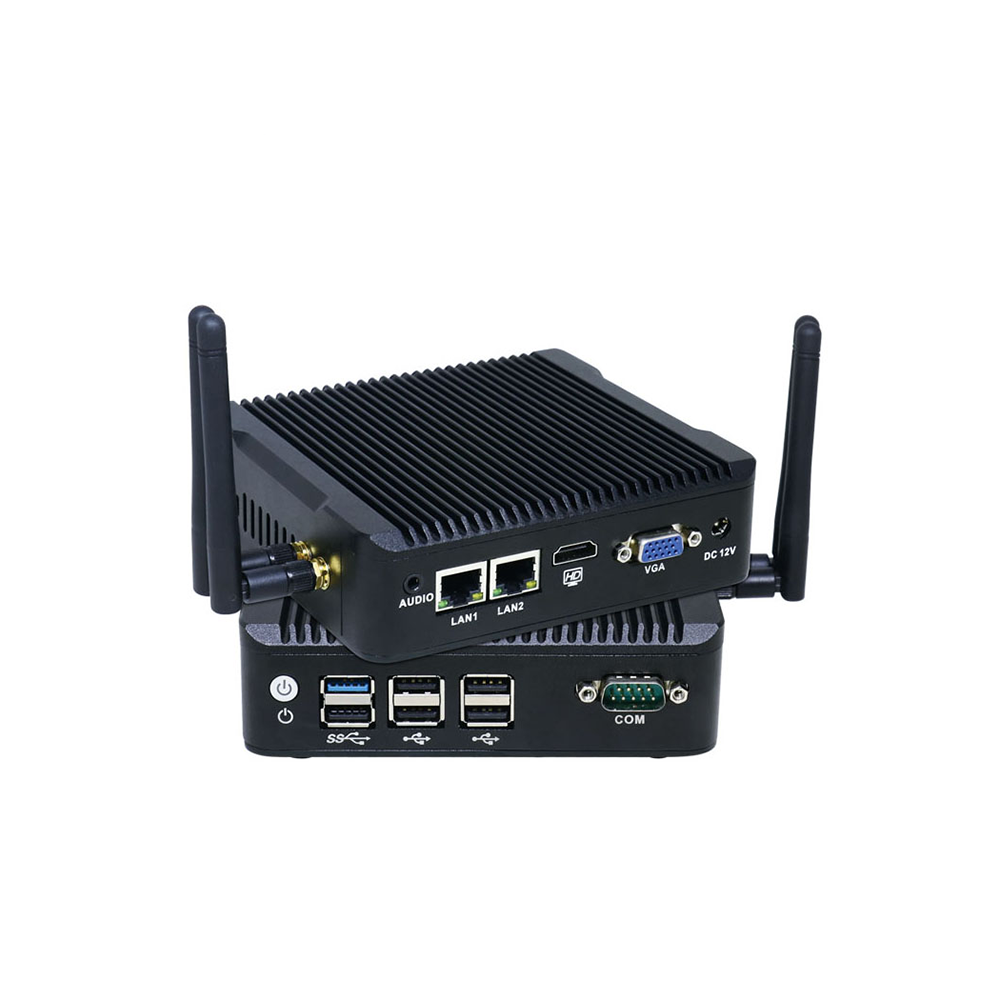

IWILL N3 Plus Intel Celeron J1900 Industrial Mini PC
Features: |
◇ All aluminum structure,fanless design; |
◇ Onboard Intel Celeron J1900 quad core processor; |
◇ Max Support DDR3L 8GB RAM; |
◇ Support 1*MSATA Slot,1*2.5” HDD; |
◇ Support 2*1000M LAN; |
◇ Support OS: |
Specification |
|
Model |
Nano N3 Plus |
Color |
Black (Color can be customized) |
Material |
High-quality all aluminum,surface anodic oxidation |
Processor |
Onboard Intel Celeron J1900(Quad core quad threading,1.99GHz,Pulse frequency 2.42GHz) |
RAM |
Support 1*DDR3L 1333/1600MHz SODIMM Memory Slot,Max. Support 8GB |
BIOS |
AMI UEFI BIOS |
Display Chip |
Intel HD Graphics |
Display Port |
1*VGA,1*HDMI(Support synchronous and asynchronous dual display) |

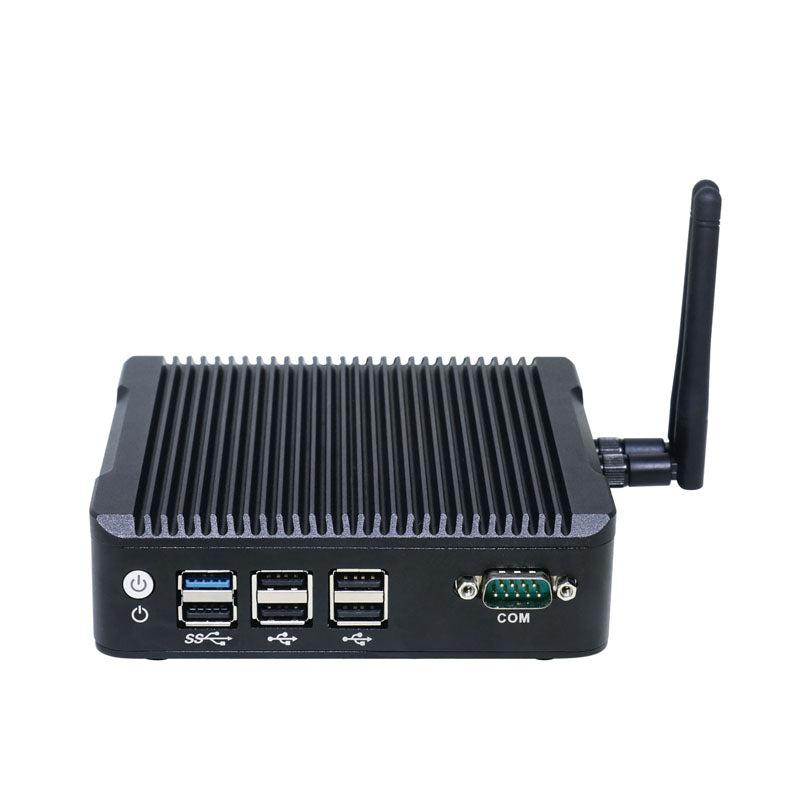

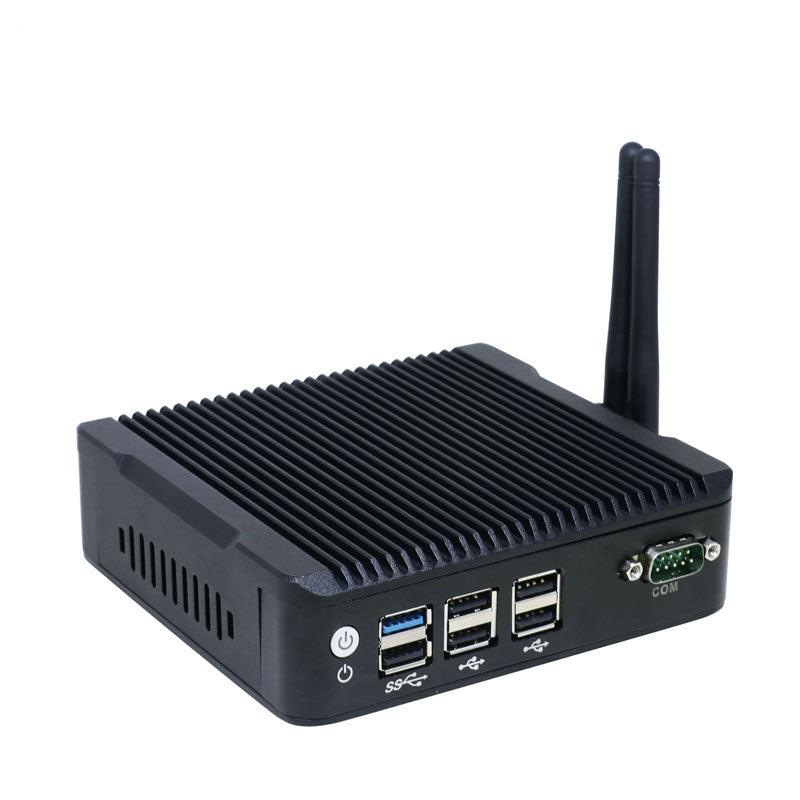

Front I/O |
1*Power Switch,1*USB3.0,5*USB2.0,1*RS232 COM |

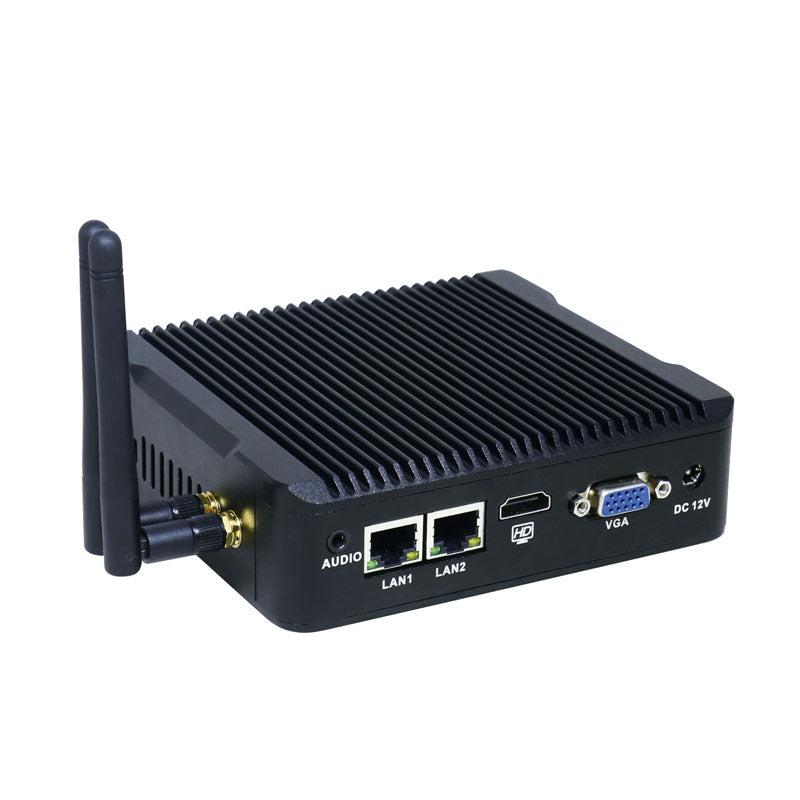

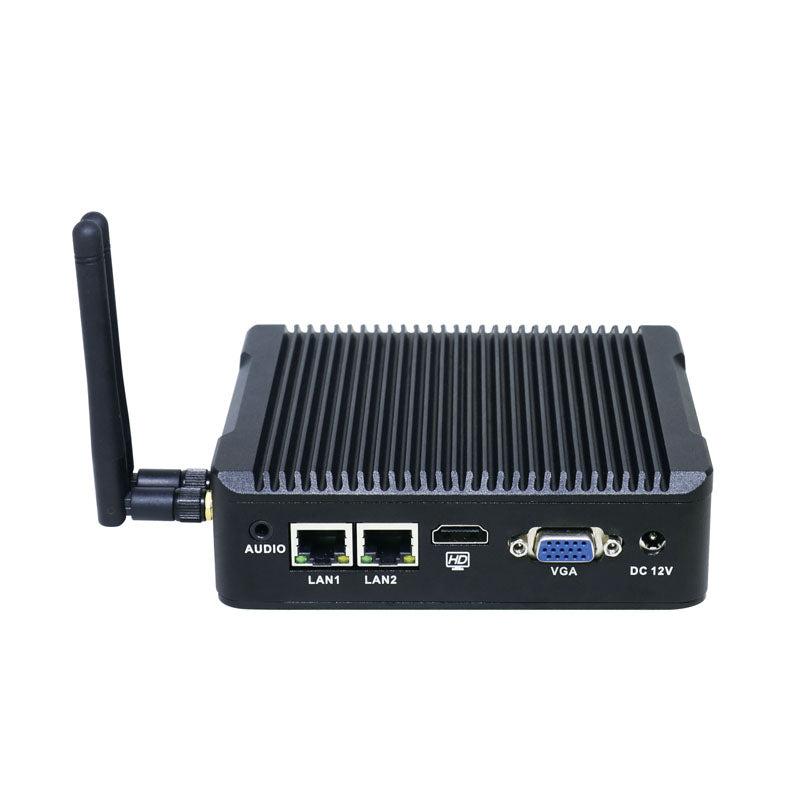

Rear I/O |
1*Audio,2*RJ45 LAN,1*VGA,1*HDMI,1*DC Input |
Expansion Slot |
Support 1*MINI PCIE Slot(WIFI and Bluetooth Optional) |
Support 1*MINI PCIE Slot(Support MSATA) |
|
Network |
2*100/1000M RTL8111H 1000M LAN |
Storage |
1*MSATA Slot,1*2.5” HDD |
Input Voltage |
Support DC 12V Input |
Other Function |
Auto power on when there is electricity、 Timing boot、Wake on LAN、PXE boot、Watchdog(0~255 level)(Standard version doesn’t set these function) |
Work Temp |
0℃ ~ +50℃(Commercial HDD),-20℃ ~ +50℃(Industrial SSD),Surface air flow |
Work Humidity |
5% ~ 95% non-condensing |
Certificates |
CE、 CCC、 FCC Class A、 RoHS |
Dimension |
134 * 126 * 38.5 mm |
Net Weight |
0.7kg |
Application |
Industrial Automation, Medical, Logistics Transportation, Warehouse, Electronic Education etc. |
Accessories List |
||
Name |
Quantity |
Specification |
Power Adapter |
1 |
12V4A |
Power Cord |
1 |
Any Plug Optional (China, US, EU, UK etc.) |
VESA Bracket |
1 |
Standard |
Order Information |
|||
Configuration 1 |
N3 Plus |
Intel Celeron J1900 |
Standard Port |
