IWILL N13-L2 Intel Core i3 8130U Industrial Mini PC
|
Features： |
|
◇ All aluminum structure，fanless design； |
|
◇ Onboard Intel Core i3 8130U； |
|
◇ Max. Support DDR4 2400 32G RAM； |
|
◇ Support 1*M.2 Slot，1*2.5”HDD； |
|
◇ Support WIFI/3G/4G（Choose one from Three）； |
|
◇ Support 4*USB3.0，2*USB2.0； |
|
◇ Support OS： |
|
Specification |
|
|
Model |
N13 L2 |
|
Color |
Black (Color can be customized) |
|
Material |
High-quality all aluminum，surface anodic oxidation |
|
Processor |
Intel Core i3 8130U (dual core quad threading，2.2GHz,Max. turbo 3.4 GHz) |
|
CPU Architecture |
KabyLake-U |
|
RAM |
Support 2*DDR4 2400 MHz SODIMM RAM Slot，Max. Support 32 GB |
|
Display Chip |
Integrated Intel HD Graphics 620 |
|
Display Port |
1*HDMI、1*DP |
|

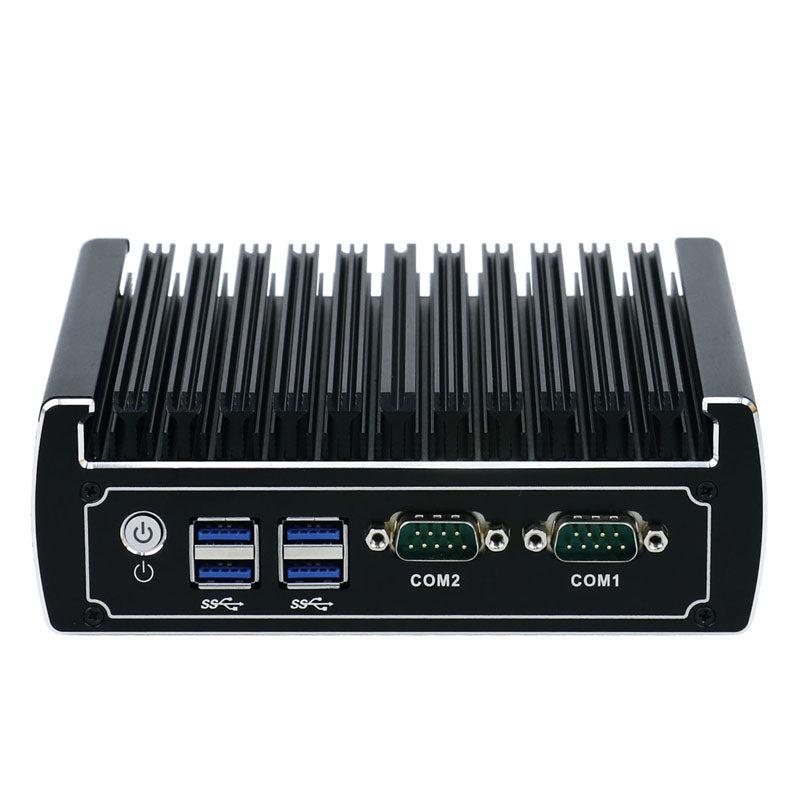

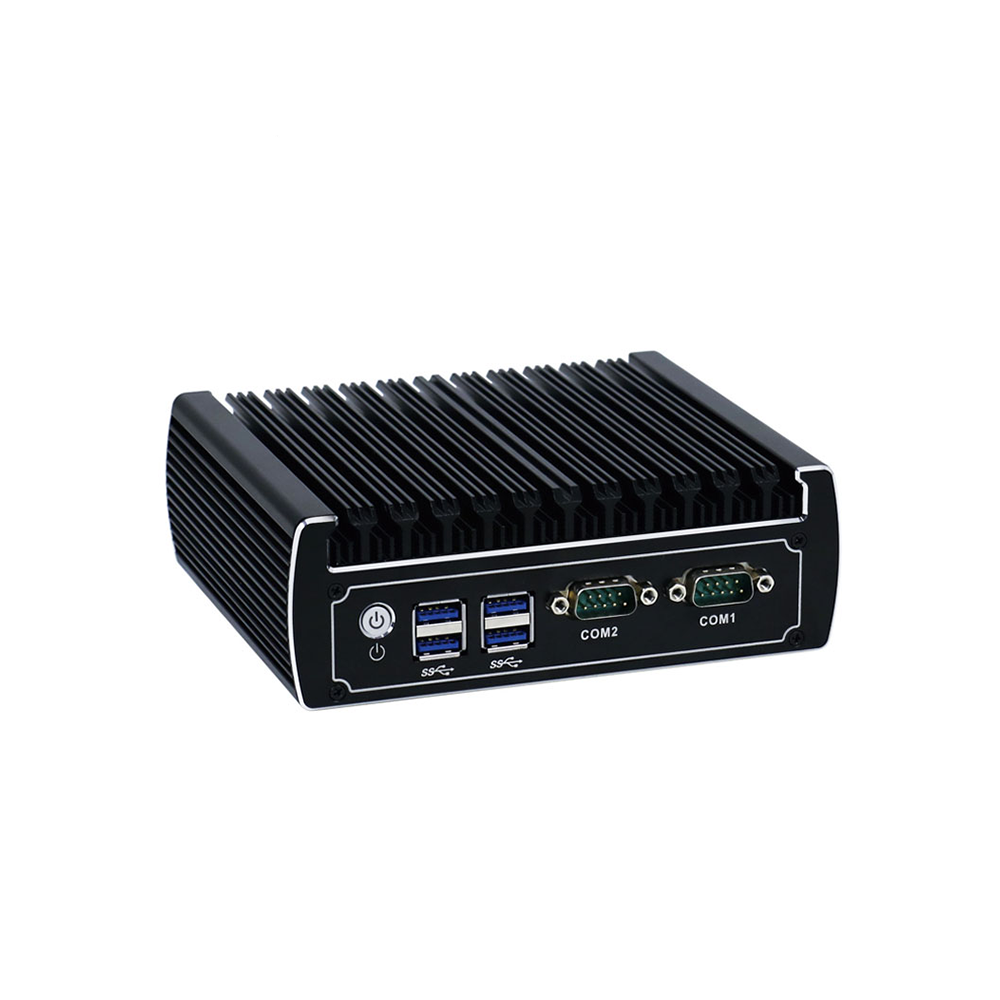

Front I/O |
4*USB3.0，1*Power Switch，2*COM |
|

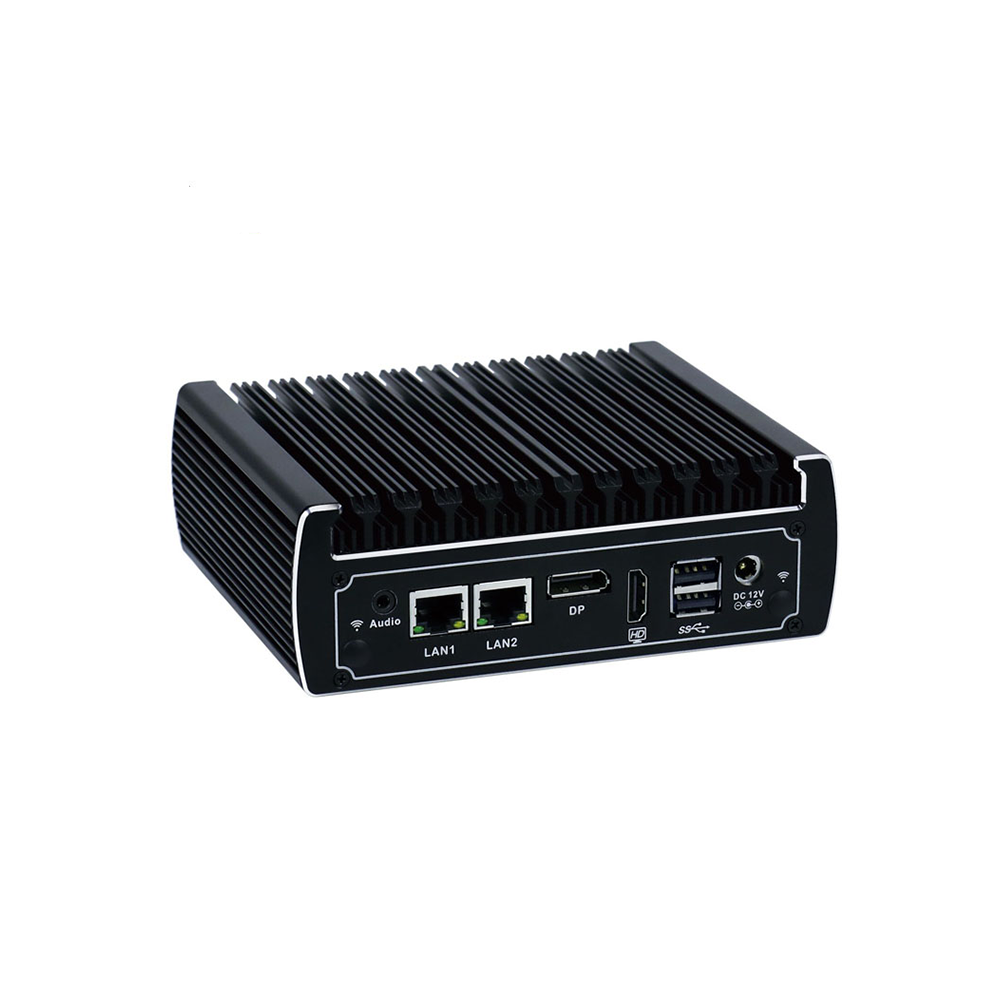

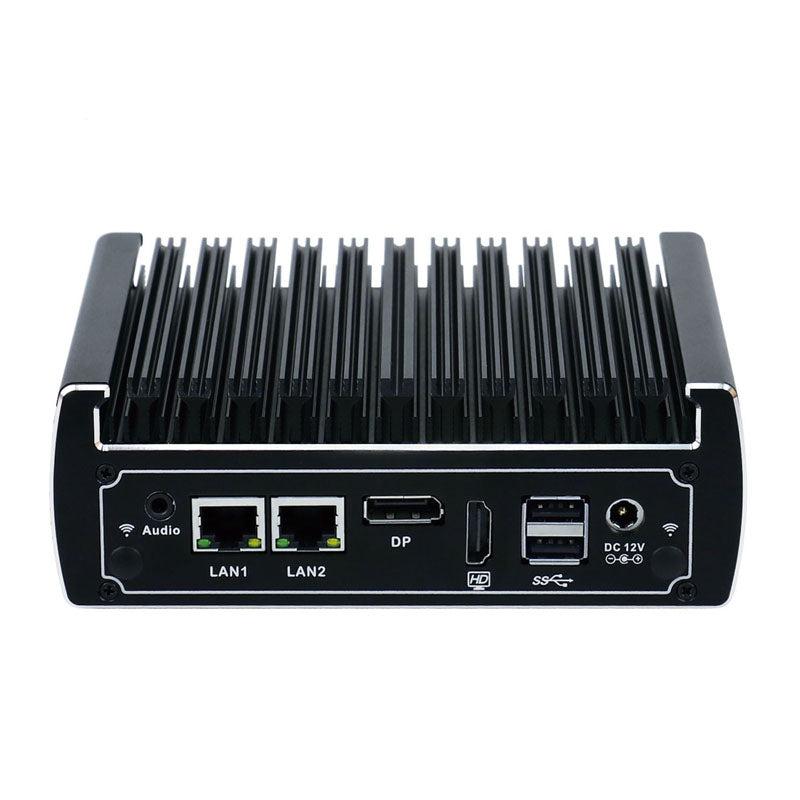

Rear I/O |
2*RJ45 LAN，2*USB2.0，1*HDMI，1*DP, |
|
1*Audio (Support Mic and Speaker at the same time)，1*DC 12V Input |
|
|
Expansion Slot |
Support 1*M.2 2280 Slot（Compatible with PCIE X4 and SATA signal） |
|
Support 1*MINI PCIE Slot（WIFI/3G/4G Optional），embedded SIM slot on the back |
|
|
Network |
2*RTL8111E 10/100/1000M LAN |
|
Storage |
1*M.2 2280 Slot，1*2.5” HDD |
|
Input Voltage |
Support DC 12V Input |
|
Other Function |
Auto power on when there is electricity、Timing boot、Wake on LAN、PXE boot、Watchdog（0～255 level）(Standard version doesn’t set these function) |
|
Work Temp |
0℃ ～ +50℃（Commercial HDD），-20℃ ～ +50℃（Industrial SSD），Surface air flow |
|
Work Humidity |
5% ～ 95% non-condensing |
|
Certificates |
CE、 CCC、 FCC Class A、 ROHS |
|
Dimension |
155 * 126.5 * 52.5mm |
|
Net Weight |
1.6kg |
|
Application |
Industrial Automation, Medical, Logistics Transportation, Warehouse, Electronic Education etc. |
|

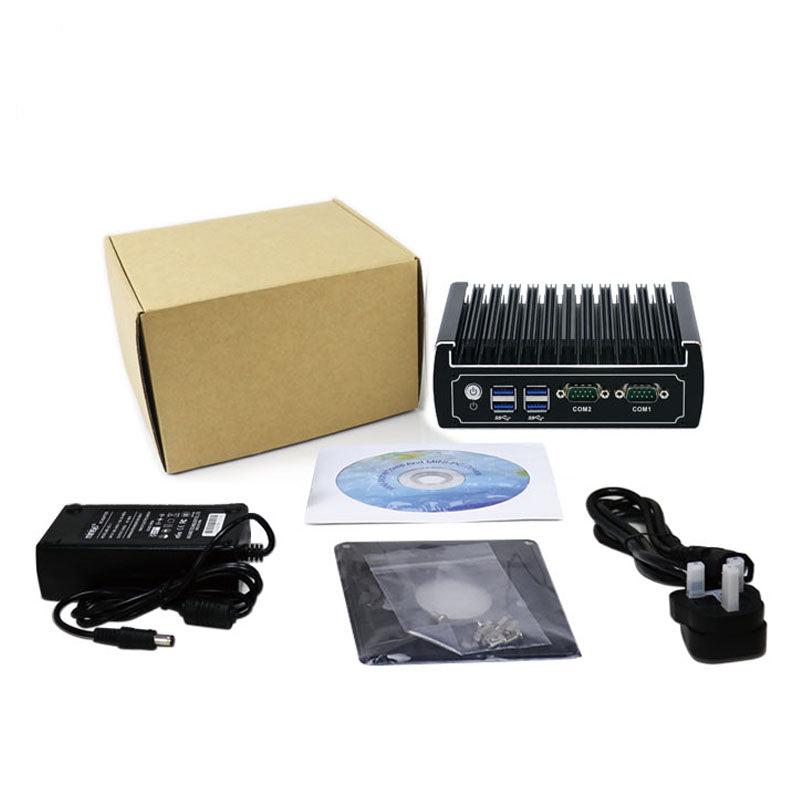

Accessories List |
||
|
Name |
Quantity |
Specification |
|
Power Adapter |
1 |
12V 5A |
|
Power Cord |
1 |
Any Plug Optional (China, US, EU, UK etc.) |
|
VESA Bracket |
1 |
Standard |
|
Order Information |
|||
|
Configuration 1 |
N13 L2 |
Intel Core i3 8130U |
Standard Port |
