IWILL IBOX-1226 Intel Celeron J6412 Industrial Mini PC
|
Features: |
|
◇ All aluminum alloy structure, Fanless design; |
|
◇ Intel Celeron J6412 Quad Core； |
|
◇ DDR4 SODIMM slot，Max: 32G； |
|
◇ 3*Intel i225-V 2.5G Lan |
|
◇ 2*M.2 slots for 4G/5G； |
|
◇ 1*Mini PCIE slot； |
|
◇ 6*COM (COM1 and 2,RS232/485 optional); |
|
◇ Supported OS: |
|
Specification |
|
|
Model |
IBOX-1226 |
|
Color |
Dark grey (color can be customized) |
|
Material |
High-quality all aluminum, surface hard anodized |
|
Processor |
Onboard Intel Celeron J6412 (quad core, four threads, 2.0GHz,Max to 2.6GHz) |
|
Memory |
Support 1*DDR4 3200MT/s SODIMM, Max 32 GB |
|
BIOS |
AMI UEFI BIOS |
|
Display Chip |
Integrated Intel HD Graphics |
|
Display Port |
1*HDMI, 1*DP (Support Synchronous/asynchronous display, Resolution Max 4096x2160 @ 60Hz) |
|

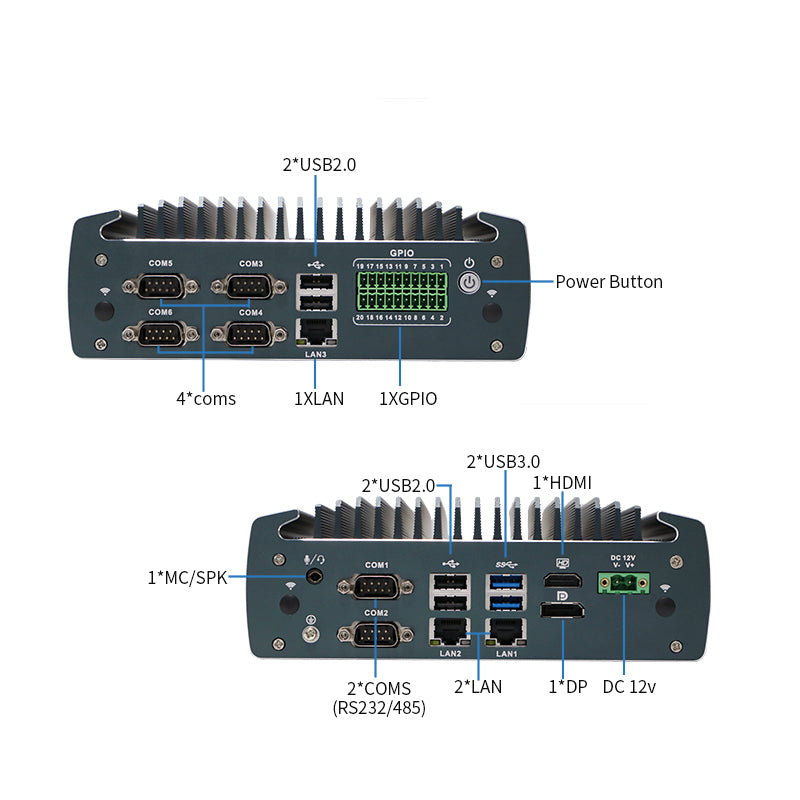

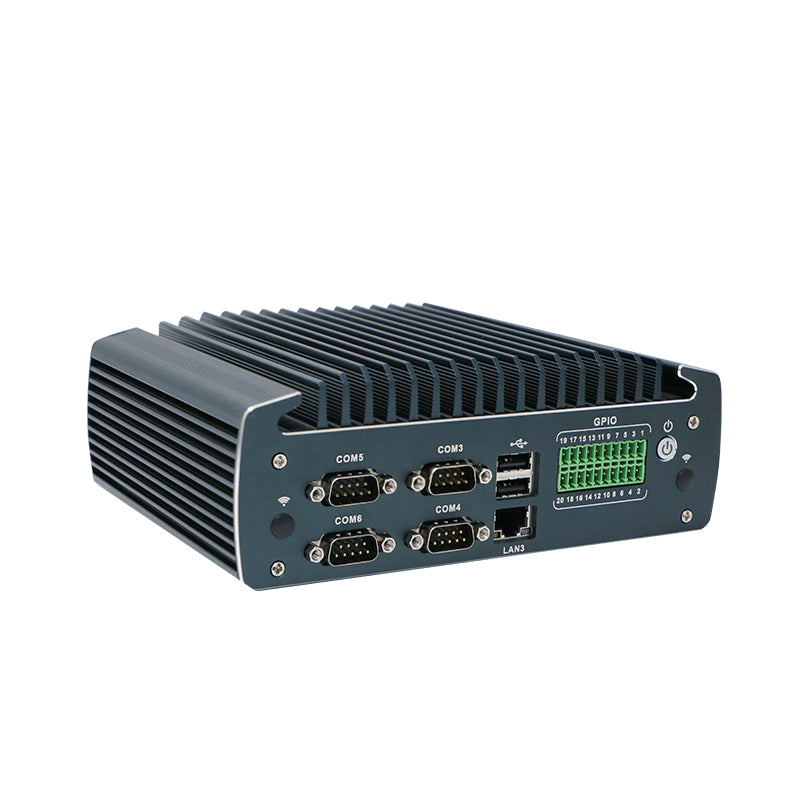

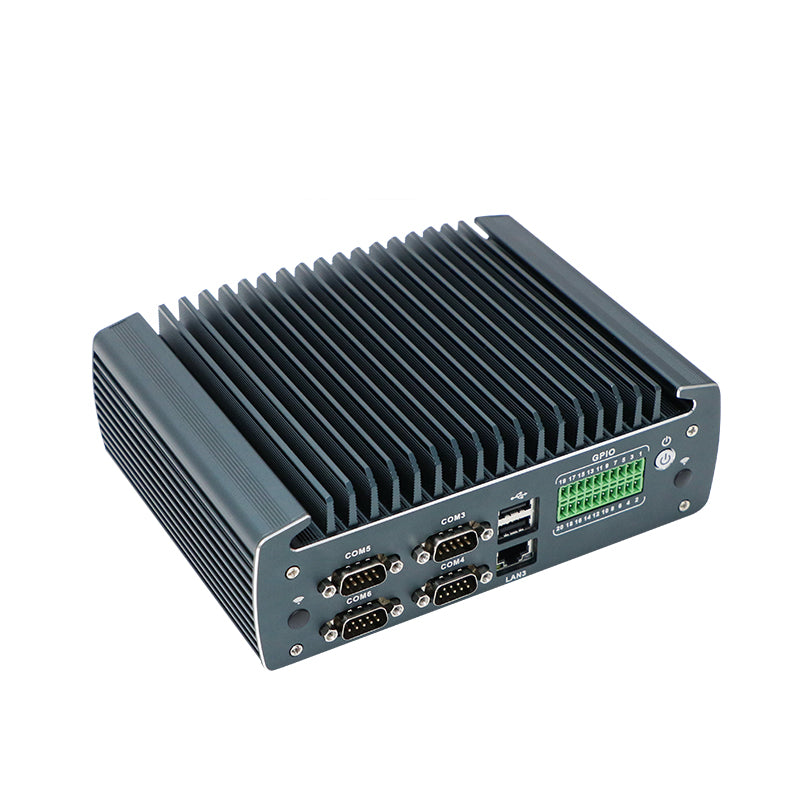

Front I/O |
4*COM, 2* USB2.0, 1*Intel 2.5G Lan, 16 bits GPIO Phoenix, 1*Power switch |
|

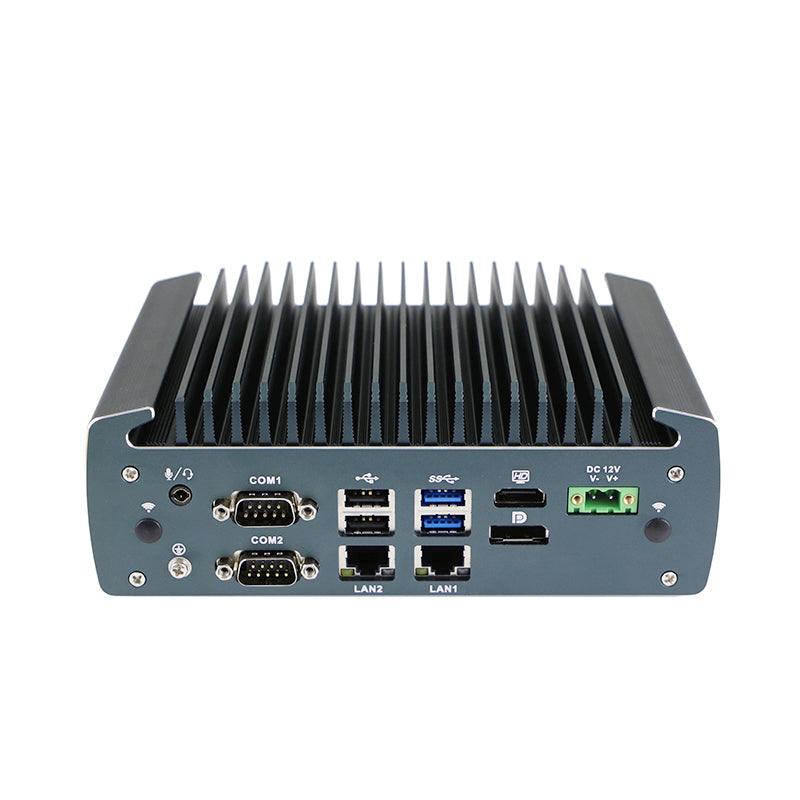

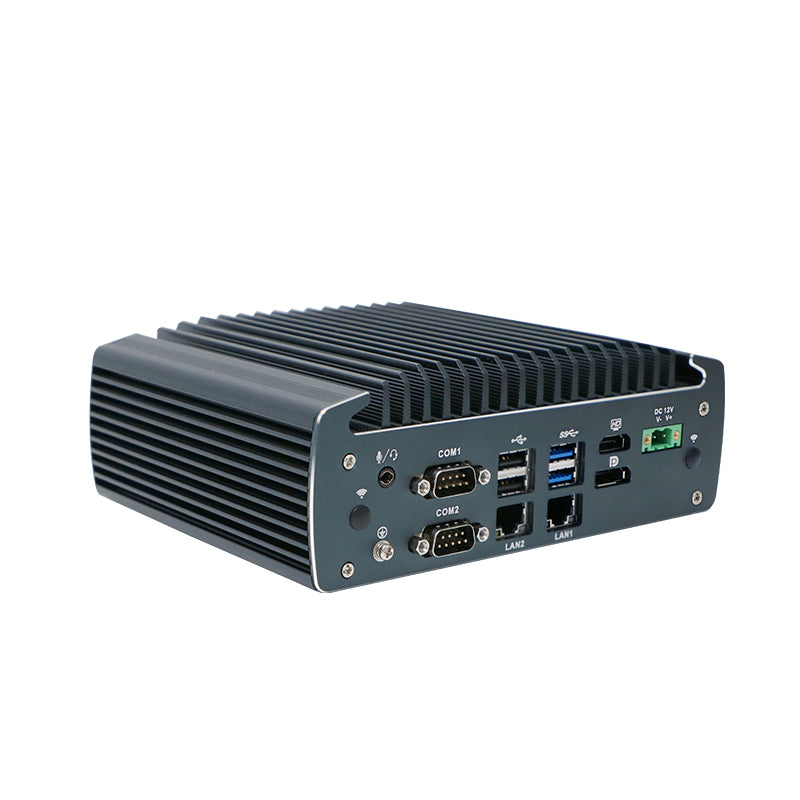

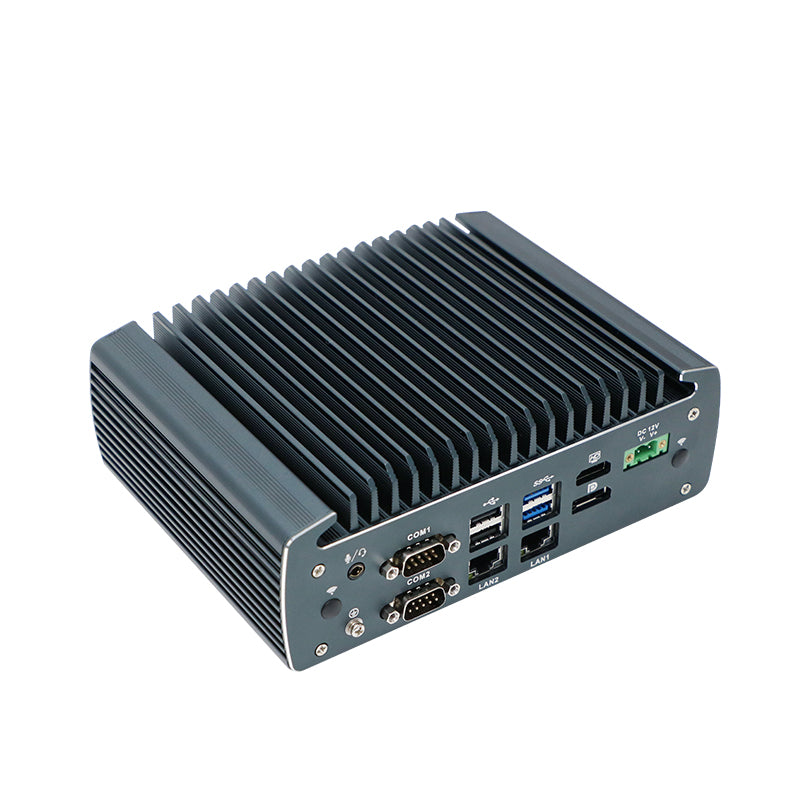

Rear I/O |
2*COM (COM1 and 2, RS232/485 optional) 2*USB2.0, 2*USB3.0, 2*Intel 2.5G Lan |
|
1*HDMI, 1*DP, 1* 2Pin Phoenix, 1*Audio with Mic and Speaker |
|
|
Expansion Slot |
1*M.2 M-key slot 2280, SATA protocol |
|
1*M.2 B-key slot 3042/3052 (for 4G/5G module) with SIM slot; |
|
|
1*MINI PCIE slot (for WIFI&BT) |
|
|
2*USB2.0 (Extensible ports, standard does not include) |
|
|
Network |
3*Intel i225-V 2.5G Lan |
|
Storage |
1*M.2 slot (SATA protocol) , 1*2.5 SATA |
|
Power Supply |
DC 12V in put |
|
Other functions |
Auto Power-on, Timed power-on, network wake-up, PXE boot, watchdog (level 0-255), TPM2.0 security encryption |
|
Work Temp |
0℃ to +50℃ (Commercial HDD), -20℃ to +60℃ (Industrial SSD), Surface air flow |
|
Work Humidity |
5% to 95% non-condensing |
|
Certificates |
CE, CCC, FCC Class A, RoHS |
|

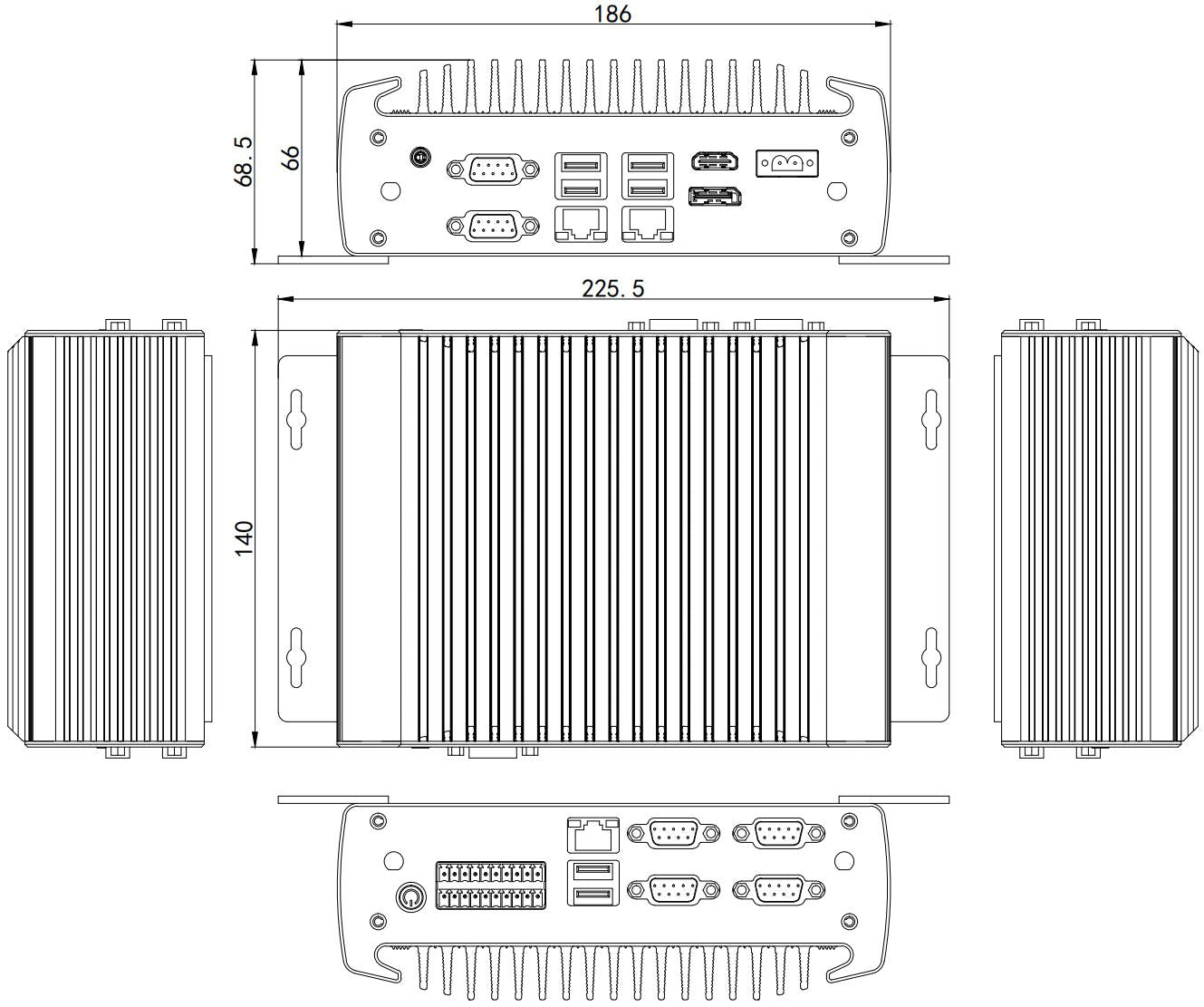

Size |
186 * 140 * 66 mm |
|
Weight |
1.5 kg |
|
Application |
Industrial automation, Medical, Transportation, Warehousing, E-education etc. |
|

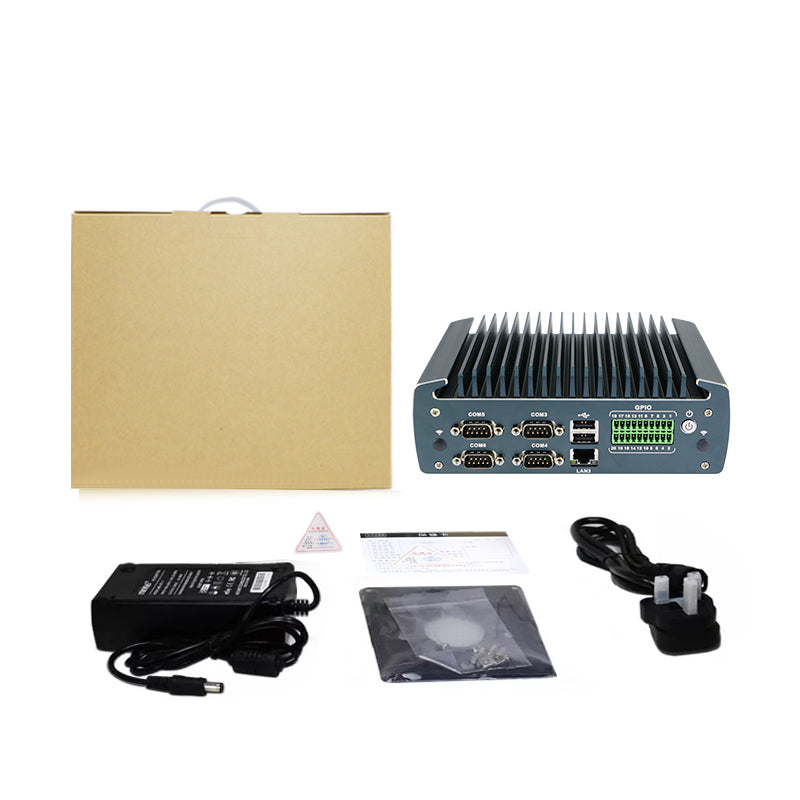

Accessories List |
||
|
Name |
Quantity |
Specification |
|
Power Adapter |
1 |
12V 5A |
|
Power Cord |
1 |
US standard, EU standard, etc. |
|
Wall bracket |
2 |
Standard |
|
Order information |
|||
|
Configuration 1 |
IBOX-1226 |
Intel Celeron J6412 |
Standard I/O |
