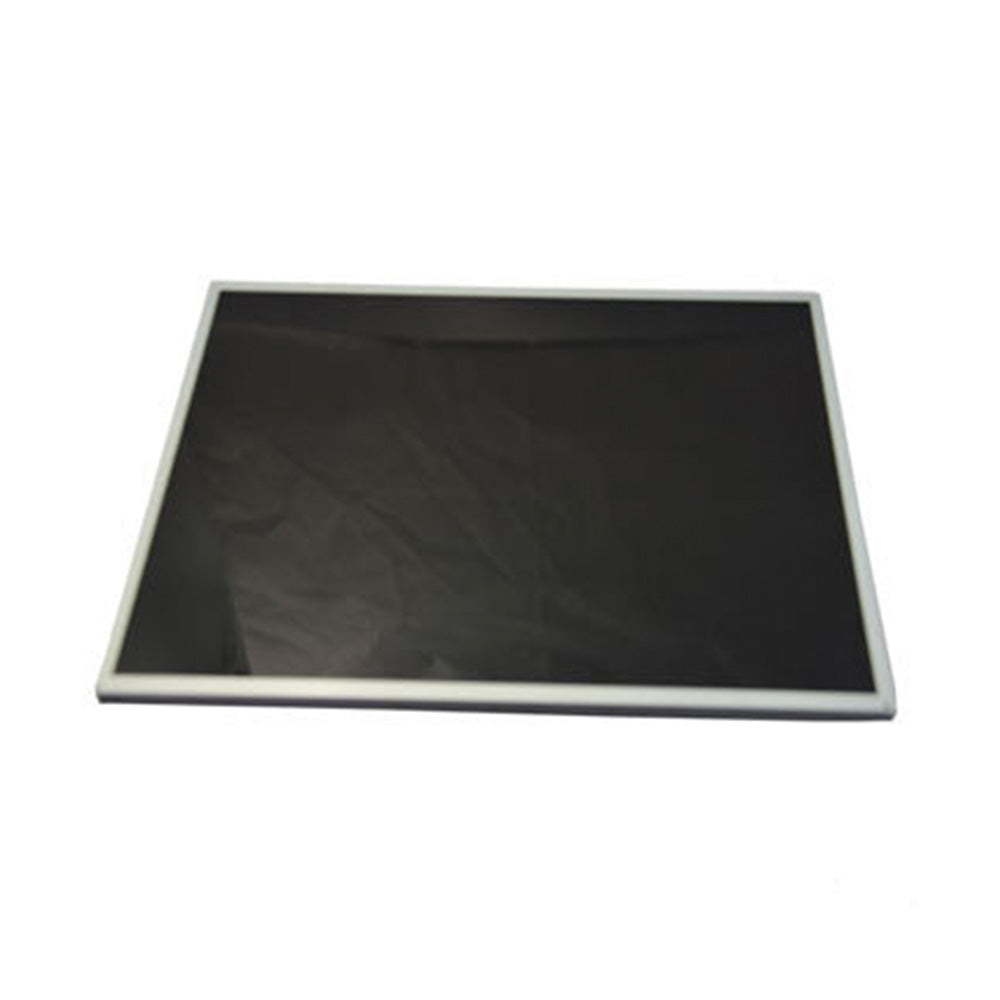

- Module No：G190EAN01.1
- Size：19 inch
- Brightness：1300 cd/m²
- Viewing angle：89/89/89/89
- Interface：LVDS (2 ch, 8-bit) , 30 pins
- CR：1000 : 1
- Operating Temp.: 0 ~50 °C
|Pixel Number||1280(RGB)×1024 [SXGA]|
|Active Area(mm)||376.32 ×301.056 mm (H×V)|
|Outline(mm）||396 × 324 × 17.5 mm(H×V×D)|
|Bezel Area(mm)||380.32 × 305.06 mm (H×V)|
|Treatment||Hard coating (3H)|
|Luminance||1300 cd/m² (Typ.)|
|Contrast Ratio||1000 : 1 (Typ.) (TM)|
|Viewing Angle||89/89/89/89 (CR≥10)
|Response||13/12 (Typ.)(Tr+Td) ms|
|Work Mode||AHVA, Normally Black，Transmissive|
|Color Depth||16.7M , 72% NTSC|
|Backlight||50K hours,with LED Driver|
|Net Weight||1.55Kgs (Typ.)|
|Signal Type/interface Type||LVDS (2 ch, 8-bit) , 30 pins|
|Voltage Supply||5.0V (Typ./Max.)|
Storage Temp.: 0 ~ 50 °C
Operating Temp.: -20~60°C
|Package||9 pcs/ carton|
AUO 19inch G190EAN01.1 is a high brightness LCD of 1300nits.
Designed for medical applications.
With optical bonding available, it has super long lifetime of backlight 50K hours, with LED driver embedded.
AUO 19inch LCD with good price, and stable supply.
