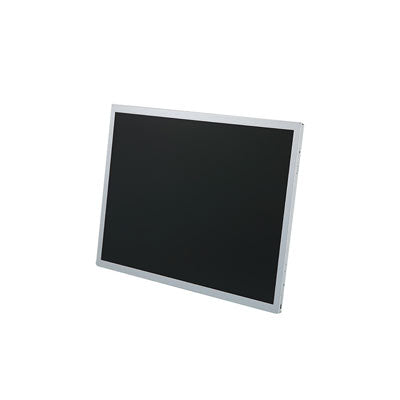

- Module No：G150XNE-L01
- Brand：INNOLUX
- Size：15.0
- Resolution：1024X768
- Brightness：500 cd/m2
- Viewing angle：85/85/85/85
- Interface：LVDS
- CR：2500:1
- Operating Temp.: -30 ~ 80°C
- Parameters
| Manufacturer | Innolux |
| Model Name | G150XNE-L01 |
| Screen Size | 15.0” |
| Pixel Number | 1024X768 |
| Active Area(mm) | 304.1 (H) x 228.1(V) mm |
| Outline(mm） | 326.5x253.5 x9.1mm |
| Treatment | Hard Coating (3H), Anti-Glare |
| Luminance | 500cd/m2 |
| Contrast Ratio | 2500:1 |
| Viewing Angle | 88/88/88/88 |
| Response | 25ms |
| Work Mode | MVA, Transmissive mode / Normally black |
| Color Depth | 16.7M / 262K |
| Backlight | LED ,70k Hours |
| Net Weight | 960g |
| Touchscreen | without |
| Signal Type/interface Type | LVDS |
| Voltage Supply | 3.3V |
| Temperature | Storage Temp.: -40 ~ 80 °C Operating Temp.: -30 ~ 80 °C |
| Package | As request |
G150XNE-L01 is a 15.0” TFT LCD IAV module with LED Backlight units and 20 pins LVDS interface.
This module supports 1024 x 768 XGA mode and can display 16.7M/262k colors.
The PSWG is to establish a set of displays with standard mechanical dimensions and select electrical interface requirements for an industry standard 15.0” XGA LCD panel.
LED driving device for backlight is built in PCBA.
Often used for machinery display panel, amusement parks and transportation systems.
