Innolux

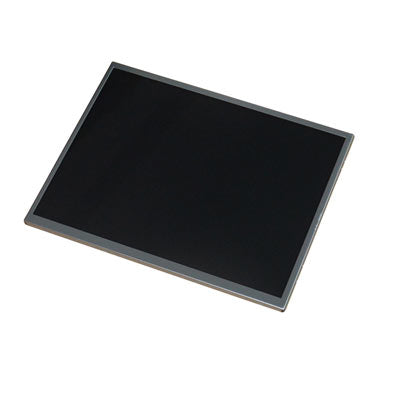

G121XCE-L02 Innolux

Regular price $168.00
Regular price Sale price $168.00
Sale Sold out
Delivery Guarantee

Delivery Guarantee

Technical Support

Technical Support

  • Module No:G121XCE-L02
  • Brand:INNOLUX
  • Size:12.1
  • Resolution:1024x768
  • Brightness:500 cd/m2
  • Viewing angle:89/89/89/89
  • Interface:LVDS
  • CR:1000:1
  • Operating Temp.: -30 to +70
  • Parameters
Manufacturer INNOLUX
Model Name G121XCE-L02
Screen Size 12.1
Pixel Number 1024X768
Active Area(mm) 245.76x184.32(HxV)
Outline(mm) 260.5(W)x204(V)x8.4(D)mm
Bezel Area(mm) 269.12 x173(HxV)
Treatment Hard coating (3H), Anti-Glare
Luminance 500 cd/m² (Typ.)
Contrast Ratio 1000 : 1 (Typ.) (TM)
Viewing Angle 89/89/89/89(CR≥10) Left / Right / Up / Down
Response 25 (Typ.)(Tr+Td) ms
Work Mode Normally black, Transmissive
Color Depth 262K/16.2M
Backlight 50K hours,With Driver
Net Weight 490g
operating frequency 60Hz
Touchscreen Without, RTP+CTP for options
Signal Type/interface Type LVDS(1 ch, 8 bit) , 20 pins,connector
Voltage Supply 3.3V (Typ.)
Temperature Storage Temp.: -40 ~80 °C
Operating Temp.: -30~70 °C
Package As request


Innolux 12.1" TFT LCD G121XCE-L02 replace for G121X1-L04 with resolution 1024x768, good view angle in up and down, left and right side.

High brightness 500nits, for outdoor use, and Medical and Military applications
some quantities available in inventory, please contact us for more support.
