- Module No：G101STN01.C
- Size：10.1 inch
- Viewing angle：70/70/60/60
- Interface：LVDS (1 ch, 6/8bit) , 40 pins
- Operating Temp.: -30-80sheshid
|Pixel Number||1024(RGB)×600 (WSVGA)|
|Active Area(mm)||222.72 × 125.28 mm (H×V)|
|Outline(mm）||235 × 143 × 5.2 mm (H×V×D)|
|Bezel Area(mm)||226.43 × 128.1 mm|
|Treatment||Hard coating，Reflectivity 1.5% (Max.)|
|Luminance||500 cd/m² (Typ.)|
|Contrast Ratio||500 : 1 (Typ.) (TM)|
|Response||20 (Typ.)(Tr+Td) ms|
|Work Mode||TN, Normally white， Transmissive|
|Color Depth||262K , 45% NTSC|
|Backlight||50K hours,without LED Driver|
|Net Weight||180g (Typ.)|
|Signal Type/interface Type||LVDS (1 ch, 6/8-bit) , 40 pins|
|Voltage Supply||3.3V (Typ./Max.)|
Storage Temp.: -30 ~ 80 °C
Operating Temp.: -30 ~80 °C
|Package||35 pcs/ carton|

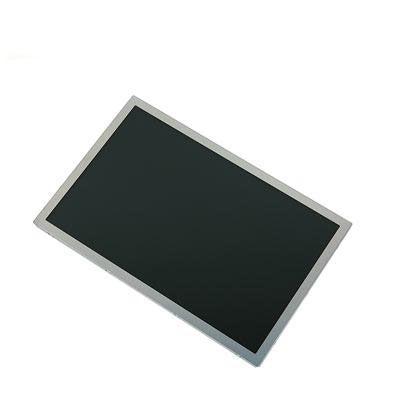

AUO 10.1 TFT LCD display G101STN01.C with 1024*600 resolution and brightness 500cd/m2.
Resistive and capacitive touch optional.
