Friendly Elec

Friendly Elec Smart4418 CPU Board

Regular price $38.75 USD
Regular price Sale price $38.75 USD
Sale Sold out

The Smart4418 CPU board is a quad core Cortex A9 CPU board designed and developed by Friendly Elec for industrial applications.



As a successor of the Smart210 CPU board it uses the Samsung Quad Core Cortex-A9 S5P4418 SoC with dynamic frequency scaling up to 1.4GHz. The standard Smart4418 CPU board has 1GB DDR3 RAM and 8GB eMMC. It's PMU supports software power off/on and wake-up functions. In addition its Gbps Ethernet and audio jack make it suitable forvarious industrial applications.

The Smart4418 CPU board takes 2.0mm pitch double row pin headers(P1, P2 and P4) containing 174 pins in total. These pins contain most popular interface pins. By default we have P1 and P2 soldered on the board and leave P4 for users' applications. It can work with various FriendlyARM LCDs e.g. 3.5"LCD, 4.3"LCD, 5"LCD, 7"LCD and 10.1"LCD etc.

In addition we have a Smart4418/6818SDK carrier board which enables the Smart4418 CPU board' s various ports and interfaces. The Smart4418 SDK carrier board has a SATA interface and a min PCIe interface that supports an external 4G module. It is also compatible with RPi's interface.

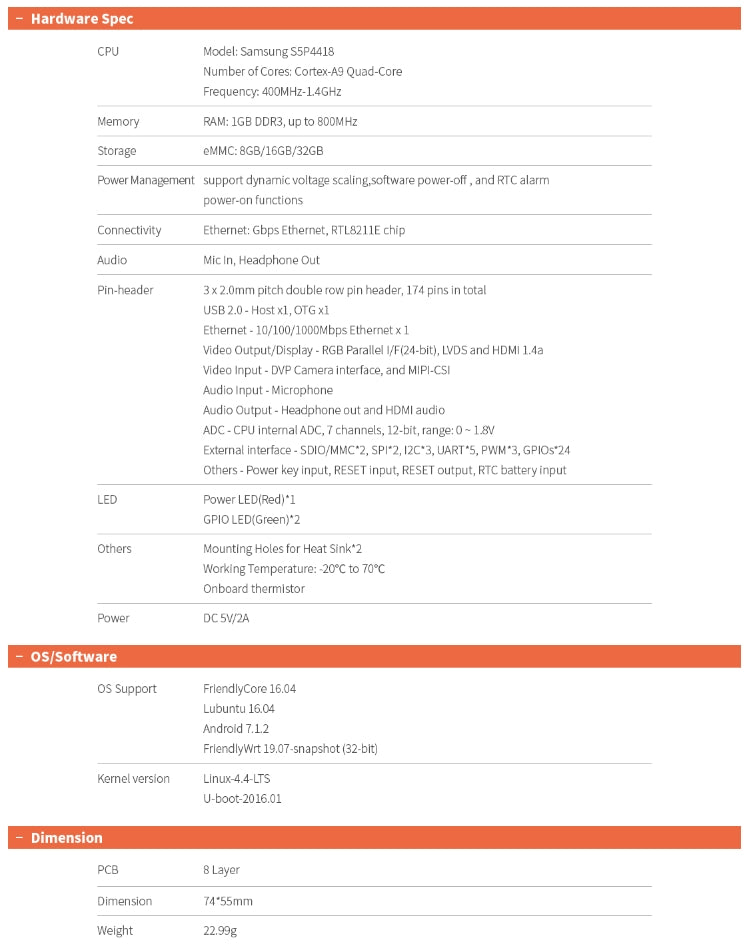

Technical Specs CPU & SDK BOARD:
Price Excluding the SDK Board
CPU

Model: Samsung S5P4418
Number of Cores: Cortex-A9 Quad-Core
Frequency: 400M Hz-1.4GHz

Memory RAM: 1GB 32 Bit DDR3, up to 800MHz
Storage eMMC: 8GB/16GB/32GB
Power Management Supports dynamic voltage scaling, software power-off, and RTC alarm power-on functions.
Connectivity Ethernet: Gbps Ethernet 10/100/1000Mbps Ethernet x 1, RTL8211E chip,  with unique MAC
Video
  • Video output/Display - RGB Parallel I/F (24-bit), LVDS and HDMI 1.4a
  • Video input - DVP Camera interface, ITU-R BT 601/656 8-bit and MIPI-CSI
Audio
  • Audio input - Microphone
  • Audio output - Audio jack (with headset detection) and HDMI audio
Pin-header 3 x 2.0mm pitch double row pin header, 174 pins in total
ADC CPU internal ADC, 7 channels, 12-bit, range: 0 ~ 1.8V
External interface SDIO/MMC x2, SPI x2, I2C x3, UART x5, PWM x3, GPIOs x24
OS/Software
  • Android 7.1.2
  • Android 7.0
  • Lubuntu 16.04
  • Ubuntu-core
  • FriendlyCore 16.04
  • FriendlyWrt 19.07-SnapShot (32 Bit)
  • Debian8
  • u-boot
Kernel Version
  • Linux-4.4-LTS
  • U-boot-2016.01
USB
  • USB 2.0  Host x1, OTG x1
LED
  • 1 x power LED
  • 2 x GPIO Controlled LED
Others
  • onboard thermistor
  • Power key input
  • RESET input, RESET output
  • RTC battery input
  • Mounting Holes for Heat Sink*2
Power DC 5V, up to 1.2A
Dimensions
  • PCB: 74 x 55 mm, 8-Layer
  • -40℃ to 80℃
