Friendly Elec

Friendly Elec NanoPi CM3588 Board

$94.75
$94.75
Sale Sold out
Shipping calculated at checkout.
Delivery Guarantee

Delivery Guarantee

 Technical Support

Technical Support

Friendly Elec NanoPi CM3588 Friendly Elec Board



  • The CM3588 is a high performance ARM module designed and developed by FriendlyElec. It is based on Rockchip’s RK3588 SoC. The regular version has 4/8/16GB LPDDR4x RAM, 64GB eMMC Flash(optional), The CM3588 have four 100-pin connectors, exposing nearly all IO resources.
  • The CM3588 computing module boasts a variety of peripherals and expansion interfaces. It can connect to a carrier borad supporting 4 NVMe high-speed solid-state drives with read/write speeds of up to 1GB/s. Additionally, it includes dual HDMI-Out display interfaces, 1 HDMI-In interface, 2 USB3.0 ports, 1 USB2.0 port, a 2.5G Ethernet interface, and more.
  • The carrier borad (CM3588 NAS Kit) have 2 HDMI output interfaces and 1 HDMI In interface can decode and play videos in formats such as up to 8K60p H.265/VP9 and 8K30p H.264, with the ability to record 4K60p H.265 videos.
  • The CM3588 offers the OpenMediaVault NAS system and supports various operating systems including Android, Ubuntu, Debian, Buildroot, and OpenWrt. It has well established software support. It is a perfect platform for startups to develop applications and prototypes in facial detection, machine vision, VR, autonomous-driving, deep learning, AI and etc.

Hardware Spec

  • SoC: Rockchip RK3588
    • CPU: Quad-core ARM Cortex-A76(up to 2.4GHz) and quad-core Cortex-A55 CPU (up to 1.8GHz)
    • GPU: Mali-G610 MP4, compatible with OpenGLES 1.1, 2.0, and 3.2, OpenCL up to 2.2 and Vulkan1.2
    • VPU: 8K@60fps H.265 and VP9 decoder, 8K@30fps H.264 decoder, 4K@60fps AV1 decoder, 8K@30fps H.264 and H.265 encoder
    • NPU: 6TOPs, supports INT4/INT8/INT16/FP16
  • RAM: 64-bit 4GB/8GB/16GB LPDDR4X at 2133MHz
  • Flash: 0GB/64GB eMMC, at HS400 mode
  • 1 x microSD interface, support up to SDR104 mode
  • 1 x On-board PCIe 2.5G ethernet controller (RTL8125B)
  • USB:
    • 2 x USB 3.1 Gen1 OTG which combo with DP display（up to 4Kp60）
    • 1 x USB 3.1 Gen1 Host
    • 2 x USB 2.0 Host
  • PCIe:
    • up to 4 x PCIe interfaces
      • 2 x PCIe 2.1 x1 and 2 x PCIe 3.0 x2
      • or 2 x PCIe 2.1 x1 and 1 x PCIe 3.0 x4
      • or 1 x PCIe 2.1 x1, 1 x PCIe 3.0 x2, and 2 x PCIe 3.0 x1
      • or 4 x PCIe 3.0 x1
  • HDMI output:
    • 2 x HDMI outputs which is compatible with HDMI2.1, HDMI2.0, and HDMI1.4 operation
    • one support displays up to 7680x4320@60Hz, another one support up to 4Kp60
    • Support RGB/YUV(up to 10bit) format
  • HDMI input: 1 x HDMI input, up to 4Kp60
  • MIPI RX:
    • 2 x 4lane MIPI DPHY CSI RX which support x4 mode or x2+x2 mode ,compatible with MIPI V1.2
    • 2 x 4lane MIPI_D/CPHY_RX
  • MIPI TX:
    • 2 x 4-lane MIPI D-PHY/C-PHY Combo PHY TX, compatible with MIPI DPHY 2.0 or CPHY 1.1
  • Codec:
    • On-board ALC5616 Codec
    • 1 x stereo headphone output ( 20mW/CH, THD+N <= -80dB, 16Ohm Load )
    • 1 x single-end microphone input
  • GPIO:
    • up to 3 x SPIs, 7 x UARTs, 6 x I2Cs, 15 x PWMs, 3 x I2Ss, 1 x SDIO, 81 x GPIOs
  • others:
    • low power RTC (HYM8563TS) with backup battery input
    • Support 38Khz IR input
    • MASK button for eMMC update, reset button, Power button, and recovery mode button
    • Debug UART,3.3V level, 1500000bps
    • 2 x GPIO Controlled LED (SYS, LED1)
  • Power supply: 5~20VDC input, 15W max

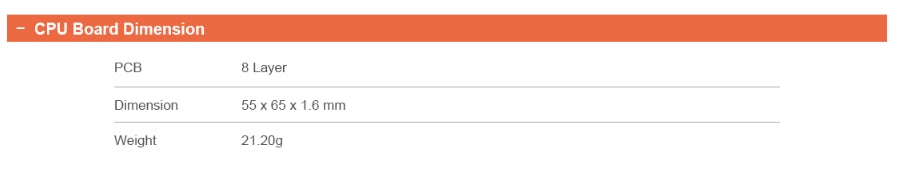

  • PCB: 8 Layers, 55x65x1.6mm
  • Stacking height: 6.6mm
  • Connector: 4 x DF40C-100DP-0.4V(51), the mating connector is DF40HC(3.0)-100DS-0.4V(51)
  • Ambient Operating Temperature: 0℃ to 70℃
