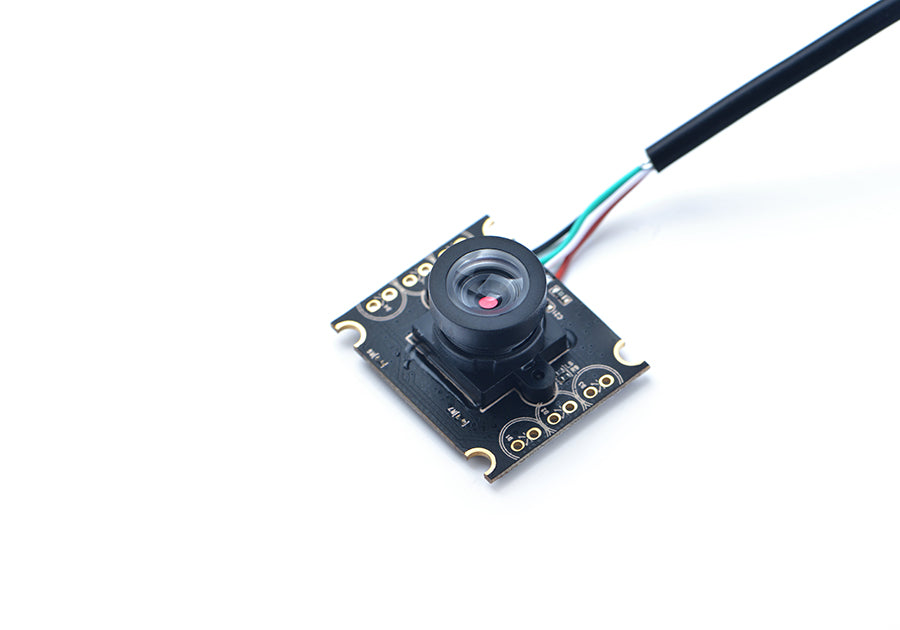

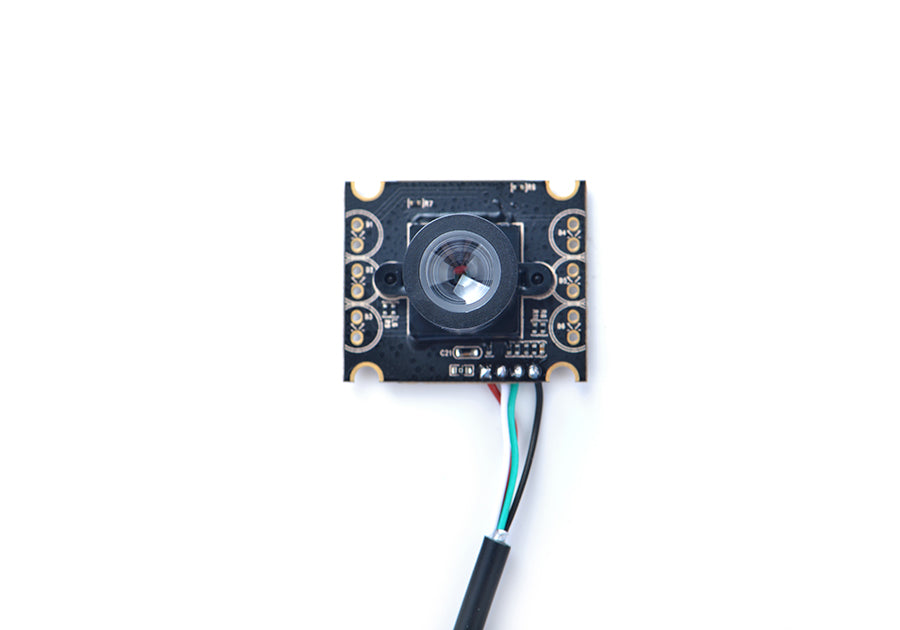

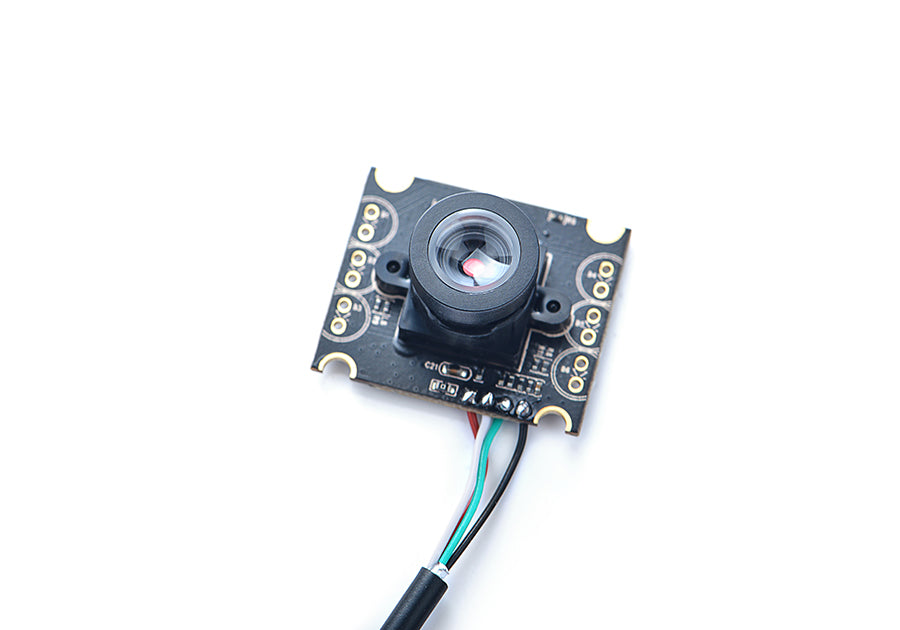

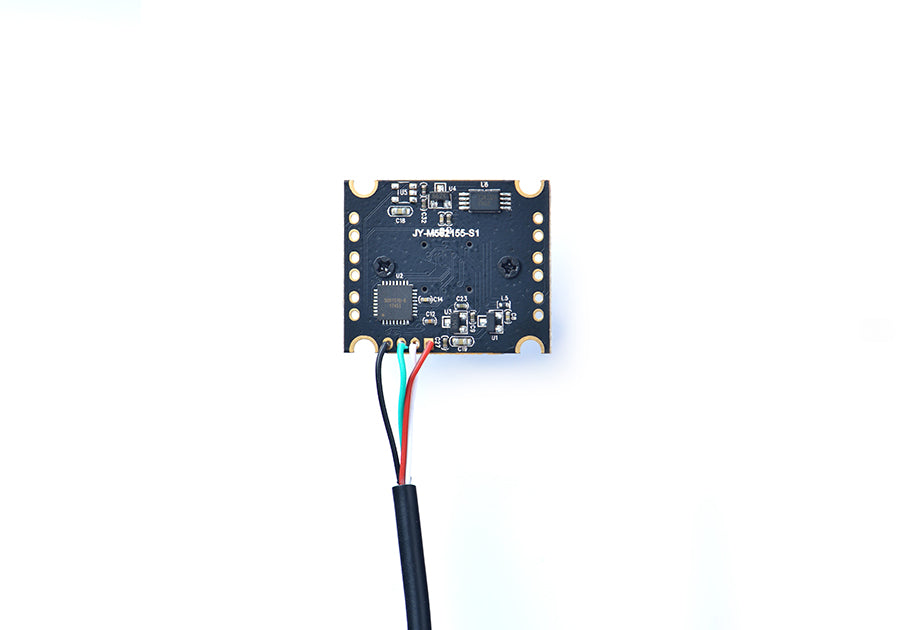

FriendlyARM developed a 200-million-pixel USB camera for the NanoPi2.
The camera module utilizes a high performance chip and is suitable for various projects.
| USB Camera Features | |
| Model | JY-M552155-S1 |
| Model Size | 30*25*5mm |
| Focus | Fixed focus |
| Object distance | 15cm-130cm |
| Resolution | 1600.1200(Center) |
| Interface | USB 2.0 |
| Power consumption | 110mW(VGA) |
| Certifications | FCC and CE |
| Sensor Type | 0C.2145(1/5”) |
| Active Array Size | 1280.720 |
| Sensitivity | TBD |
| Pixel Size | 1.751.1m x 1.75pm |
| Maximum Image Transfer Rate | 10fps@1280.720 |
| S/N Ratio | TBD |
| Dynamic Range | TBD |
| Lens Type | 3P+IR-8.8 |
| Lens Construction | JPM5M1532-6.5 FOV 85.7° |
| F/No | 3. |
| EFL | 2.3mm |
| BFL(Optical) | 1.2mm |
| FOV | 82° |
| TV Distortion | |
| Relative Illumination(Sensor) | 70% |
| IR Filter | 650±10nm |
| AGC/AEC/Whiter balance | Auto |
| Output Formats | USB suspend out |
| Fixed Pattern Noise | < 0.03% of VPEAK-TO-PEAK |
| Temperature(Operation) | -20°C - 70°C |
| Temperature( Stable Image) | 0°C - 50°C |
| IOS | XP, WIN7, Linux, Android, Mac OS |
